Display will appear as shown:

Fig. 185: Scan Tool Display - A/C System Signals (3 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -Q- button to enter input.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Display will appear as shown:

Fig. 186: Scan Tool Display - A/C System Signals (4 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 187: Scan Tool Display - A/C System Signals (5 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:

Fig. 188: Scan Tool Display - A/C System Signals (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

A/C compressor shut-off is checked via Output DTM.

z

The A/C compressor must stop within 5 secs, (visual check) then start approx. every 5 secs. and then
stop.

If A/C compressor NOT switched OFF

z

Proceed with Function 03: Output DTM, until completed.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Connect VAG1598/22 (or 1598/31) Test Box to ECM wiring harness

Fig. 189: Connecting VAG1598/22 (Or 1598/31) Test Box To ECM Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Check wiring for open circuit between following Test Box socket and A/C system using Electrical Wiring
Diagram.

See appropriate System Wiring Diagram article.

Up to MY 1999

Socket 16

From MY 2000

Socket 29

z

Wire resistance: 1.5 ohm maximum

A/C system signal to ECM (engine speed adaptation), checking

The A/C system signal make sure that the Engine Control Module maintains A/C system operation constant
regardless of load at idle.

Test sequence

z

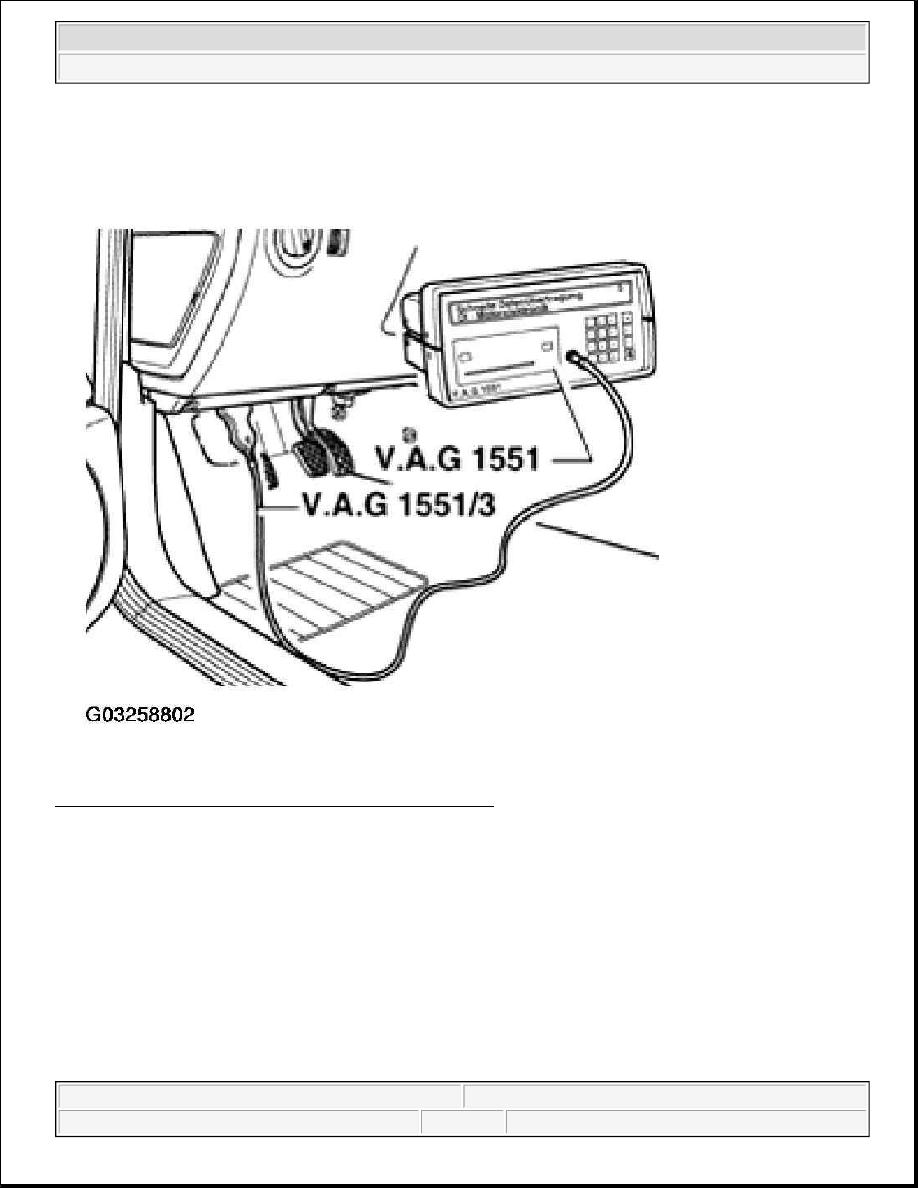

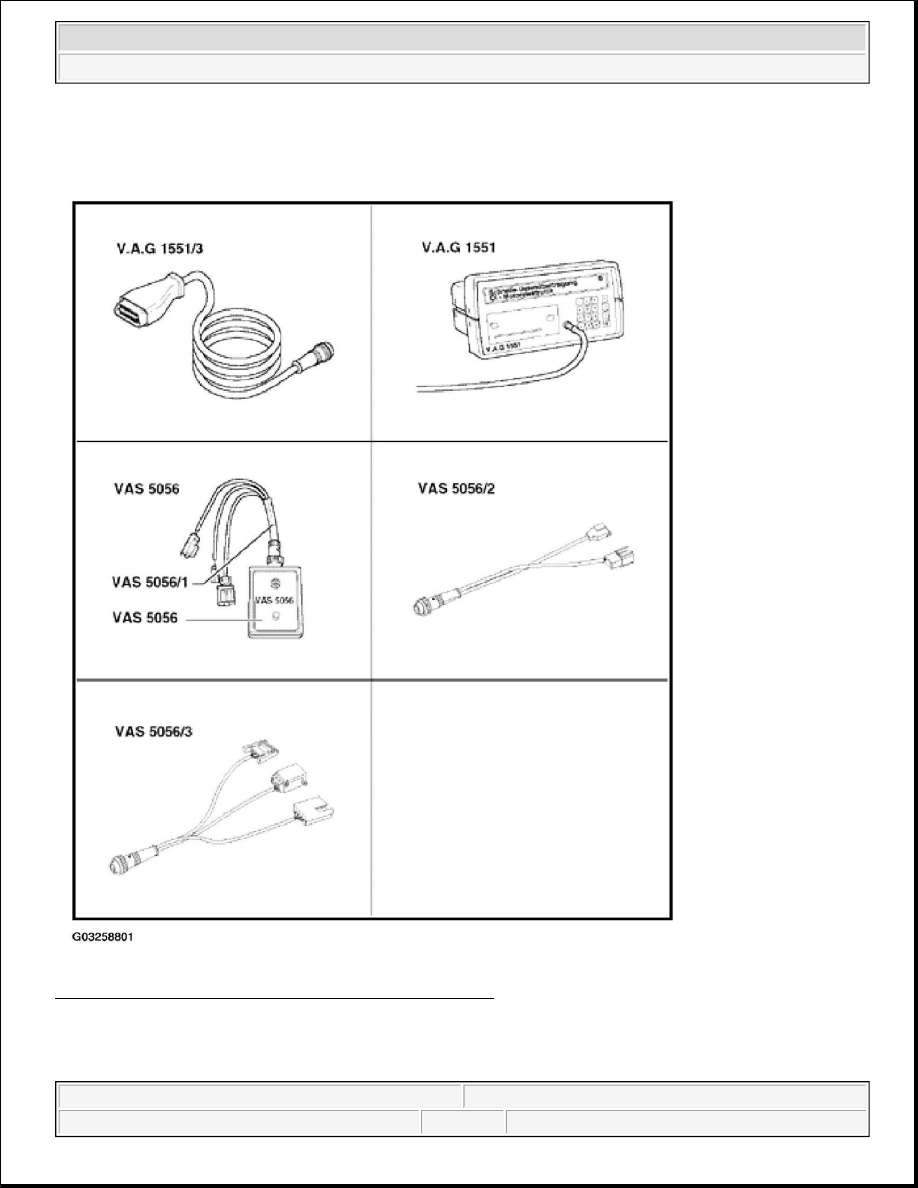

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

z

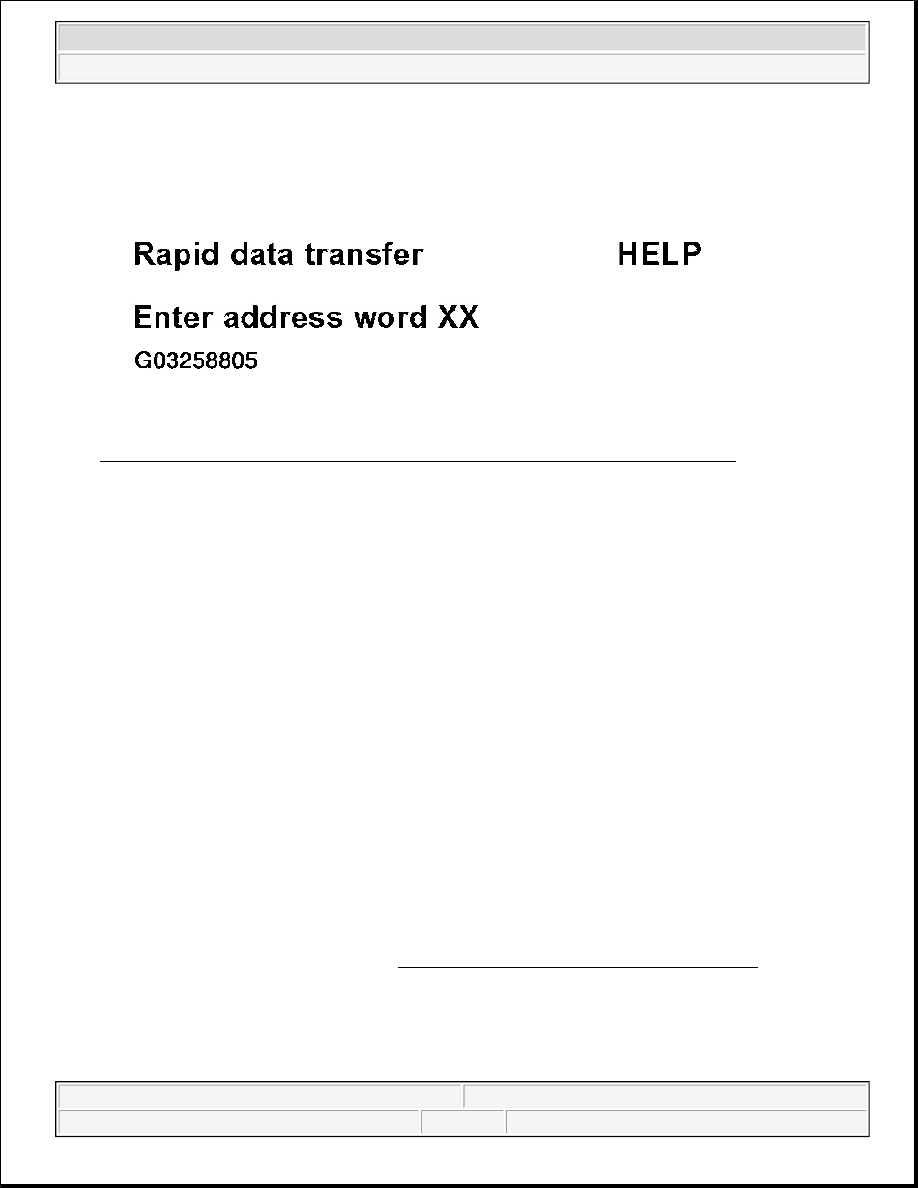

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

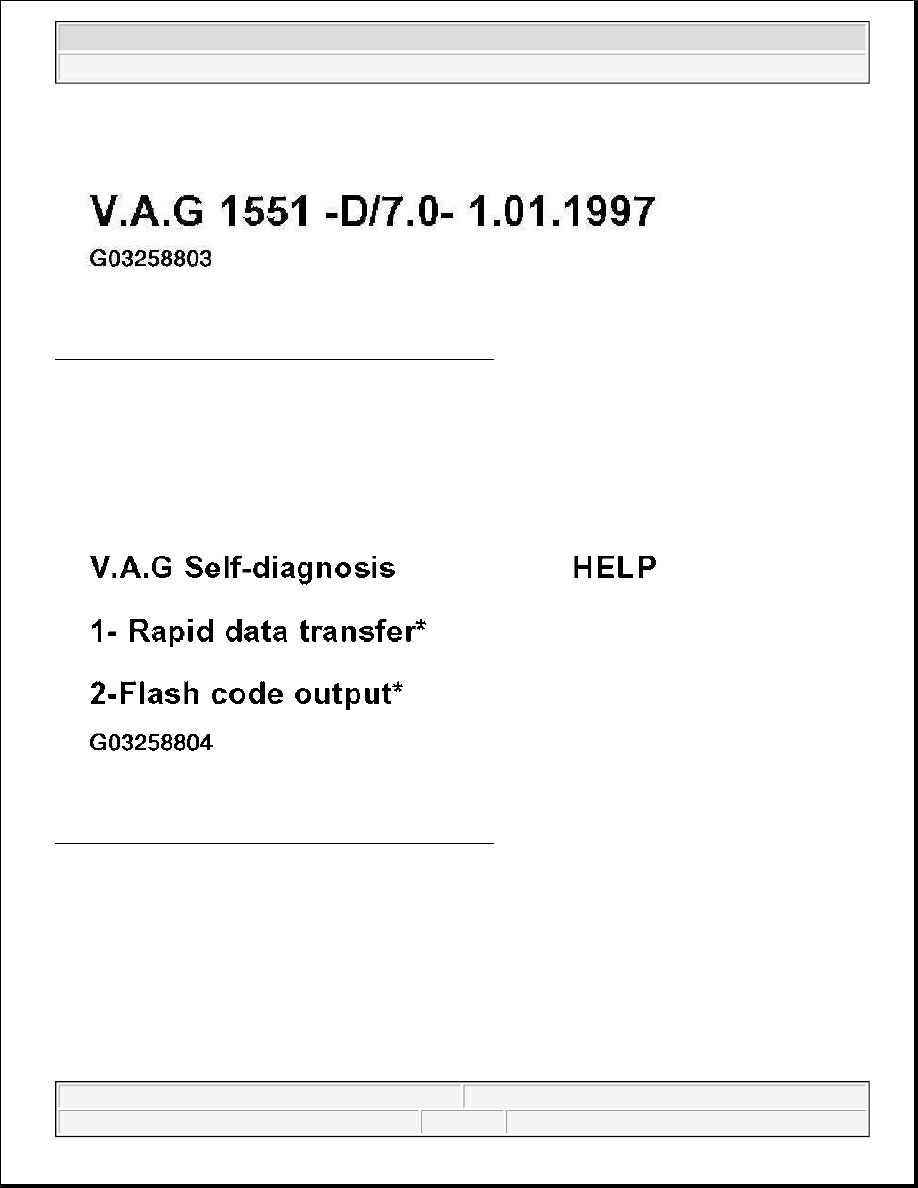

Display will appear as shown (example only):



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
