Volkswagen New Beetle. Manual - part 1328





Fig. 75: Identifying IAT Sensor Harness Connector Terminals
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Terminal 1 + socket 25



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



z

Terminal 2 + socket 13

z

Wire resistance: maximum 1.5ohm

z

Check wires for short to one another, to Ground and to Battery +

z

Specification: INFINITY ohm

If wiring OK:

z

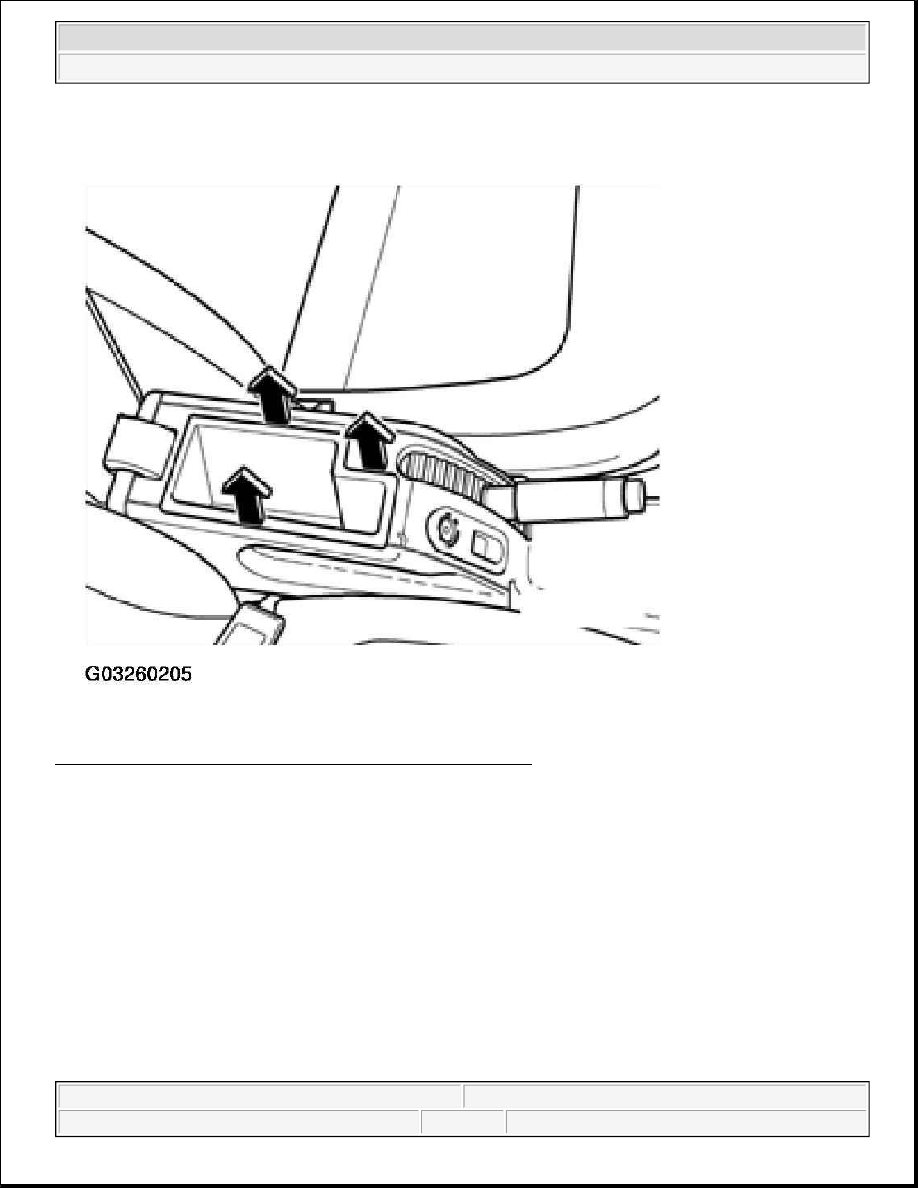

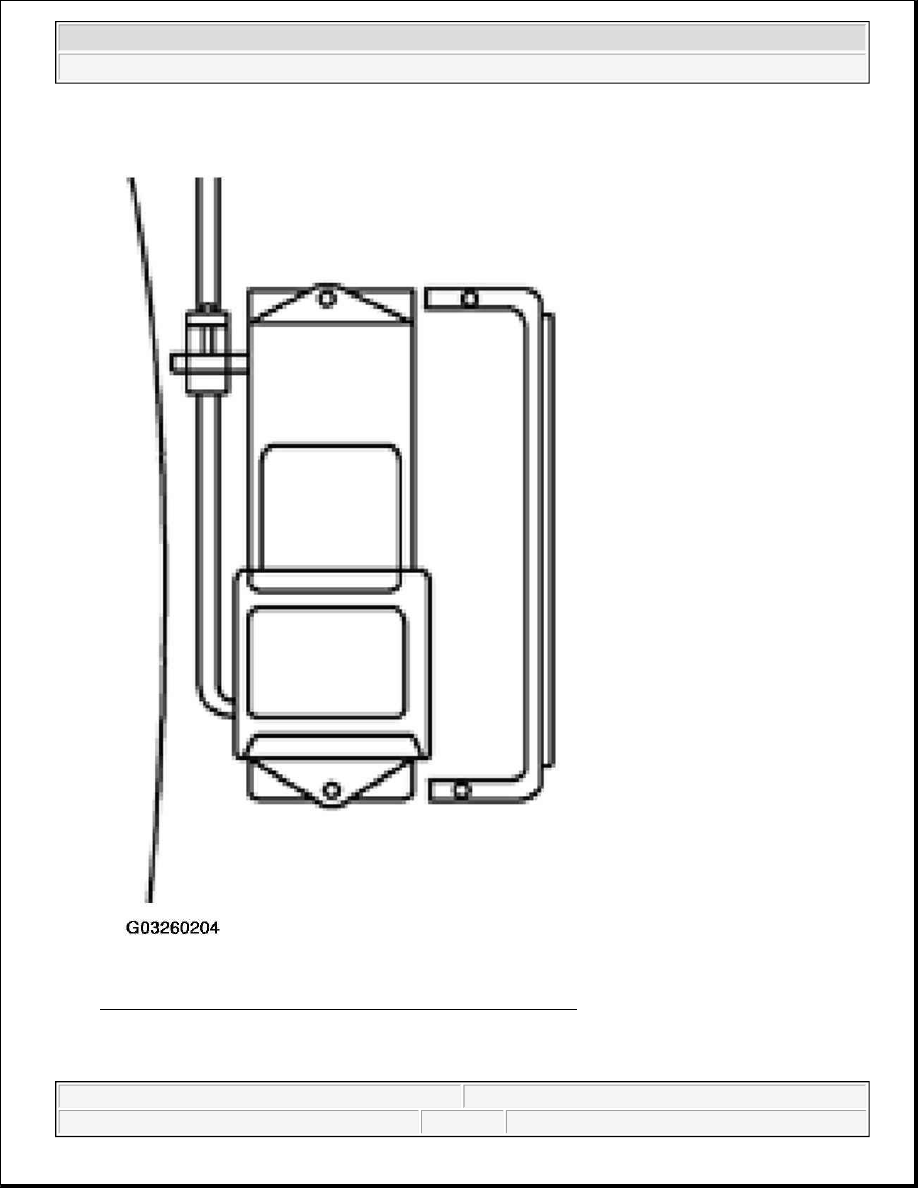

Replace Engine Control Module -J248-. See Engine Control Module (ECM), replacing .

z

Display the Readiness code. See READINESS CODE, DISPLAYING .

If DTC memory was erased:

z

Set the readiness code. See READINESS CODE, SETTING .

Fuel Temperature Sensor -G81-, checking

Special tools

z

VAG1551/1552 Scan Tool using VAG1551/3 Adapter cable

z

VAG1598/22 Test Box (MY 1999)

z

VAG1598/31 Test Box (from MY 2000)

z

Fluke 83 multimeter

z

VW 1594 Adapter kit

z

Wiring diagram

Test sequence

z

Connect VAG1551/1552 Scan Tool. See VAG1551/1552 SCAN TOOL, CONNECTING .

z

Start engine and let idle.

z

Press -0- and -1- buttons to select Address word 01: "Engine electronics"

Display will appear as shown (example only):



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 76: Scan Tool Display - Fuel Temperature Sensor (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle

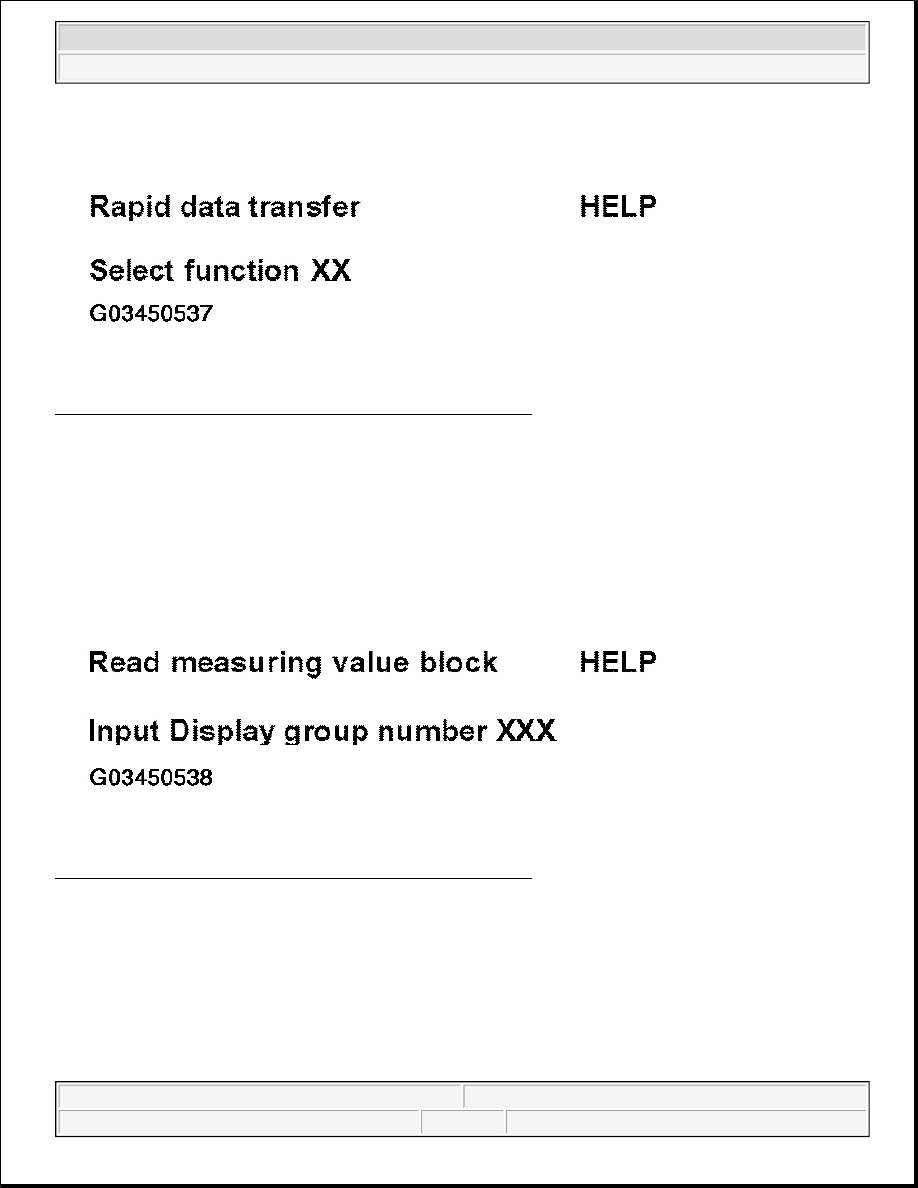

Fig. 77: Scan Tool Display - Fuel Temperature Sensor (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block"

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 78: Scan Tool Display - Fuel Temperature Sensor (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -7- to select "Display group 7".

z

Press -Q- button to enter input.

z

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
