Volkswagen New Beetle. Manual - part 1326





Fig. 67: Scan Tool Display - Intake Air Temperature Sensor (1 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press --> button.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Display will appear as shown:

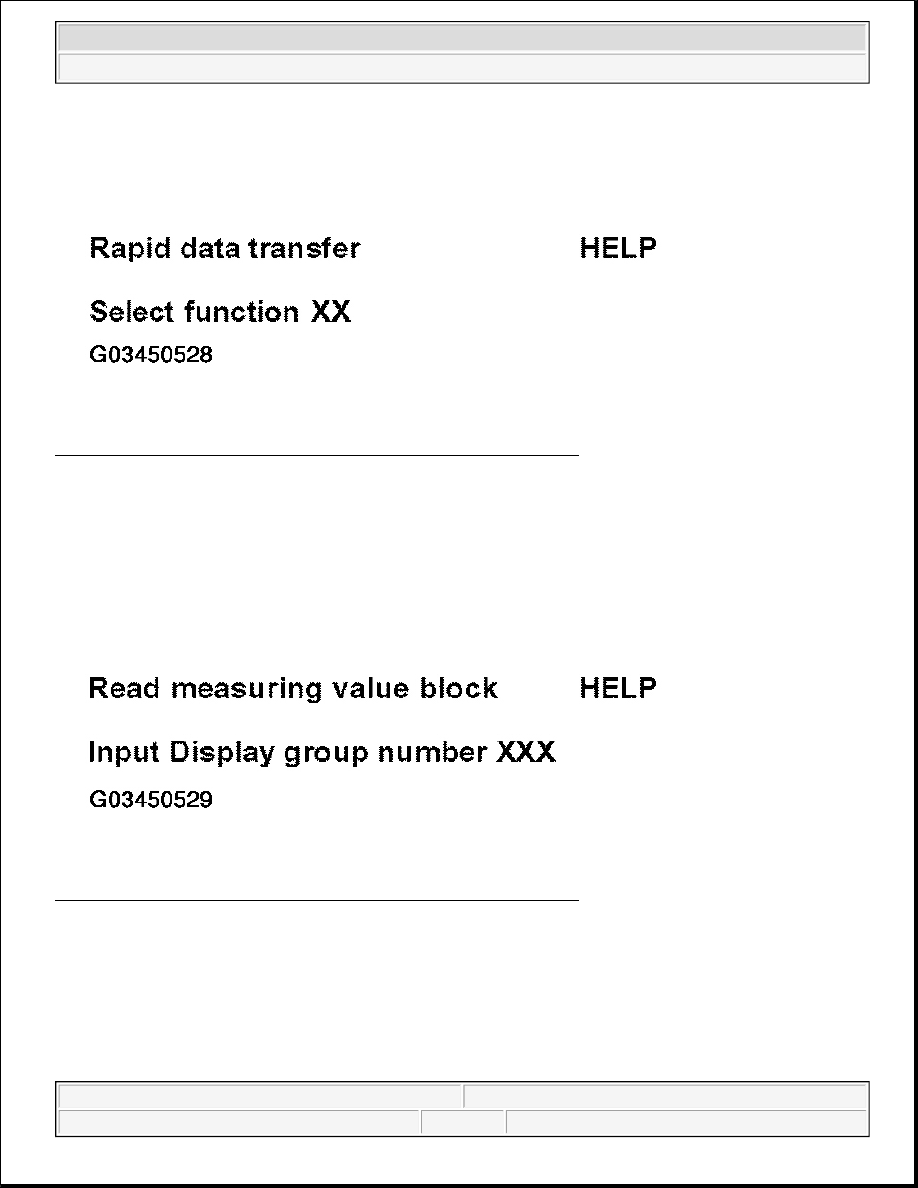

Fig. 68: Scan Tool Display - Intake Air Temperature Sensor (2 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -8- buttons to select Function 08: "Read measuring value block".

z

Press -Q- button to enter input.

Display will appear as shown:

Fig. 69: Scan Tool Display - Intake Air Temperature Sensor (3 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press buttons -0-, -0- and -7- to select "Display group 7".

z

Press -Q- button to enter input.

z

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



Fig. 70: Scan Tool Display - Intake Air Temperature Sensor (4 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

If an unrealistic value appears in Display zone 3 or a substitute temperature of 136.8 °C is displayed

z

Check Intake Air Temperature (IAT) Sensor -G72- and wiring to sensor as follows:

z

Press --> button.

Display will appear as shown:



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle



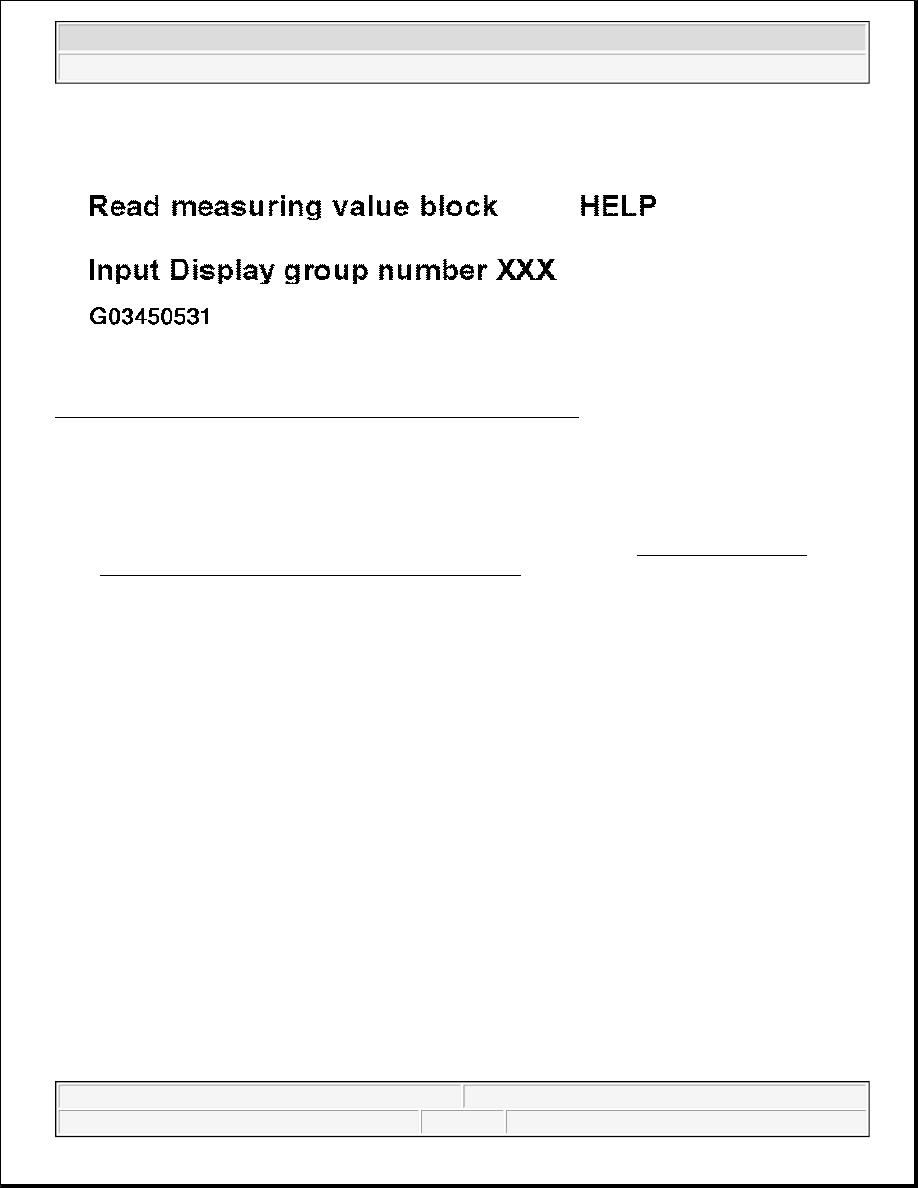

Fig. 71: Scan Tool Display - Intake Air Temperature Sensor (5 Of 5)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press -0- and -6- buttons to select Function 06: "End output".

z

Press -Q- button to enter input.

z

Switch OFF ignition.

z

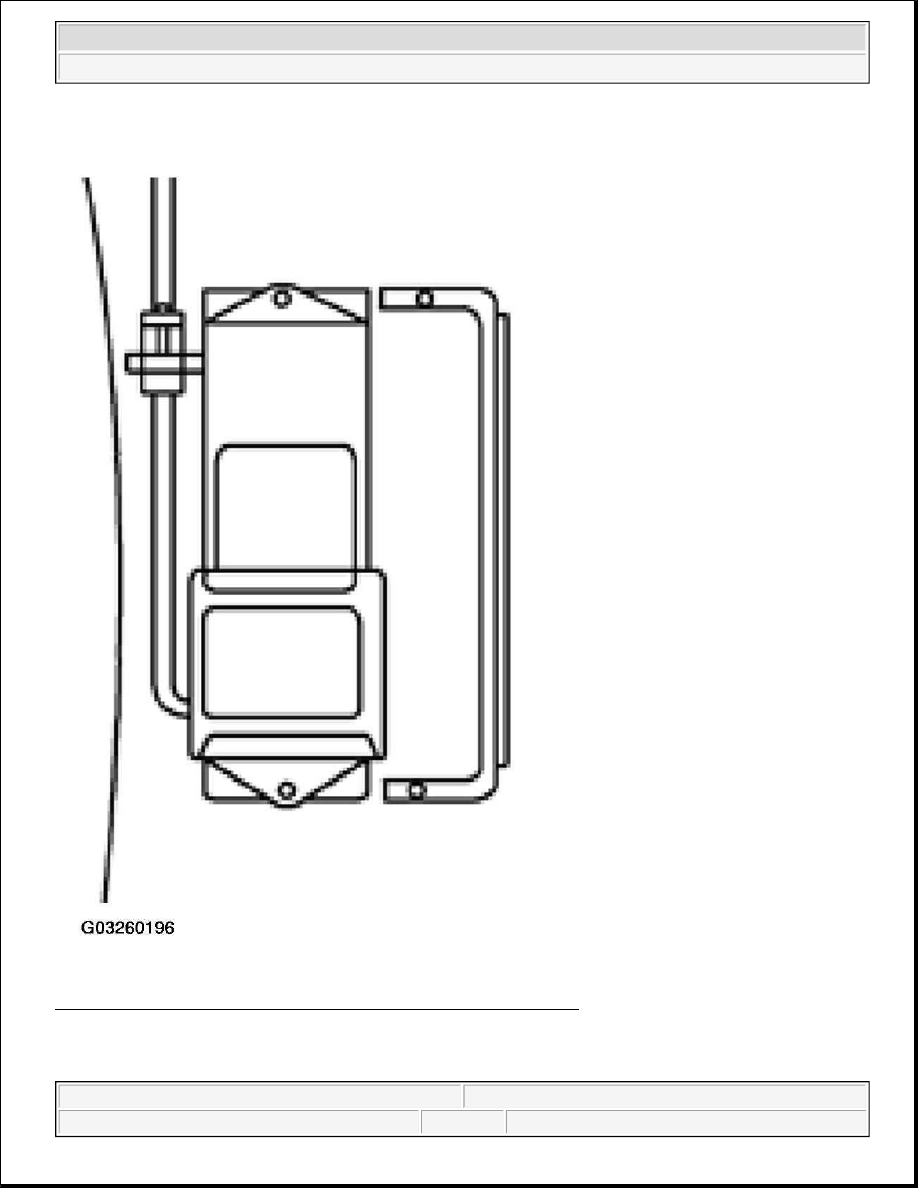

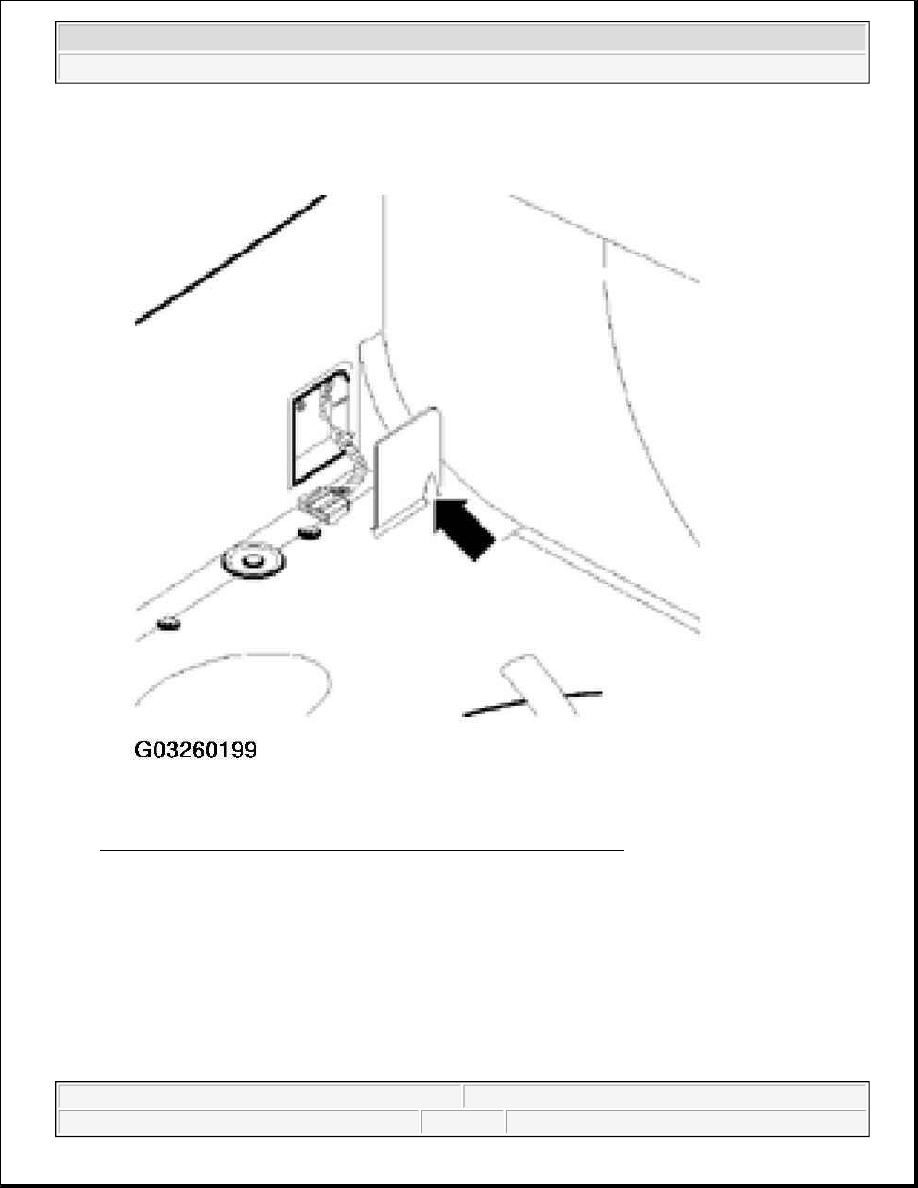

Disconnect -G72- harness connector: Component locations overview. See DIESEL INJECTION
SYSTEM, COMPONENT LOCATIONS OVERVIEW



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE PERFORMANCE Diesel Fuel Injection, 1.9L ALH - New Beetle
