Volkswagen New Beetle. Manual - part 1238





Fig. 49: Removing Pressure Hose At Motor For Secondary Air Injection Pump
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Remove inner plenum chamber cover, left side.

See PLENUM CHAMBER INNER COVER, REMOVING AND INSTALLING .

z

Connect test box VAG1598/31 to control module wiring harness. The engine control module is not
connected by this action.

NOTE:

To release, press together the buttons on the hose coupling.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



Fig. 50: Connecting Test Box VAG1598/31 To Control Module Wiring Harness
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Switch ignition on.

z

Bridge test box sockets 01 + 50 with aux. cables from VAG1594.

The secondary air injection pump motor must run and air must exit the connecting hose.

If the motor runs, but no air exits:

z

Switch ignition off.

z

Replace secondary air pump motor.

If the secondary air injection pump motor does not run:

z

Pull 2-pin connector off secondary air injection pump motor -V101-.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



z

Connect diode test lamp VAG1527B to disconnected connector using aux. cables from VAG1594.

LED must light up.

Fig. 51: Connecting Diode Test Lamp VAG1527B To Disconnected Secondary Air Injection Pump
Motor Connector

Courtesy of VOLKSWAGEN OF AMERICA, INC.

If LED lights up (voltage supply OK):

z

Switch ignition off.

z

Replace secondary air pump motor.

If LED does not light up:

z

Reconnect 2-pin connector.

z

Initiate Output Diagnostic Test Mode (DTM) and activate EVAP canister purge regulator valve -N80-.

See Output Diagnostic Test Mode (DTM) .

z

Check DTC memory.

See Diagnostic Trouble Code (DTC) Memory, Checking And Erasing .

z

Read readiness code.

See Readiness Code, Displaying .

If the DTC memory has been erased or the engine control module separated from the permanent positive, the



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



readiness code must be generated again.

See Readiness Code, Displaying .

Engine codes AWP, AWV

z

V.A.G 1551 Scan Tool

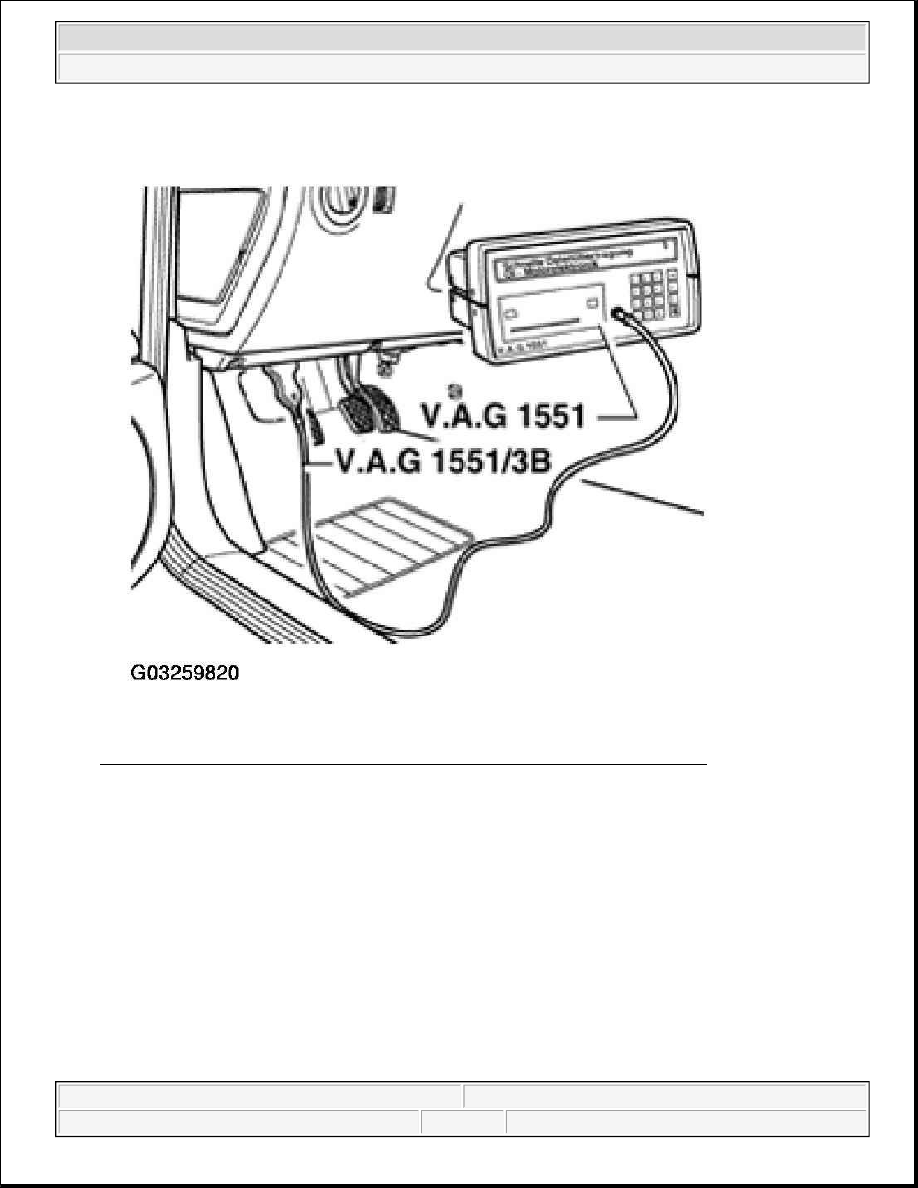

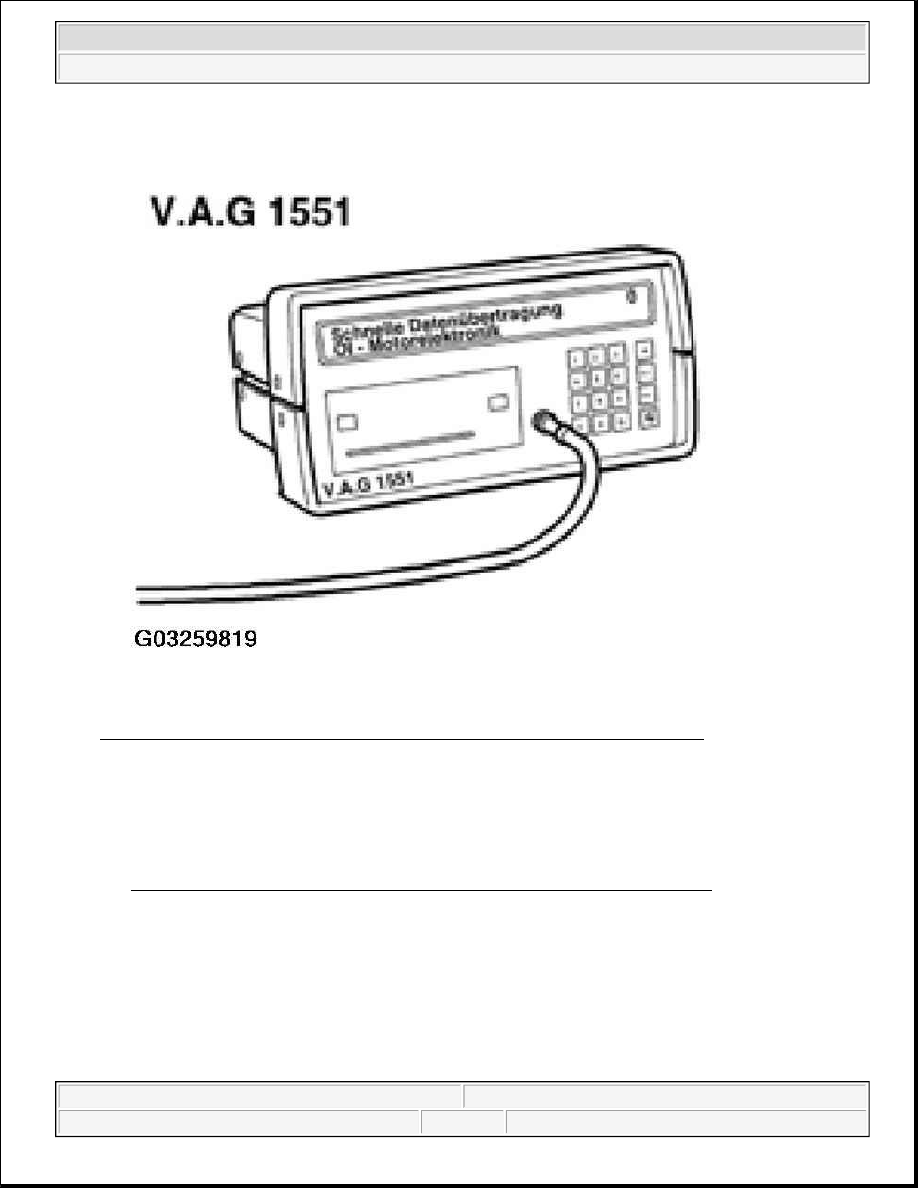

Fig. 52: Identifying V.A.G 1551 Scan Tool
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

V.A.G 1551/3B Cable

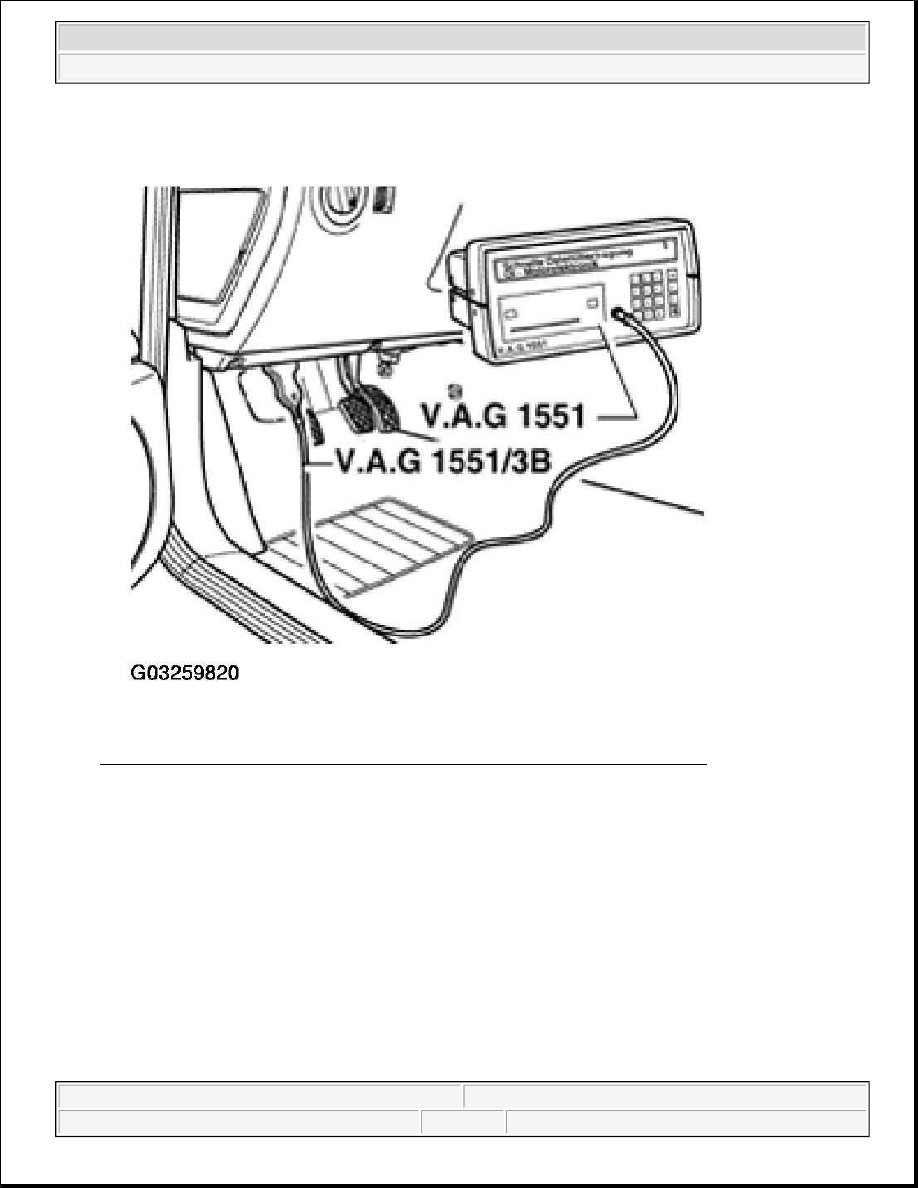

Fig. 53: Identifying V.A.G 1551/3B Cable
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Test conditions

NOTE:

The vehicle system tester V.A.G 1552 can be used instead of the VAG 1551
scan tool, however a print-out is not possible.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)
