Volkswagen New Beetle. Manual - part 1235





See Readiness Code, Displaying .

If the display indicates as described:

z

Remove engine speed adjuster VAG1788/10 from accelerator pedal.

z

Press --> key.

Indicated on display:

Fig. 41: V.A.G 1551 Scan Tool Display - Checking Catalyst (6 Of 6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

z

Press keys 0 and 6 for the function "End output" and confirm entry with the Q key.

z

Switch ignition off.



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



SECONDARY AIR SYSTEM

Function

The secondary air system blows air in behind the exhaust valve for 100 seconds during a cold start (+5° C to
+33° C coolant temperature). This produces an oxygen rich exhaust gas, causes afterburning and reduces the
heating-up phase of the catalyst. Activation occurs from the Motronic control module (ECM) -J220- via the
Secondary air injection (AIR) pump relay -J299- to secondary air inlet valve (-N112-, change-over valve) and
combi-valve.

Additionally, after each subsequent engine start (up to max. 96° C engine temperature), the secondary air
system will switch in for 10 seconds during idling and will be checked by the On Board Diagnostic (OBD).
When this occurs, the oxygen sensor control must be active.

Secondary air system components, removing and installing

1. Gasket

z

Replace

2. Combi-valve

z

Checking. See COMBI-VALVE, CHECKING

WARNING:

When doing any repair work, especially in the engine compartment, due
to the cramped conditions, pay attention to the following:

z

Route all sorts of lines (e.g. for fuel, hydraulics, evaporative
emissions system, coolant, refrigerant, brake fluid and vacuum lines
and hoses) and electrical wiring so that the original positions are
restored.

z

Make sure sufficient clearance to all moving or hot components.

NOTE:

z

Components marked with an * are checked by the On Board Diagnostic
(OBD).

See On Board Diagnostic (OBD) .

z

Components marked with ** are checked by the Output Diagnostic Test
Mode (DTM).

See Output Diagnostic Test Mode (DTM) .

z

Secondary air injection pump relay -J299-**. See Secondary Air Injection
(AIR) Pump Relay - J299

NOTE:

The following list refers to items in Fig. 42 .



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



z

Removing and installing. See COMBI-VALVE, REMOVING AND INSTALLING

3. Connecting pipe/hose

z

To distributor piece at vacuum reservoir on cylinder head cover

z

Check Turbocharging diagram:

Engine code APH: See TURBOCHARGING DIAGRAM .

Engine codes AWP, AWV: See ENGINE CODES AWP, AWV .

4. Secondary air injection (AIR) solenoid valve -N112-*/**

z

Secured to bracket with 6 N.m

z

Bracket secured to cylinder head cover

z

Resistance: 21-24 ohms

z

Checking. See SECONDARY AIR INJECTION (AIR) SOLENOID VALVE -N112-,
CHECKING
 .

5. Connector

z

Black, 2-pin

6. O-Ring

z

Replace

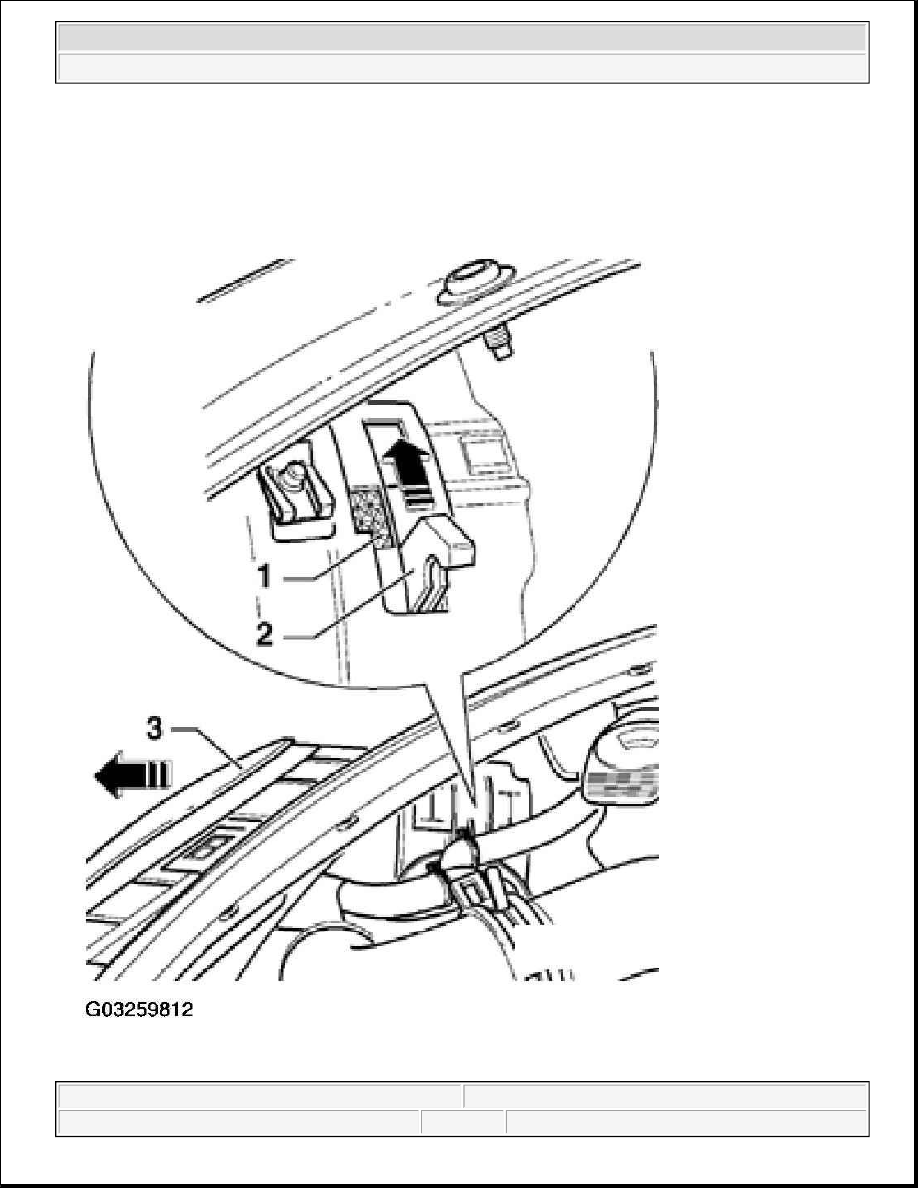

7. Secondary air injection (AIR) pump relay -J299-*/**

z

In relay/fuse box (pushed into cable guide next to brake master cylinder). See Secondary Air
Injection (AIR) Pump Relay - J299


8. Pressure hose

z

Ensure seated tightly

z

Press together at front to release

9. 10 N.m

10. Bracket

11. Retaining clip

12. Intake hose

z

From upper air filter housing

z

Ensure seated tightly

z

Press together at front to release

13. Secondary air injection (AIR) pump motor -V101-**

z

Checking. See SECONDARY AIR INJECTION (AIR) PUMP MOTOR -V101-, CHECKING

14. Bracket

z

For secondary air injection pump motor

z

Secured to intake manifold

15. 25 N.m

16. Intake pipe



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)



17. Cylinder head

18. 10 N.m



2003 Volkswagen New Beetle GLS

1998-2004 ENGINE Exhaust System, Emission Controls - New Beetle, 1.8L (APH, AWV & AWP)
