Volkswagen Golf Variant / Jetta. Manual - part 868





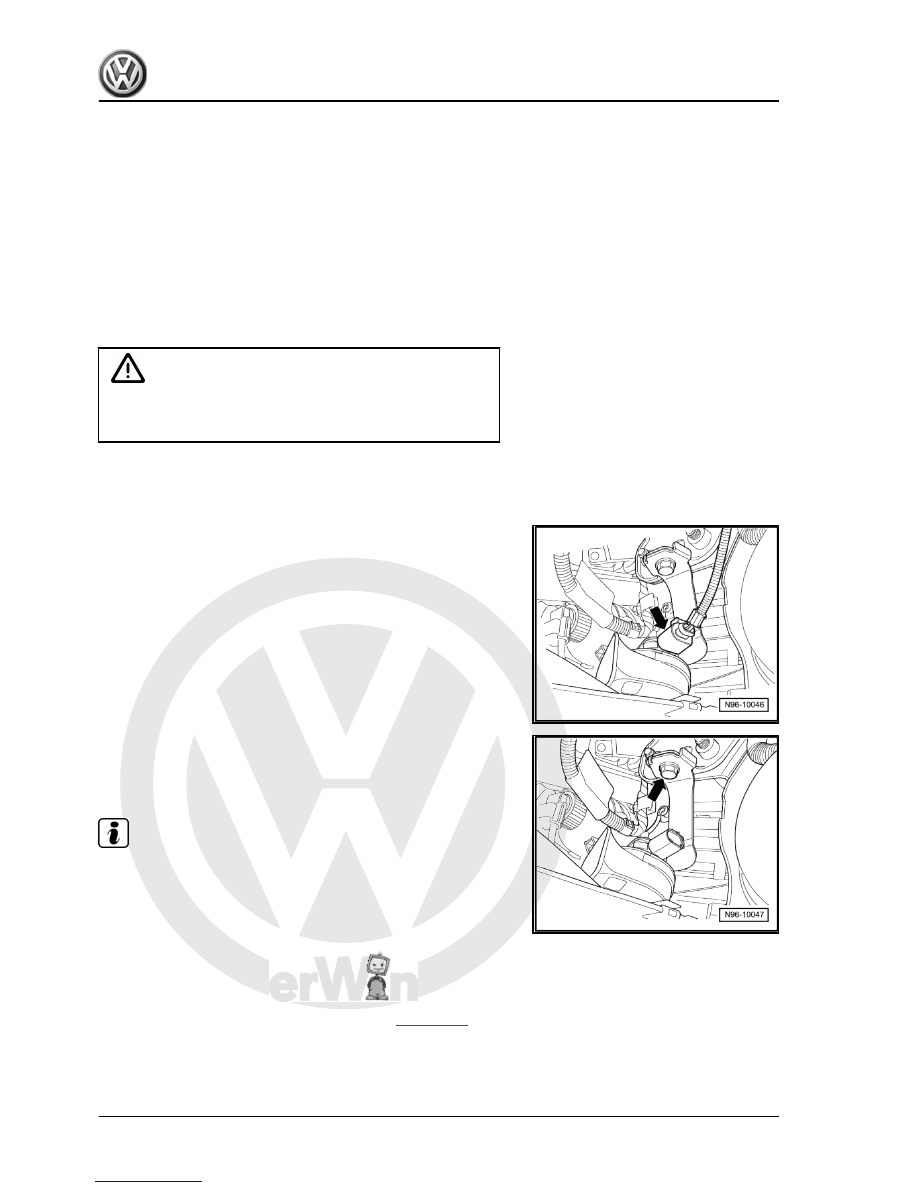

10.1

Removing and installing treble horn -

H2- / bass horn -H7-

The treble horn -H2- / bass horn -H7- are actuated in parallel by

the onboard supply control unit -J519- .
Treble horn -H2- / bass horn -H7- are installed on the left and right

next to the longitudinal members.
Treble horn -H2- / bass horn -H7- are installed and removed in

same way.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Disconnect connector -arrow-.

– Remove screw -arrow- and take out treble horn -H2- .
Installing
Installation is carried out in reverse order of removal.

Note

When installing, position the horn so it is not in contact with ad‐

jacent components.

– Tighten bracket bolt on longitudinal member to 20 Nm.

10.2

Checking treble horn -H2- / bass horn -

H7-

Treble horn -H2- / bass horn -H7- can be checked in final control

diagnosis of onboard supply control unit -J519-

⇒ page 453

 .

438



Vehicle diagnosis, testing and infor‐

mation systems

All the instructions and information for this manual are found in

the workshop manual „Electrical System, General Information“. A

link to this workshop manual is not possible at present for tech‐

nical reasons. Please select the workshop manual „Electrical

System, General Information“ manually in ELSA.

1. Vehicle diagnosis, testing and information systems

439



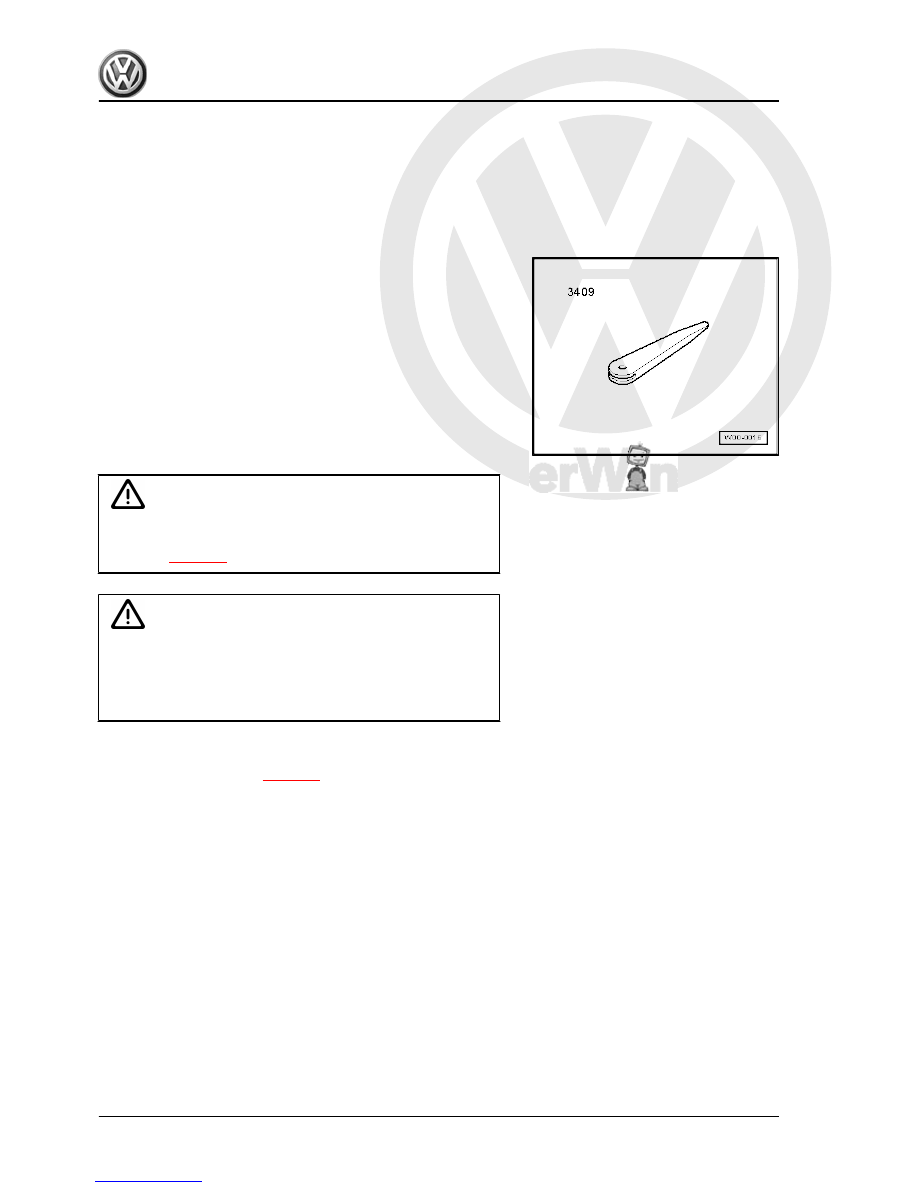

2.1

Removing and installing fuse holder on

left of dash panel

Special tools and workshop equipment required
♦ Removal wedge -VAS 3409-

Caution

When battery -A- is disconnected and reconnected, the pro‐

cedure  described  in  the  workshop  manual  must  be  strictly

observed

⇒ page 4

 .

Caution

♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -VAS 3409- , screwdriver) are used to lever

out those components using commercially available

masking tape.

Removing
– Disconnect battery -A-

⇒ page 4

 .

– Remove storage compartment on driver side ⇒  General body

repairs, interior; Rep. gr.  68 .

440

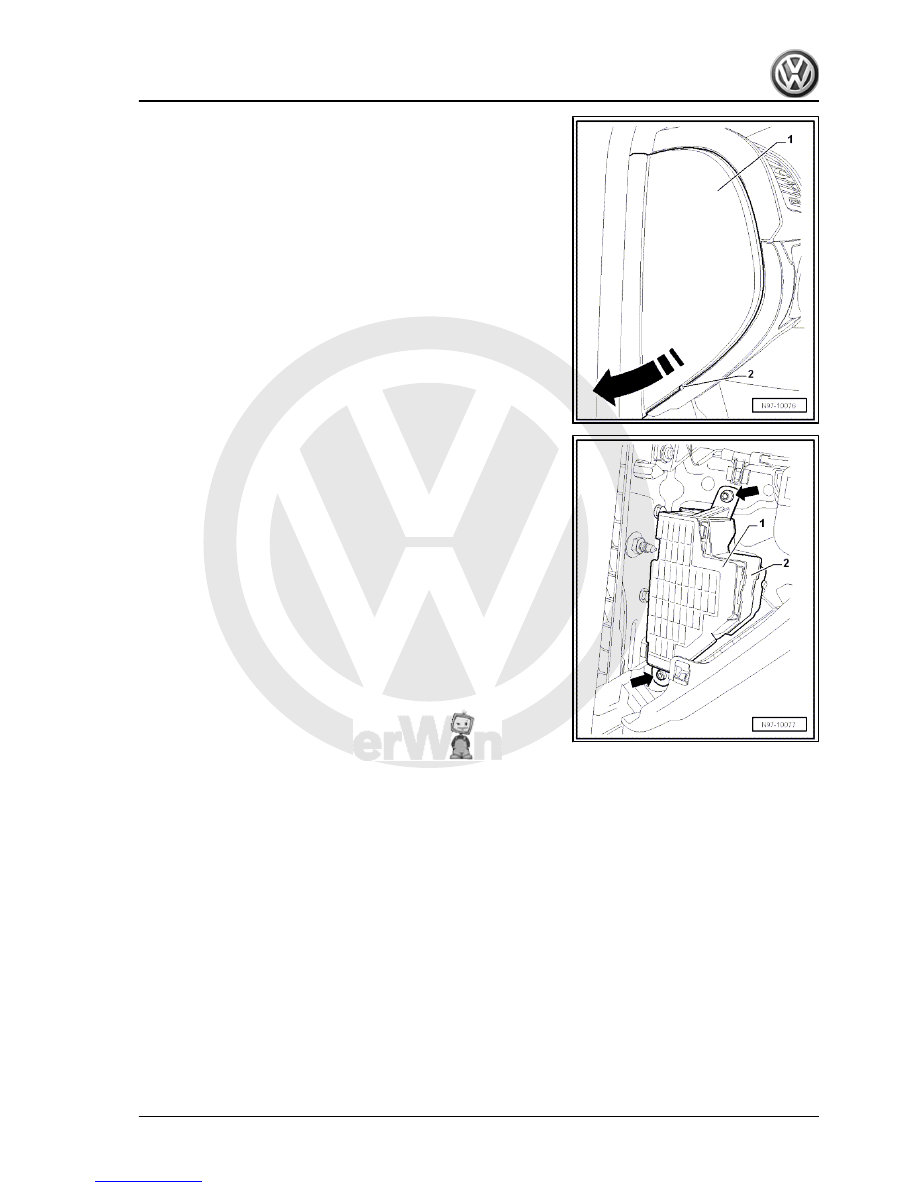

-1- in -direction of arrow-.

– Remove fuse assignment card -1- out of fuse holder -2-.
– Remove bolts -arrows- and guide out fuse holder -1- towards

interior (be careful not to stretch wiring).

Installing
Installation is carried out in reverse order of removal.

2. Removing and installing fuse holder

441
