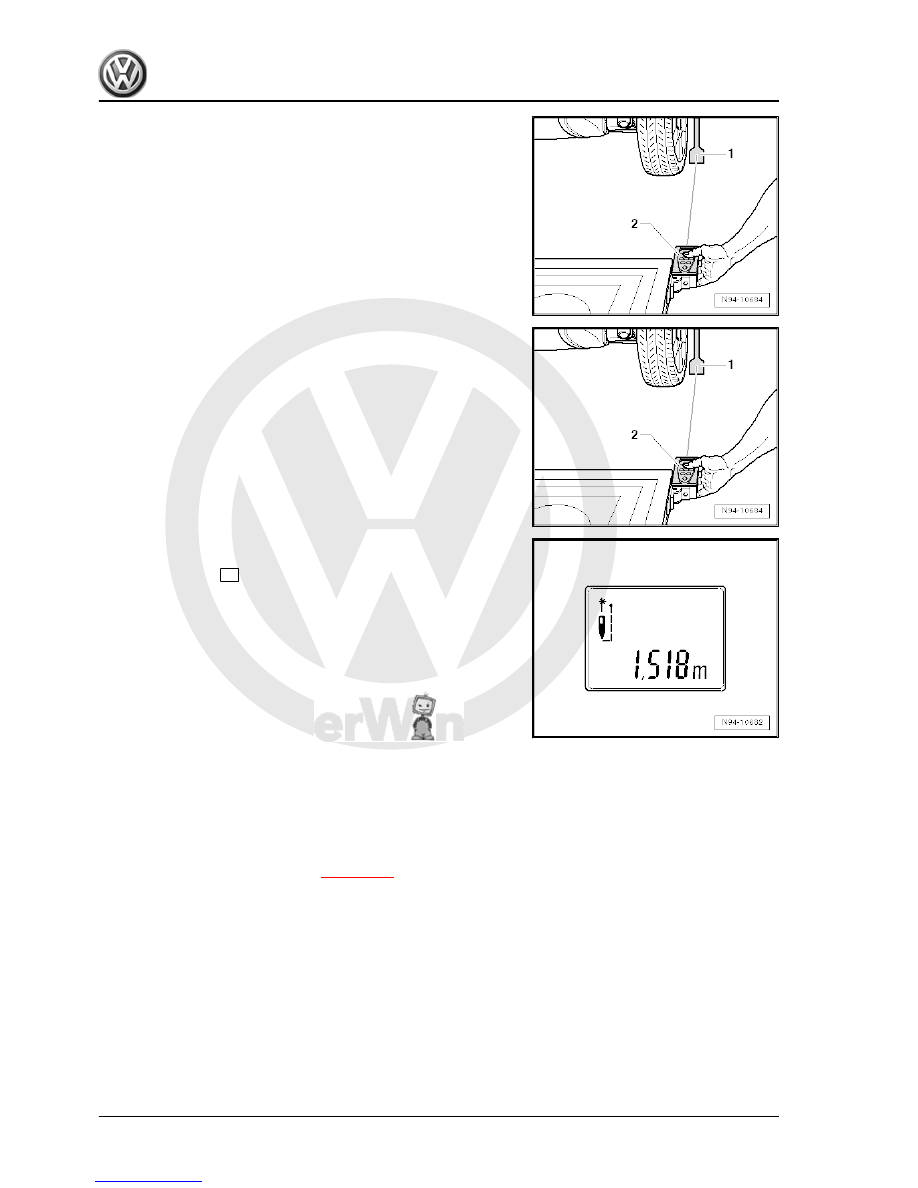

6350/4- so that spacing laser -VAS 6350/2- lies firmly against

bracket.

– Make sure that laser beam of from spacing laser -VAS 6350/2-

hits lower, enlarged part of paddle -1-.

If this is not the case, adjust paddles accordingly on wheel mount‐

ing -VAS 6350/1- using clamping bolts.

– Hold spacing laser -VAS 6350/2- in bracket on calibration de‐

vice -VAS 6350/4- while laser beam is visible on paddle. Now

briefly press the

ON

 button to measure distance. The following

appears in the display:

The distance is shown on the display in „metres“.
– Note the measured value.
– Repeat measuring process in same manner for other rear

wheel on other side of calibration unit -VAS 6350/4- .

Measured distance value must be identical on both sides. If value

is not identical, adjust calibration unit -VAS 6350/4- until values

on both sides are identical.
When adjusting the calibration unit -VAS 6350/4- , ensure that the

laser beam of the linear laser -VAS 6350/3- continues to hit the

vehicle centrally above the VW logo and that the spirit level indi‐

cator remains in the centre. Adjust accordingly if required.
The distance measured must be entered in „millimetres“ in the

vehicle diagnostic, testing and information system -VAS 5051B-

during calibration.
Calibrate reversing camera system

⇒ page 378

 .

16.4.2

Calibrating reversing camera system

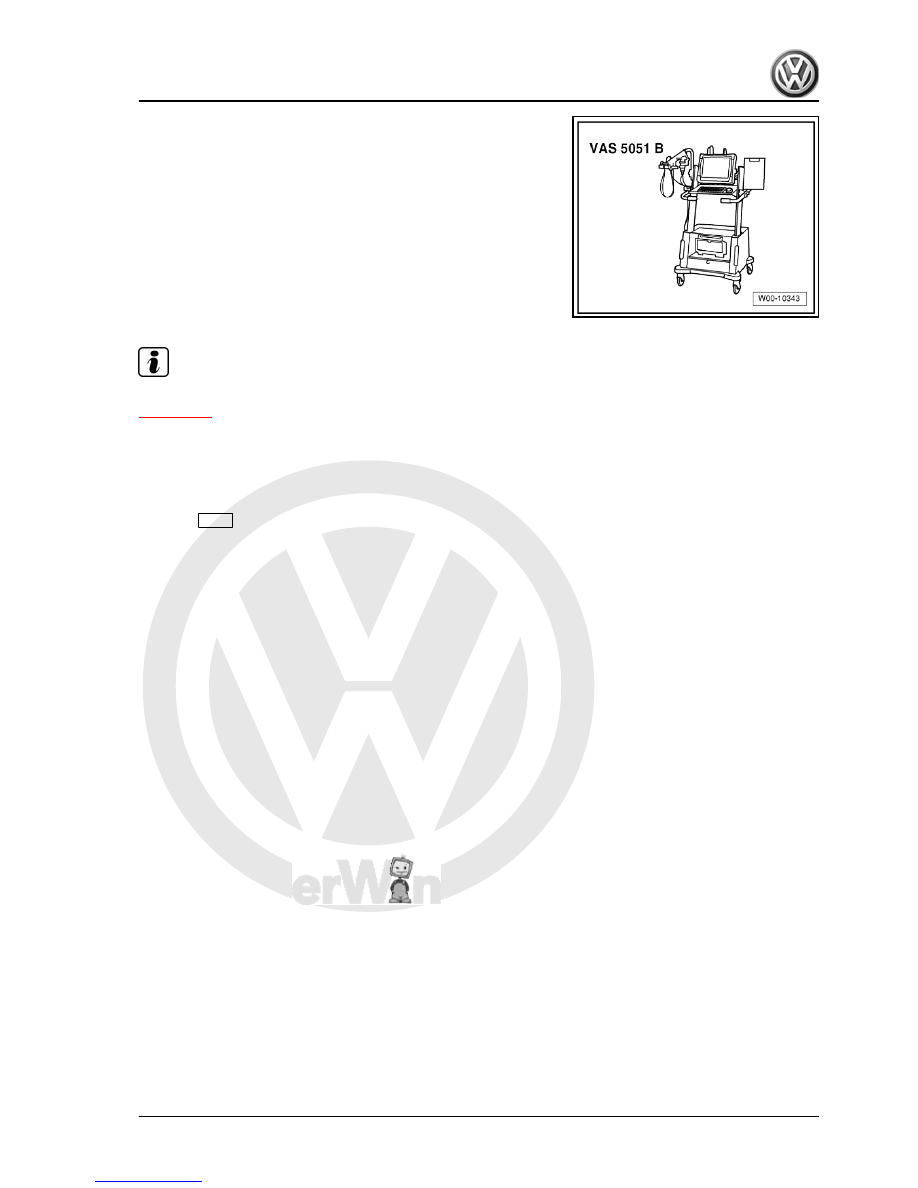

Special tools and workshop equipment required

378



Note

Note the points regarding preparatory work for calibration

⇒ page 376

 .

– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On board diagnostic capable system
♦ Reversing camera system
♦ Reversing camera functions
♦ Carry out reversing camera calibration
From this point on, guidance during the calibration process will be

provided by the vehicle diagnosis, testing and information system

-VAS 5051B- .

16. Reversing camera system

379



-U10-

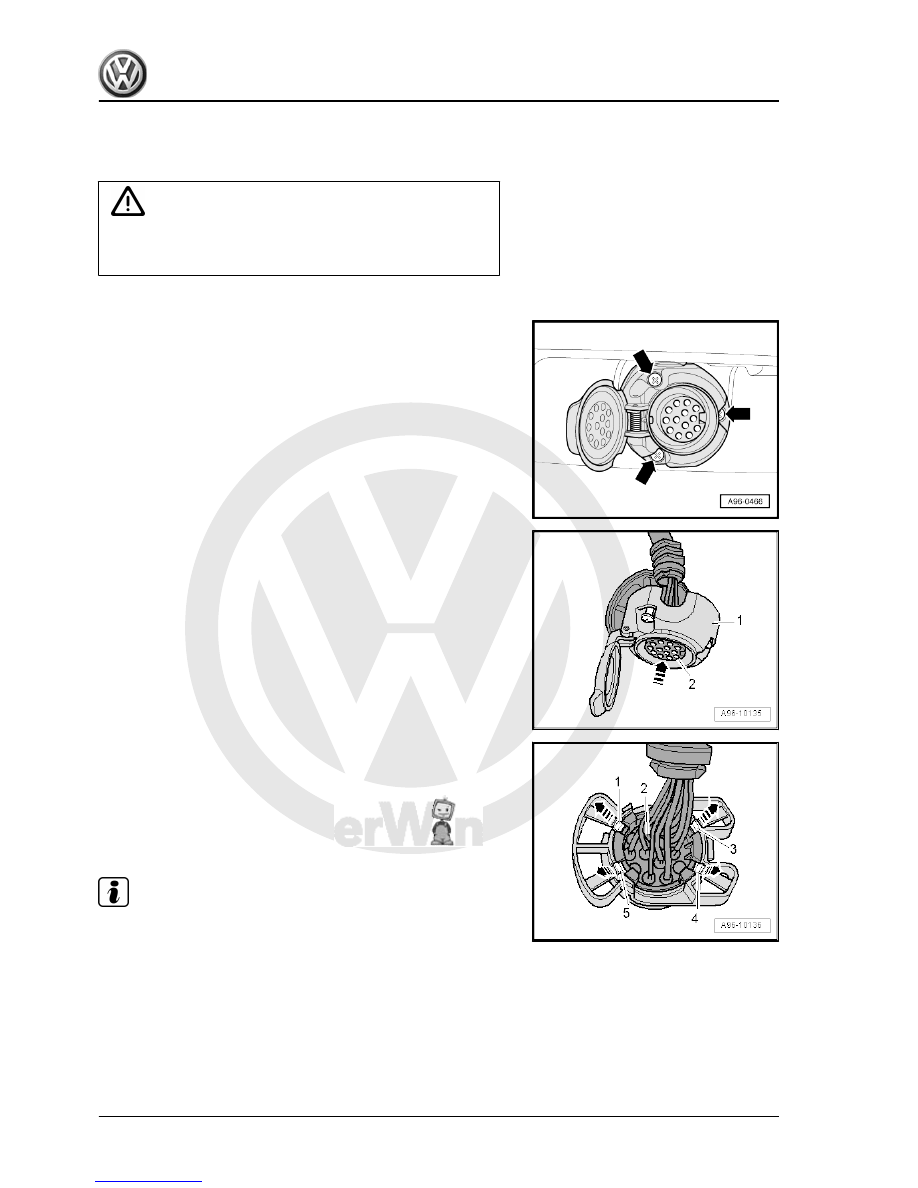

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove bolts -arrows-.
– Remove trailer socket -U10- from retaining plate.

– Push connectors -2- in -direction of arrow- out of trailer socket

-U10- -1-.

– Unlock securing tabs -arrows- and then unlock retaining clips

-1- and -3- to -5-.

– Remove holding cage from connectors -2-.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:

Note

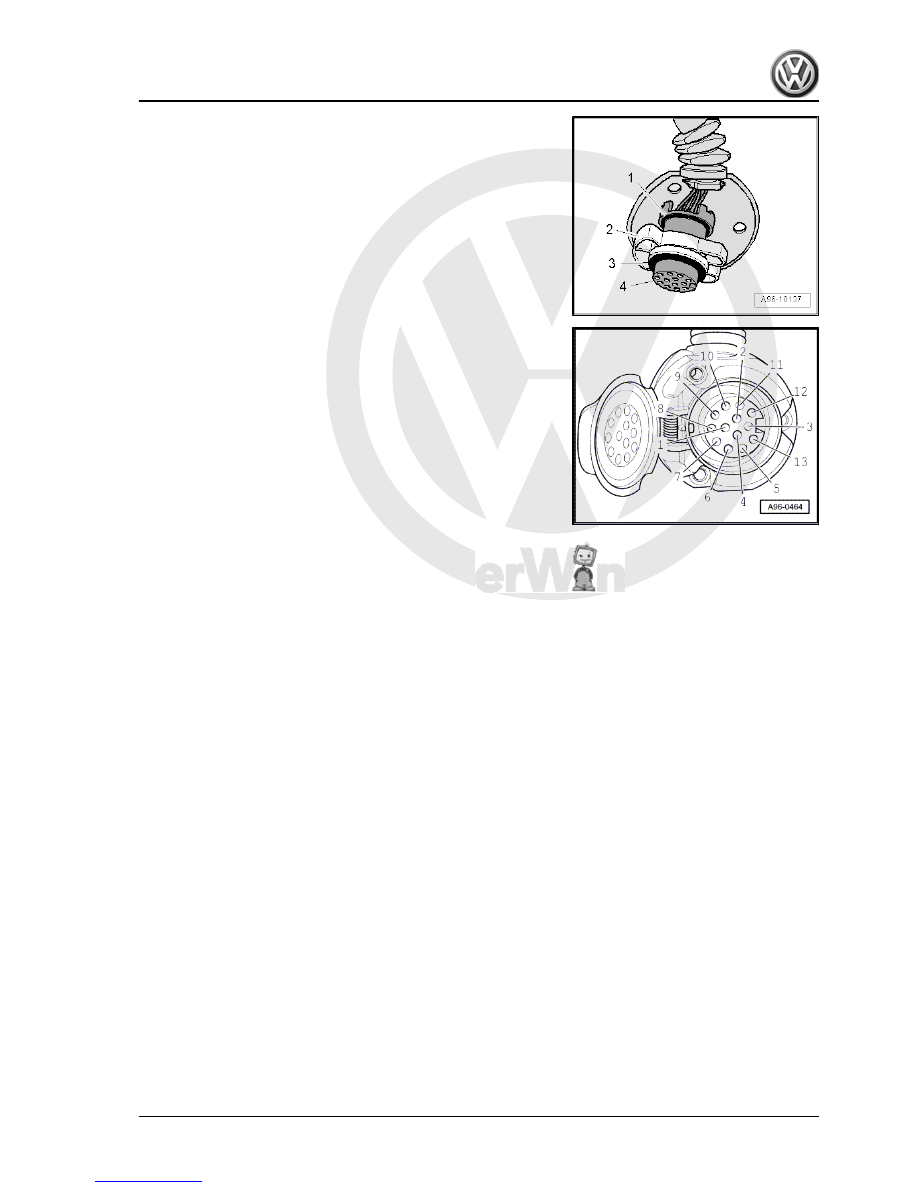

Be especially careful that seals -1- and -3- are not damaged.

380



Pin assignment of trailer socket -U10-
1 - Terminal LTS (left turn signal)
2 - Terminal NSL (rear fog lamp)
3 - Terminal 31
4 - Terminal RTS (right turn signal)
5 - Terminal 58R (right tail light)
6 - Terminal 54 (brake light)
7 - Klemme 58L (left tail light)
8 - Terminal RF (reversing light)
9 - Terminal 15
10 - Reserved for terminal 30
11 - Reserved for terminal 31
12 - Not assigned
13 - Terminal 31

17. Removing and installing trailer socket U10

381
