♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

70 .

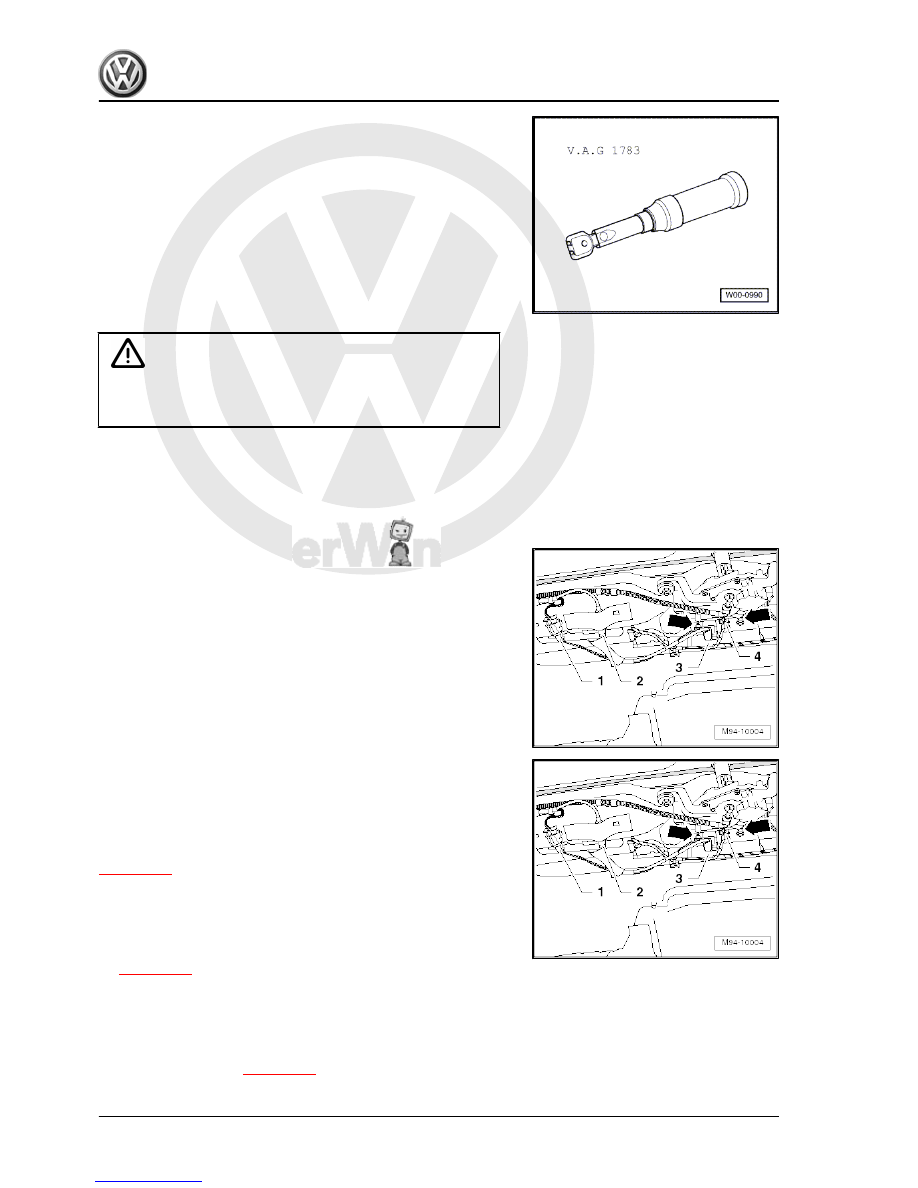

– Open wire bracket from wiring harness of reversing camera -

R189- in connector area and remove both wires.

– Disconnect connectors -1- and -2-.

– Remove both nuts -arrows-.
– Detach connector -4-.
– Remove the handle button with reversing camera -R189- -3-

from rear lid.

Remove reversing camera -R189- from handle button

⇒ page 375

 .

Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten all threaded connections to specified torques

⇒ page 373

 .

– Secure wiring of reversing camera -R189- with wiring retainer

to avoid rattling.

– After installation, clean reversing camera -R189- lens with a

lint-free cloth.

– Recalibrate system

⇒ page 375

 .

374



era -R189- from handle button

Removing

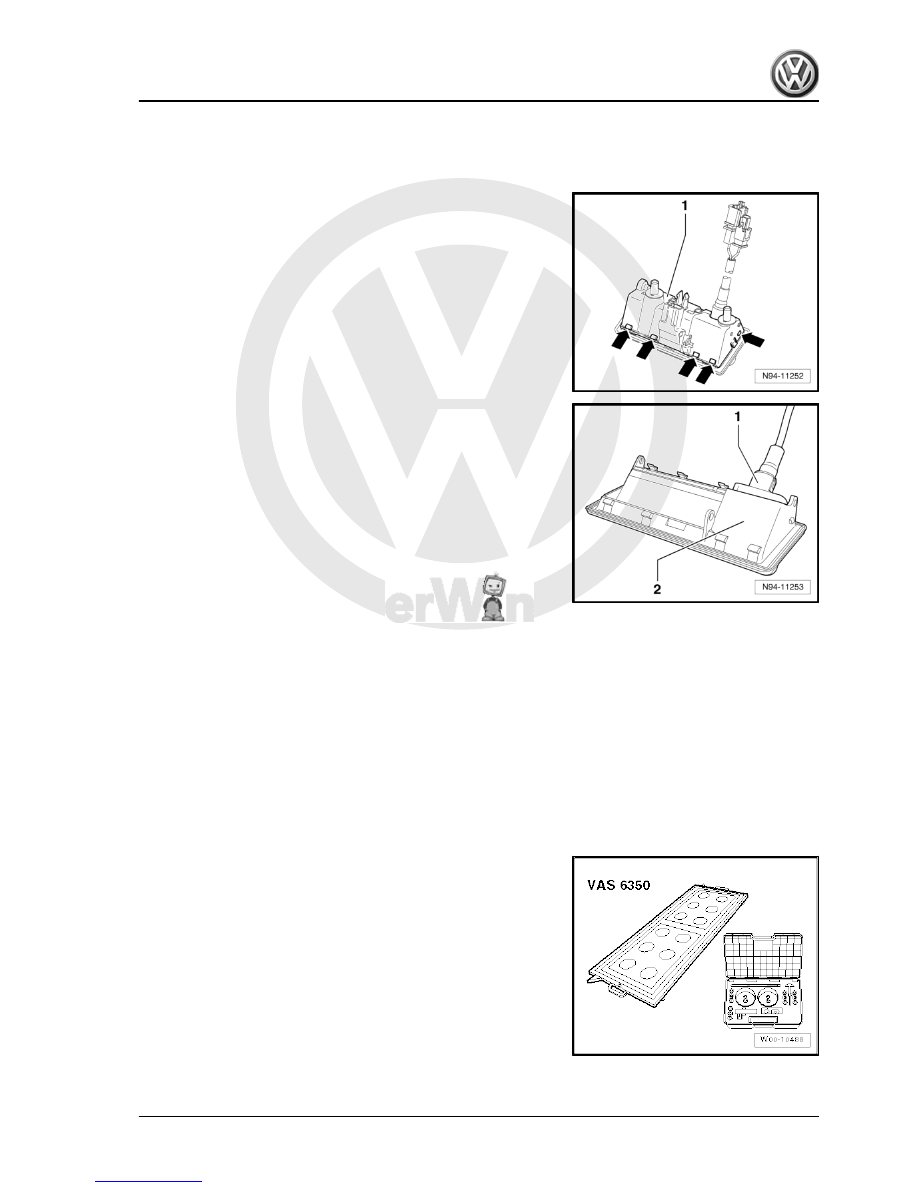

– Release locking lugs -arrows- and remove housing -1-.

– Pull reversing camera -R189- -1- out of lower part of handle

button -2-.

Installing
Installation is carried out in reverse order of removal.

16.4

Calibrating reversing camera system

Reversing camera -R189- system may have to be recalibrated

following repair work on the vehicle. In detail, this is the case after:
♦ Removing and installing reversing camera -R189-
♦ Accident repairs on rear lid
♦ After vehicle alignment
♦ Repairs to front or rear axle
Extensive preliminary work is required before actual calibration

can be carried out using vehicle diagnosis, testing and information

system -VAS 5051B- . This is described in the following.
Special tools and workshop equipment required
♦ Calibration unit -VAS 6350-

16. Reversing camera system

375



To carry out calibration, vehicle must be positioned on a firm, level

surface. It is not permissible for anybody to be inside vehicle dur‐

ing measurement. Vehicle must not be moved during measure‐

ment, and opening and closing vehicle doors is prohibited.
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– Set steering wheel sender -G85- to 0 position (wheels straight

ahead).

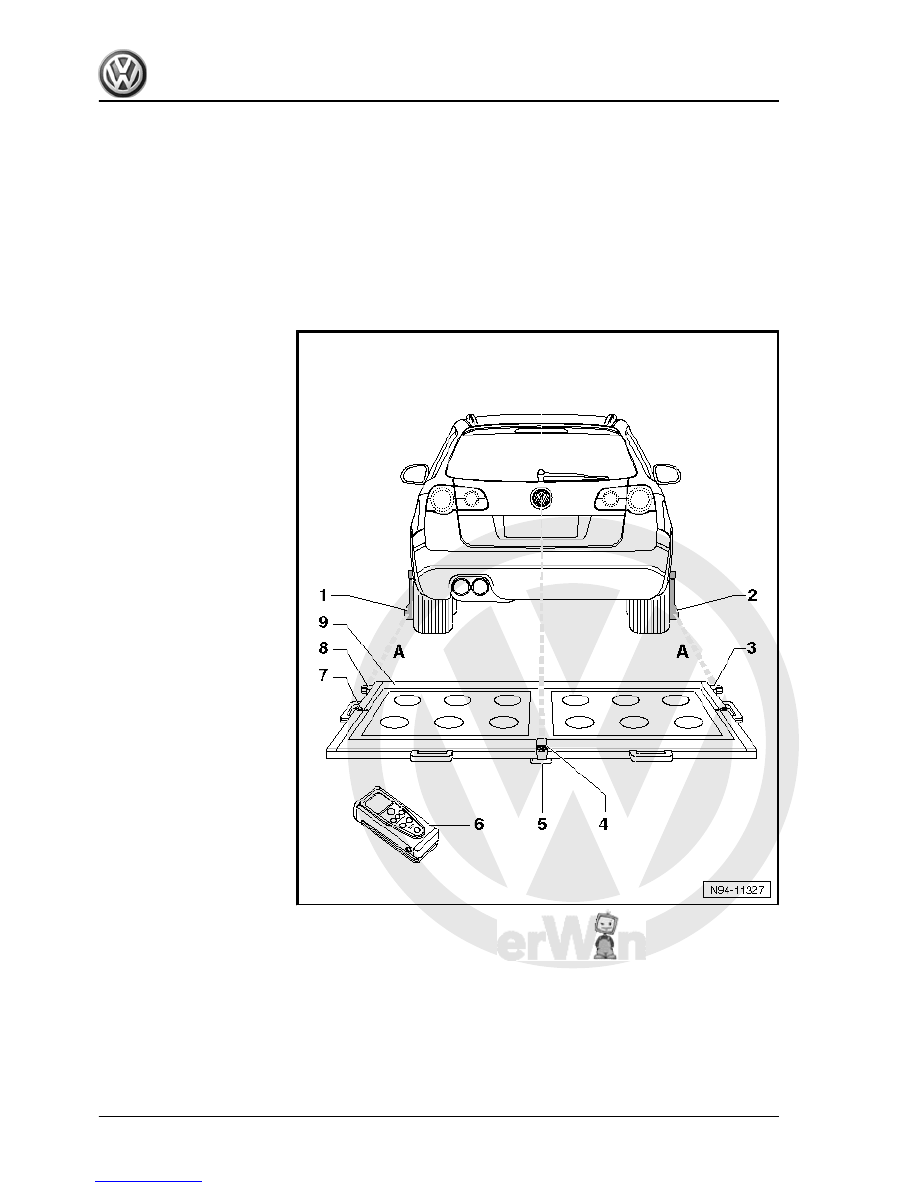

Overview of measuring setup

1 - Wheel centre mounting -

VAS 6350/1-
2 - Wheel centre mounting -

VAS 6350/1-
3 - Right bracket

❑ Spacing laser -VAS

6350/2- mounting

4 - Linear laser -VAS 6350/3-

❑ Switching on and off ⇒

Owner's manual

5 - Plastic foot

❑ Three on underbody
❑ Adjustable for setting

the horizontal position

6 - Spacing laser -VAS 6350/2-

❑ Notes on operation ⇒

Owner's manual

7 - Spirit level on calibration

unit

❑ For checking horizontal

position

8 - Left bracket

❑ Spacing laser -VAS

6350/2- mounting

9 - Calibration unit -VAS

6350/4-

❑ Distance between angle

of calibration unit -VAS

6350/4- and wheel cen‐

tre mounting -VAS

6350/1- : 1.20 m to 1.70

m -dimension A-

Assembling, setting-up calibration unit -VAS 6350/4-

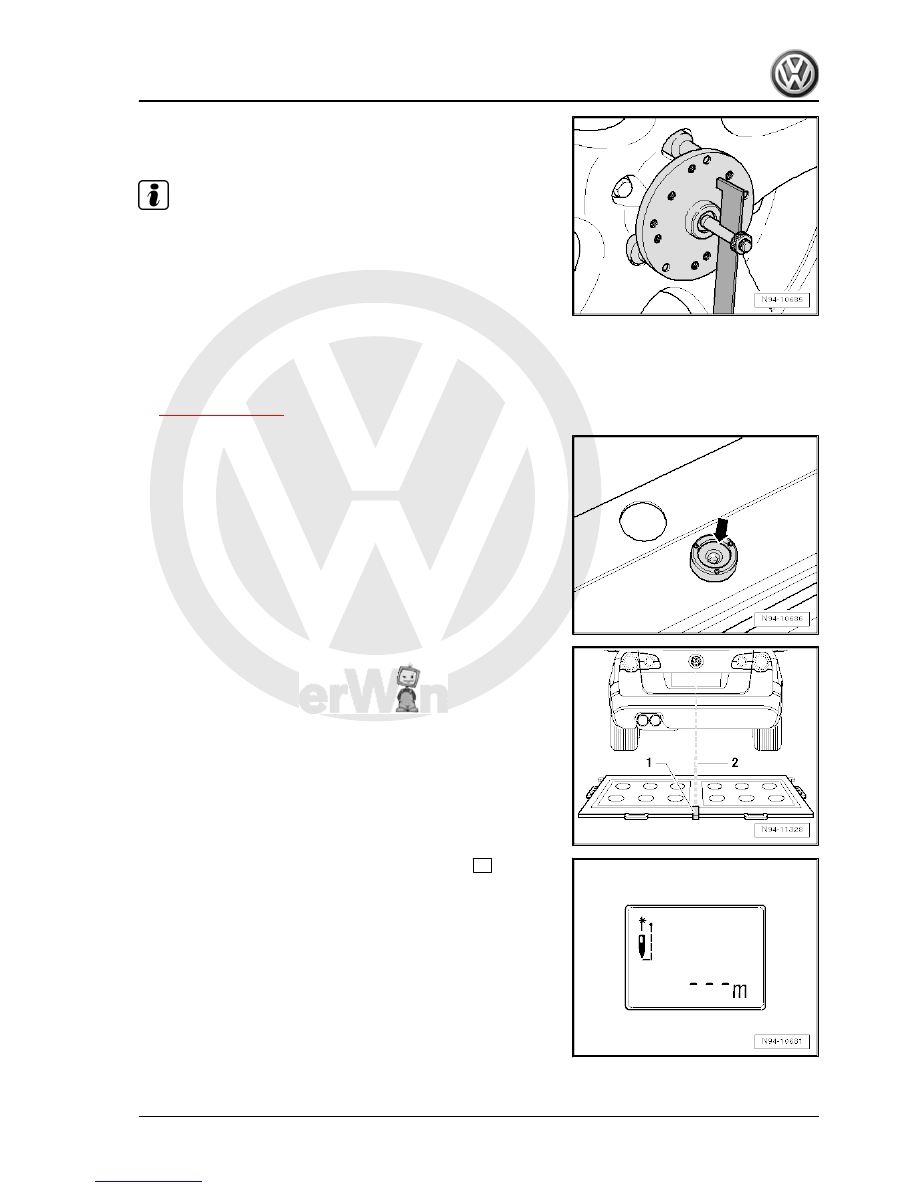

– Secure three wheel bolt adapters in each hole circle of wheel

centre mounting -VAS 6350/1- .

– Position paddles on both wheel centre mountings -VAS

6350/1- and secure with clamping bolts.

376



positioned and secured in the adapters by the »O-rings«.

Note

Set wheel centre mountings -VAS 6350/1- against wheels so that

no »theft-inhibiting wheel bolts« are connected to wheel bolt

adapters.

– Use clamp nuts to adjust paddles so that they move freely just

above the floor.

Make sure the paddles can move freely.
– Position calibration device -VAS 6350/4- behind vehicle at a

distance of 1.20 m to 1.70 m to the angle brackets of the cal‐

ibration device -VAS 6350/4- and the paddles on the wheel

centre mountings -VAS 6350/1- , see -dimension A-

⇒ Item 9 (page 376)

 .

– Position the calibration device -VAS 6350/4- horizontally. Do

this by turning the plastic feet under the calibration unit -VAS

6350/4- until the air bubble in the spirit level is precisely in the

centre of the indicator -arrow-.

– Switch on the linear laser -VAS 6350/3- on calibration unit -

VAS 6350/4- -1- and align the entire calibration unit -VAS

6350/4- so that the laser beam -2- hits the rear end of the ve‐

hicle centrally above the VW logo.

– Switch on the spacing laser -VAS 6350/2- with the

ON

 button.

The following display appears and the laser is activated:

16. Reversing camera system

377
