Volkswagen Golf Variant / Jetta. Manual - part 836





⇒ page 309

 .

Note

Tail light connector in side panel must be „heard“ to engage

when reconnecting.

Connector is locked correctly when locking tab is pressed

down again!

– When installation is complete, check gap/shut lines of tail light

to body.

9.6

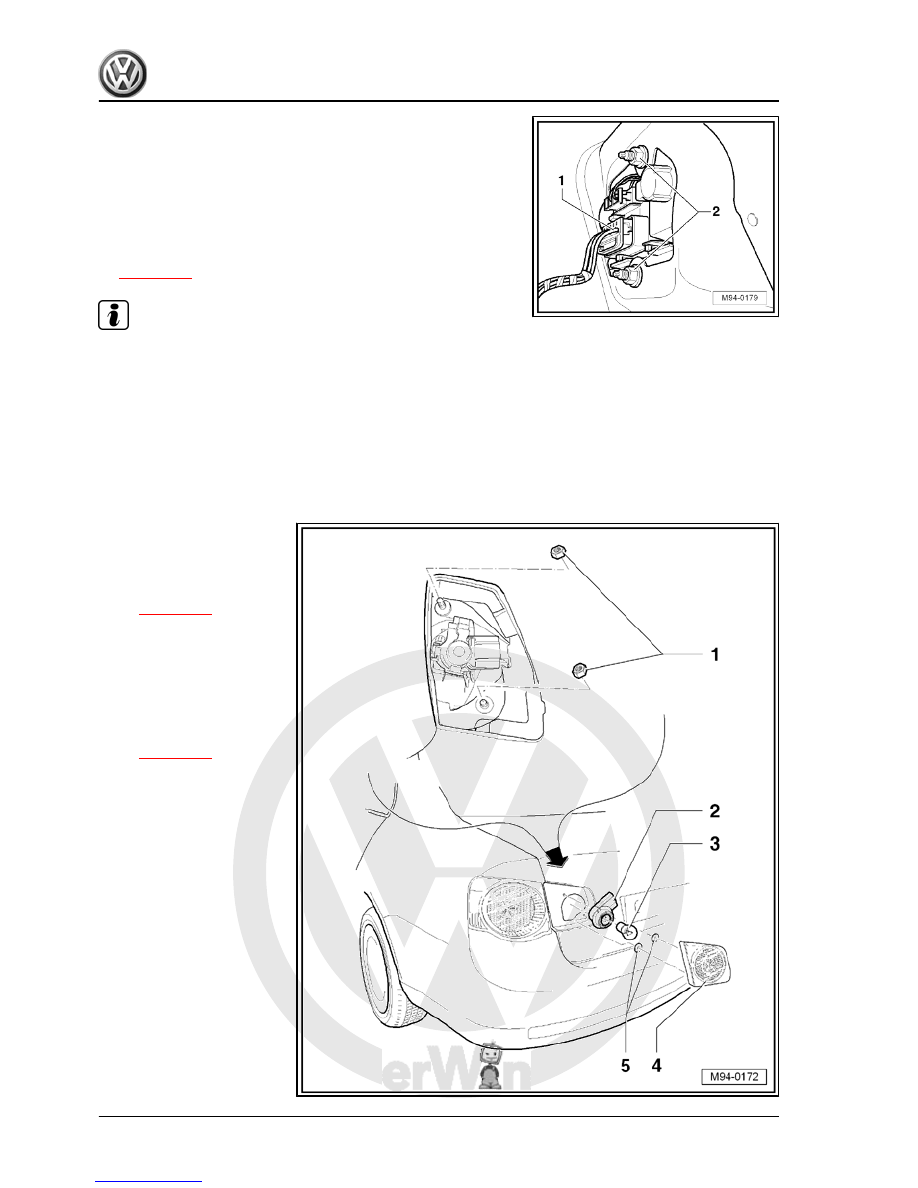

Assembly overview - tail light in rear lid - saloon

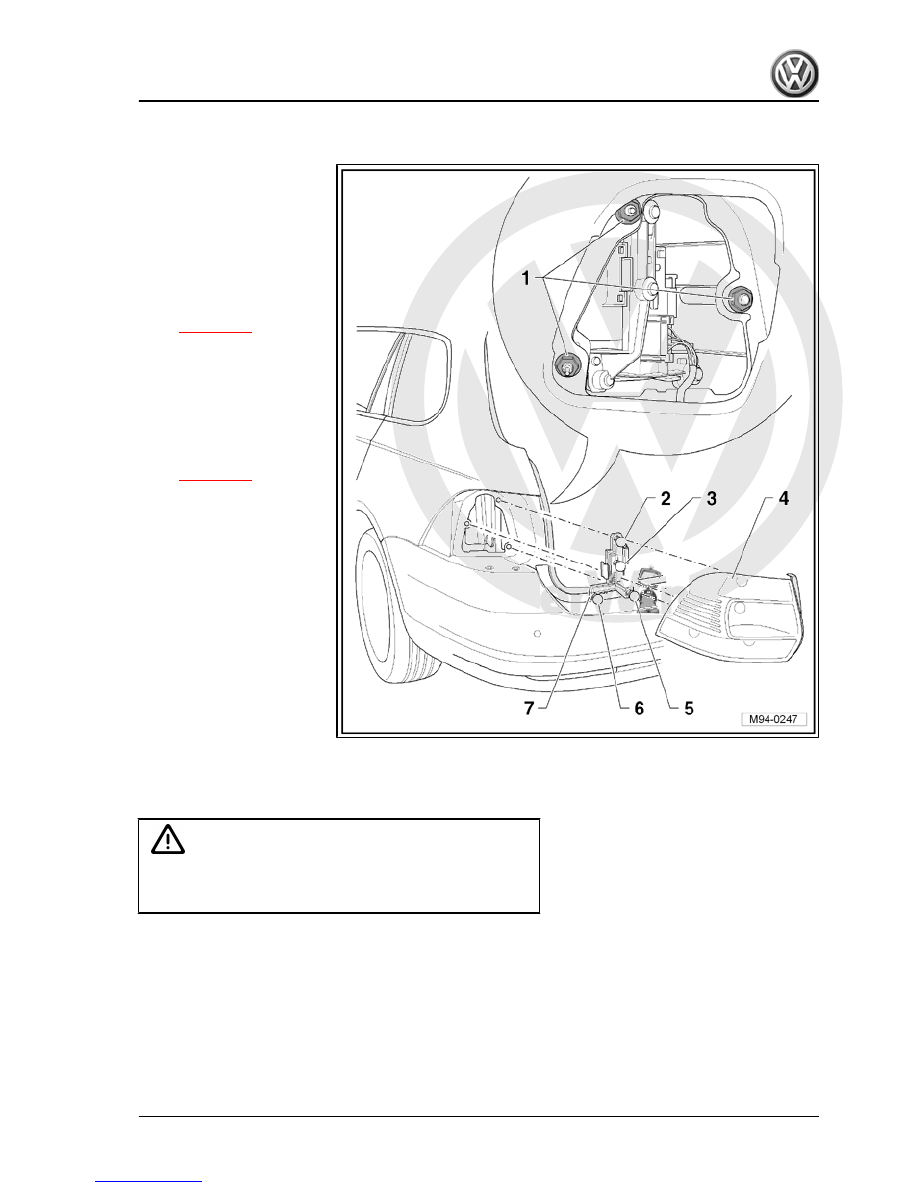

1 - Nut

❑ 3.5 Nm

2 - Bulb carrier

❑ Removing and installing

⇒ page 311

3 - Left reversing light bulb -

M16- / left reversing light bulb

-L46- / right reversing light bulb

-M17-

❑ Bulb: P 12 V/21 W

4 - Tail light housing in rear lid

❑ Removing and installing

⇒ page 311

5 - Washer

310



lid - saloon

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Unclip service cover from trim in rear lid.
– Pull off connector -2-.
– Unscrew nuts -1- from tail light in rear lid.
– Remove tail light.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:

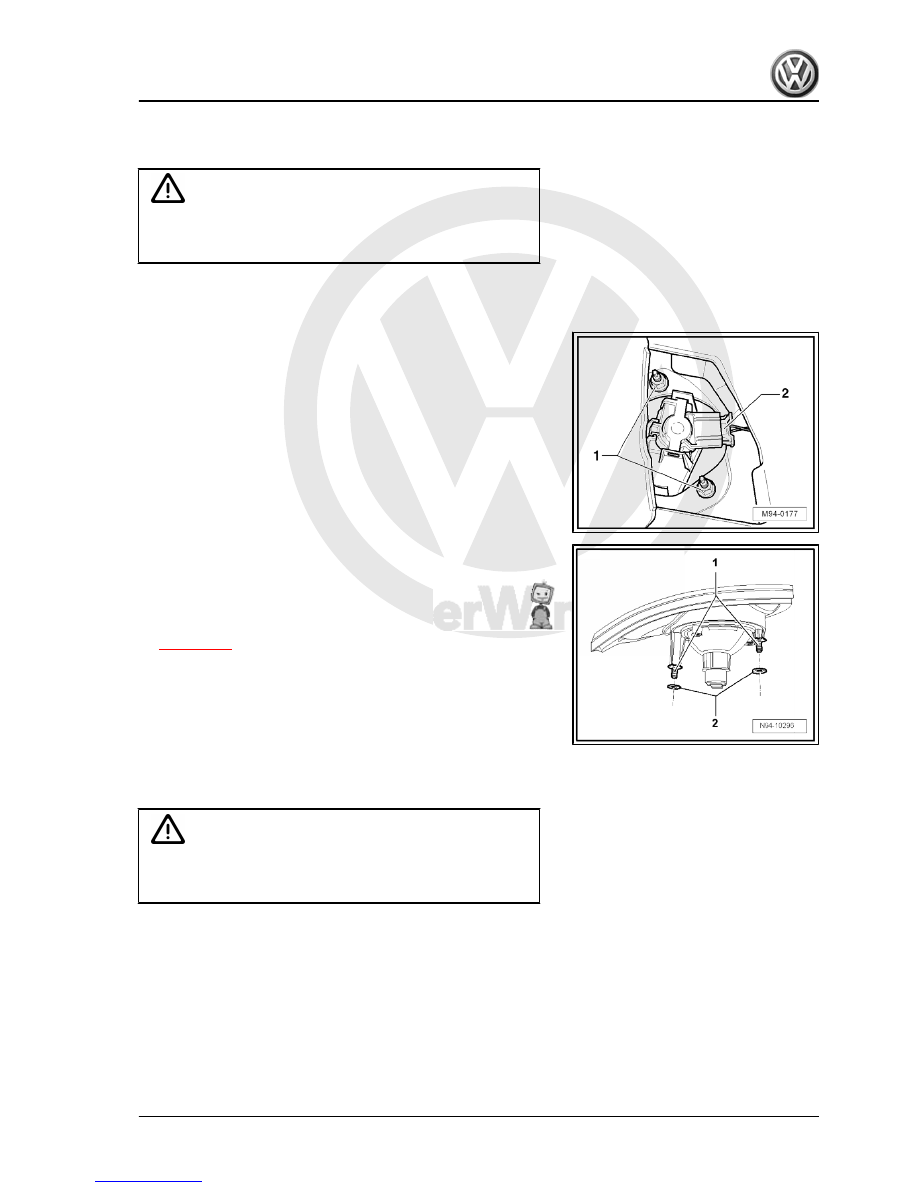

– Fix washer -2- before fitting to raised section (dome) -1- using

a drop of adhesive (Loctite) to prevent it from falling into the

cavity of the vehicle body.

– Place washers -2- on raised section (dome) -1-.
– Tighten all threaded connections to specified torques

⇒ page 310

 .

– When installation is complete, check gap/shut lines of tail light

to body.

9.8

Removing and installing tail light bulb

holder in rear lid - saloon

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Unclip service cover from trim in rear lid.

9. Tail lights

311



The lower trim of the rear lid need not be removed. For illustration

purposes, the lower trim of the rear lid is not shown in the following

picture.

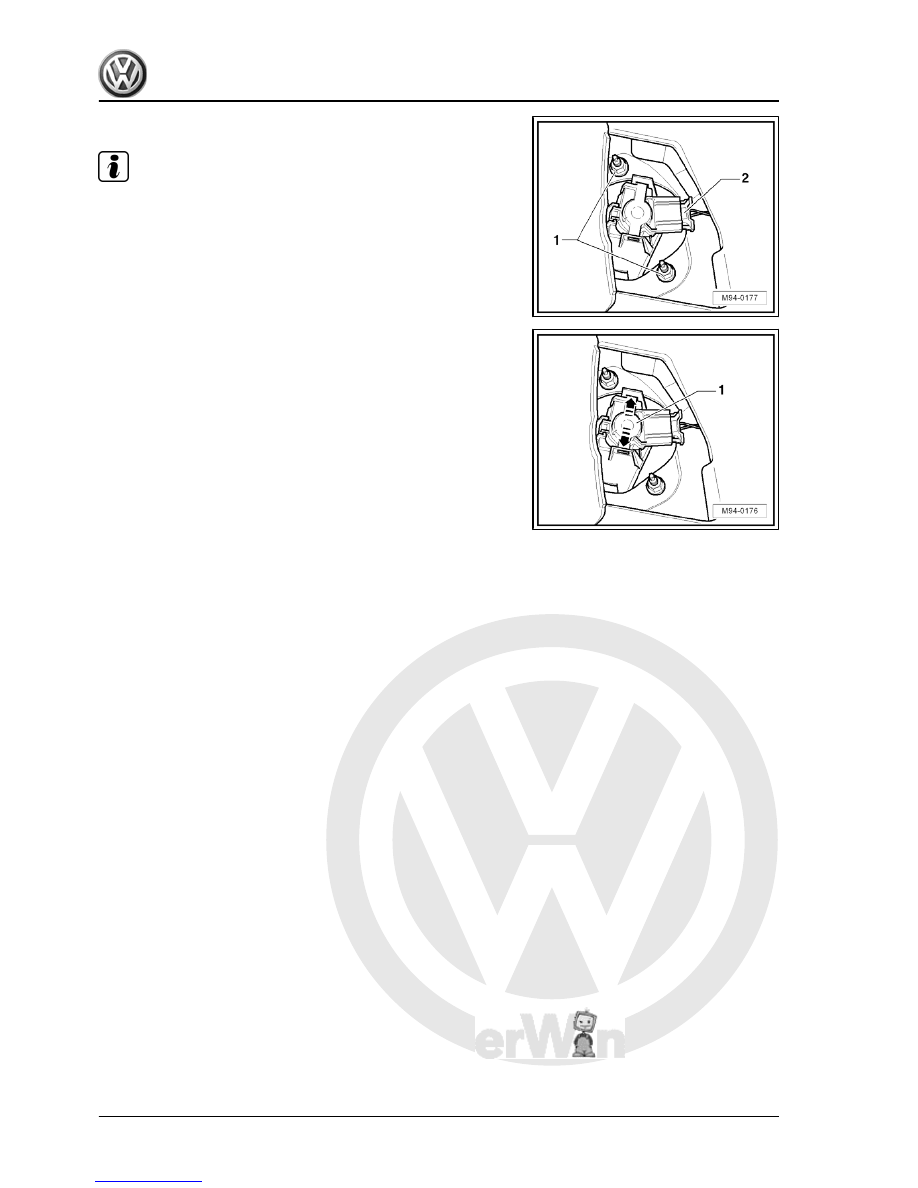

– Release both lugs -in direction of arrow- and take out bulb

carrier -1-.

Installing
Installation is carried out in reverse order of removal.

312



1 - Nut

❑ 3.5 Nm

2 - Left brake light bulb -M9- /

right brake light bulb -M10-
3 - Right tail light bulb -M2- / left

tail light bulb -M4-
4 - Tail light housing

❑ Removing and installing

⇒ page 313

5 - Rear fog light bulb -L20- /

right reversing light bulb -M17-
6 - Rear left turn signal bulb -

M6- / rear right turn signal bulb

-M8-
7 - Bulb carrier

❑ Removing and installing

⇒ page 314

9.10

Removing and installing tail light - Var‐

iant

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Push side panel trim/cover to the side.

9. Tail lights

313
