entry light in exterior mirror

General description
The driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb in exterior mirror -L132-

(side-mounted turn signals) are integrated in the exterior mirror

housings.
In addition, there is one driver side entry light in exterior mirror -

W52- / front passenger side entry light in exterior mirror -W53- in

each of the exterior mirror housings, which illuminate the entry

area around the open driver and front passenger door in the dark.

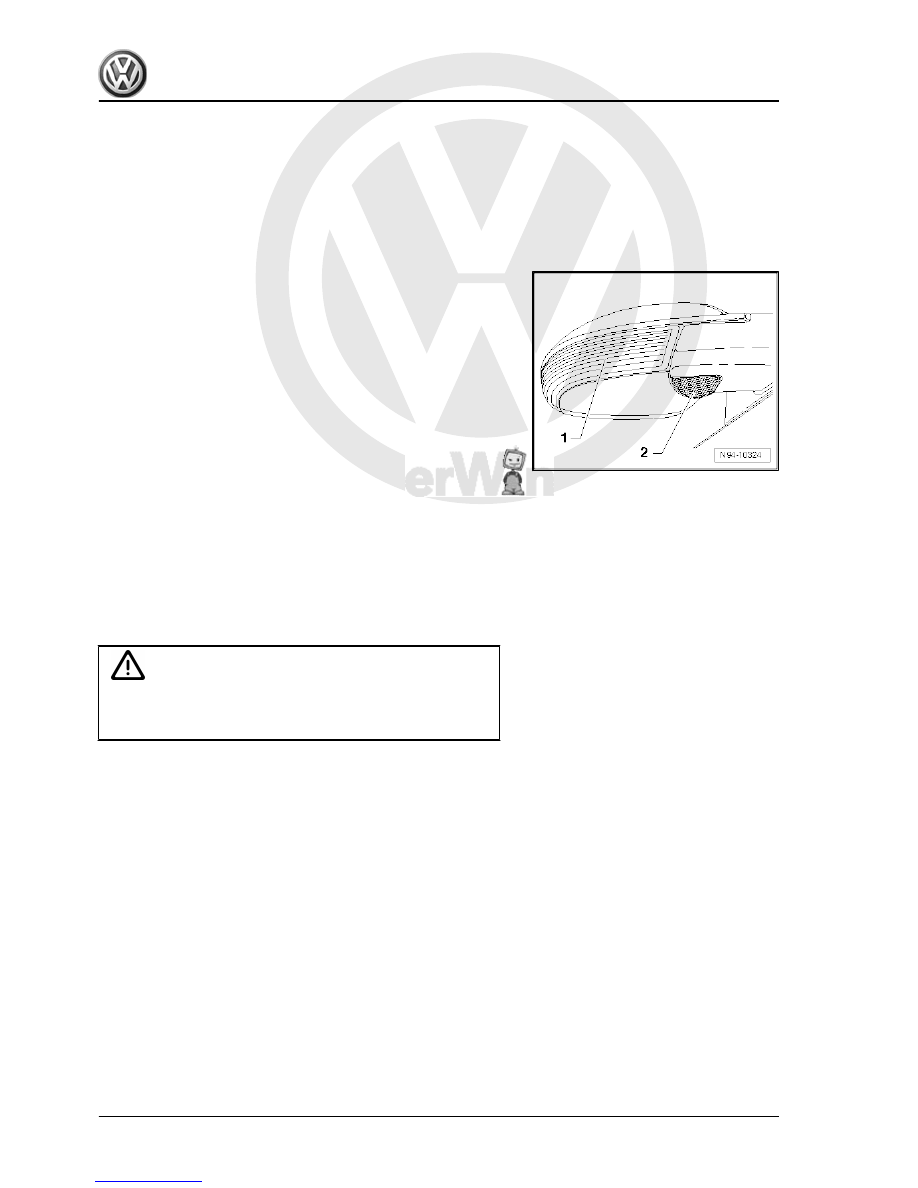

1 - Driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb in exterior mirror -L132-
2 - Driver side entry light in exterior mirror -W52- / front passenger

side entry light in exterior mirror -W53-
Fault detection and fault display
The onboard supply control unit is equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.

6.1

Removing and installing turn signal bulb

The driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb -L132- are installed in

the left/right exterior mirror housing respectively.
In the event of damage, the complete driver side turn signal lamp

in exterior mirror -L131- / passenger side turn signal lamp in ex‐

terior mirror -L132- must be renewed.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove driver side turn signal repeater bulb in exterior mirror

-L131- / passenger side turn signal repeater bulb in exterior

mirror -L132- ⇒  General body repairs, exterior; Rep. gr.  66

Installing
– Install driver side turn signal repeater bulb in exterior mirror -

L131- / passenger side turn signal repeater bulb in exterior

mirror -L132- ⇒  General body repairs, exterior; Rep. gr.  66

6.2

Removing and installing entry light in ex‐

terior mirror

The driver side entry light in exterior mirror -W52- / front passen‐

ger side entry light in exterior mirror -W53- are installed in the left

and right exterior mirror housing respectively.
There is no need to remove exterior mirror to remove and install

driver side entry light in exterior mirror -W52- / front passenger

side entry light in exterior mirror -W53- .
The procedure for removal and installation of the driver side entry

light in exterior mirror -W52- and front passenger side entry light

302



Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

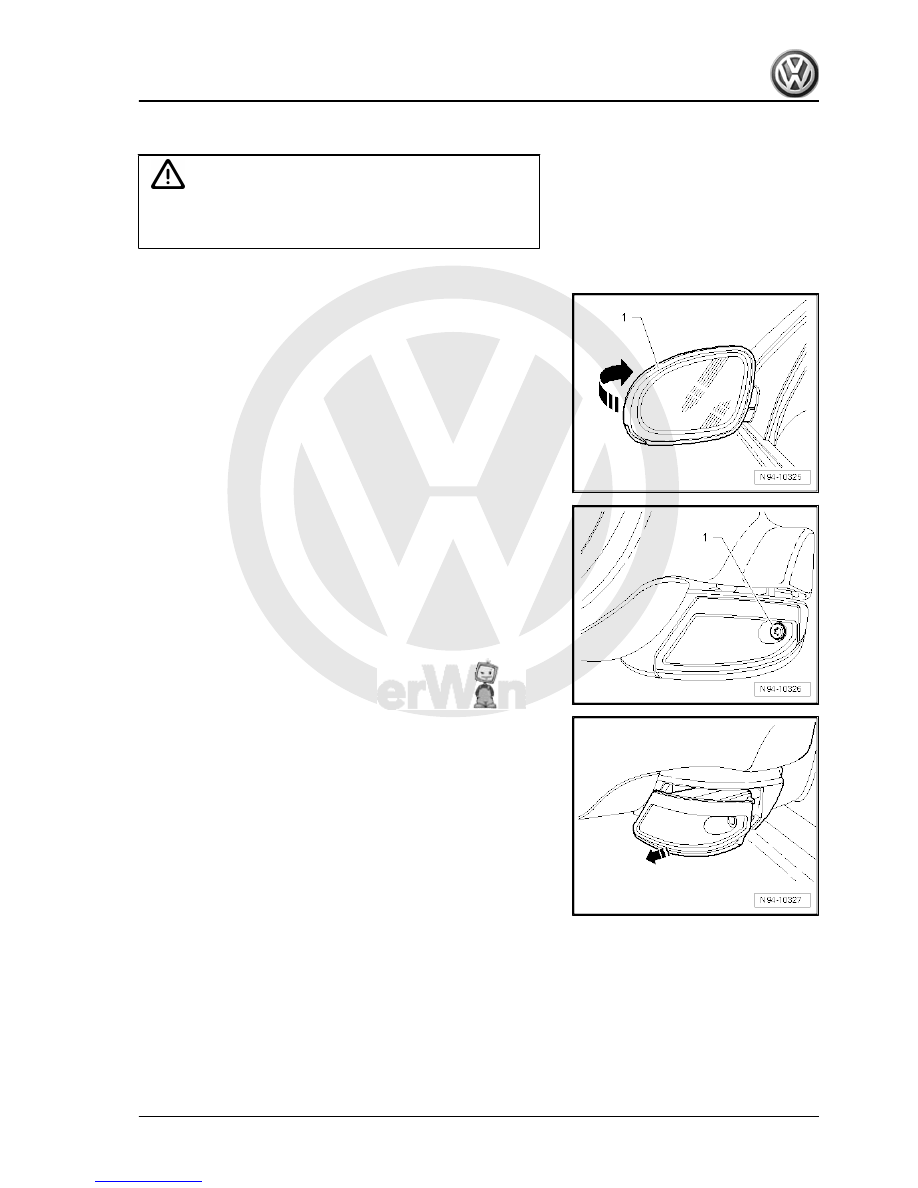

Removing
– Fold exterior mirror -1- forwards in -direction of arrow-.

– Remove bolt -1-.

– Unclip driver side entry light in exterior mirror -W52- from ex‐

terior mirror in -direction of arrow- and pull it out as far as the

wiring allows.

6. Bulb for turn signal repeater light and entry light in exterior mirror

303



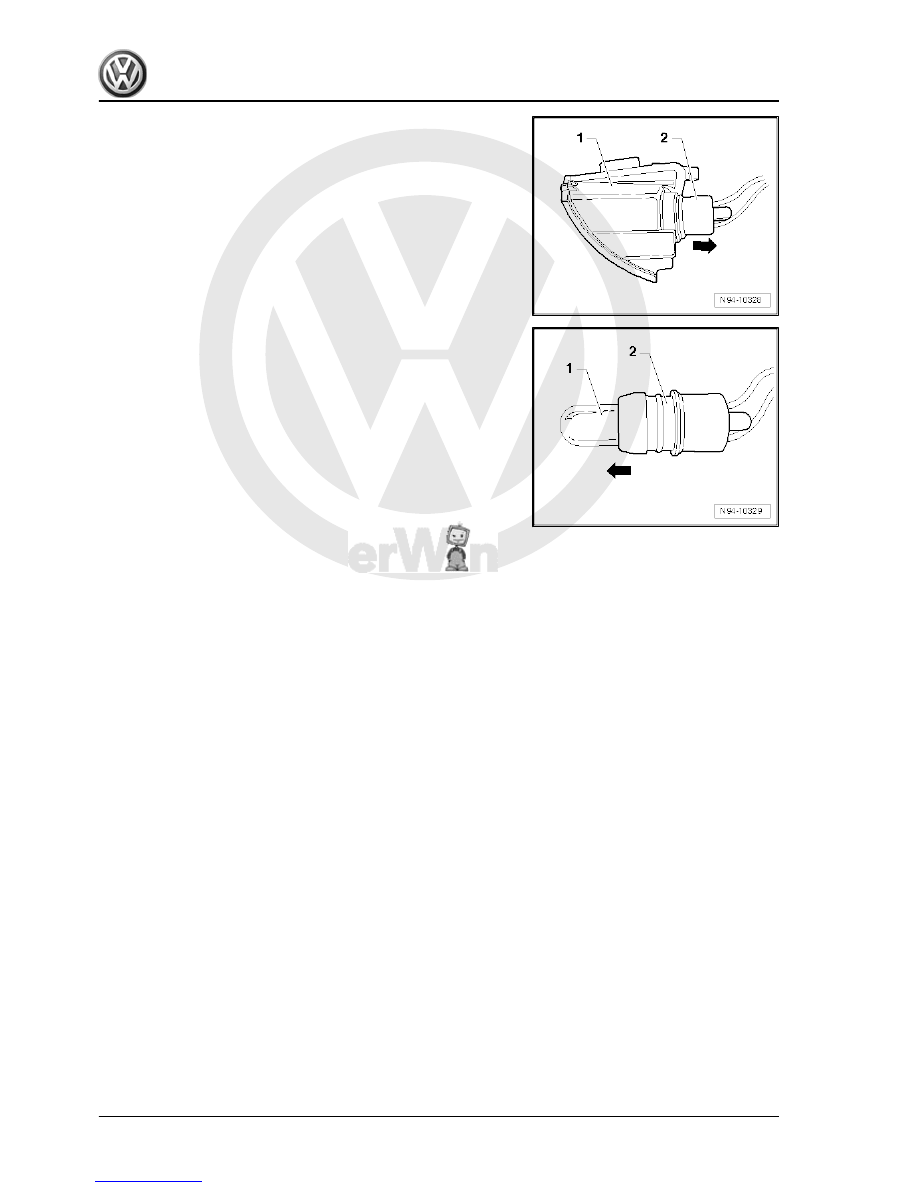

Renewing bulb:

– Pull push-fit bulb -1- in -direction of arrow- out of bulb holder

-2-.

Push-fit bulb: 12 V/6 W
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Following installation, check operation of exterior mirrors.

304



marker light in front bumper

The front left side marker bulb -M33- / front right side marker bulb

-M34- are renewed in exactly the same way.

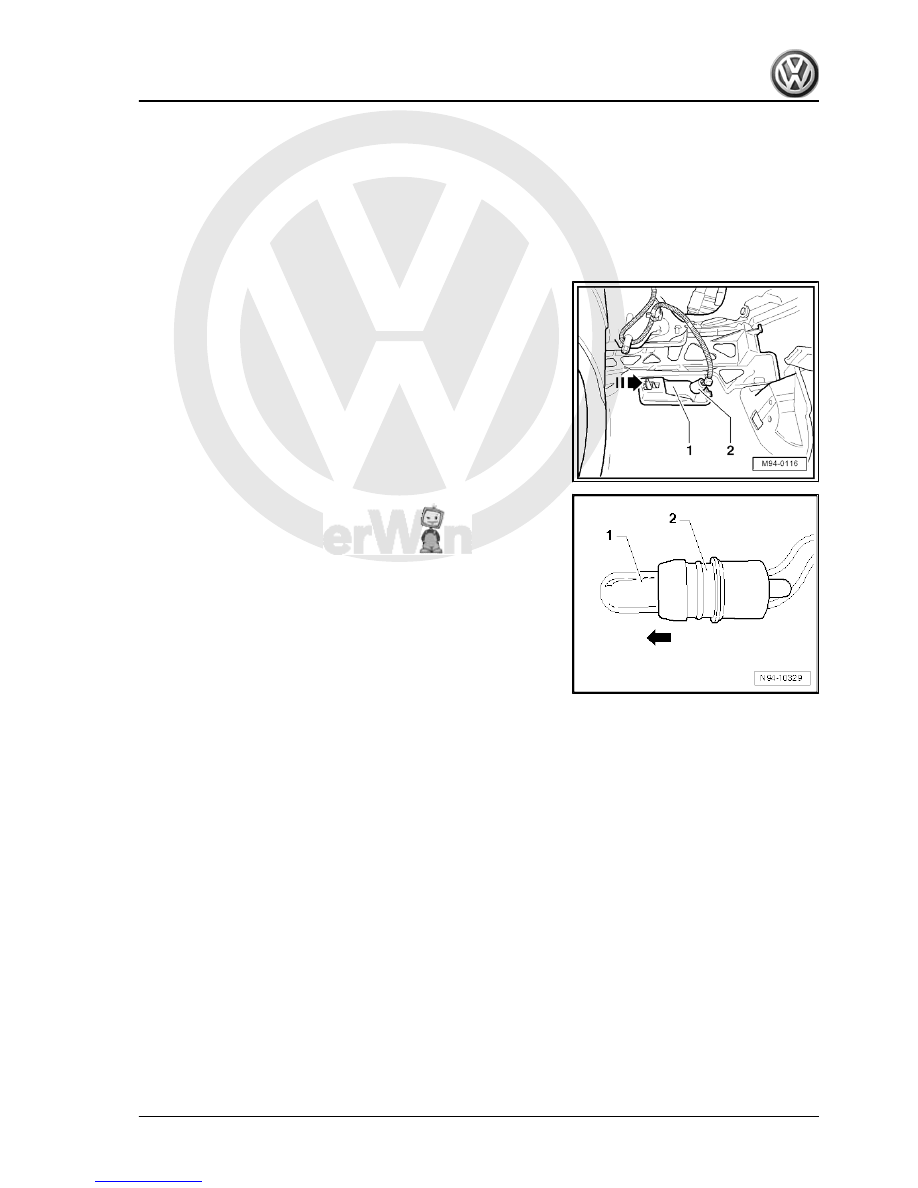

Removing
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Release side marker light -1- by pushing locking lug in

-direction of arrow-.

– Pull bulb holder -2- out of side marker light.
Renewing front left side marker bulb -M33- / front right side mark‐

er bulb -M34- :

– Pull front left side marker bulb -M33- -1- in direction of arrow

out of bulb holder -2-.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Following installation, carry out functional check.

7. Removing and installing front side marker light in front bumper

305
