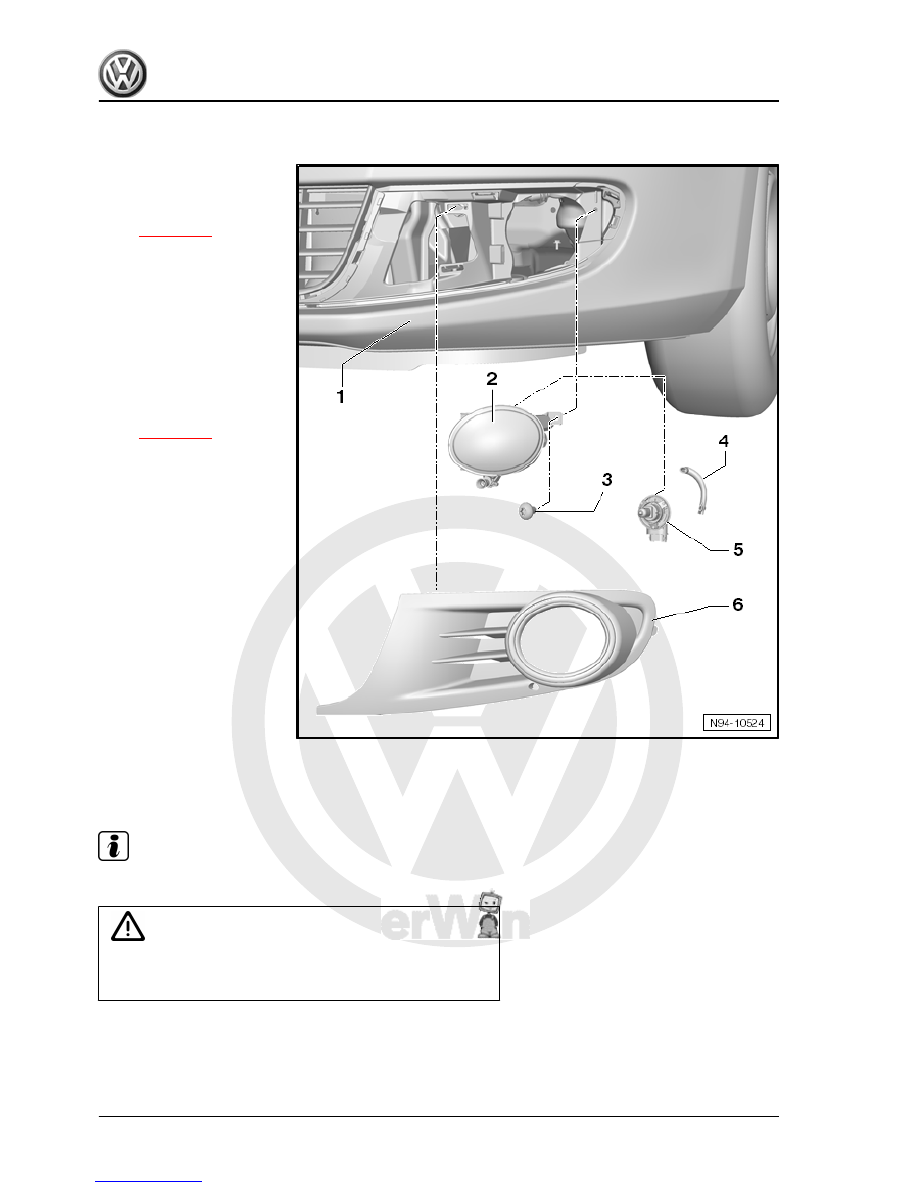

1 - Front bumper cover
2 - Fog light housing

❑ Removing and installing

⇒ page 299

3 - Bolt

❑ 2 Nm

4 - Vent hose
5 - Left fog light bulb -L22- /

right fog light bulb -L23- / left

cornering light bulb -L148- /

right cornering light bulb -

L149-

❑ Bulb: HB4 12 V/51 W
❑ Removing and installing

⇒ page 300

6 - Cover cap

5.3

Removing and installing fog lights (up to

MY2009)

Note

The illustrations show removal and installation for the left fog light.

Caution

♦ Switch off ignition and all electrical consumers
♦ Remove the ignition key.

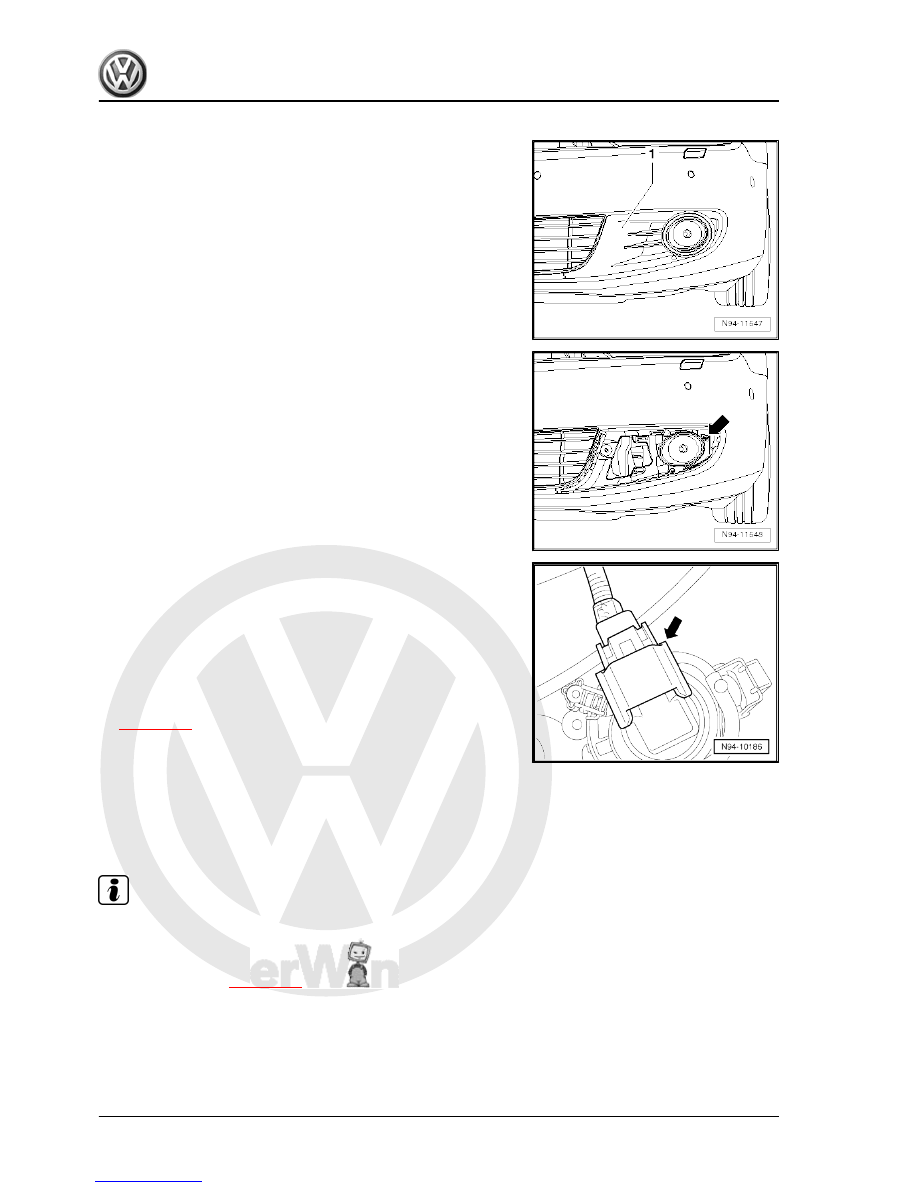

Removing
– Remove bolt -2-.

298



– Pull fog light housing out of bumper and disconnect connector

-arrow-.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 297

 .

– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.4

Removing and installing fog lights (from

MY2010)

Note

The illustrations show removal and installation for the left fog light.

Caution

♦ Switch off ignition and all electrical consumers
♦ Remove the ignition key.

5. Fog lights

299



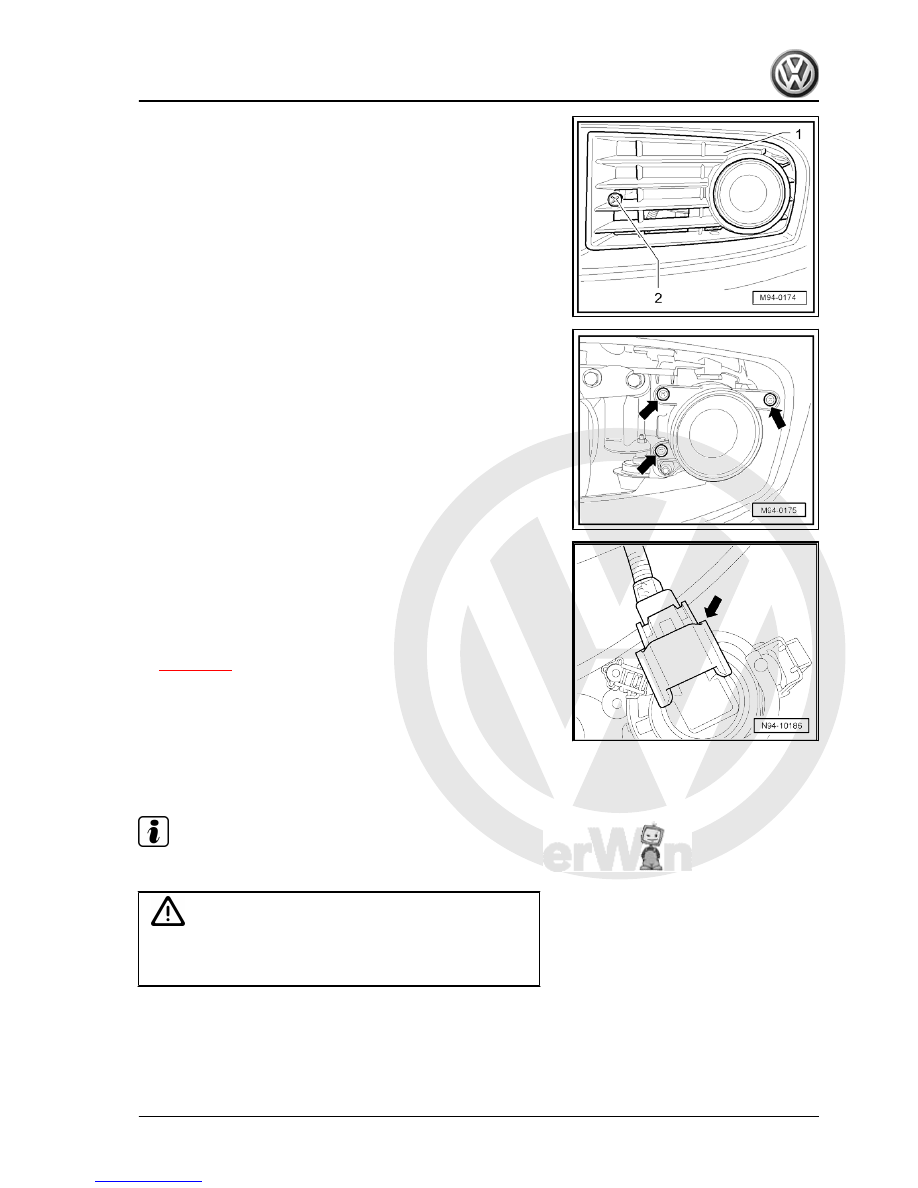

– Swing fog light housing out of bumper cover taking connected

wiring length into consideration.

– Release and disconnect connector -arrow- and remove fog

light housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 298

 .

– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.5

Removing and installing fog light/corner‐

ing light bulb

Note

The illustration shows removal and installation on left fog light.

Removing
– Remove fog light

⇒ page 298

 .

300



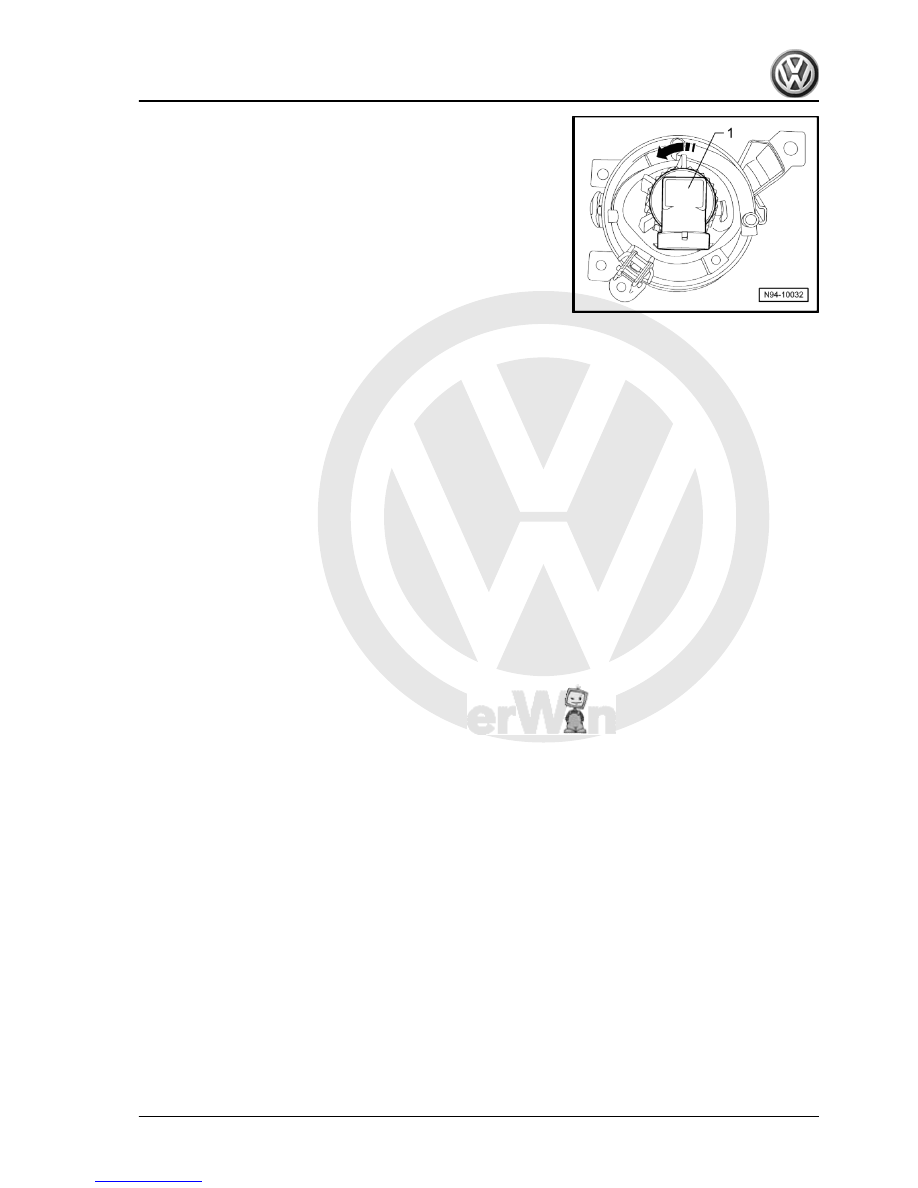

The bulb is permanently attached to the bulb holder and cannot

be renewed separately.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.6

Adjusting fog lights

Adjusting fog light ⇒ Maintenance ; Booklet  20.1 ; Descriptions

of work

5. Fog lights

301
