Volkswagen Golf Variant / Jetta. Manual - part 837





⇒ page 313

 .

Note

Tail light connector in side panel should engage „audibly“.

– When installation is complete, check gap/shut lines of tail light

to body.

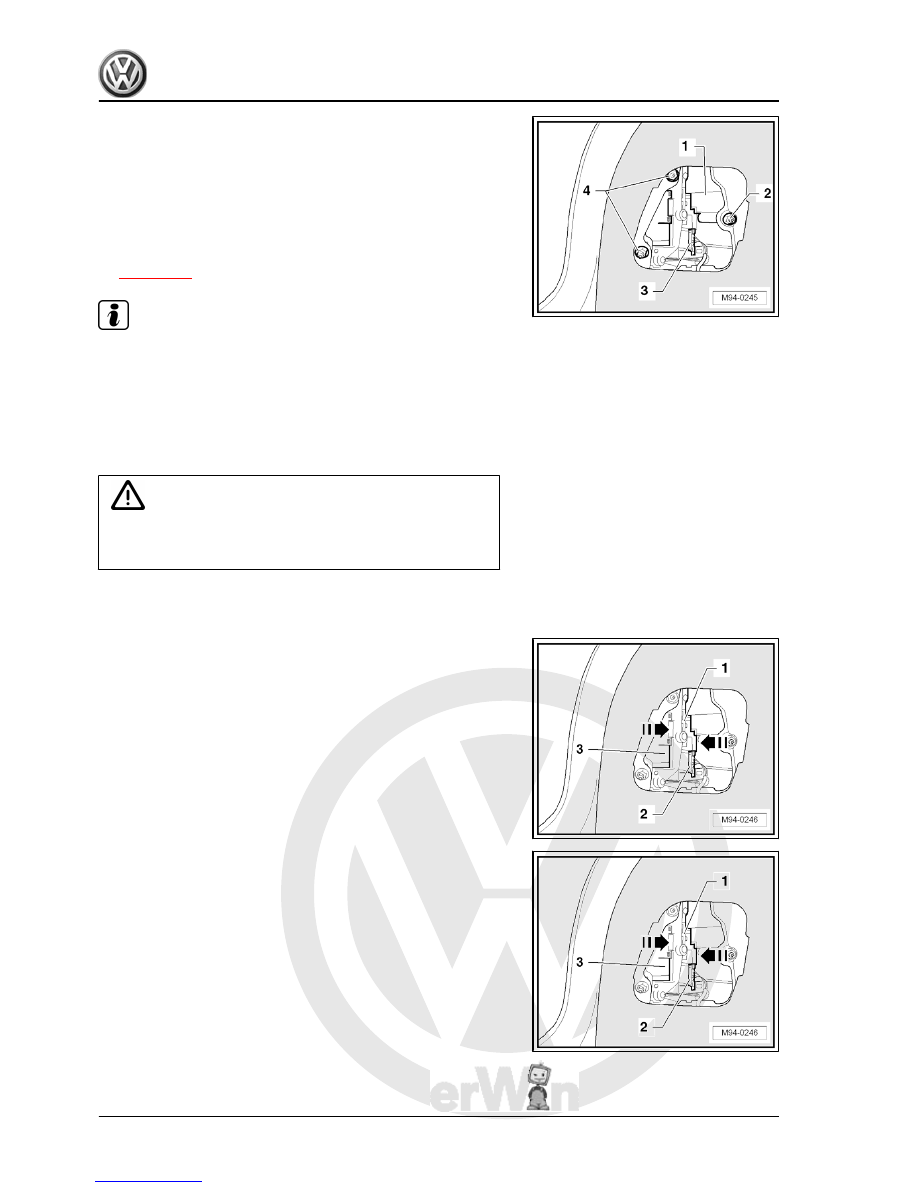

9.11

Removing and installing tail light bulb

holder - Variant

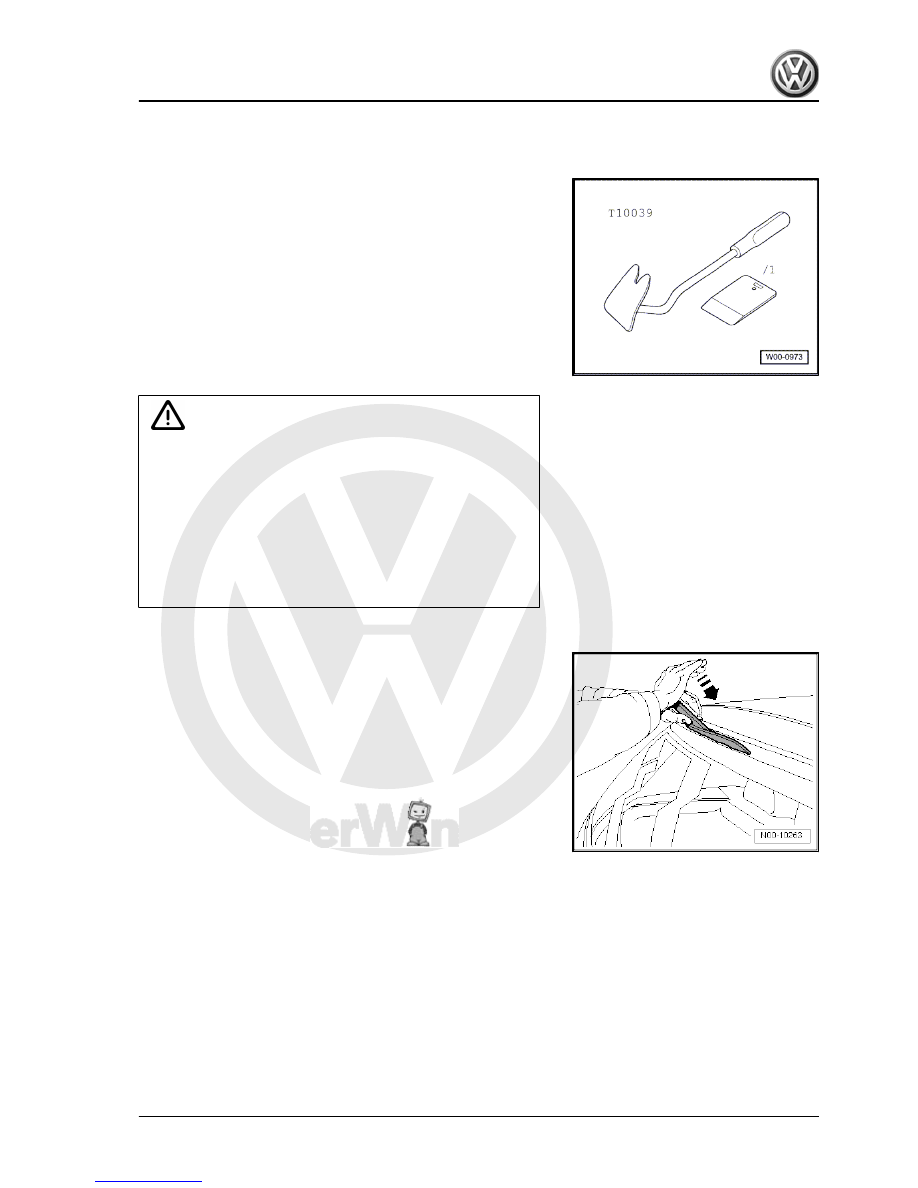

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Push side panel trim/cover to the side.
– Disconnect connector -2-.

– Unclip fastening tabs -in direction of arrow- and unhook bulb

carrier -1- from tail light housing -3-.

Installing
Installation is carried out in reverse order of removal.

314



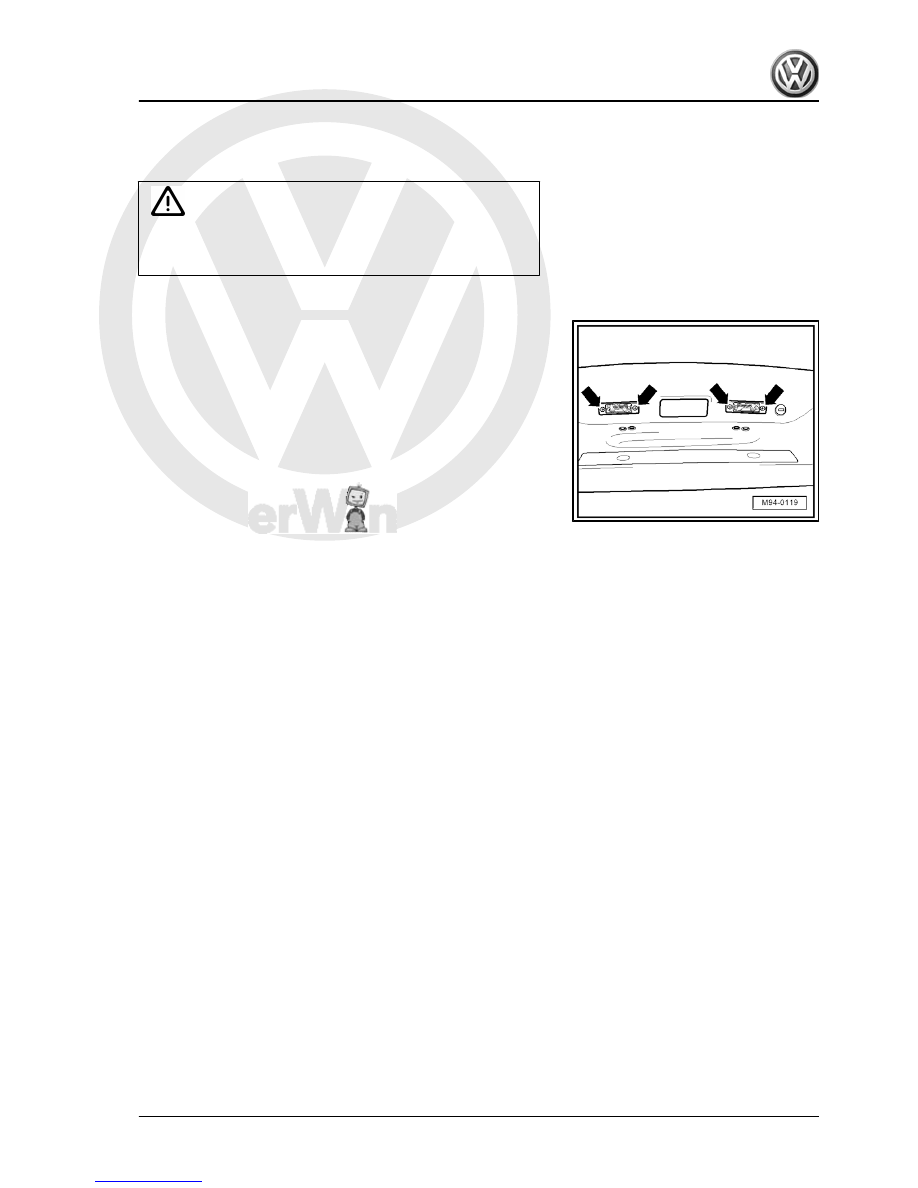

plate lights

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove screws -arrows- from left number plate light -X4- .
– Remove lens with left number plate light -X4- .
Bulb: festoon C 12 V/5 W
Installing
Installation is carried out in reverse order of removal.

10. Removing and installing number plate lights

315



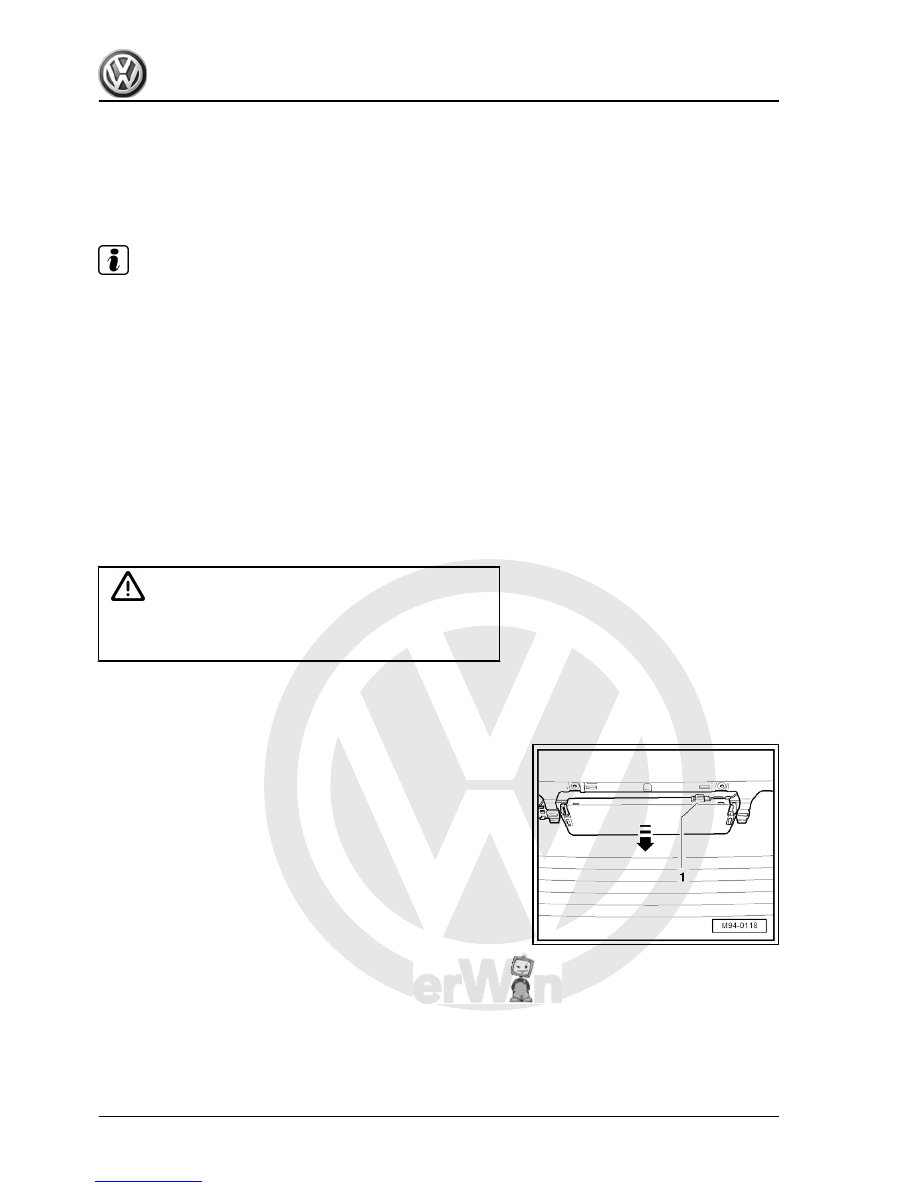

11.1

Removing and installing additional

brake light bulb -M25- - saloon

Note

Failure of LEDs in additional brake lights:

The individual LEDs in the additional brake lights are com‐

prised in groups of four LEDs and are supplied with current in

groups.

The additional brake light is designed in such a way that the

legal requirements are still met in the event that one LED group

fails.

If a further LED group fails, these requirements are no longer

met according to the legislator.

Due to the failure of one LED group, the intact LEDs are placed

under increased strain; it must be anticipated that further LED

groups will soon fail.

If more than four individual LEDs in the additional brake light

have failed, the additional brake light must be renewed (repair

measure).

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove strip roof leading edge ⇒  General body repairs, in‐

terior; Rep. gr.  70 .

– Disconnect connector -1-.
– Push high-level brake light bulb -M25- -in direction of arrow-

to rear window.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– When installing additional brake light bulb -M25- , ensure the

seal is seated correctly.

11.2

Removing and installing additional

brake light bulb -M25- - estate

The additional brake light bulb -M25- is located in the roof spoiler

over the rear window.
The illumination of high-level brake light bulb -M25- is provided

by LEDs.
The additional brake light bulb -M25- cannot be dismantled.

316



Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
♦ When removing and installing components that are in view

(switches, covers, trim), mask off areas where tools ( re‐

moval wedge -T10039/1- , removal wedge -VAS 3409- ,

screwdriver) are used to lever out those components us‐

ing commercially available masking tape.

♦ Ensure the seal is not damaged when removing the addi‐

tional brake light bulb -M25- .

Removing
– Insert removal wedge -T10039/1- between upper edge of

high-level brake light bulb -M25- and roof spoiler.

– Press additional brake light bulb -M25- downwards using re‐

moval wedge -T10039/1- and unclip upper retaining lugs of

additional brake light bulb -M25- towards rear.

– Then pull the additional brake light bulb -M25- to rear out of

opening in the roof spoiler, as far as the connected wiring al‐

lows.

11. Additional brake lights

317
