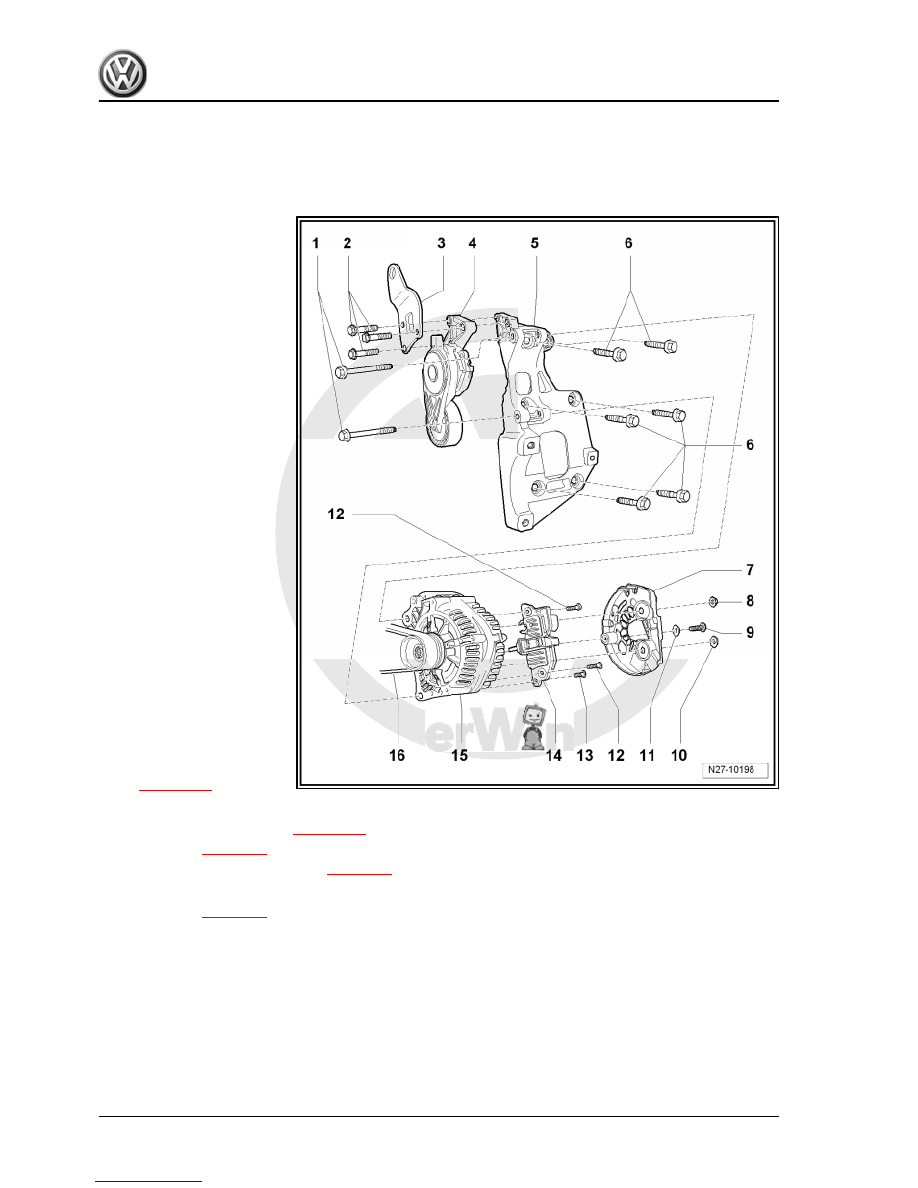

7.9.1 Assembly overview 1 - Hexagon head flange bolts ❑ 23 Nm 2 - Hexagon head flange bolts ❑ 23 Nm 3 - Transportation bracket ment ❑ For alternator -C- and air conditioner compres‐ sor ❑ Tightening sequence ⇒ Engine; Rep. gr. 13 6 - Hexagon head flange bolts ❑ 52 Nm 7 - Protective cap ❑ 4.5 Nm 10 - Hexagon nut ❑ 2 Nm 13 - Cross-head screw ❑ 2 Nm 14 - Voltage regulator -C1- ❑ Removing and installing ⇒ page 168 15 - Alternator -C- ❑ Removing and installing ⇒ page 115 ❑ Checking ⇒ page 89 ❑ Securing battery positive wire ⇒ page 88 16 - Poly V-belt ❑ Checking ⇒ page 88 ❑ Removing and installing ⇒ Engine; Rep. gr. 13 Not illustrated 114
|
