Volkswagen Golf Variant / Jetta. Manual - part 713

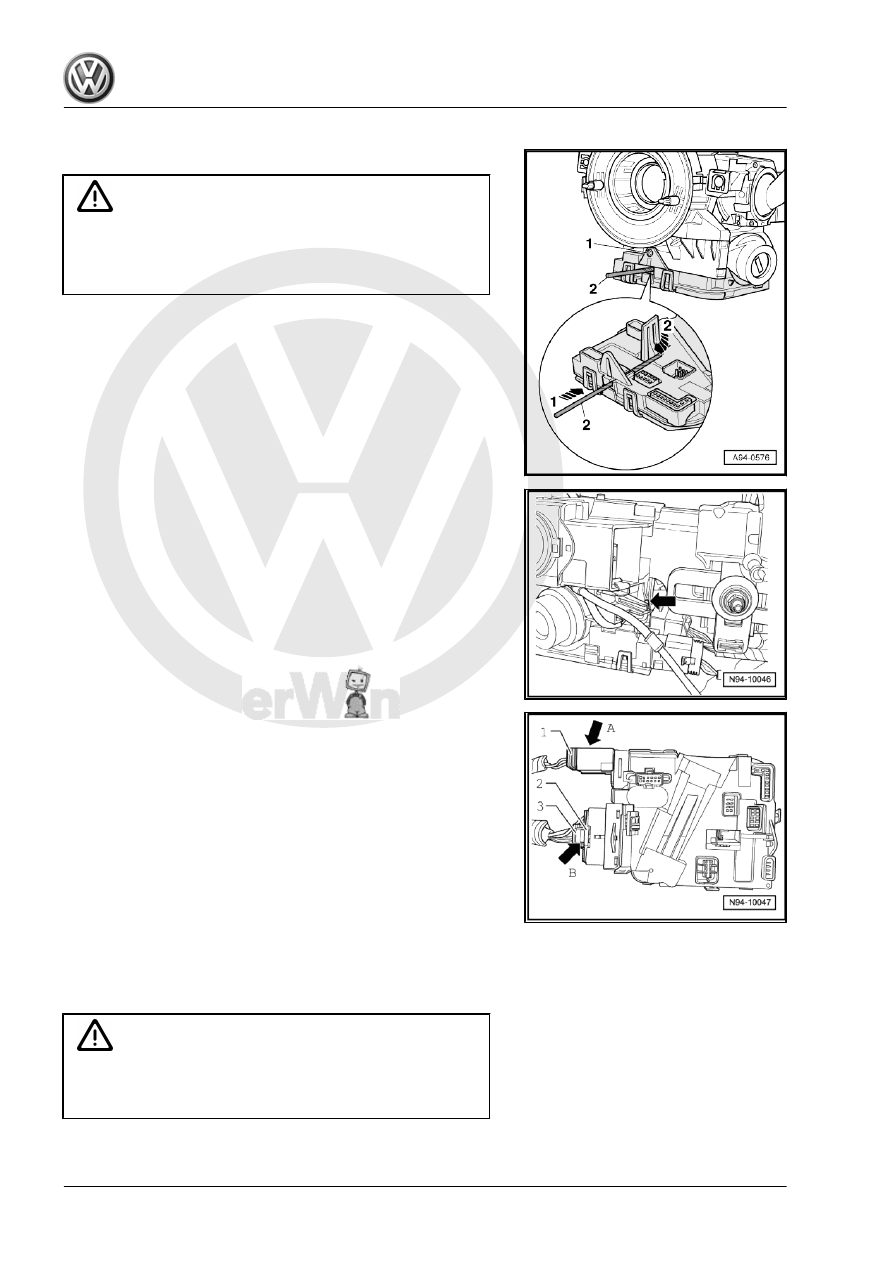

Caution

DO NOT attempt to remove steering column electronics control

unit -J527- without releasing middle securing clip, as described

in next step. Failure to do so would damage steering column

electronics control unit -J527- .

– Insert a piece of wire or a 2.5 mm ∅ drill bit -2- approx. 45 mm

into hole -arrow 1- in steering column electronics control unit

-J527- to release locking tab -arrow 2-.

– Using a screwdriver, press against the rear retaining clip

-arrow- of the control unit for steering column electronics -

J527- .

– Carefully pull the steering column electronics control unit -

J527- downwards off the steering column switch.

– Unclip -arrow A- connector -1- and disconnect from steering

column electronics control unit -J527- .

– Pull locking bar -3- out of connector.
– Unclip -arrow B- connector -2- and disconnect from steering

column electronics control unit -J527- .

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
Ensure when fitting the connector that none of the pins become

bent and that the connector can be heard to engage.

12.2.2

Removing and installing airbag coil con‐

nector and return ring with slip ring -

F138-

WARNING

Airbag  coil  connector  and  return  ring  with  slip  ring  -F138-

should not be moved out of central position during removal and

road wheels should be in „straight-ahead“ position.

322

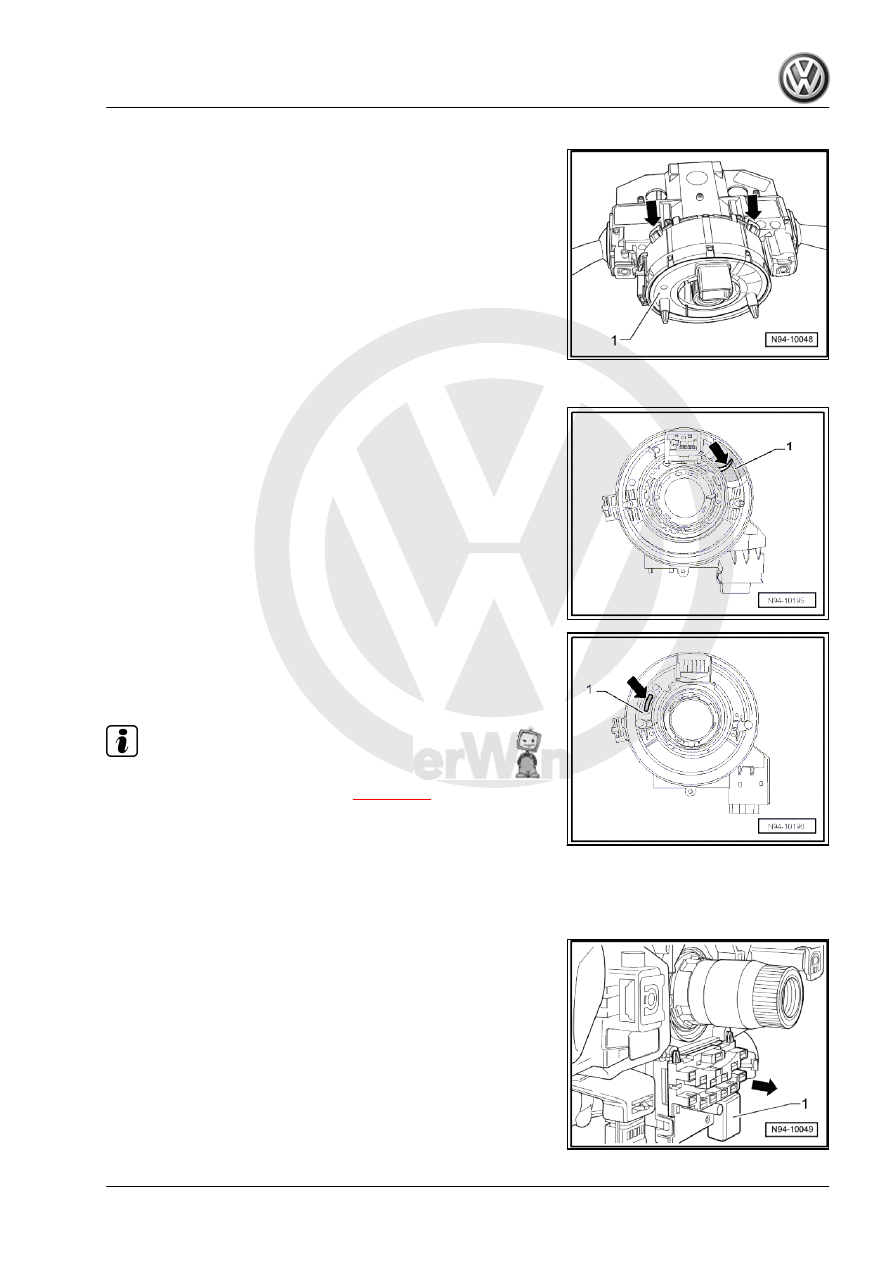

turn ring with slip ring -F138- -1- and pull airbag coil connector

and return ring with slip ring -F138- backwards off steering

column.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
When installing airbag coil connector and return ring with slip ring

-F138- , make sure airbag coil connector and return ring with slip

ring -F138- is in central position and wheels are in „straight-

ahead“ position.
Central position of airbag coil connector and return ring with slip

ring -F138- depends on manufacturer and is shown below:

♦ The coloured strip (black rectangles) -arrow- must be located

in sight window -1-.

♦ The coloured strip (yellow) -arrow- must be in sight window

-1-.

Note

If a new steering angle sender -G85- in installed, this procedure

must be followed by a „basic setting“

⇒ page 328

 .

12.2.3

Removing and installing steering angle

sender -G85-

Removing
– Pull the steering angle sender -G85- -1- backwards and away

from the steering column switch -arrow-.

Installing
Installation is carried out in reverse order of removal.

12. Steering column switch

323

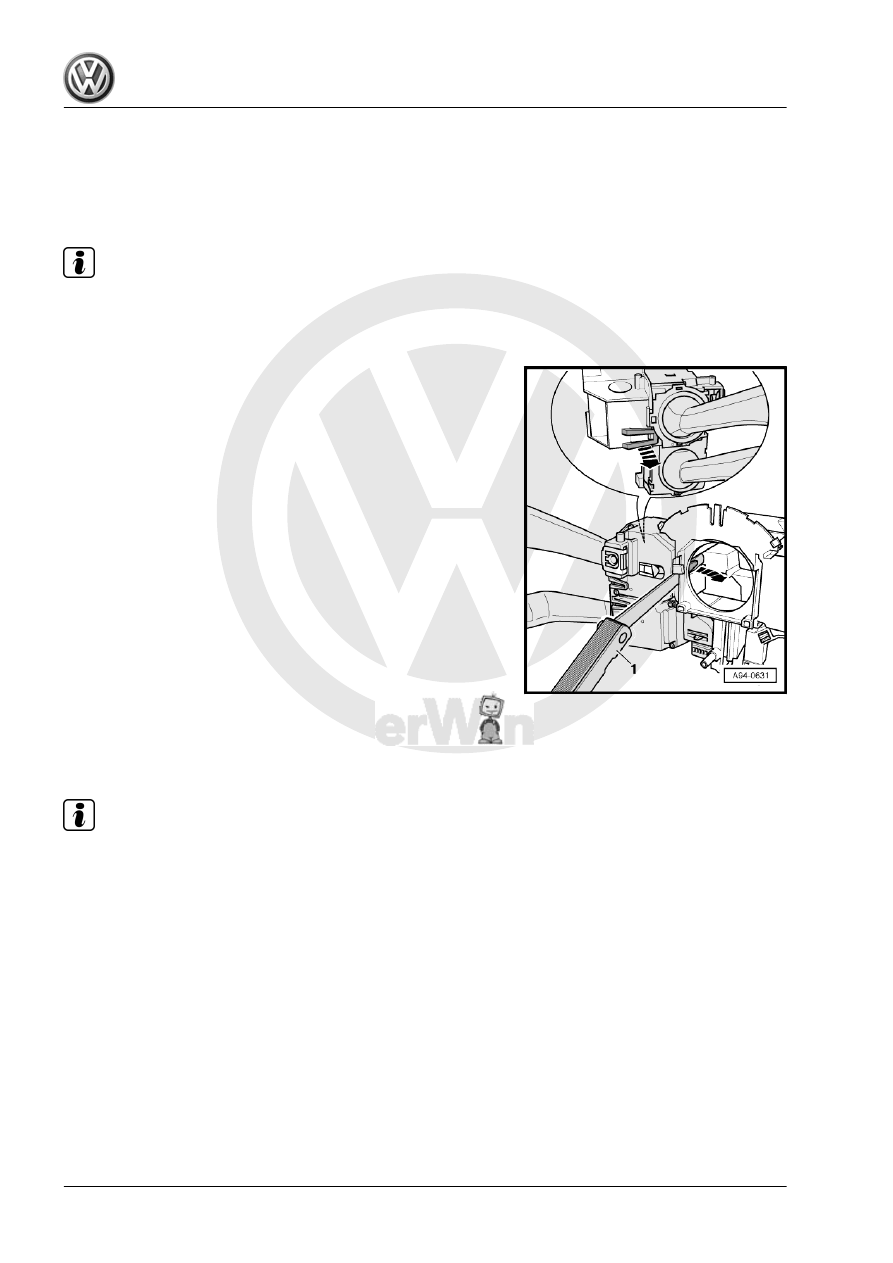

Removing and installing turn signal

switch

The „turn signal switch“ comprises the following components: turn

signal switch -E2- , headlight dip/flasher switch -E4- and cruise

control system switch -E45-

Note

For reasons of clarity, the steering column switch is shown with

CCS switch -E45- in the illustration.

Removing
– Release retaining clips -arrows- using 1.0 mm feeler gauge

-1- and take „turn signal switch“ off backwards.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
The „turn signal switch“ should be heard to engage.

12.2.5

Removing and installing windscreen

wiper switch -E-

Removing

Note

For reasons of clarity, the steering column switch is shown in the

removed state.

324

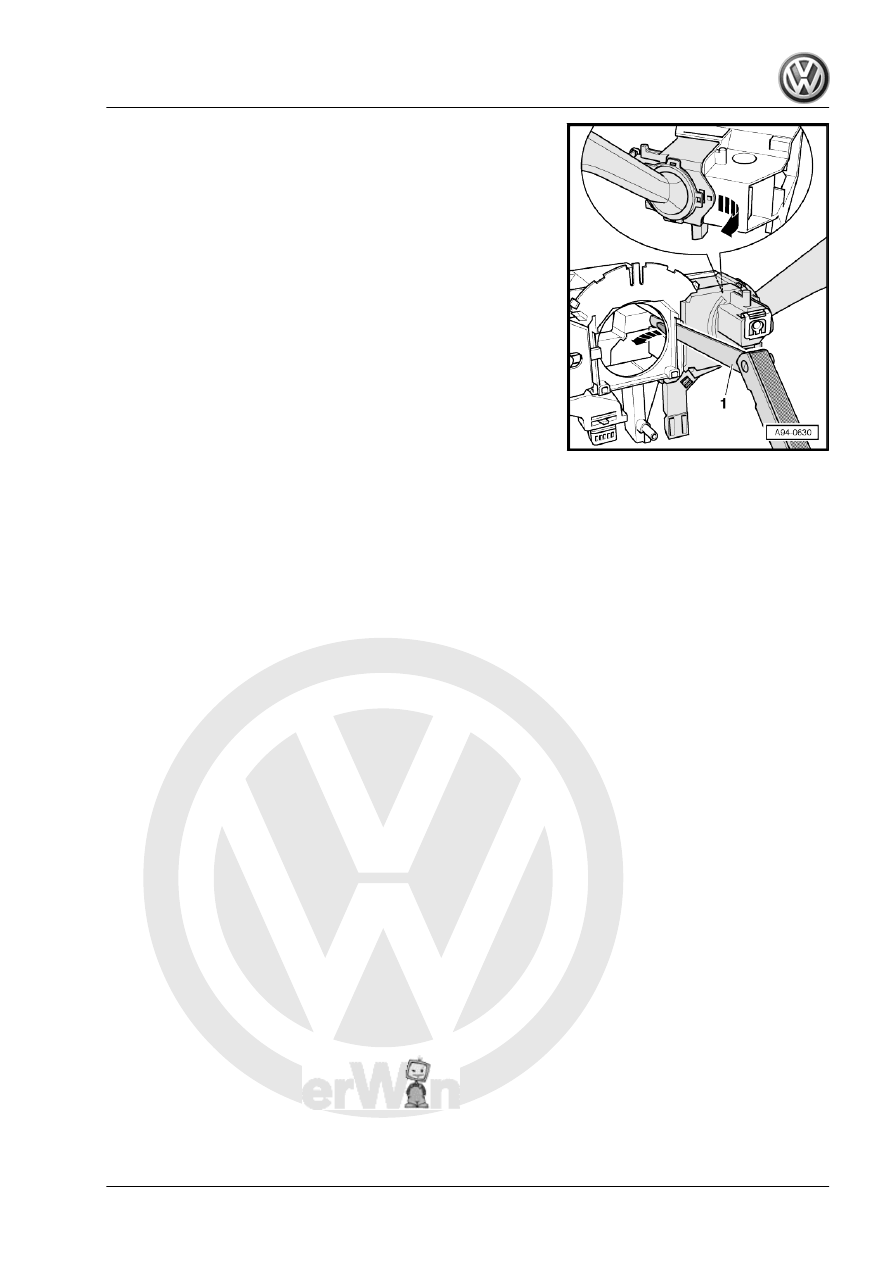

-1- and take windscreen wiper switch -E- off backwards.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
The windscreen wiper switch -E- should be heard to engage.

12. Steering column switch

325
