Rear side marker bulb (USA/Canada

only)

The function of the rear side marker light -M12- is taken over by

the left tail light bulb -M4- / right tail light bulb -M2- .

306

Tail lights

9.1

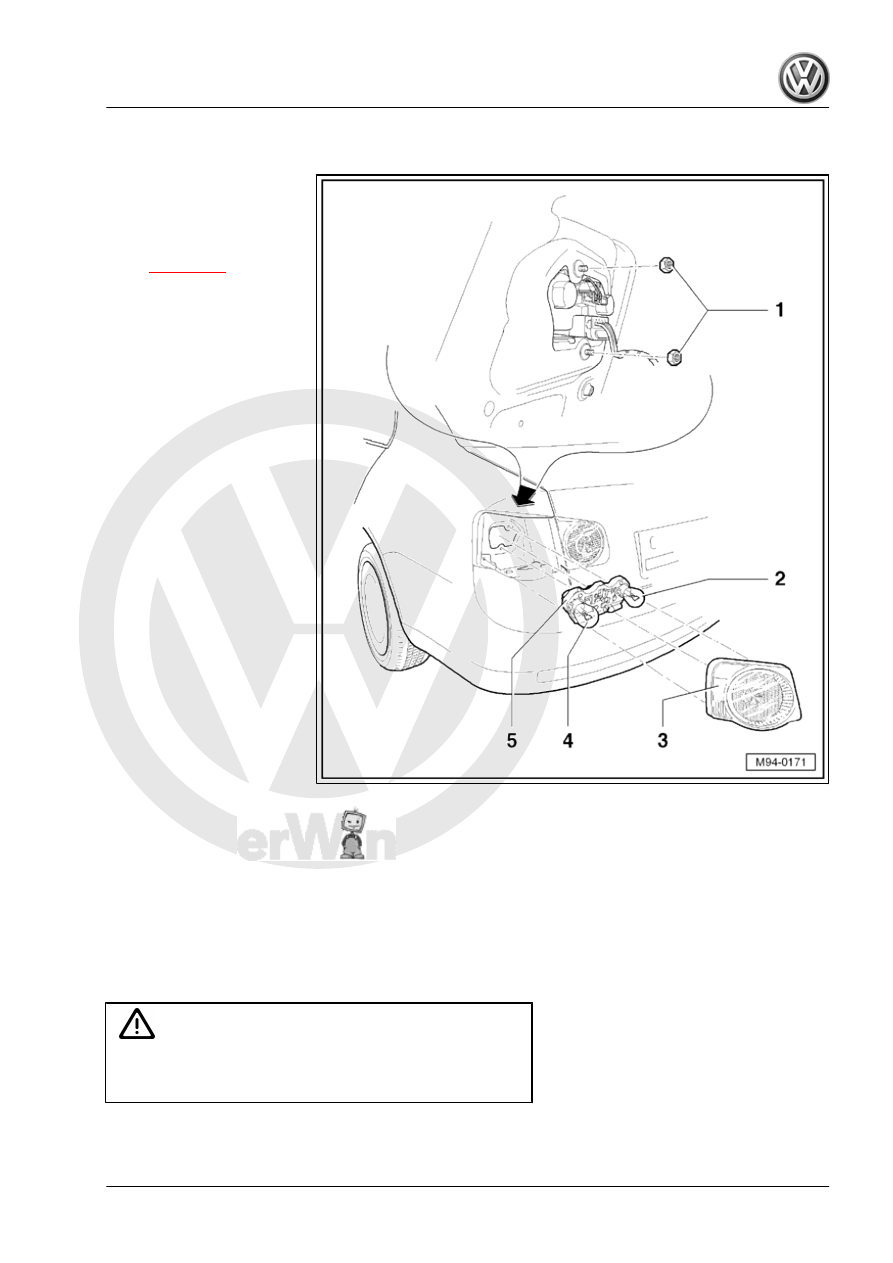

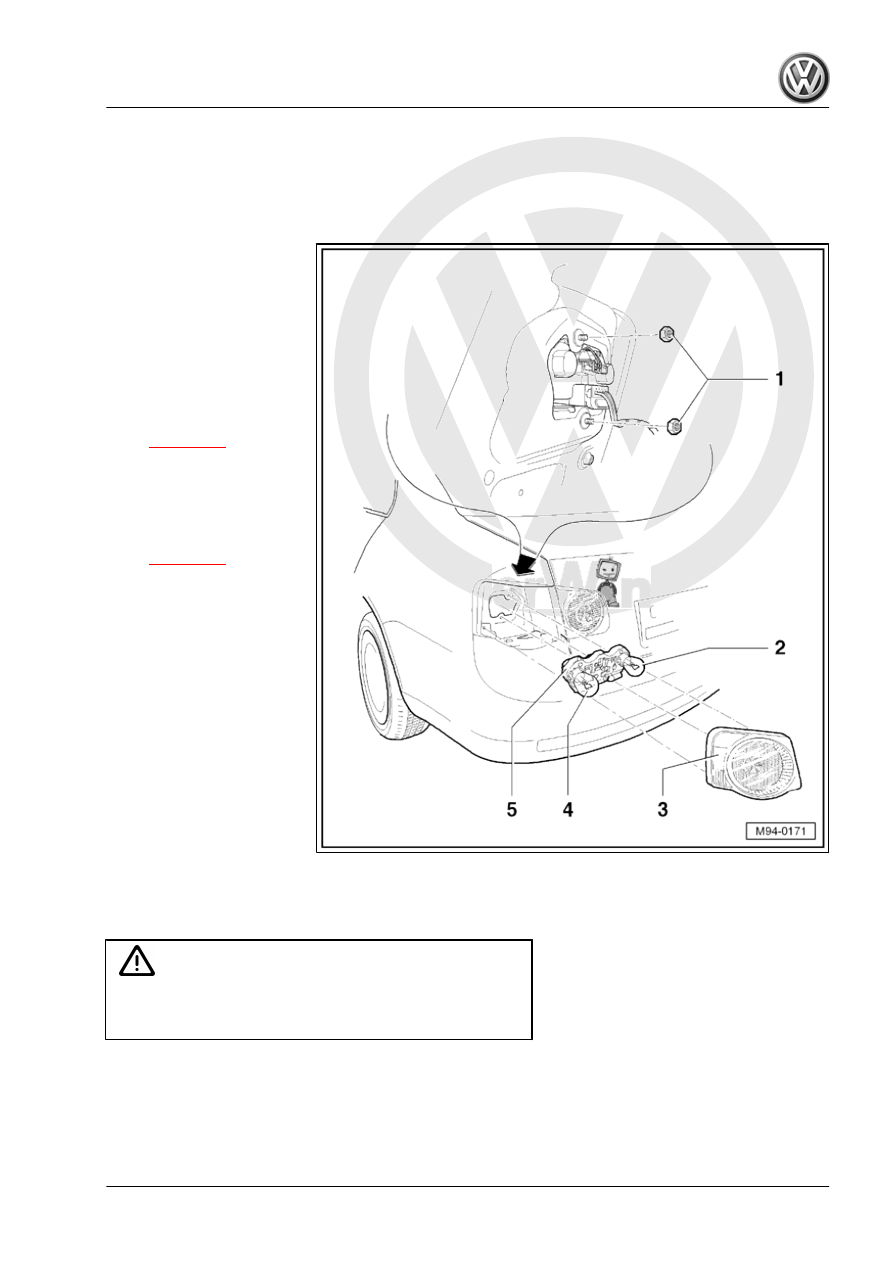

Assembly overview - tail light in side panel (bulbs) - saloon

1 - Nut

❑ 3.5 Nm

2 - Left brake light bulb -M9- /

right brake light bulb -M10-
3 - Tail light housing in side

panel

❑ Contains LED module

for daytime running light

and side light

❑ Removing and installing

⇒ page 307

4 - Rear left turn signal bulb -

M6- / rear right turn signal bulb

-M8-
5 - Bulb carrier

❑ Removing and installing

⇒ page 308

9.2

Removing and installing tail light in side

panel (bulbs) - saloon

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Push side panel trim to the side.

9. Tail lights

307

panel.

– Remove tail light.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 307

 .

Note

Tail light connector in side panel must be „heard“ to engage when

reconnecting.

– When installation is complete, check gap/shut lines of tail light

to body.

9.3

Removing and installing tail light bulb

carrier in side panel - saloon

Removing

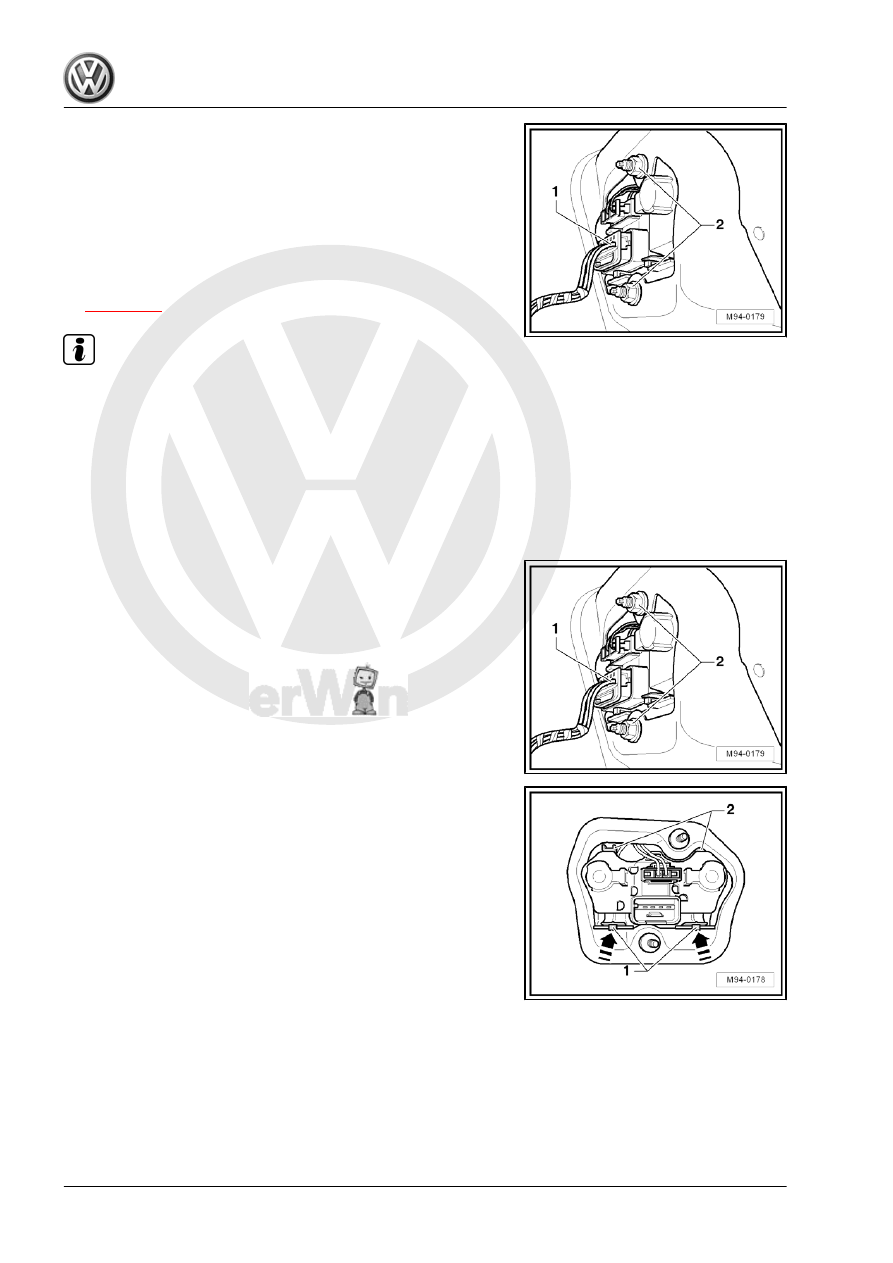

– Pull off connector -1-.

– Unclip fastening tabs -1- -in direction of arrow- and unhook

bulb carrier from tail light housing -2-.

Installing
Installation is carried out in reverse order of removal.

308

Tail light in side panel (LED) - saloon

1 - Nut

❑ 3.5 Nm

2 - Tail light in side panel

❑ Removing and installing

⇒ page 309

9.5

Removing and installing tail light in side

panel (LED) - saloon

The tail light in the side panel with LED cannot be dismantled

further. It comprises the following components:
♦ Left tail light bulb -M4- / right tail light bulb -M2-
♦ Left brake and tail light bulb -M21- / right brake and tail light

bulb -M22-

♦ Rear left turn signal bulb -M6- / rear right turn signal bulb -M8-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Push side panel trim to the side.

9. Tail lights

309
