Bulb for turn signal repeater light and

entry light in exterior mirror

General description
The driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb in exterior mirror -L132-

(side-mounted turn signals) are integrated in the exterior mirror

housings.
In addition, there is one driver side entry light in exterior mirror -

W52- / front passenger side entry light in exterior mirror -W53- in

each of the exterior mirror housings, which illuminate the entry

area around the open driver and front passenger door in the dark.

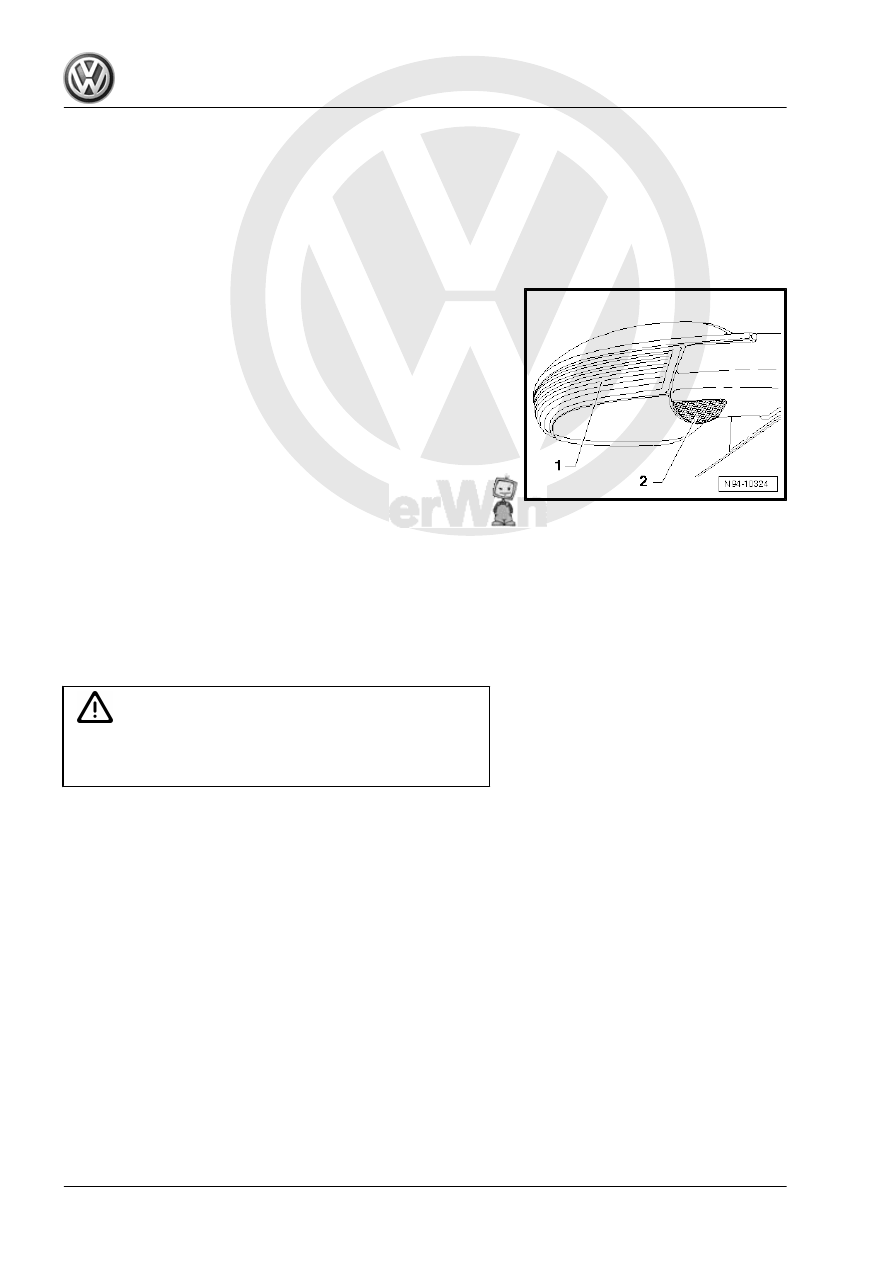

1 - Driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb in exterior mirror -L132-
2 - Driver side entry light in exterior mirror -W52- / front passenger

side entry light in exterior mirror -W53-
Fault detection and fault display
The onboard supply control unit is equipped with self-diagnosis.
For fault finding, use vehicle diagnosis, testing and information

system -VAS 5051B- in „Guided fault finding“ mode.

6.1

Removing and installing turn signal bulb

The driver side turn signal repeater bulb in exterior mirror -L131- /

passenger side turn signal repeater bulb -L132- are installed in

the left/right exterior mirror housing respectively.
In the event of damage, the complete driver side turn signal lamp

in exterior mirror -L131- / passenger side turn signal lamp in ex‐

terior mirror -L132- must be renewed.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove driver side turn signal repeater bulb in exterior mirror

-L131- / passenger side turn signal repeater bulb in exterior

mirror -L132- ⇒  General body repairs, exterior; Rep. gr.  66

Installing
– Install driver side turn signal repeater bulb in exterior mirror -

L131- / passenger side turn signal repeater bulb in exterior

mirror -L132- ⇒  General body repairs, exterior; Rep. gr.  66

6.2

Removing and installing entry light in ex‐

terior mirror

The driver side entry light in exterior mirror -W52- / front passen‐

ger side entry light in exterior mirror -W53- are installed in the left

and right exterior mirror housing respectively.
There is no need to remove exterior mirror to remove and install

driver side entry light in exterior mirror -W52- / front passenger

side entry light in exterior mirror -W53- .
The procedure for removal and installation of the driver side entry

light in exterior mirror -W52- and front passenger side entry light

302

one side only.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing

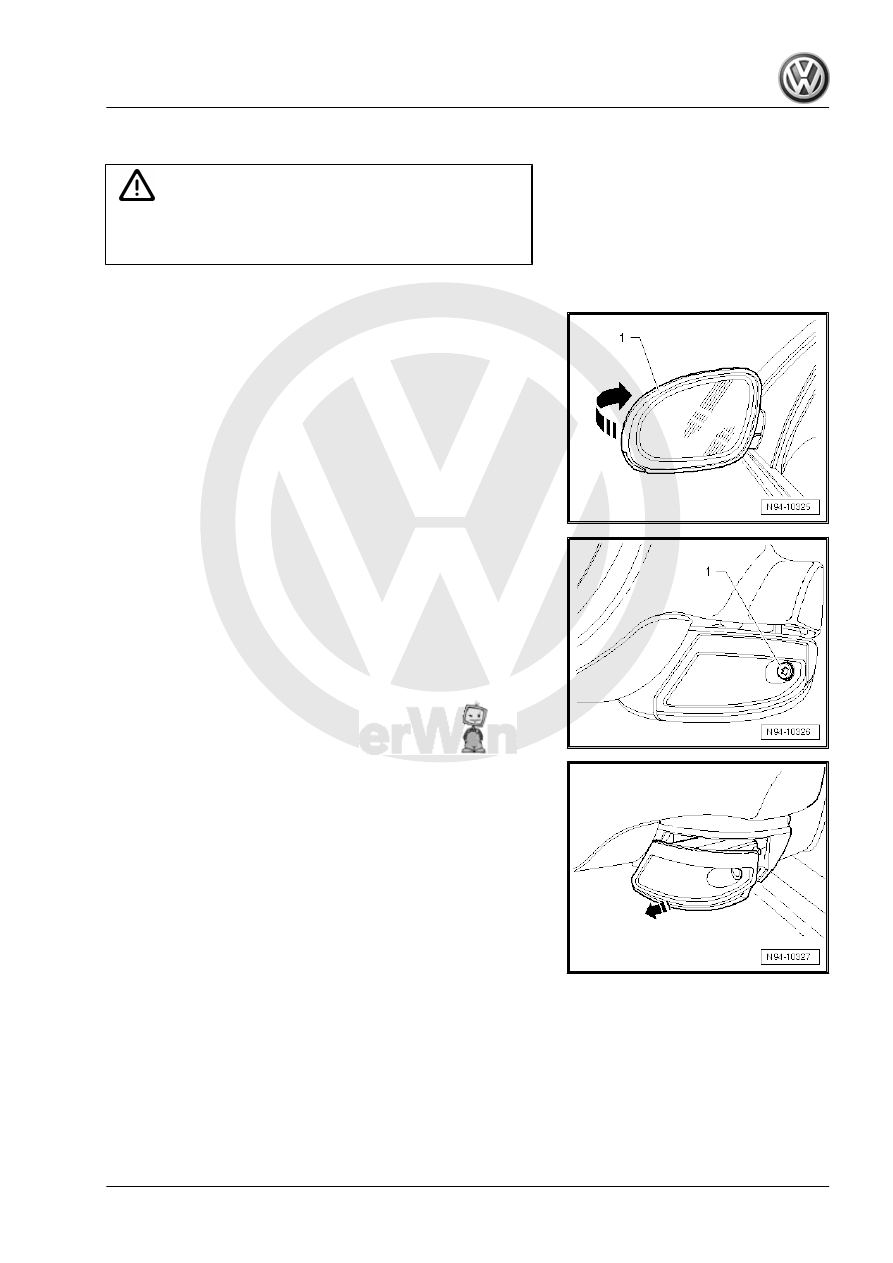

– Fold exterior mirror -1- forwards in -direction of arrow-.

– Remove bolt -1-.

– Unclip driver side entry light in exterior mirror -W52- from ex‐

terior mirror in -direction of arrow- and pull it out as far as the

wiring allows.

6. Bulb for turn signal repeater light and entry light in exterior mirror

303

driver side entry light in exterior mirror -W52- .

Renewing bulb:

– Pull push-fit bulb -1- in -direction of arrow- out of bulb holder

-2-.

Push-fit bulb: 12 V/6 W
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Following installation, check operation of exterior mirrors.

304

Removing and installing front side

marker light in front bumper

The front left side marker bulb -M33- / front right side marker bulb

-M34- are renewed in exactly the same way.
Removing
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

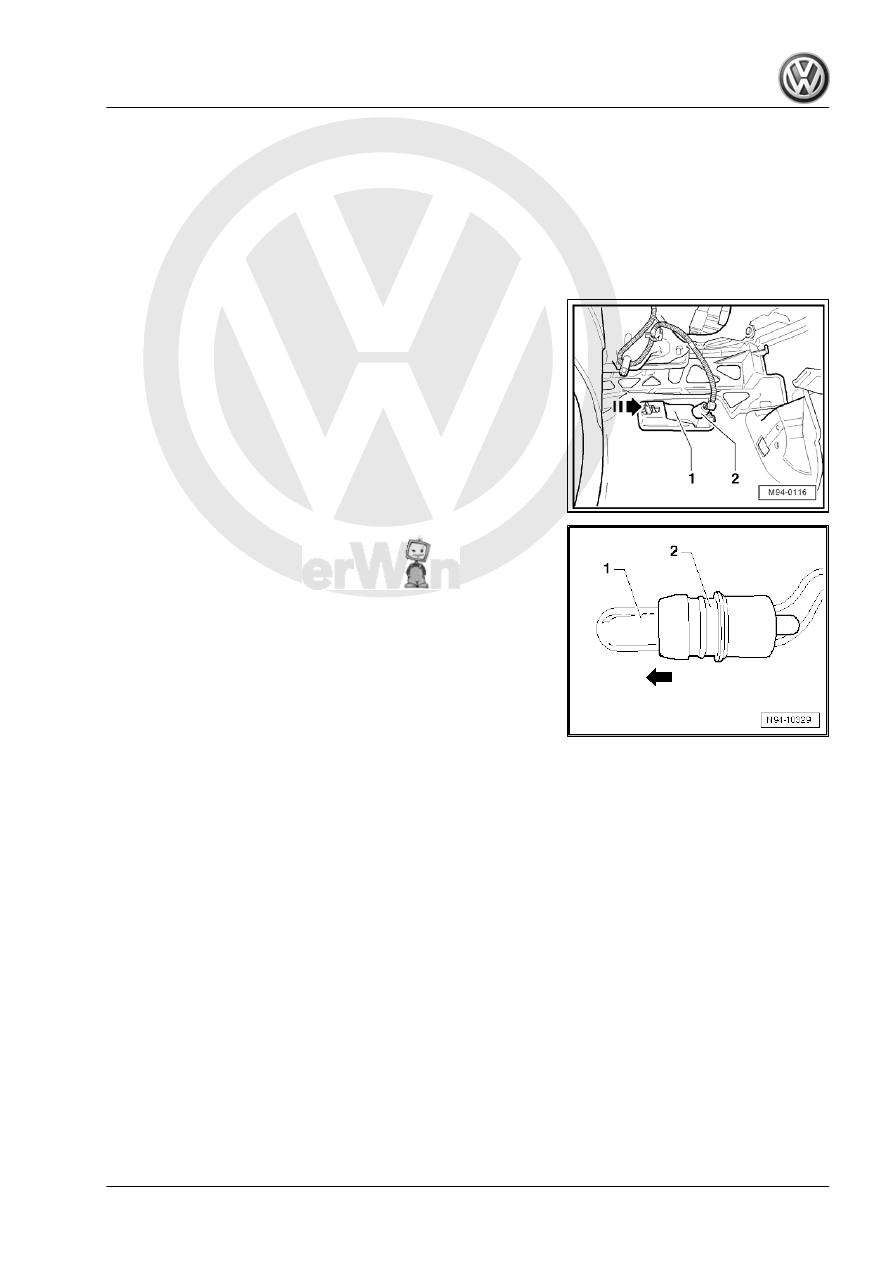

– Release side marker light -1- by pushing locking lug in

-direction of arrow-.

– Pull bulb holder -2- out of side marker light.
Renewing front left side marker bulb -M33- / front right side mark‐

er bulb -M34- :

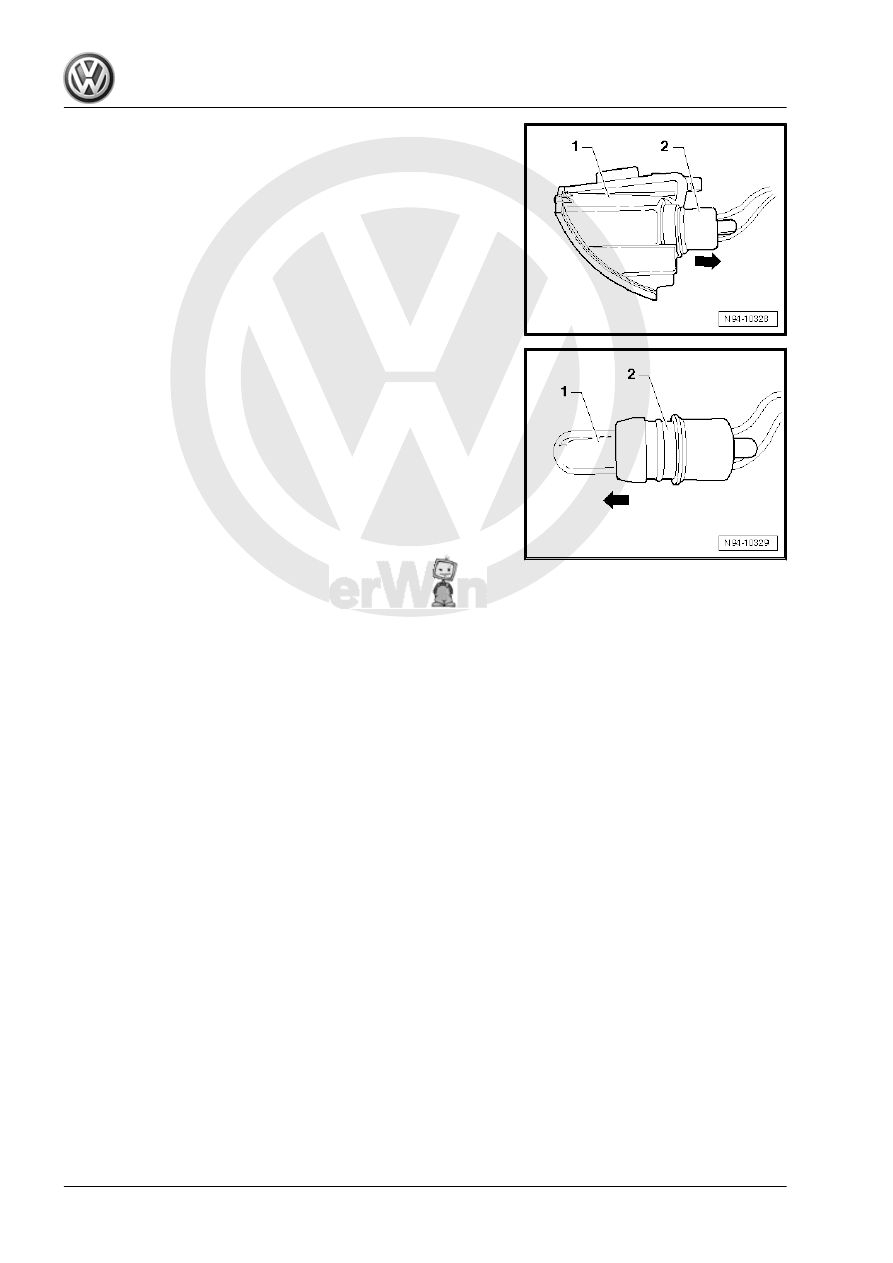

– Pull front left side marker bulb -M33- -1- in direction of arrow

out of bulb holder -2-.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Following installation, carry out functional check.

7. Removing and installing front side marker light in front bumper
