Volkswagen Golf Variant / Jetta. Manual - part 707





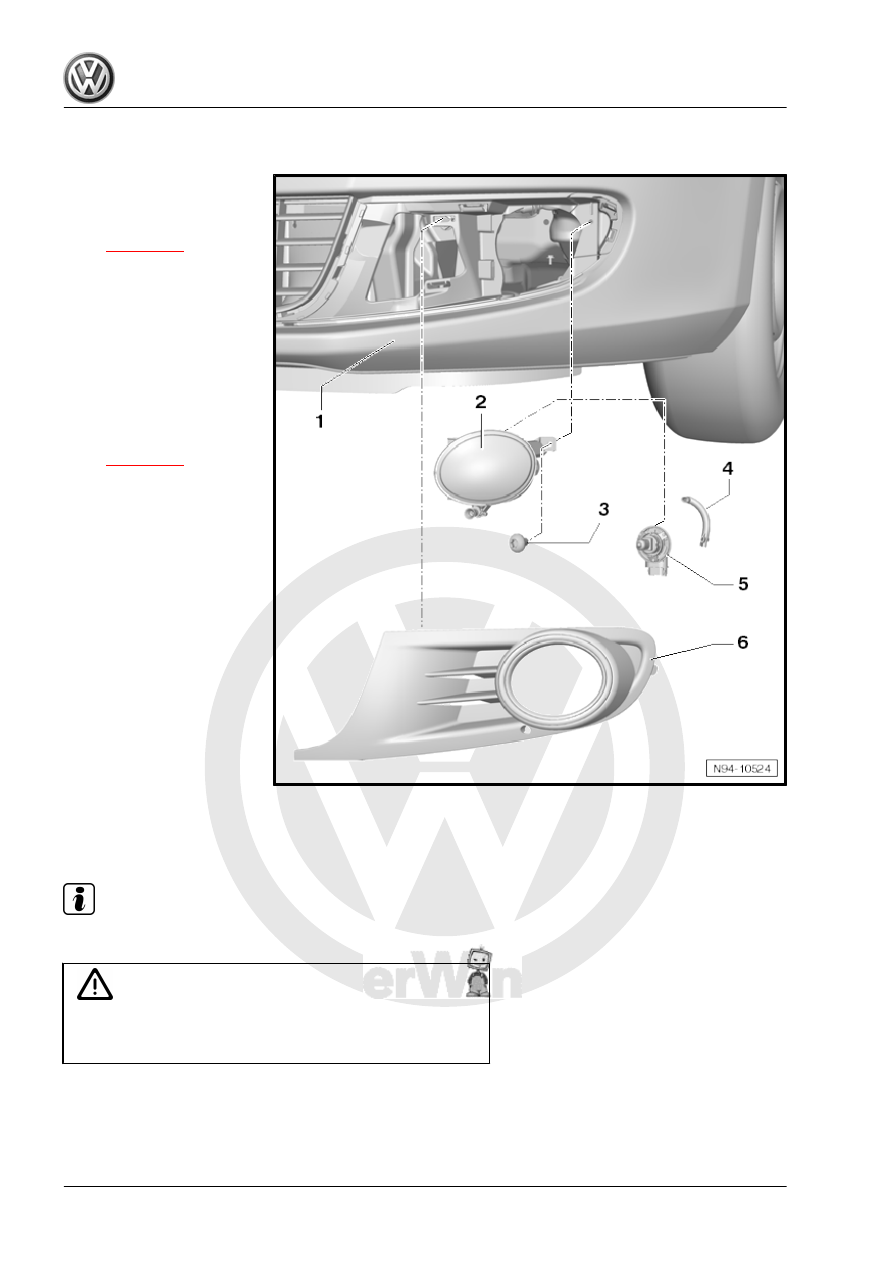

Assembly overview - fog lights (from MY2010)

1 - Front bumper cover
2 - Fog light housing

❑ Removing and installing

⇒ page 299

3 - Bolt

❑ 2 Nm

4 - Vent hose
5 - Left fog light bulb -L22- /

right fog light bulb -L23- / left

cornering light bulb -L148- /

right cornering light bulb -

L149-

❑ Bulb: HB4 12 V/51 W
❑ Removing and installing

⇒ page 300

6 - Cover cap

5.3

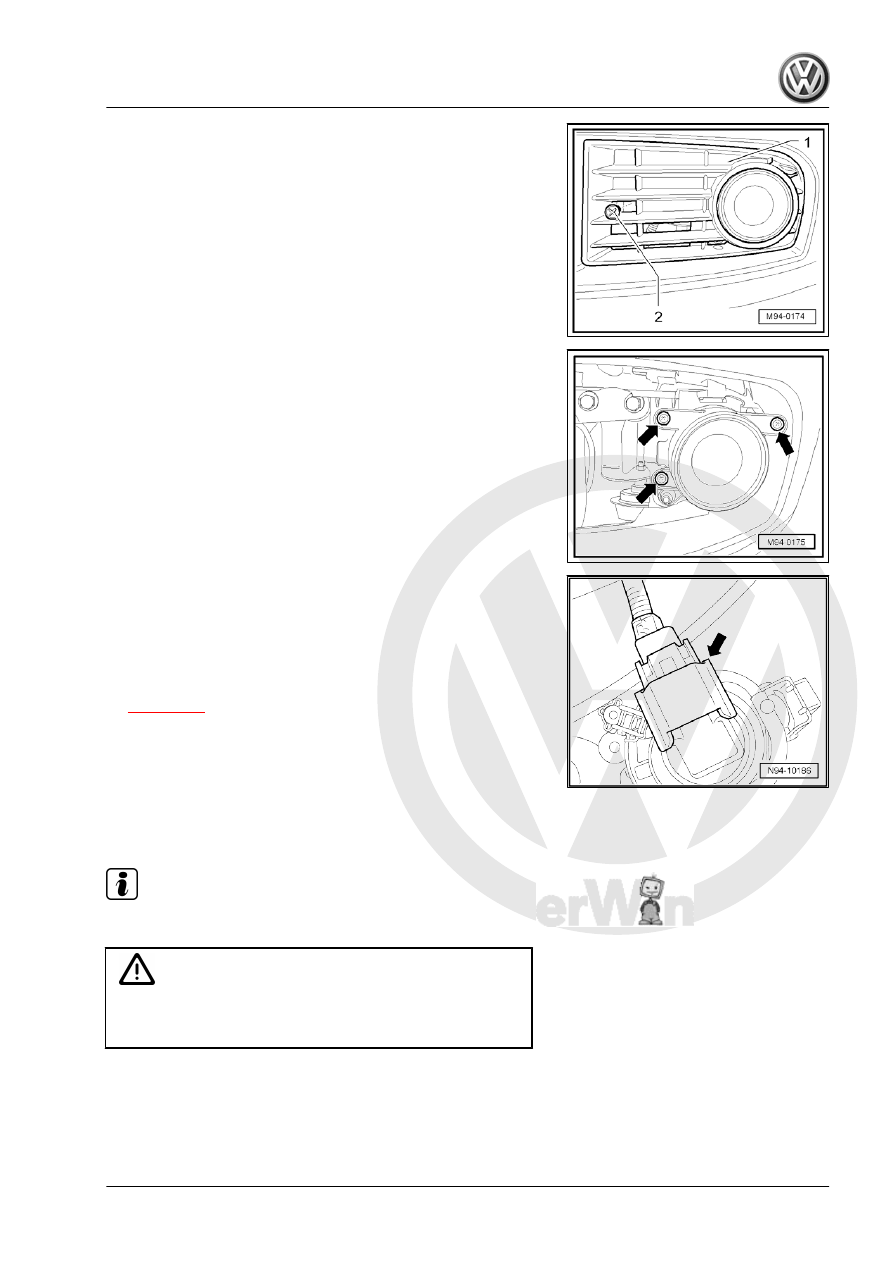

Removing and installing fog lights (up to

MY2009)

Note

The illustrations show removal and installation for the left fog light.

Caution

♦ Switch off ignition and all electrical consumers
♦ Remove the ignition key.

Removing
– Remove bolt -2-.

298

– Remove bolts -arrows-.

– Pull fog light housing out of bumper and disconnect connector

-arrow-.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 297

 .

– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.4

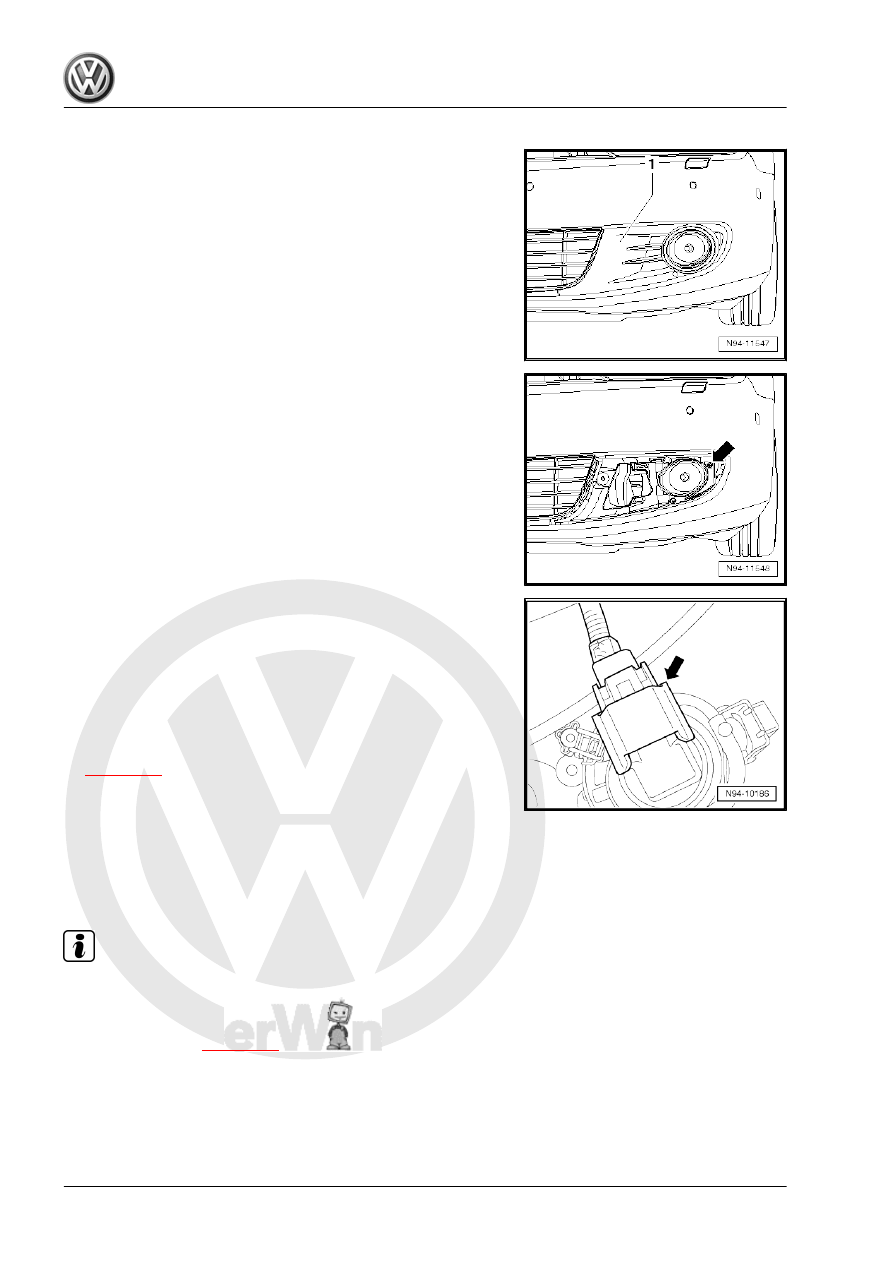

Removing and installing fog lights (from

MY2010)

Note

The illustrations show removal and installation for the left fog light.

Caution

♦ Switch off ignition and all electrical consumers
♦ Remove the ignition key.

5. Fog lights

299

– Unscrew bolt -arrow-.

– Swing fog light housing out of bumper cover taking connected

wiring length into consideration.

– Release and disconnect connector -arrow- and remove fog

light housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 298

 .

– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.5

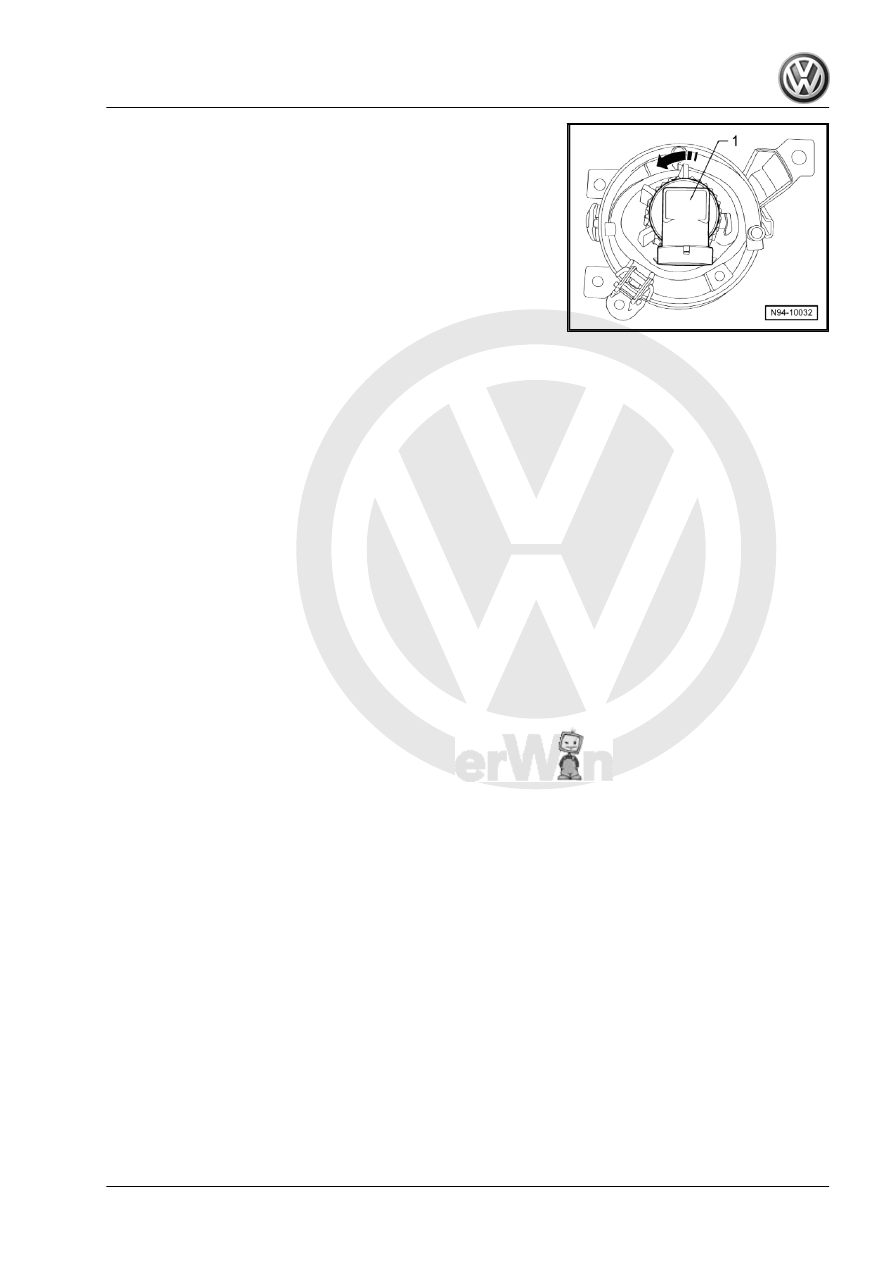

Removing and installing fog light/corner‐

ing light bulb

Note

The illustration shows removal and installation on left fog light.

Removing
– Remove fog light

⇒ page 298

 .

300

move from fog light.

The bulb is permanently attached to the bulb holder and cannot

be renewed separately.
Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Check function of headlight.
– Check fog light settings and adjust ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

5.6

Adjusting fog lights

Adjusting fog light ⇒ Maintenance ; Booklet  20.1 ; Descriptions

of work

5. Fog lights

301
