Volkswagen Golf Variant / Jetta. Manual - part 705





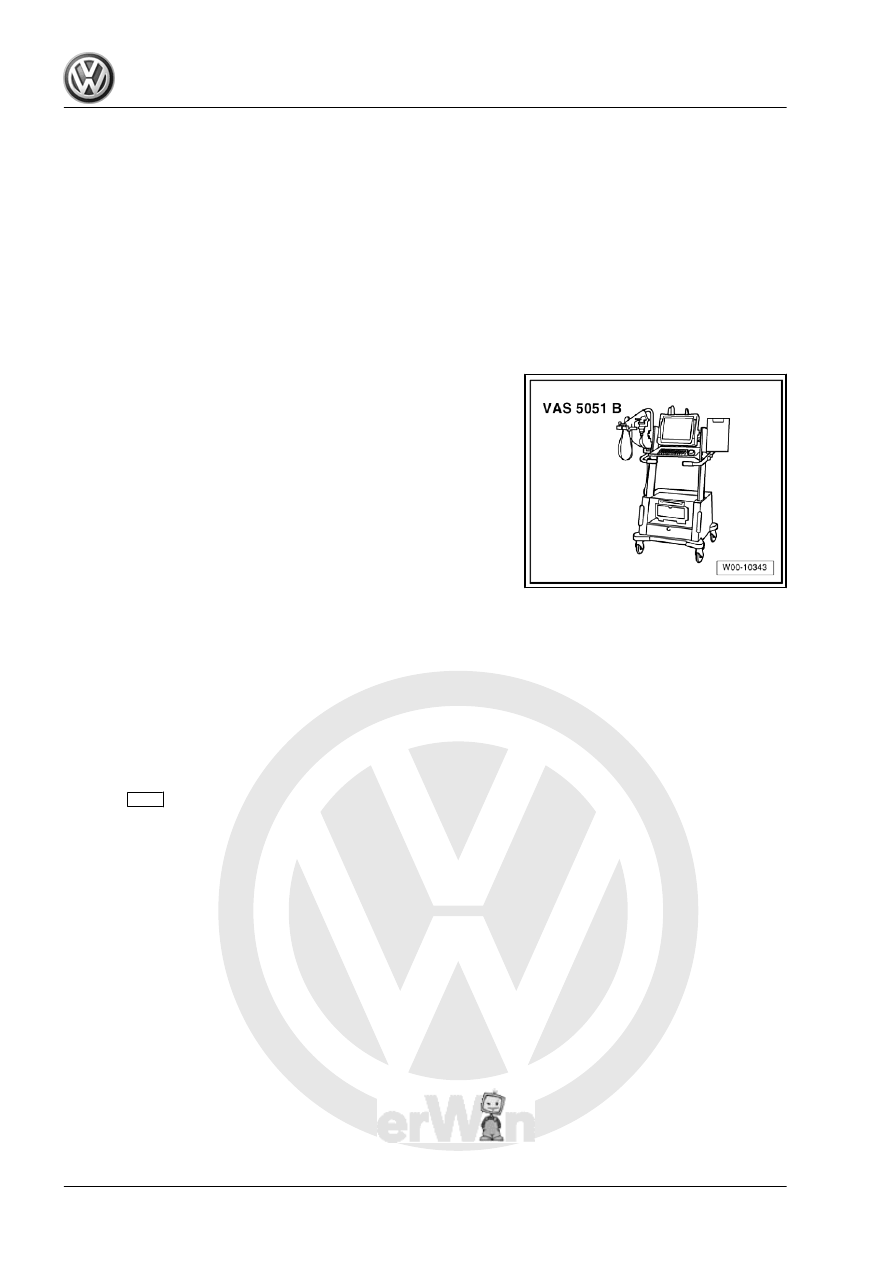

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Automatic headlight range control_cornering light
♦ Electrical components, automatic headlight range control
♦ Power output module for headlight

4.8

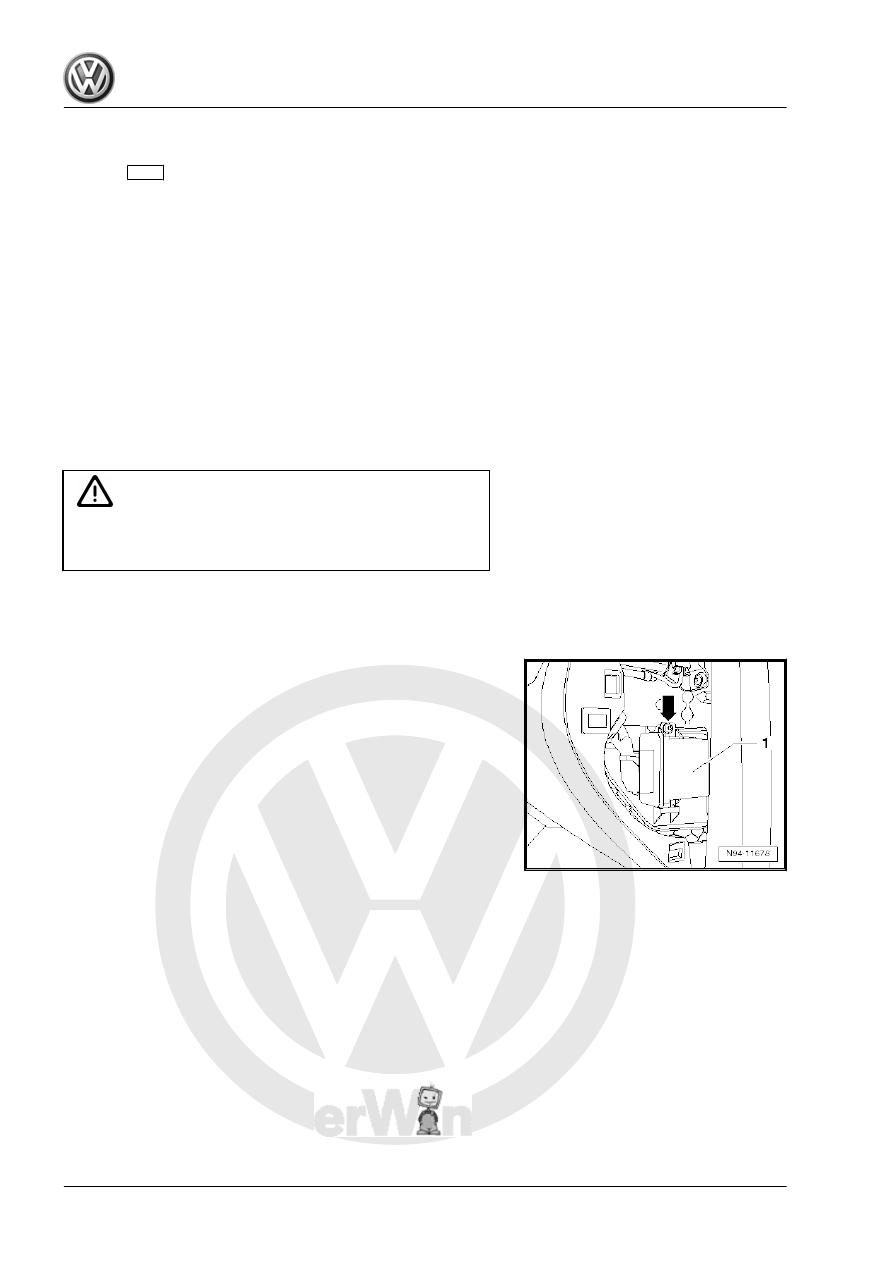

Headlight range control unit -J431-

4.8.1

Removing and installing headlight range

control unit -J431-

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove the side dash panel cover on front passenger side ⇒

General body repairs, interior; Rep. gr.  68 .

– Unscrew bolt -arrow-.
– Remove headlight range control unit -J431- -1- from installa‐

tion position taking connected wire length into account.

290

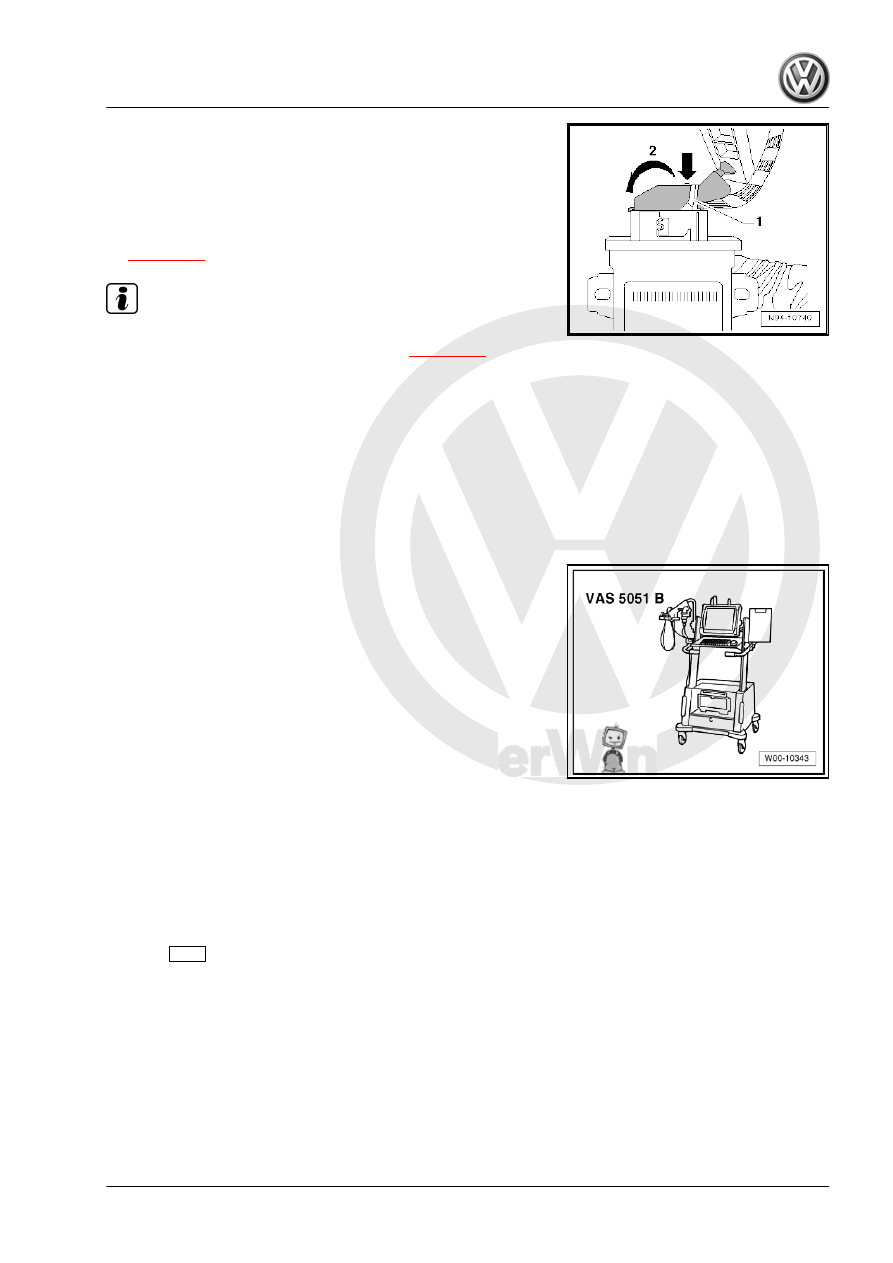

-arrow 2- and pull off connector.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Tighten all threaded connections to specified torques

⇒ page 279

 .

Note

Headlight range control unit -J431- must be recoded if a new

headlight range control unit -J431- is installed

⇒ page 291

 . Then

perform the basic setting of headlights ⇒ Maintenance ; Booklet

20.1 ; Descriptions of work .

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

4.8.2

Coding headlight range control unit -

J431-

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

The following procedure enables you to code control unit for

headlight range control -J431- .
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Automatic headlight range control, cornering lights
♦ Headlight range control functions
♦ Coding AFS headlight range control unit

4. Headlights with gas discharge bulbs and cornering lights (from MY2010)

291

Headlight range control motor

4.9.1

Removing and installing headlight range

control motor

Headlight range control motor cannot be removed in headlights

with gas discharge bulbs and cornering light.
The headlight must be renewed if the headlight range control mo‐

tor is defective.

4.9.2

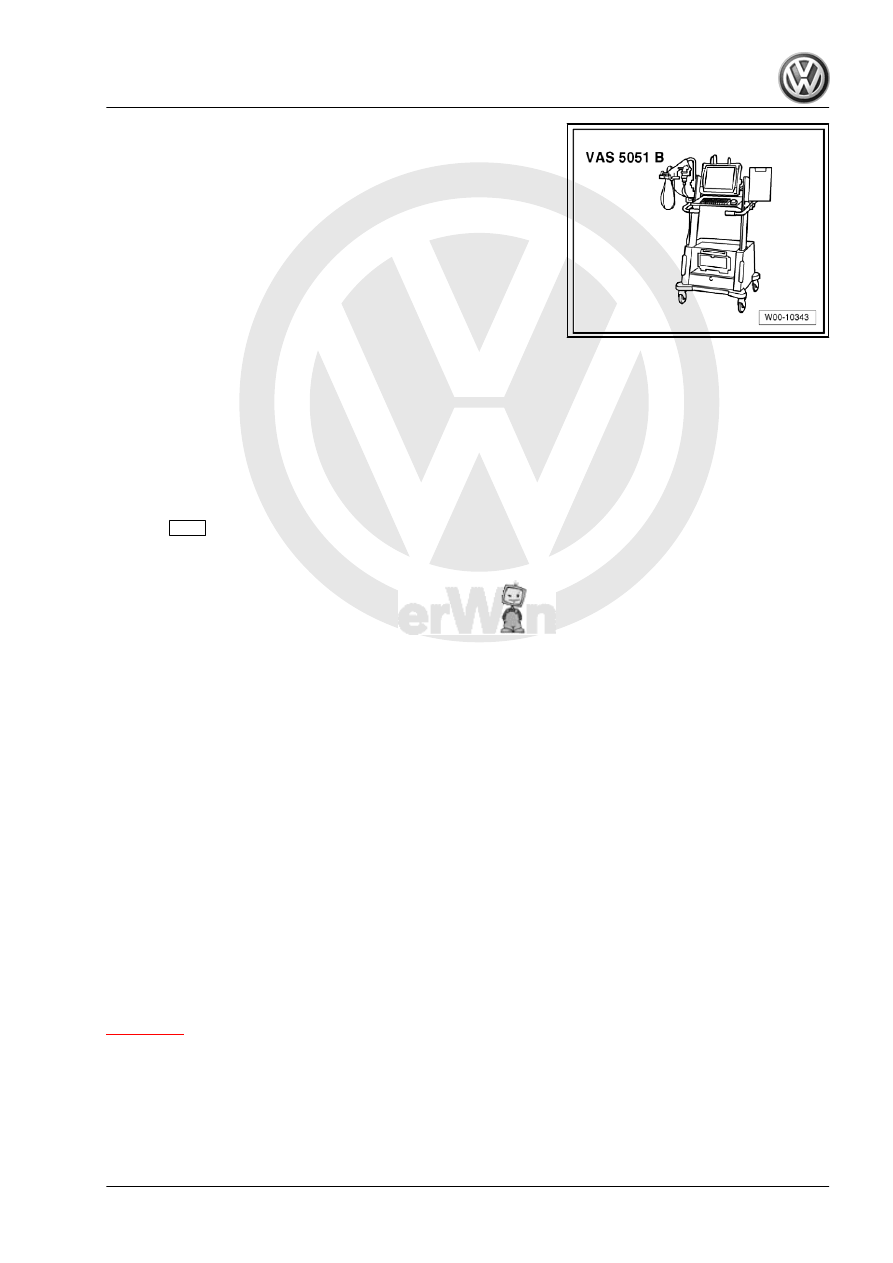

Checking headlight range control motor

Special tools and workshop equipment required
♦ Vehicle diagnosis, testing and information system -VAS

5051B-

The following components can be tested:
♦ Headlight range control motor, left -V48-
♦ Headlight range control motor, right -V49-
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Automatic headlight range control, cornering lights
♦ Electrical components, automatic headlight range control
♦ Headlight range control motor

4.10

Swivel module position sensor

4.10.1

Checking swivel module position sensor

Special tools and workshop equipment required

292

5051B-

The following procedure enables you to test the left swivel module

position sensor -G474- / right swivel module position sensor -

G475- .
Procedure
– Connect vehicle diagnosis, testing and information system -

VAS 5051B- .

– In vehicle diagnosis, testing and information system -VAS

5051B- , select „Guided fault finding“.

– Using

GoTo

 button, select „Functions/component“ and the fol‐

lowing menu options in succession:

♦ Body
♦ Electrical system
♦ 01 - On Board Diagnosis capable systems
♦ Automatic headlight range control, cornering lights
♦ Electrical components, automatic headlight range control
♦ Swivel module position sensor

4.11

Headlight screen adjustment solenoid

With conventional xenon headlights, the gas discharge bulbs only

generate the dipped beam. The „bi-xenon“ features makes it pos‐

sible to generate both the dipped beam and the main beam with

„one“ gas discharge bulb. To achieve this, an electromechanical

adjuster ( left headlight screen adjustment solenoid -N395- / right

headlight screen adjustment solenoid -N396- ) uncovers the

screened area of the dipped beam on actuation of the main beam

function, thus producing main beam light distribution.

4.11.1

Removing and installing headlight

screen adjustment solenoid

The headlight screen adjustment solenoid on left -N395- / head‐

light screen adjustment solenoid on right -N396- are located

inside the respective headlight and can neither be individually re‐

newed nor adjusted.
In the event of damage, the headlight must be renewed

⇒ page 280

 .

4.11.2

Testing headlight screen adjustment

solenoid

The left headlight screen adjustment solenoid -N395- / right head‐

light screen adjustment solenoid -N395- can be checked using

the final control diagnosis of the onboard supply control unit -

J519- .

4. Headlights with gas discharge bulbs and cornering lights (from MY2010)

293
