Volkswagen Golf Variant / Jetta. Manual - part 689





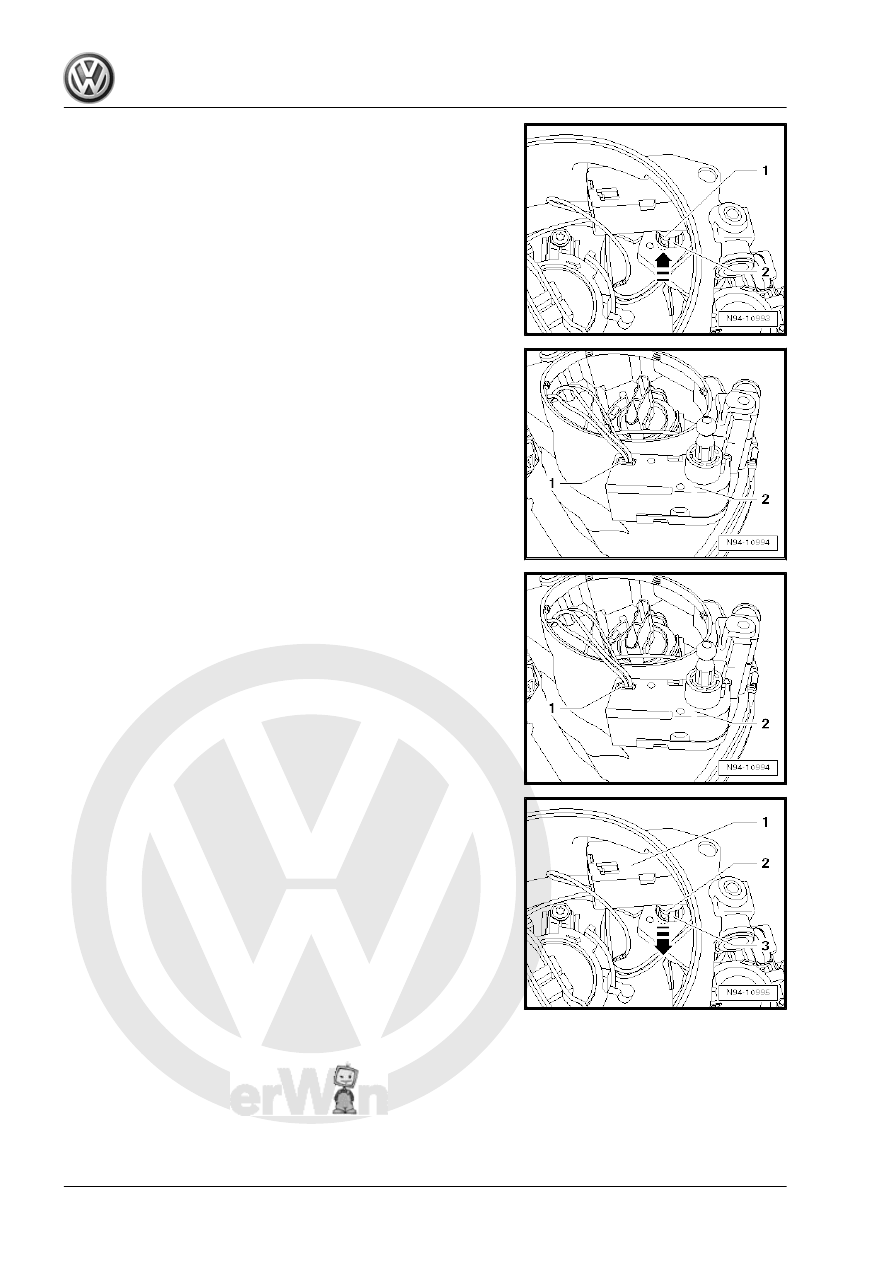

head of the right headlight range control motor -V49- -1- so

that it can be slid out of the ball head mounting -2- in

-direction of arrow- to the rear.

– Take the right headlight range control motor -V49- out of the

headlight as far as the connected wiring allows.

– Disconnect connector -1- and remove right headlight range

control motor -V49- -2-.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:

– Reconnect connector -1- on right headlight range control mo‐

tor -V49- -2-.

– Insert right headlight range control motor -V49- -1- in headlight

in position as shown in illustration.

– Lift dipped beam reflector in headlight slightly and turn the ball

head of the right headlight range control motor -V49- -2- so

that it can be pushed into the ball head mounting -3- in

-direction of arrow-.

226

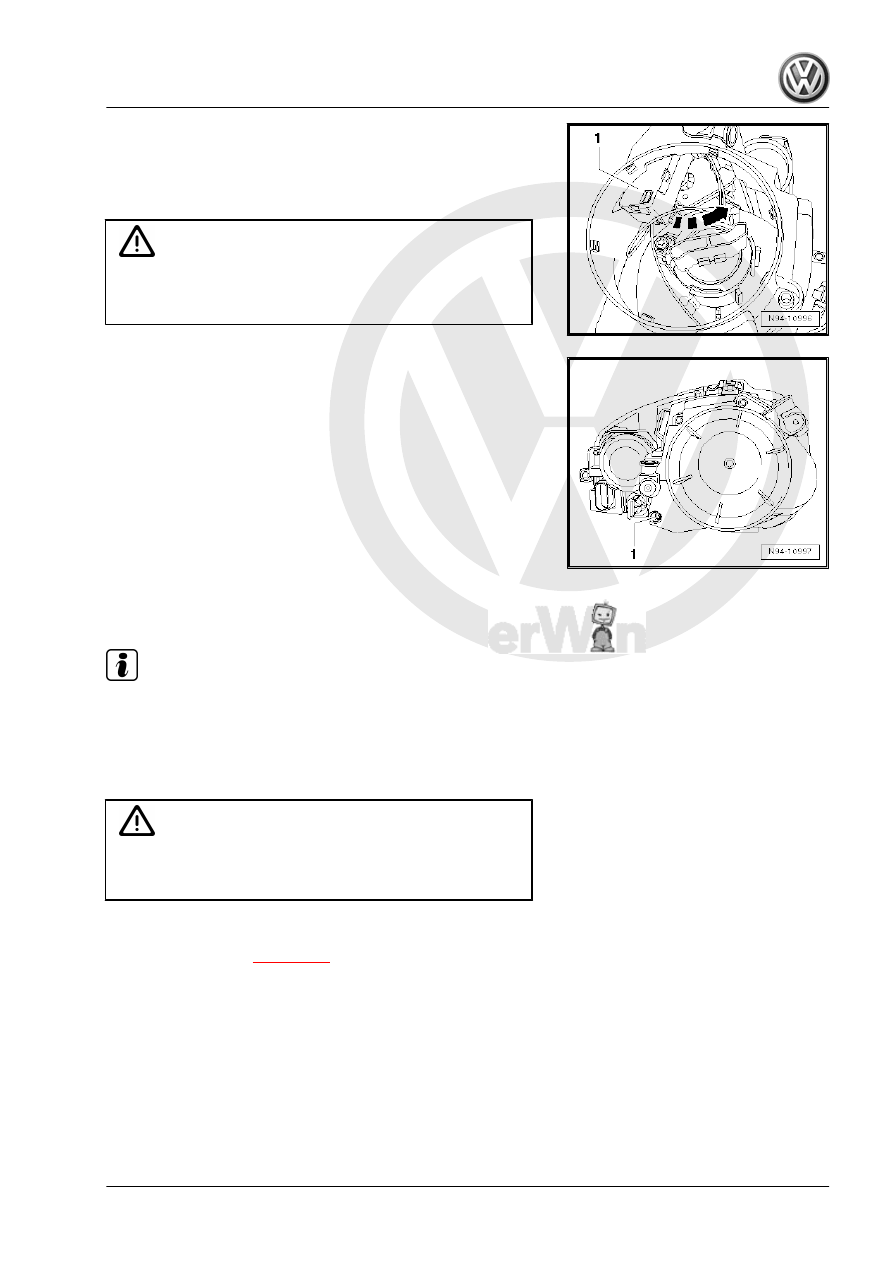

headlight range control motor -V49- -1- in -direction of arrow-

on to stop.

– Insert both bolts into the right headlight range control motor -

V49- and tighten, and install the cover cap.

Caution

When installing cover cap, ensure cap is seated correctly. The

ingress of water will lead to permanent damage to the head‐

light.

– Seal the broken-open assembly openings -1- using a sepa‐

rately ordered sealing plug ⇒  ETKA (electronic parts cata‐

logue) .

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.5.2

Removing and installing headlight range

control motor (Hella)

Note

If control motors are removed and reinstalled or renewed, the

headlight adjustment must be checked and the headlights ad‐

justed ⇒ Maintenance ; Booklet  20.1 ; Description of work .

The illustrations show the renewal of the headlight range con‐

trol motor -V49- on the right headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove headlight

⇒ page 215

 .

1. Headlights with halogen bulbs (up to MY2009)

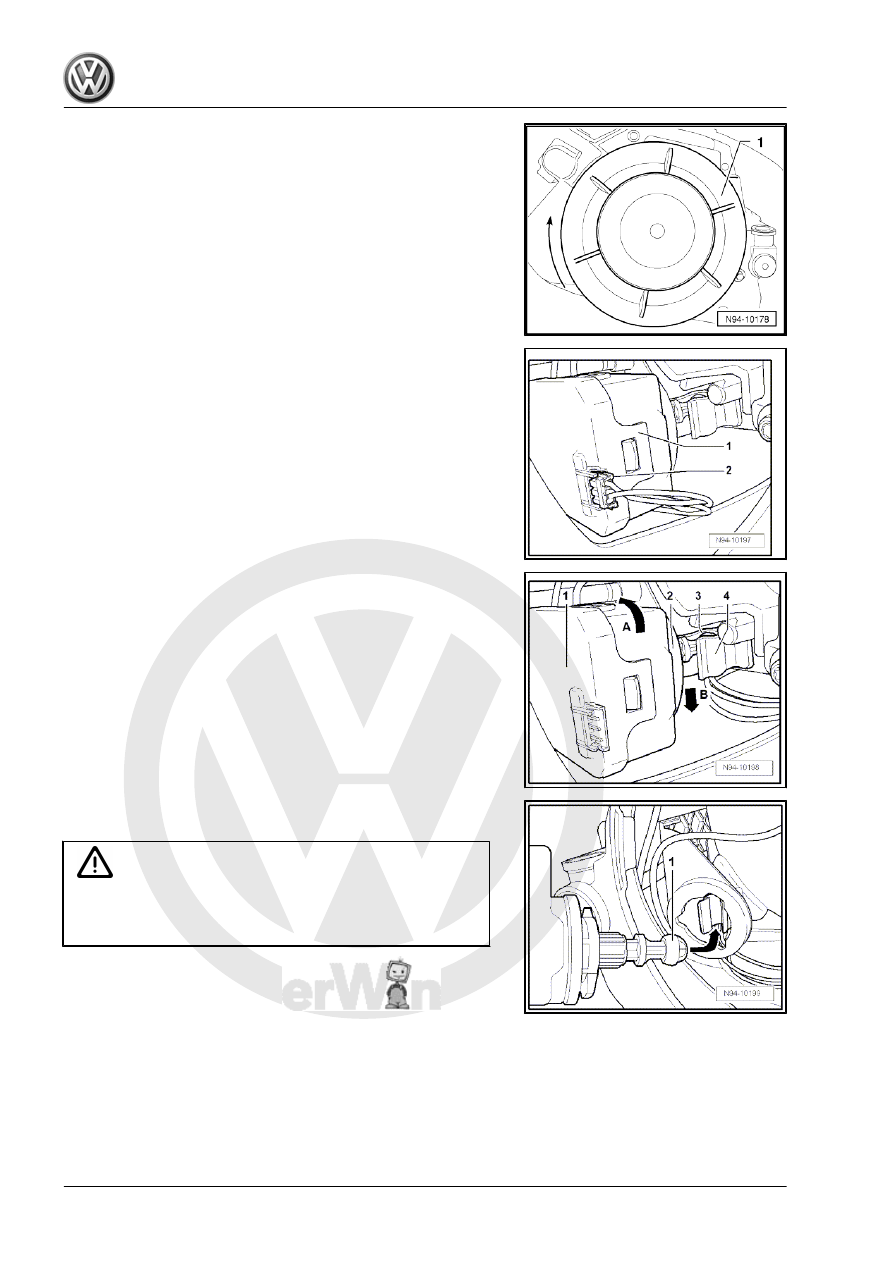

227

– Pull off connector -2-.

– Turn right headlight range control motor -V49- -1- in direction

of -arrow A- and pull it out slightly from its mounting -2-.

– Move right headlight range control motor -V49- -1- so that ball

head -3- of right headlight range control motor -V49- can be

pulled in direction of -arrow B- out of ball head mounting -4-.

– Take right headlight range control motor -V49- out of headlight

housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:

– Carefully insert ball head -1- of hand headlight range control

motor -V49- in ball head mounting -arrow-.

Caution

When installing cover cap, ensure cap is seated correctly. The

ingress of water will lead to permanent damage to the head‐

light.

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

228

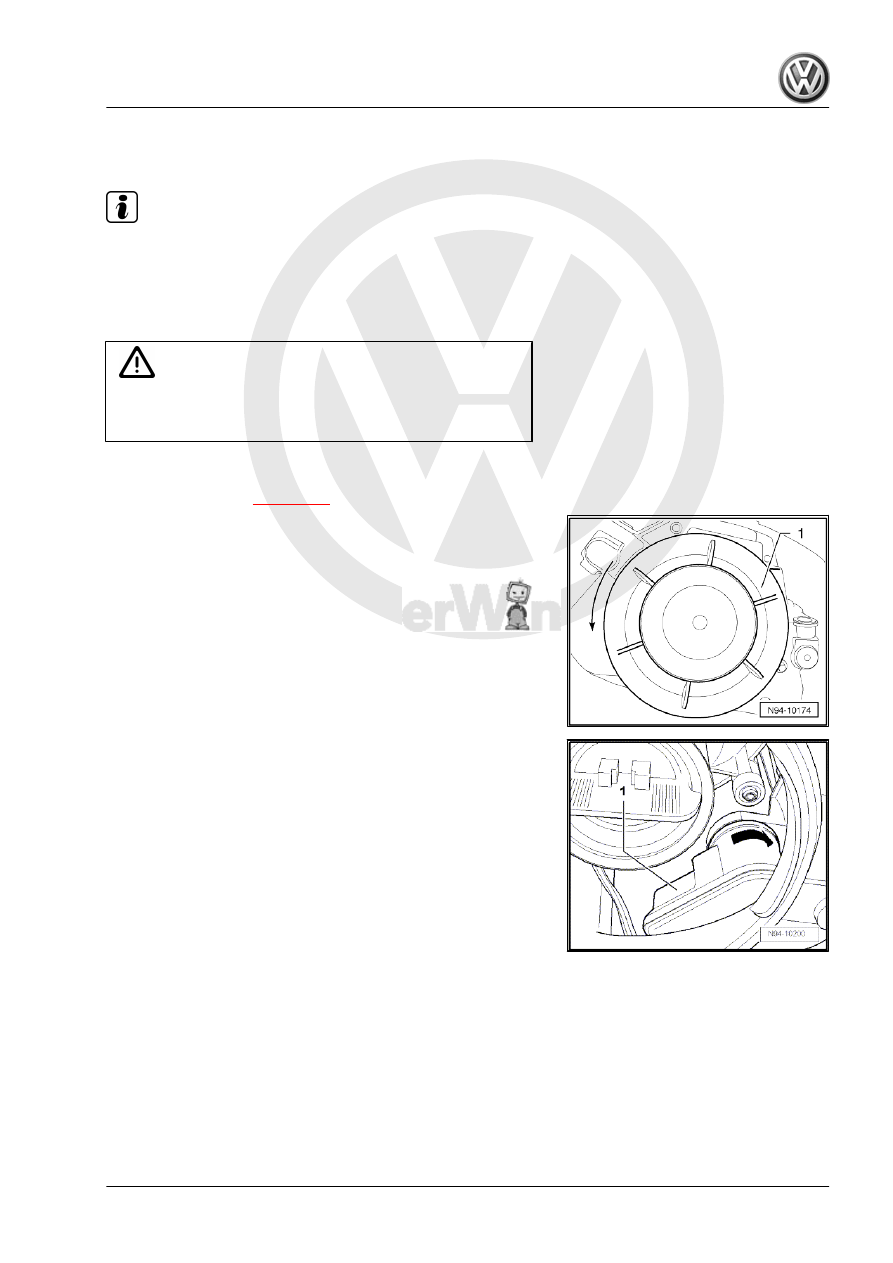

Removing and installing headlight range

control motor (Visteon)

Note

If control motors are removed and reinstalled or renewed, the

headlight adjustment must be checked and the headlights ad‐

justed ⇒ Maintenance ; Booklet  20.1 ; Description of work .

The illustrations show the renewal of the left headlight range

control motor -V48- for the left headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove headlight

⇒ page 215

 .

– Turn cover cap -1- in -direction of arrow- and remove.

– Turn left headlight range control motor -V48- -1- in direction of

-arrow-.

1. Headlights with halogen bulbs (up to MY2009)

229
