Volkswagen Golf Variant / Jetta. Manual - part 687





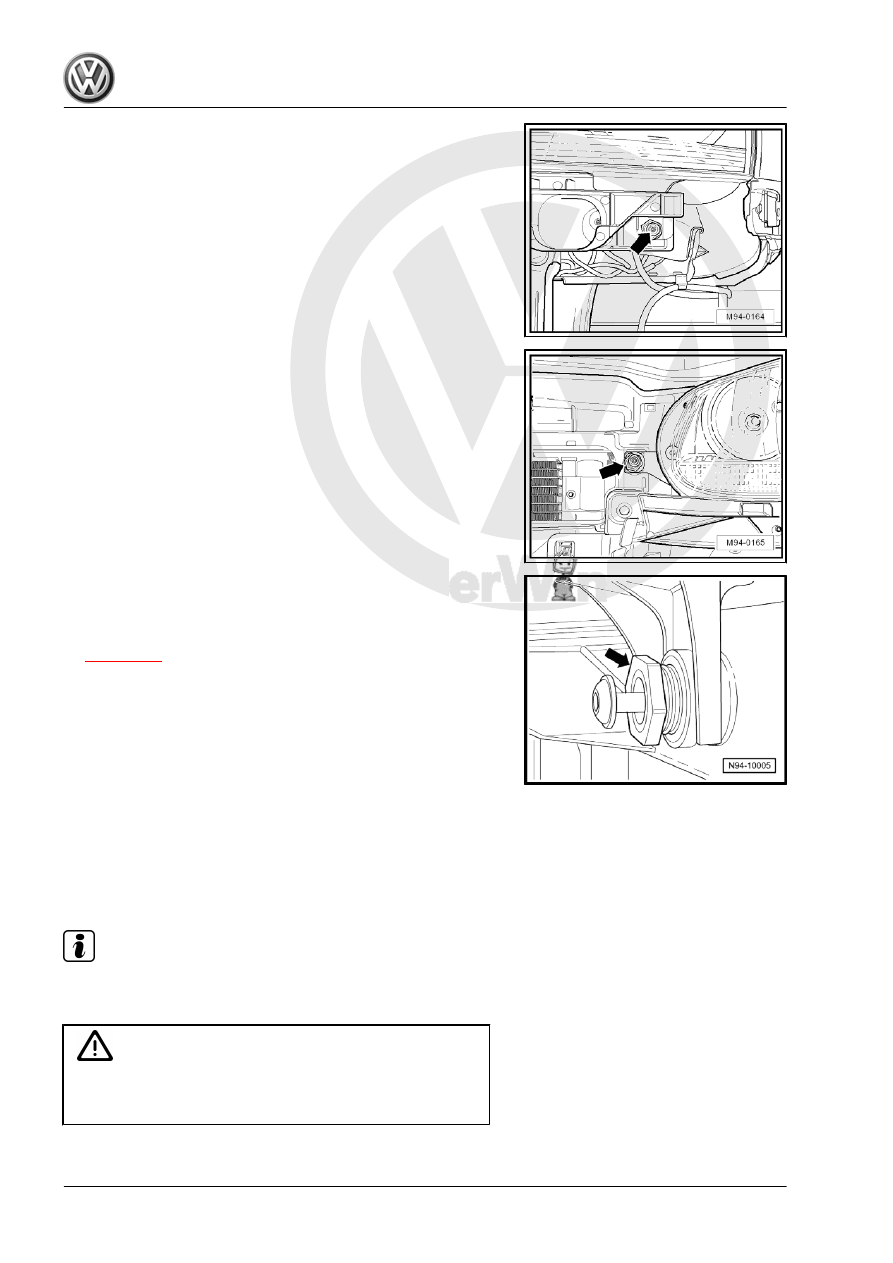

– Loosen screw -arrow- at bottom right of headlight.

– Adjust flush fit with body by screwing in or screwing out ad‐

justment bushing -arrow- at bottom left and bottom right of

headlight.

– Tighten all threaded connections to specified torques

⇒ page 214

 .

– Check and readjust headlight to ensure gaps are even all

round.

gr.  66 .

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.4

Renewing bulbs

1.4.1

Renewing headlight dipped beam bulb

Note

The diagrams show renewal of the left headlight dipped beam

bulb -M29- for the left headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

218

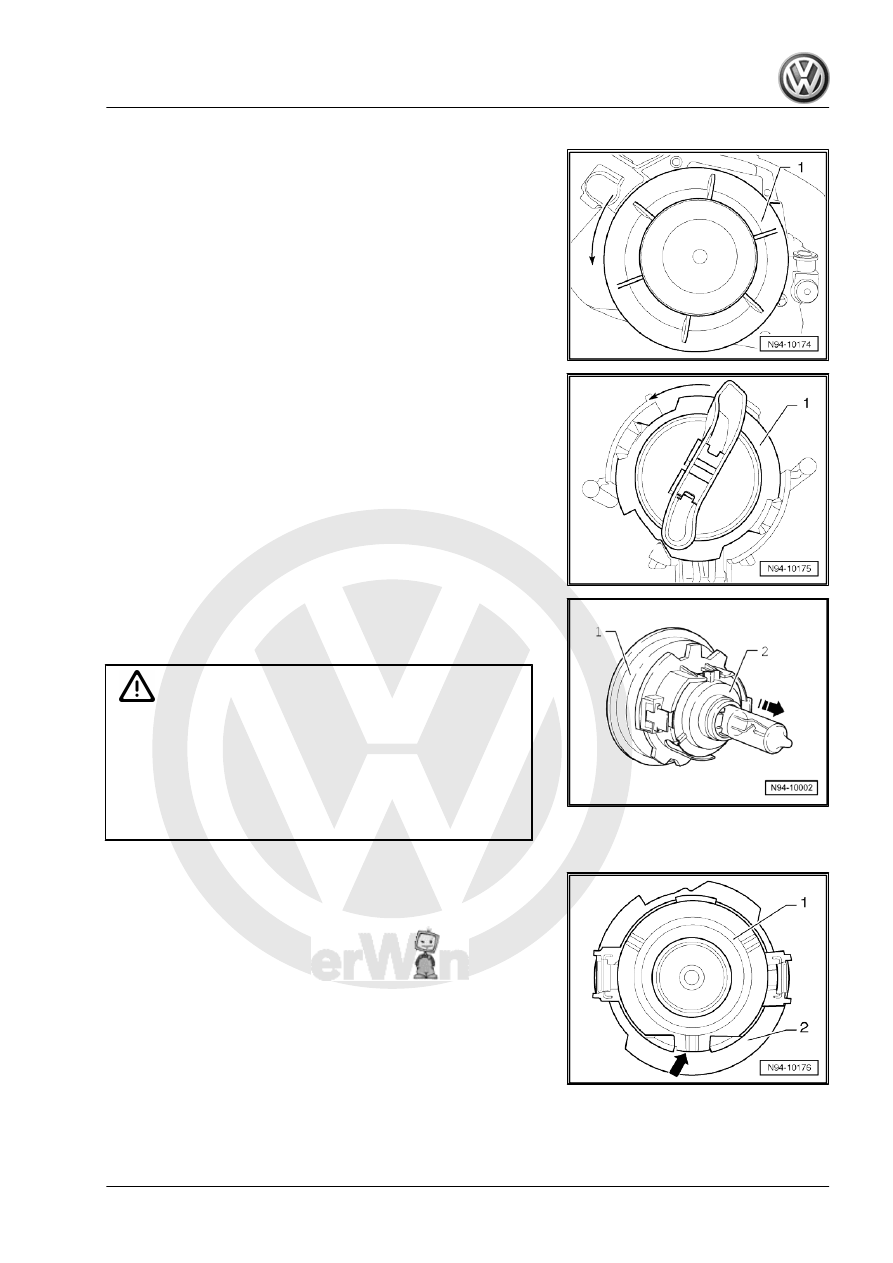

– Turn bulb holder with dipped beam headlight bulb -M29- -1- in

-direction of arrow- and remove from headlight.

– Pull left headlight dipped beam bulb -M29- -2- in

-direction of arrow- out of bulb holder -1-.

Installing

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

♦ When installing cover cap, ensure that it seats properly.

The ingress of water will lead to permanent damage to the

headlight.

– Insert left headlight dipped beam bulb -M29- -1- in bulb holder

so that lug at left headlight dipped beam bulb -M29- is posi‐

tioned in recess -arrow- of bulb holder -2-.

1. Headlights with halogen bulbs (up to MY2009)

219

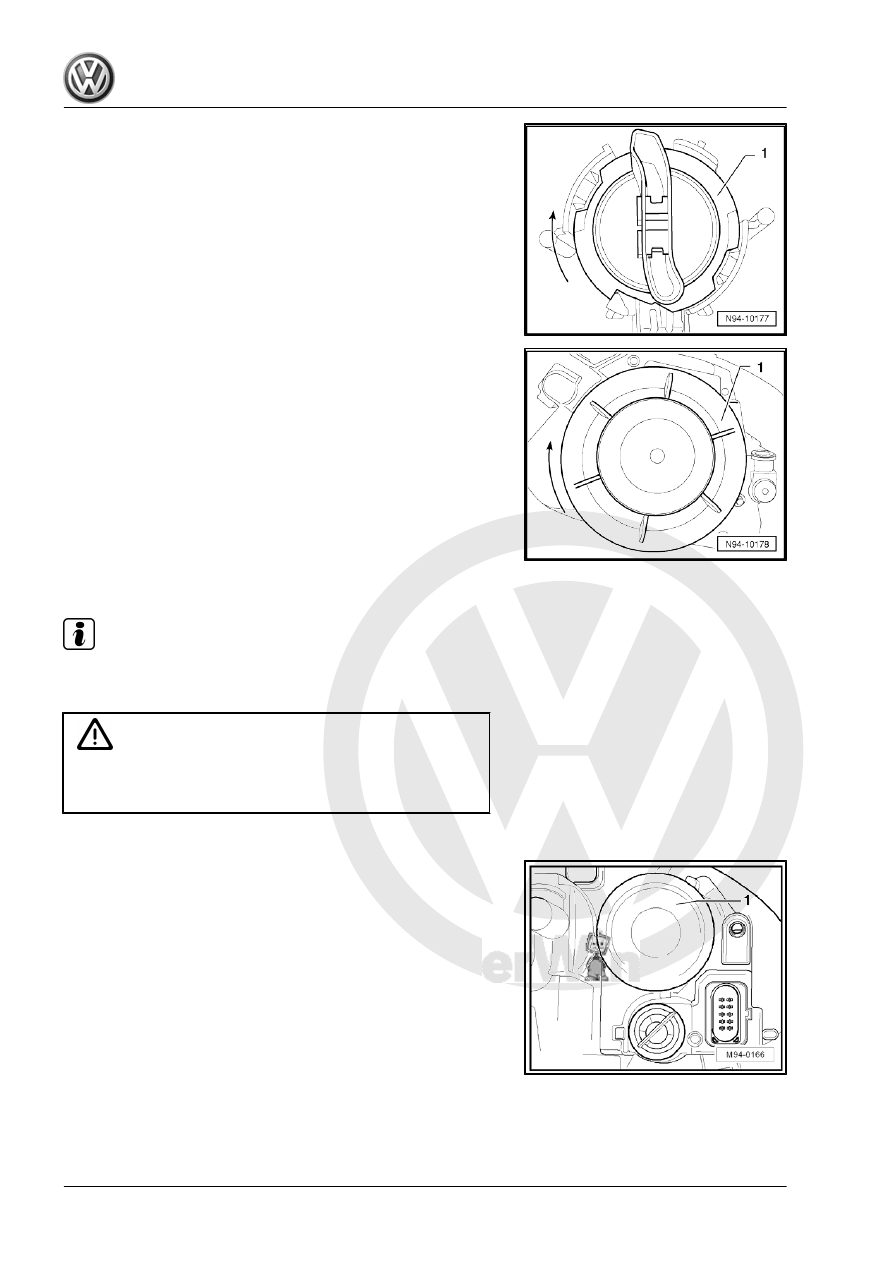

-1- in headlight and turn bulb holder with left headlight dipped

beam bulb -M29- in -direction of arrow-.

– Insert cover cap -1- in recess on headlight and turn cover cap

in direction of -arrow- to secure.

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.4.2

Renewing headlight main beam bulb

Note

The diagrams show renewal of the left headlight main beam bulb

-M30- for the left headlight.

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Removing
– Remove cover cap -1-.

220

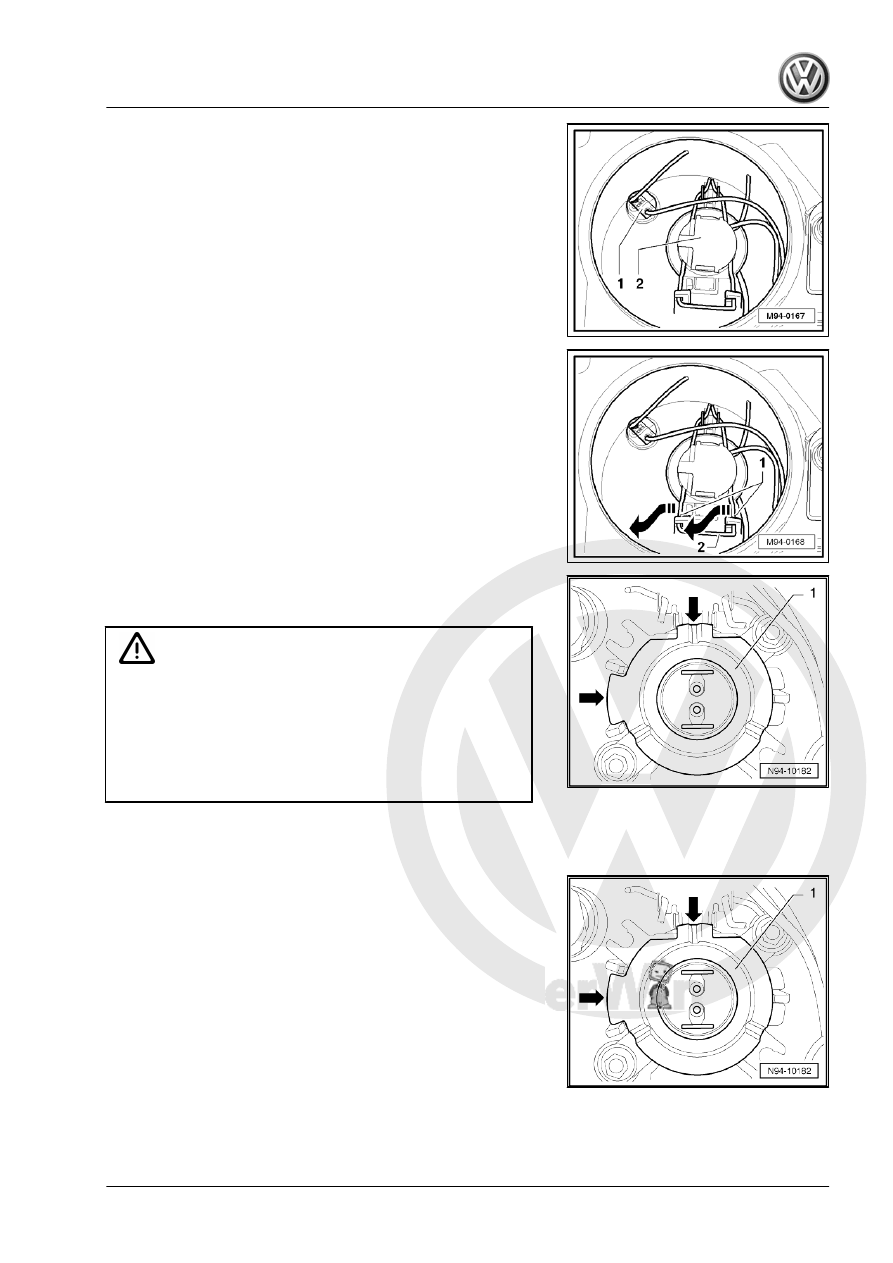

– Push retaining clip -2- in -direction of arrow- under locking lugs

-1- and lift up retaining clip -2-.

– Take left headlight main beam bulb -M30- -1- out of headlight.
Installing

Caution

♦ Do not touch glass envelope when fitting bulb. Fingers

leave traces of grease on the glass envelope, which evap‐

orate when the bulb is switched on and cause the glass

envelope to cloud over.

♦ When installing cover cap, ensure that it seats properly.

The ingress of water will lead to permanent damage to the

headlight.

Carry out installation in the reverse sequence, noting the follow‐

ing:

– Place left headlight main beam bulb -M30- -1- in recesses

-arrows- of headlight.

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1. Headlights with halogen bulbs (up to MY2009)

221
