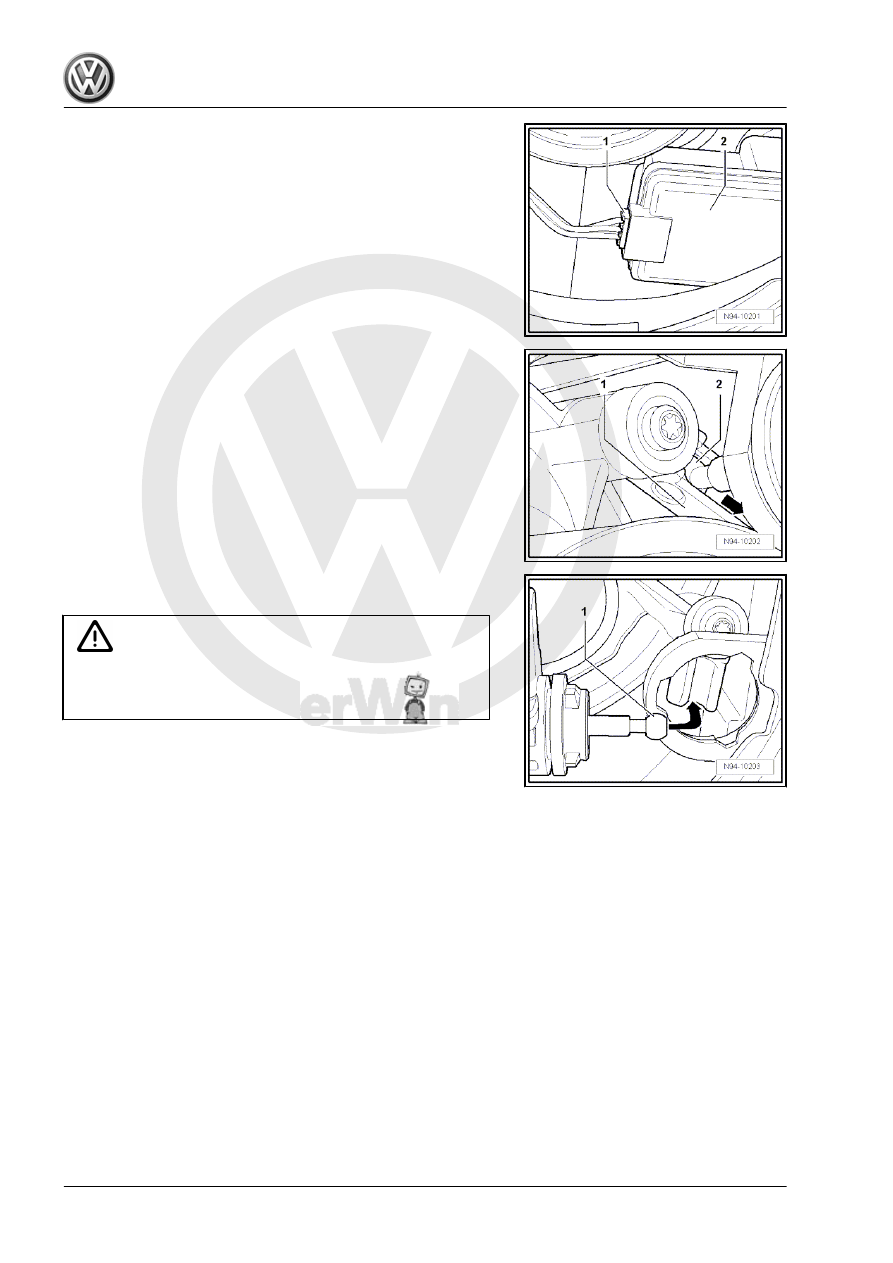

– Move left headlight range control motor -V48- so that ball head

-2- of left headlight range control motor -V48- can be pulled in

direction of -arrow- out of ball head cup -1-.

– Take left headlight range control motor -V48- out of headlight

housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:

– Carefully insert ball head of left headlight range control motor

-V48- -1- in ball head cup -arrow-.

Caution

When installing cover cap, ensure cap is seated correctly. The

ingress of water will lead to permanent damage to the head‐

light.

– Check headlight functions.
– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

230

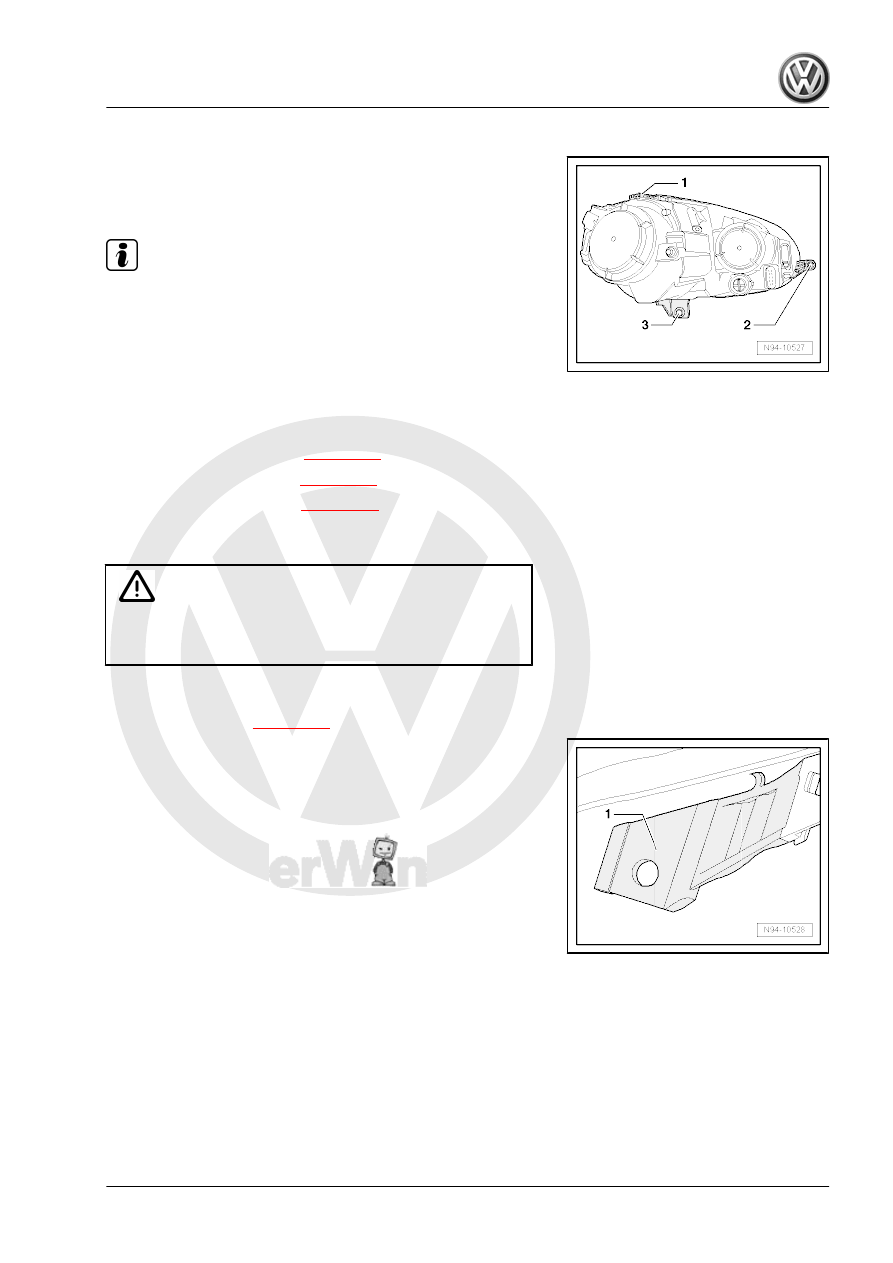

Repairing headlight retaining tabs

If the upper headlight retaining tab -1-, the outer headlight retain‐

ing tab -2- or the lower headlight retaining tab -3- is damaged or

has broken off, it can be replaced by installing the repair kit. There

is no need to renew the entire headlight.

Note

Check that there is no further damage to the headlight that

would make installation of the repair kit unnecessary.

Two different repair kits are available for the left and right

headlights ⇒  ETKA (electronic parts catalogue) .

Each repair kit includes the upper, the outer and the lower

headlight retaining tabs, four screws, a panel nut (already fit‐

ted on the upper retaining tab), adjustment bushes (one each

already fitted on the outer and lower retaining tabs).

Repairing upper retaining tab

⇒ page 231

 .

Repairing outer retaining tab

⇒ page 232

 .

Repairing lower retaining tab

⇒ page 232

 .

1.6.1

Repairing upper retaining tab

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Procedure
– Remove headlight

⇒ page 215

 .

– Remove existing headlight retaining tab -1- completely from

headlight.

1. Headlights with halogen bulbs (up to MY2009)

231

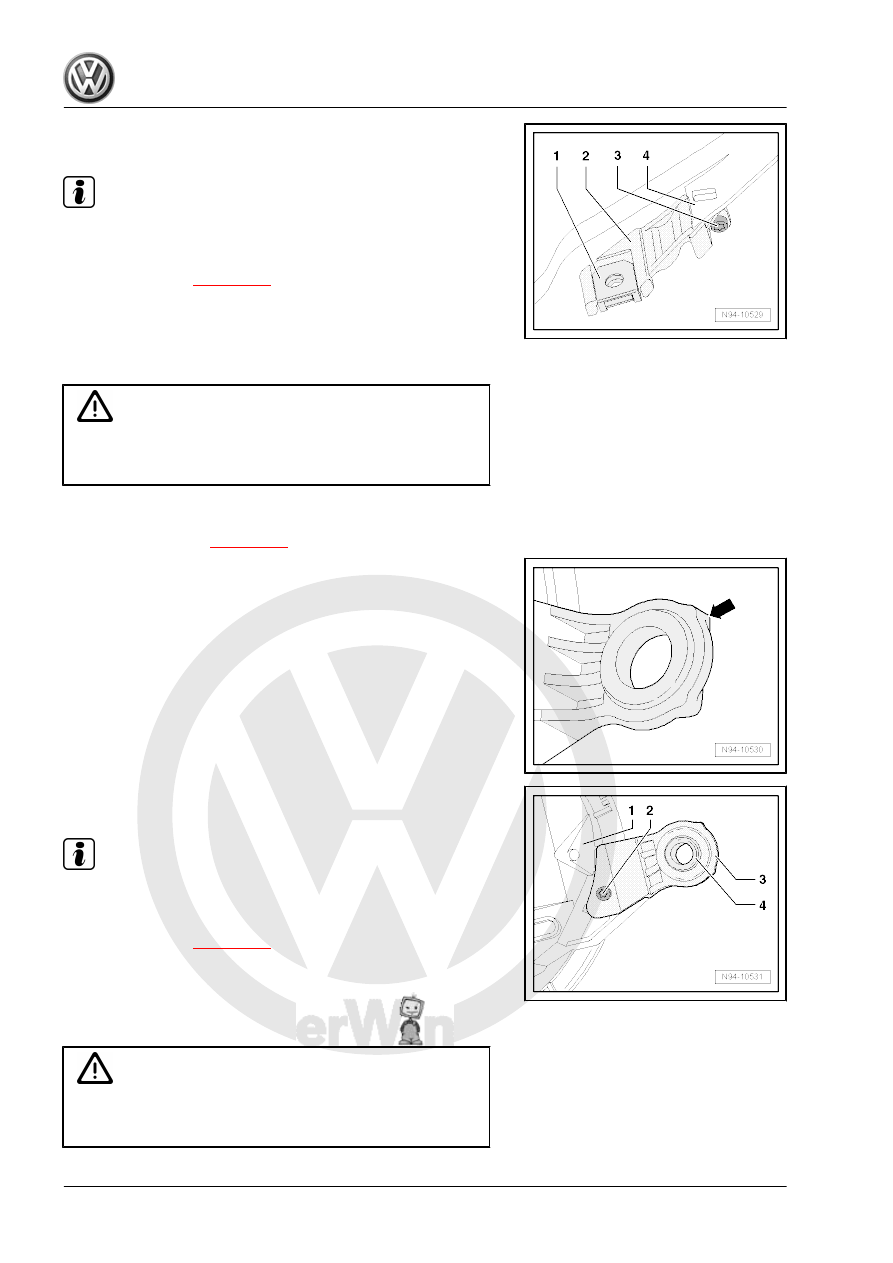

tab on the headlight -4- and tighten the screw -3-.

Note

The panel nut -1- is already pre-assembled on the new retaining

tab -2-.

– Install headlight

⇒ page 215

 .

– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.6.2

Repairing outer retaining tab

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

Procedure
– Remove headlight

⇒ page 215

 .

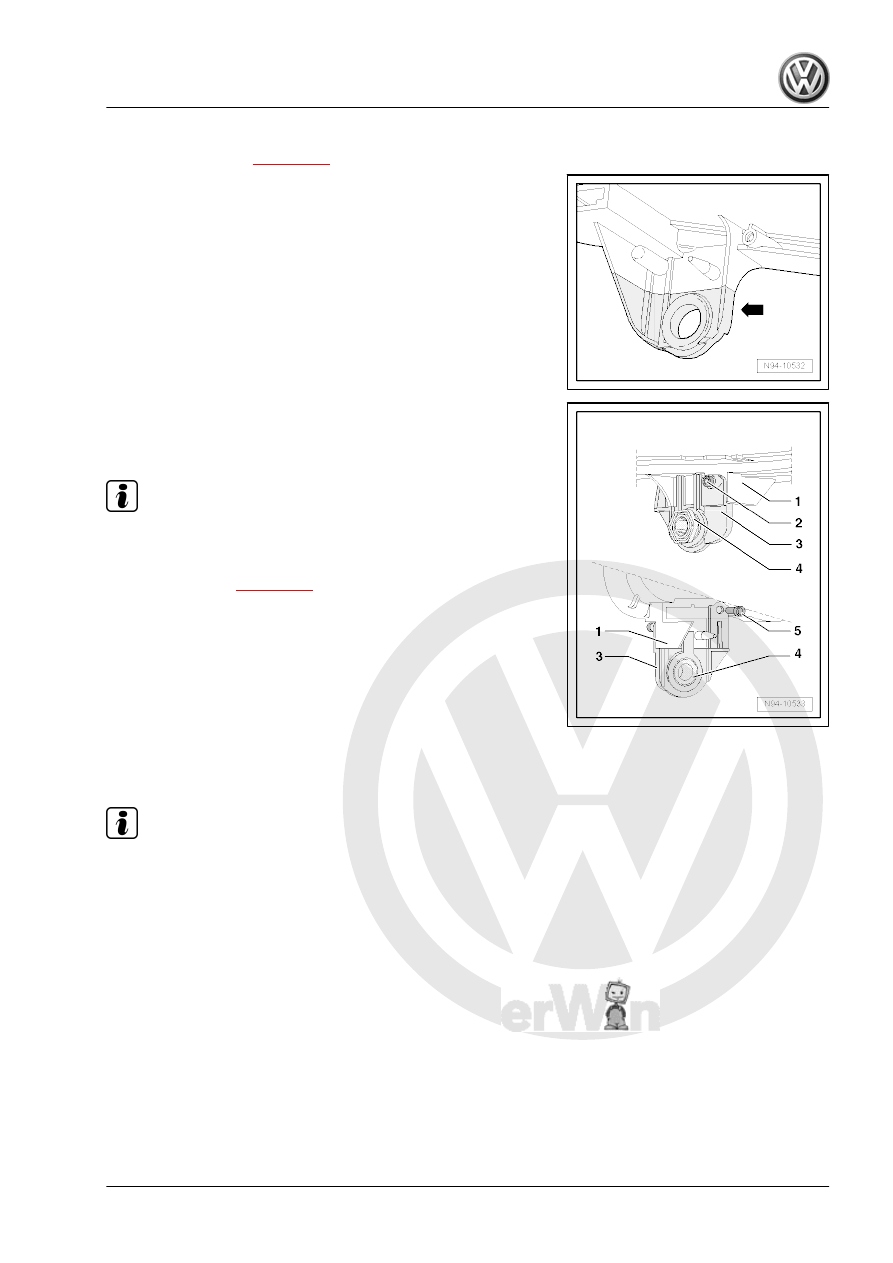

– Remove existing headlight retaining tab -arrow- completely

from headlight.

– Form-fit the new retaining tab -3- on the base of the retaining

tab on the headlight -1- and tighten the screw -2-.

Note

The adjustment bush -4- is already pre-assembled on the new

retaining tab -3-.

– Install headlight

⇒ page 215

 .

– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.6.3

Repairing lower retaining tab

Caution

♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.

232

⇒ page 215

 .

– Remove existing headlight retaining tab -arrow- completely

from headlight.

– Form-fit the new retaining tab -3- on the base of the retaining

tab on the headlight -1- and tighten the screw -2-.

– Now tighten the screw -5- on the rear side.

Note

The adjustment bush -4- is already pre-assembled on the new

retaining tab -3-.

– Install headlight

⇒ page 215

 .

– Check headlight settings and adjust headlights if necessary

⇒ Maintenance ; Booklet  20.1 ; Descriptions of work .

1.7

Converting headlights for use when driv‐

ing on the left or right

Note

To avoid dazzling oncoming traffic with asymmetrical lights,

both headlights should be converted to the direction of traffic

(driving on the left or right) relevant to the country in which the

vehicle is being driven.

The corresponding headlight conversion set consists of two

sections of film.

Conversion of the headlights is not designed as a permanent

conversion for other countries. It is only suitable as a „tourist

solution“ for a short stay abroad.

Both headlights of a vehicle must always be converted.

The information on „right“ and „left“ on the masking film always

relates to the direction of travel when looking forwards from

inside the vehicle.

1. Headlights with halogen bulbs (up to MY2009)
