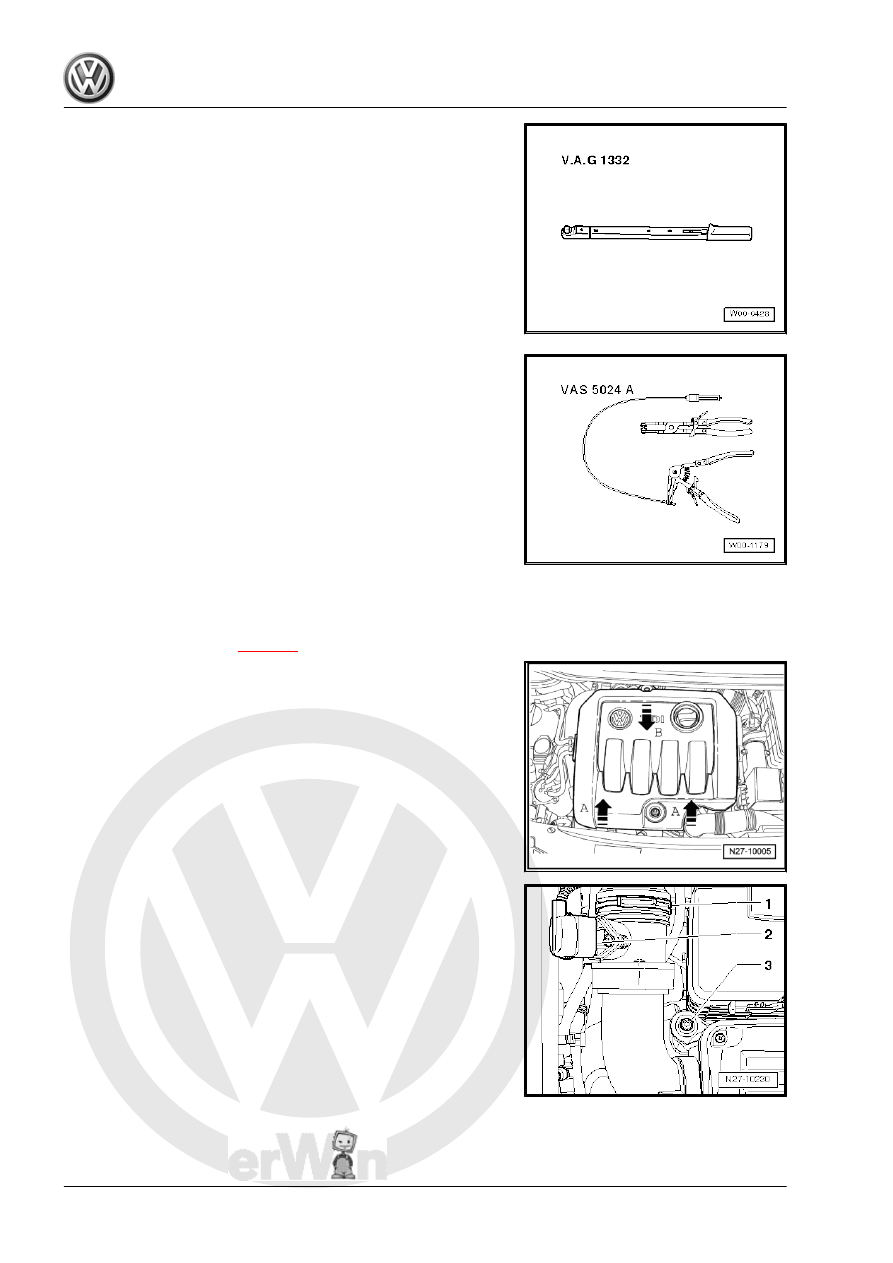

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

– Loosen spring-type clip -1- using spring-type clip pliers -VAS

5024A- and disconnect connector -2-.

– Remove bolt -3-.

82

– Pull air filter housing upwards on right-hand side out of rubber

mounting -arrow-.

– Take air filter housing out of vehicle.

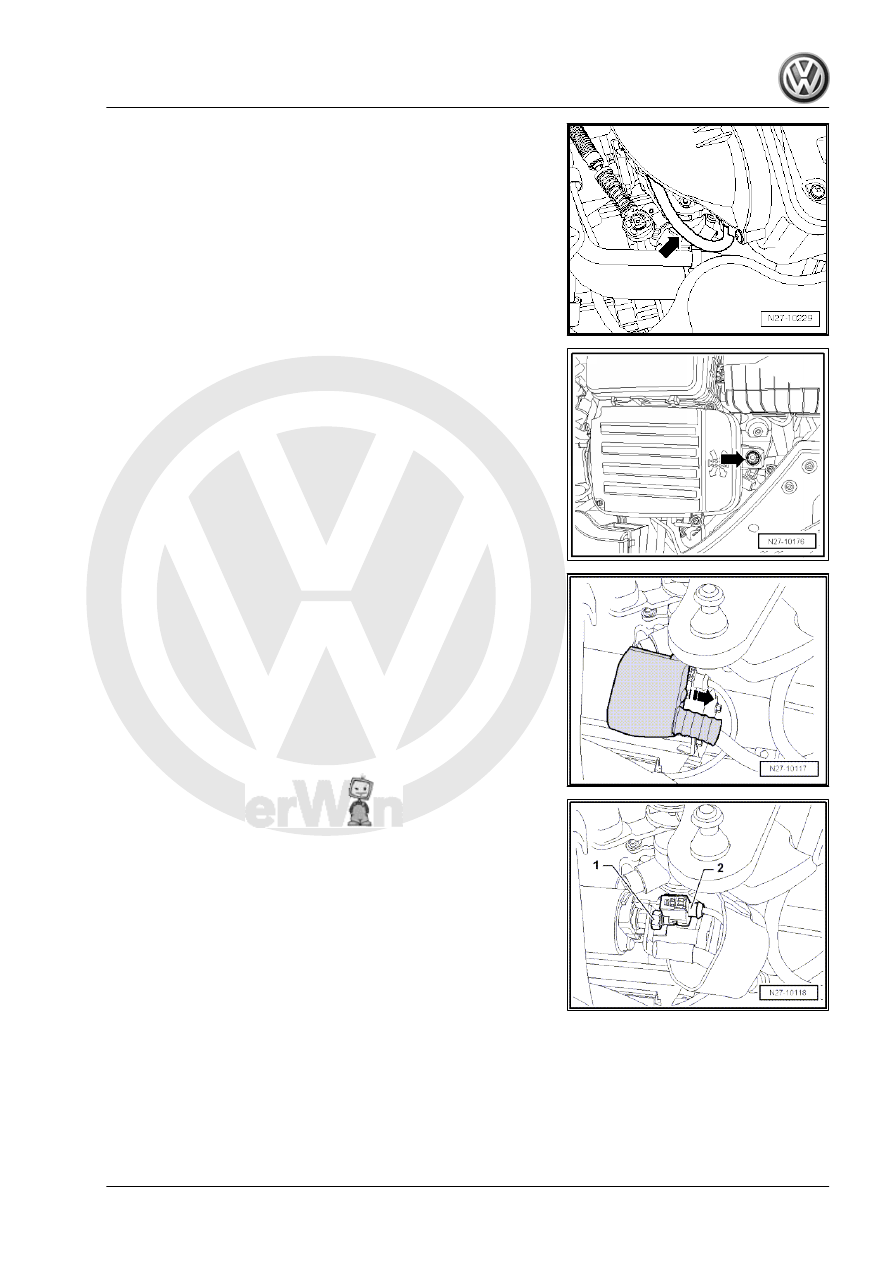

– Push down protective cap in direction of -arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

6. Starter B

83

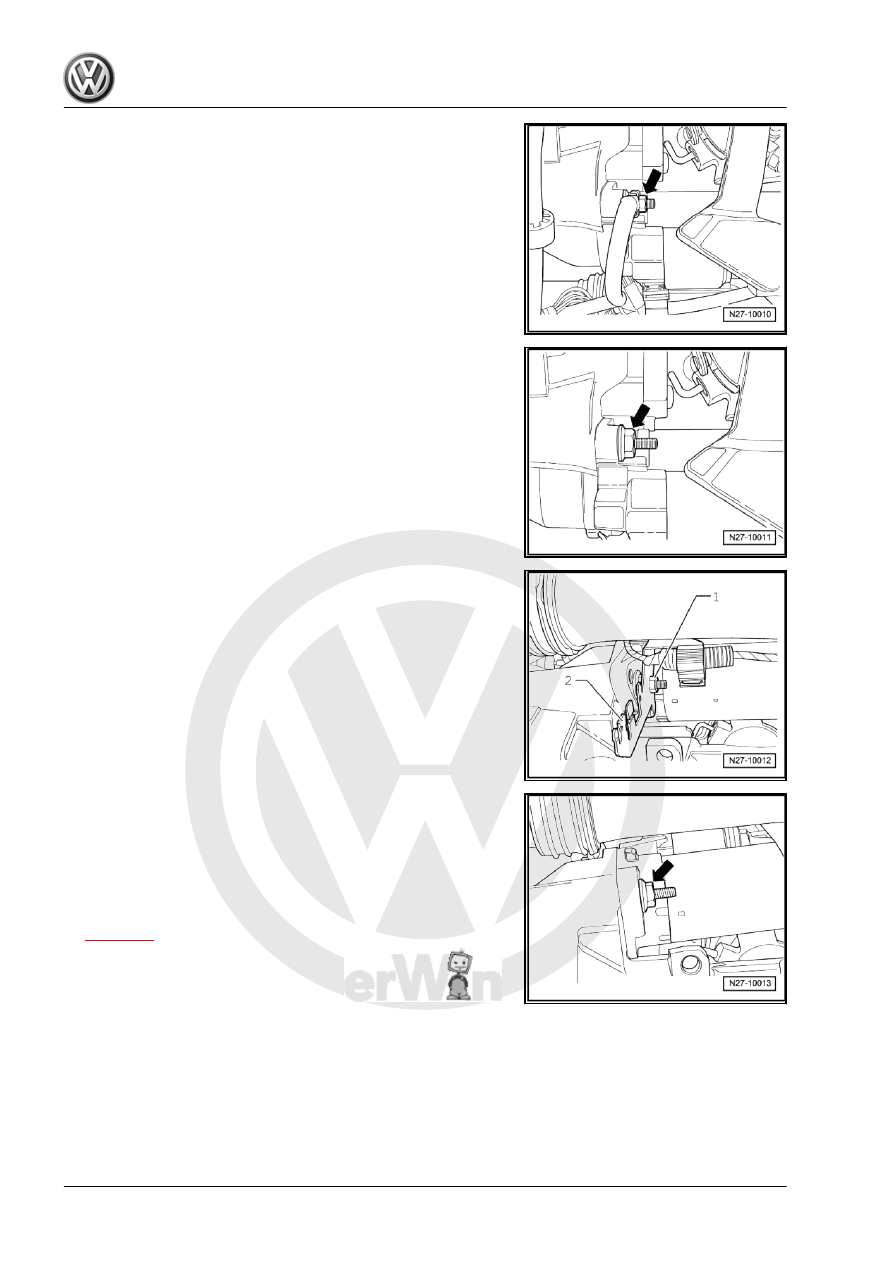

– Unscrew starter bolt -arrow-.
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Remove starter -B- .
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.10

Vehicles with 2.0l TSI engine

Special tools and workshop equipment required

84

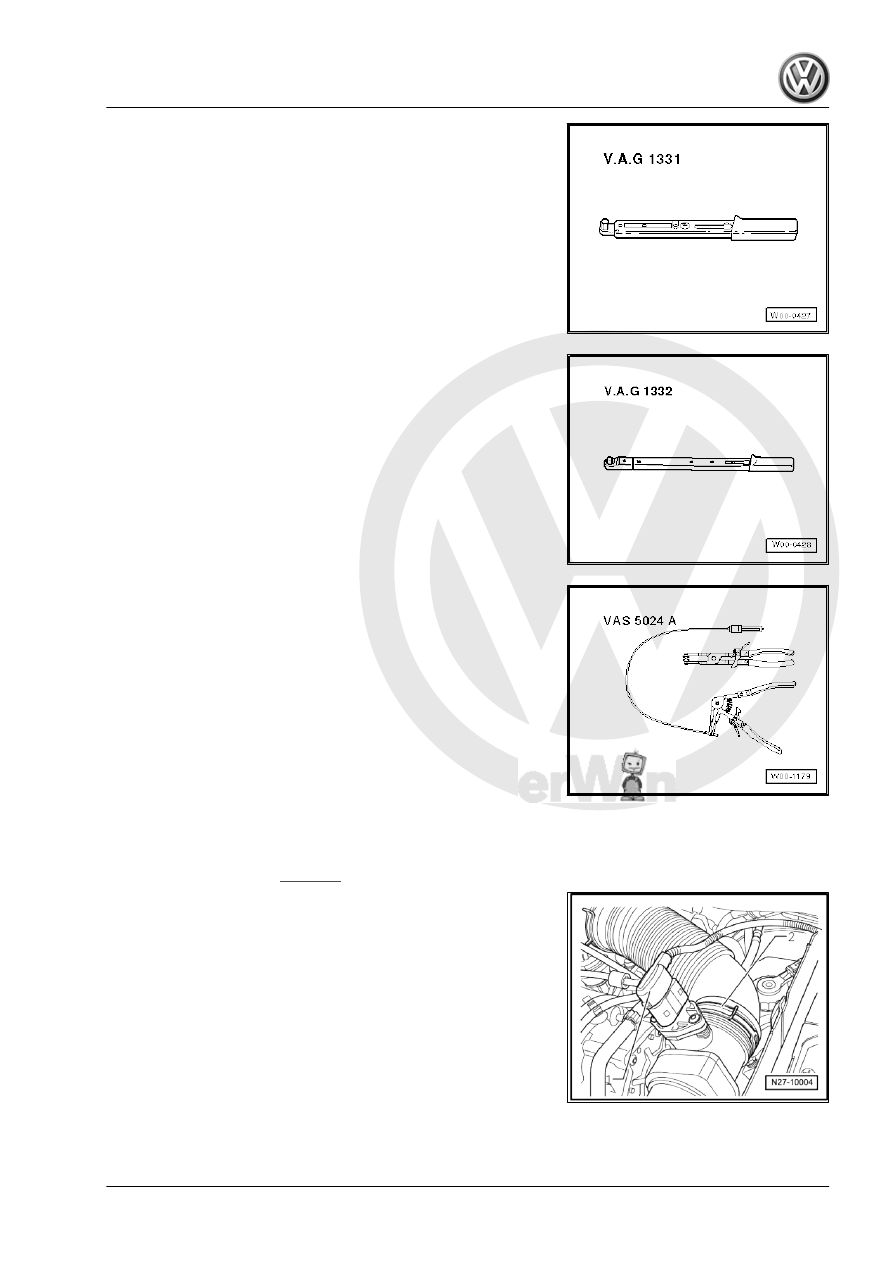

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Release and disconnect connector -1- and release spring-type

clip -2- using spring-type clip pliers -VAS 5024- .

6. Starter B

85
