minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

– Unscrew starter bolt -arrow-.
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

74

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.7

Vehicles with 2.5l petrol engine

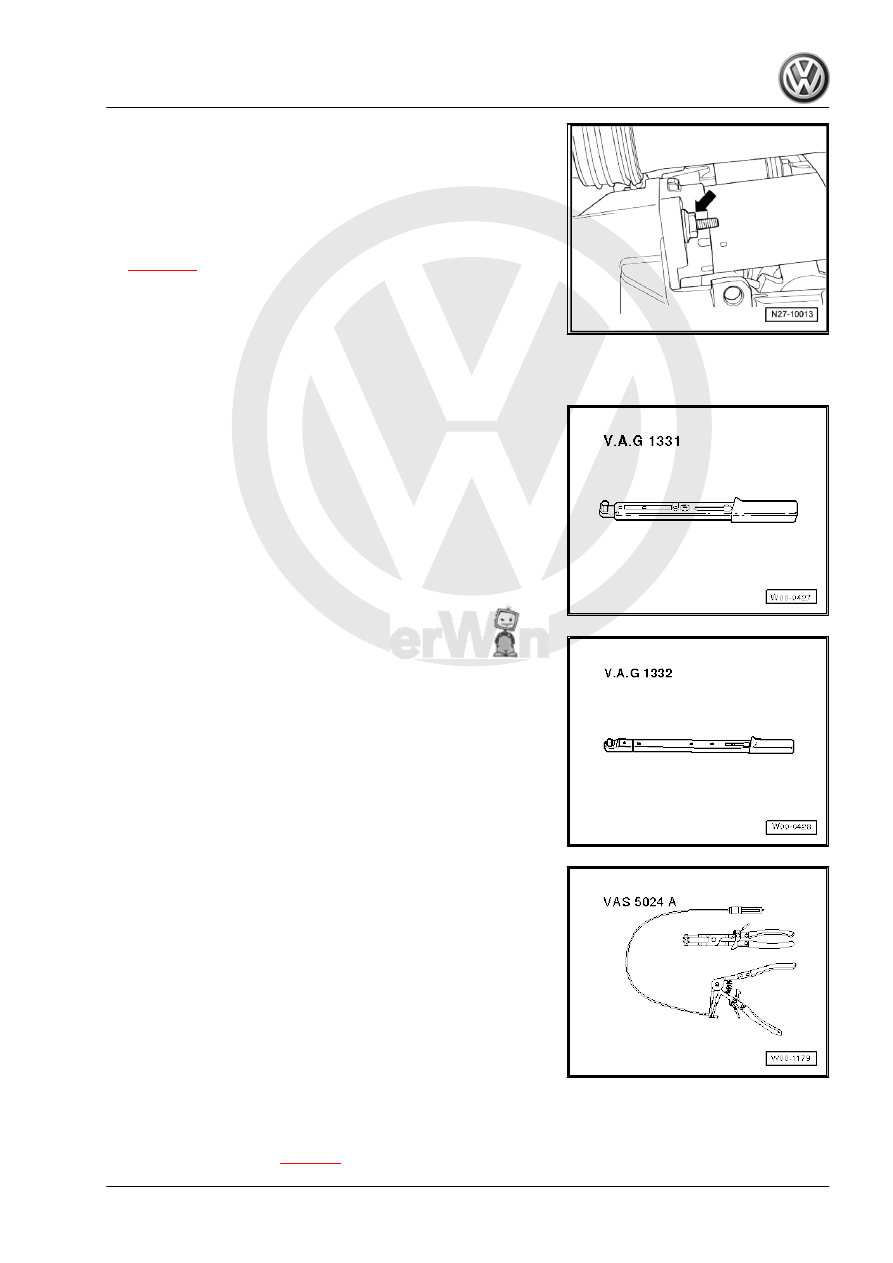

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

6. Starter B

75

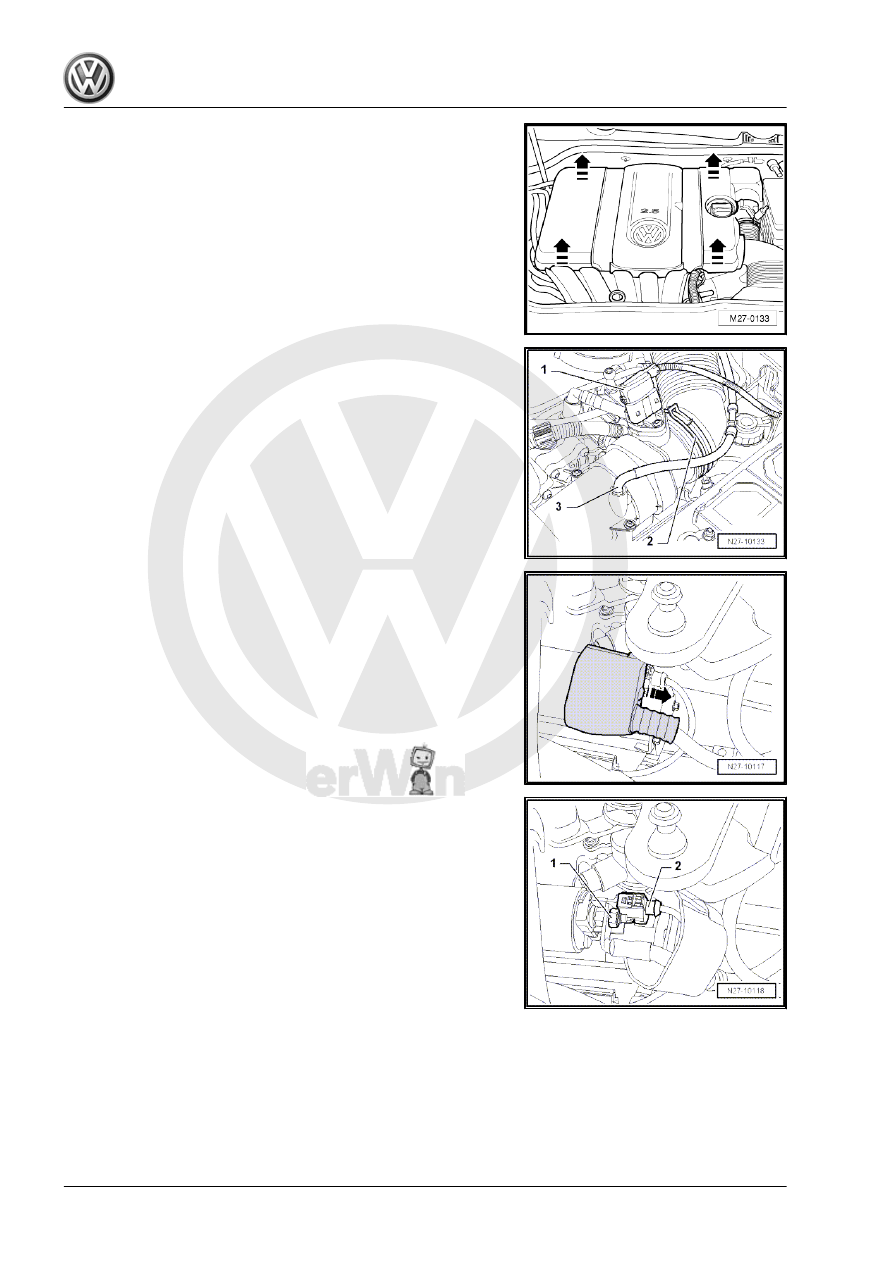

– Separate connector -1-, release spring-type clip -2- with

spring-type clip pliers -VAS 5024A- and pull off vacuum hoses

-3-.

– Push down protective cap in direction of -arrow- from solenoid

switch.

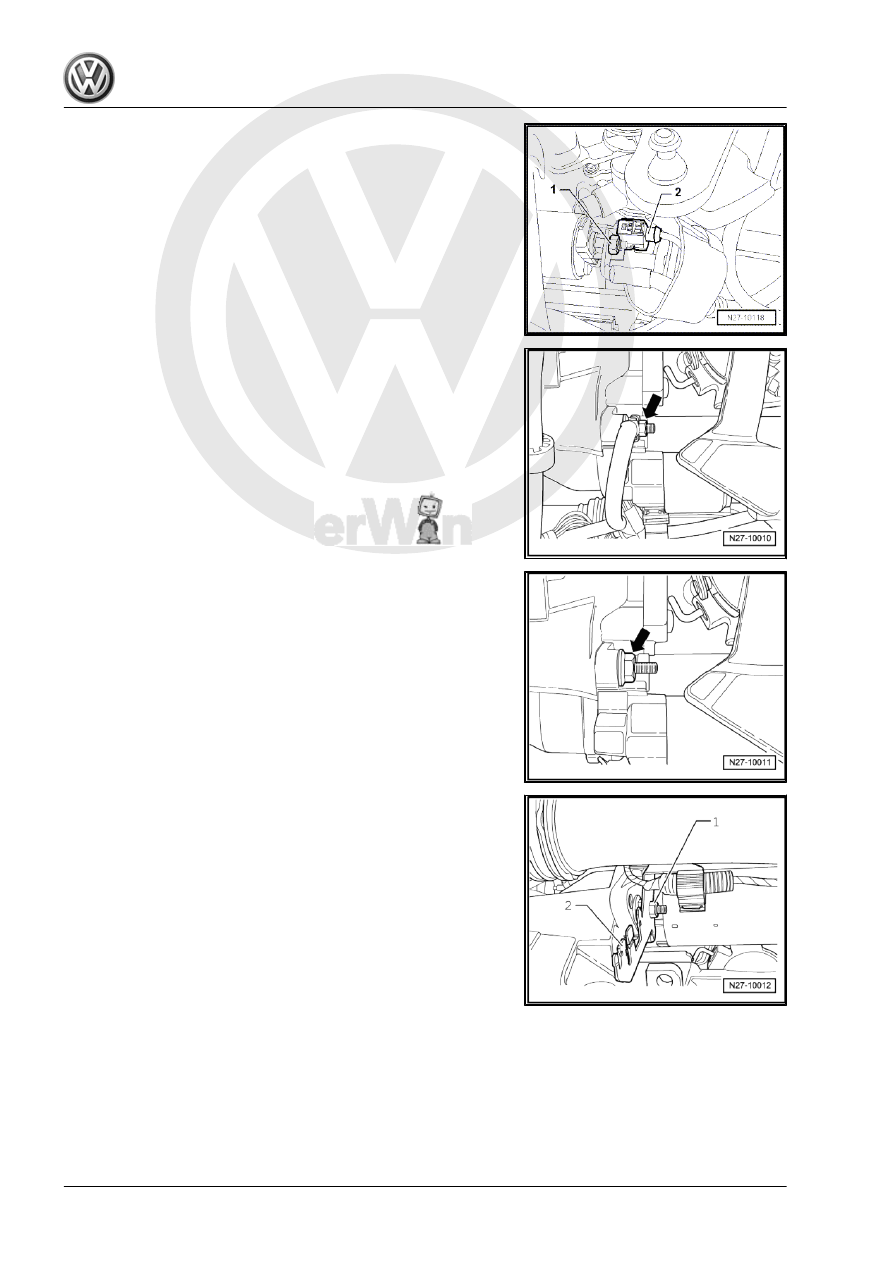

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

76

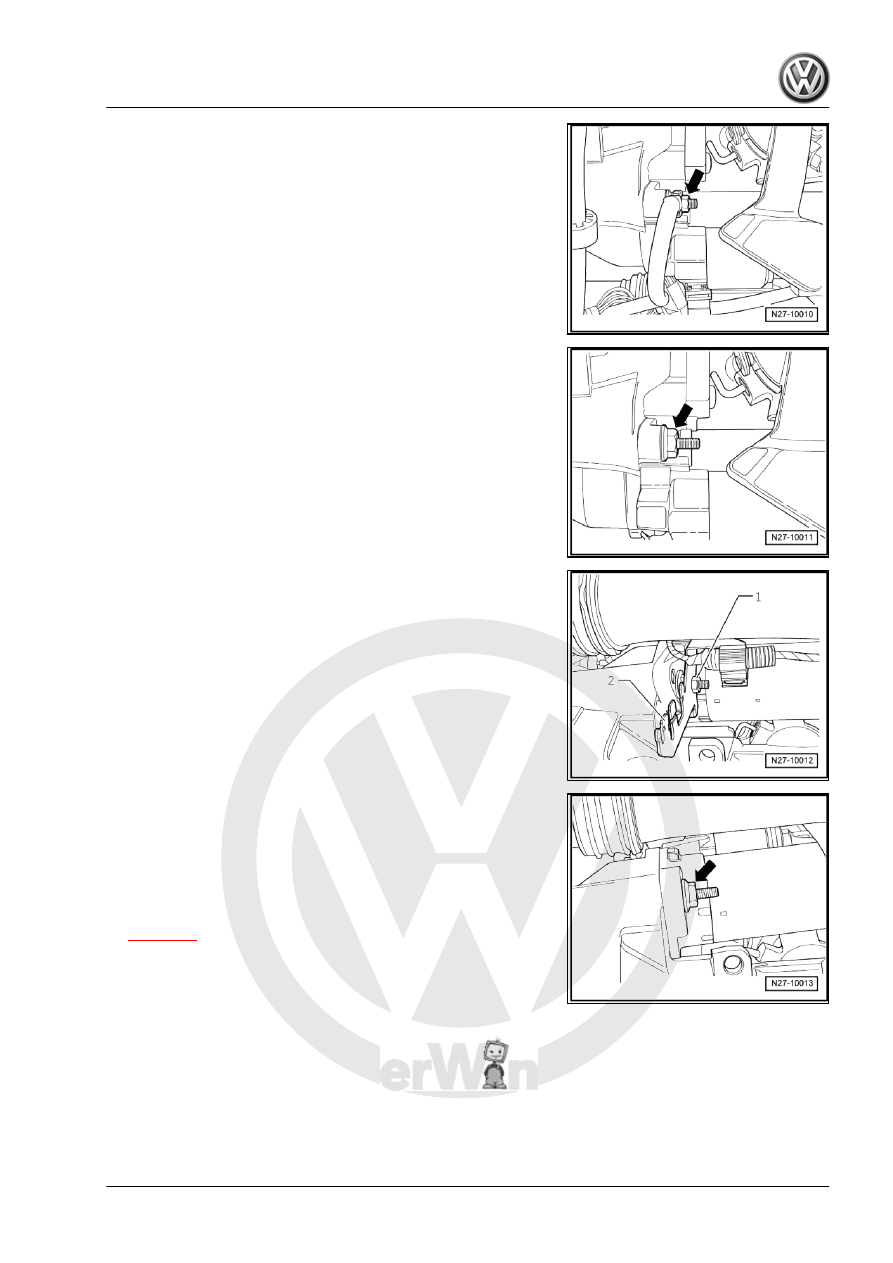

– Unscrew starter bolt -arrow-.
– Remove noise insulation ⇒  General body repairs, exterior;

Rep. gr.  50 .

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Remove starter -B- .
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.8

Vehicles with 1.9l/2.0l diesel engine and

2.0l CR diesel engine

Special tools and workshop equipment required

6. Starter B
