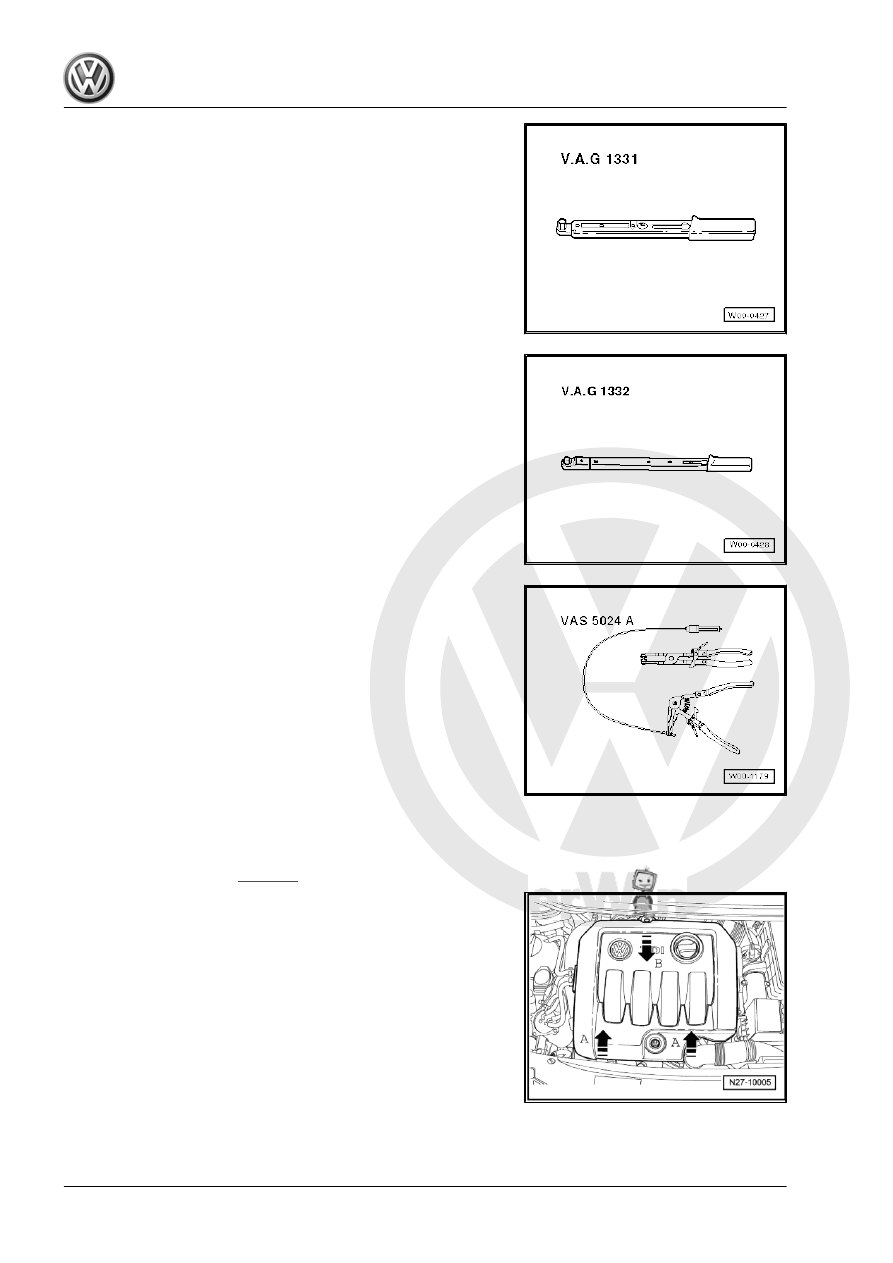

♦ Torque wrench -V.A.G 1332-

♦ Spring-type clip pliers -VAS 5024A-

Carry out following procedures:
Removing
– Disconnect battery -A-

⇒ page 4

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

78

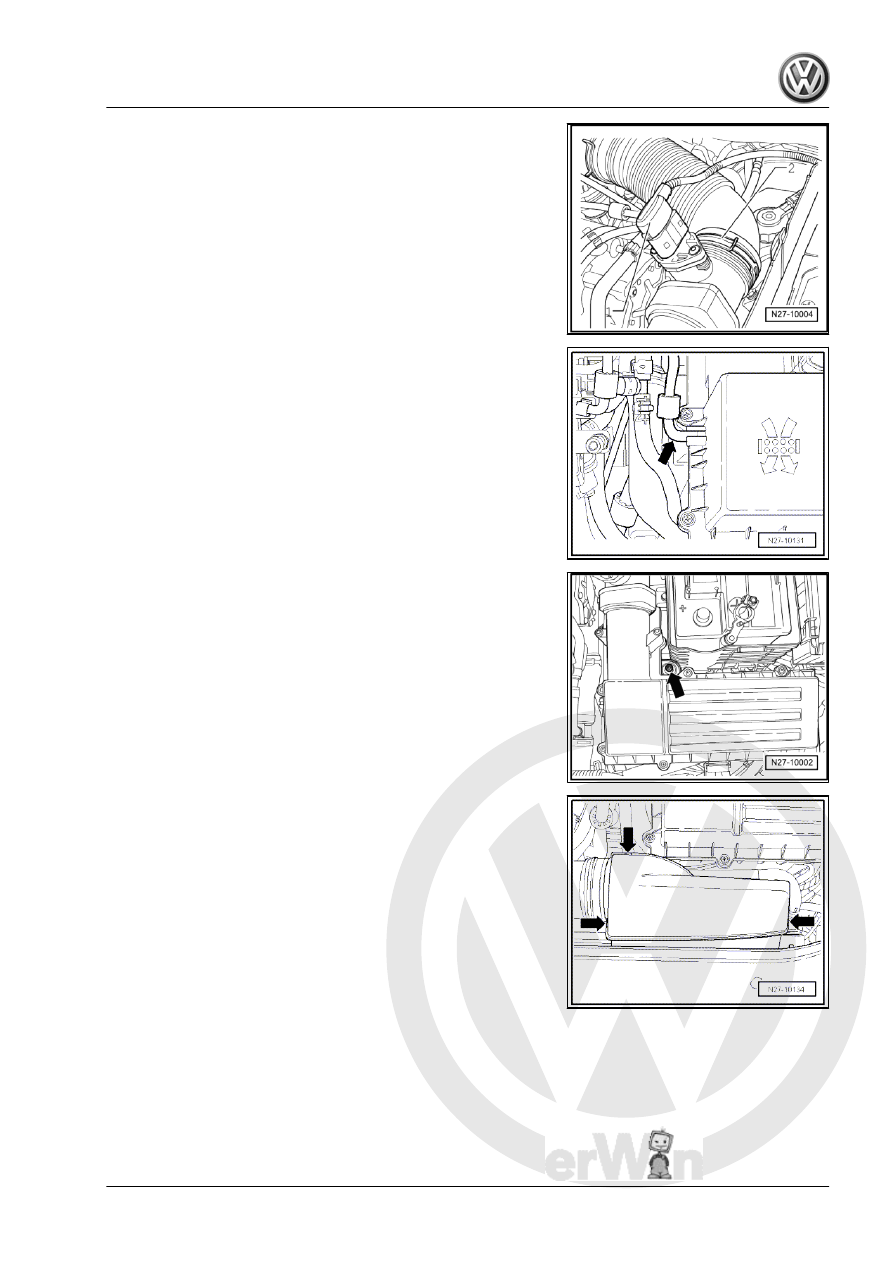

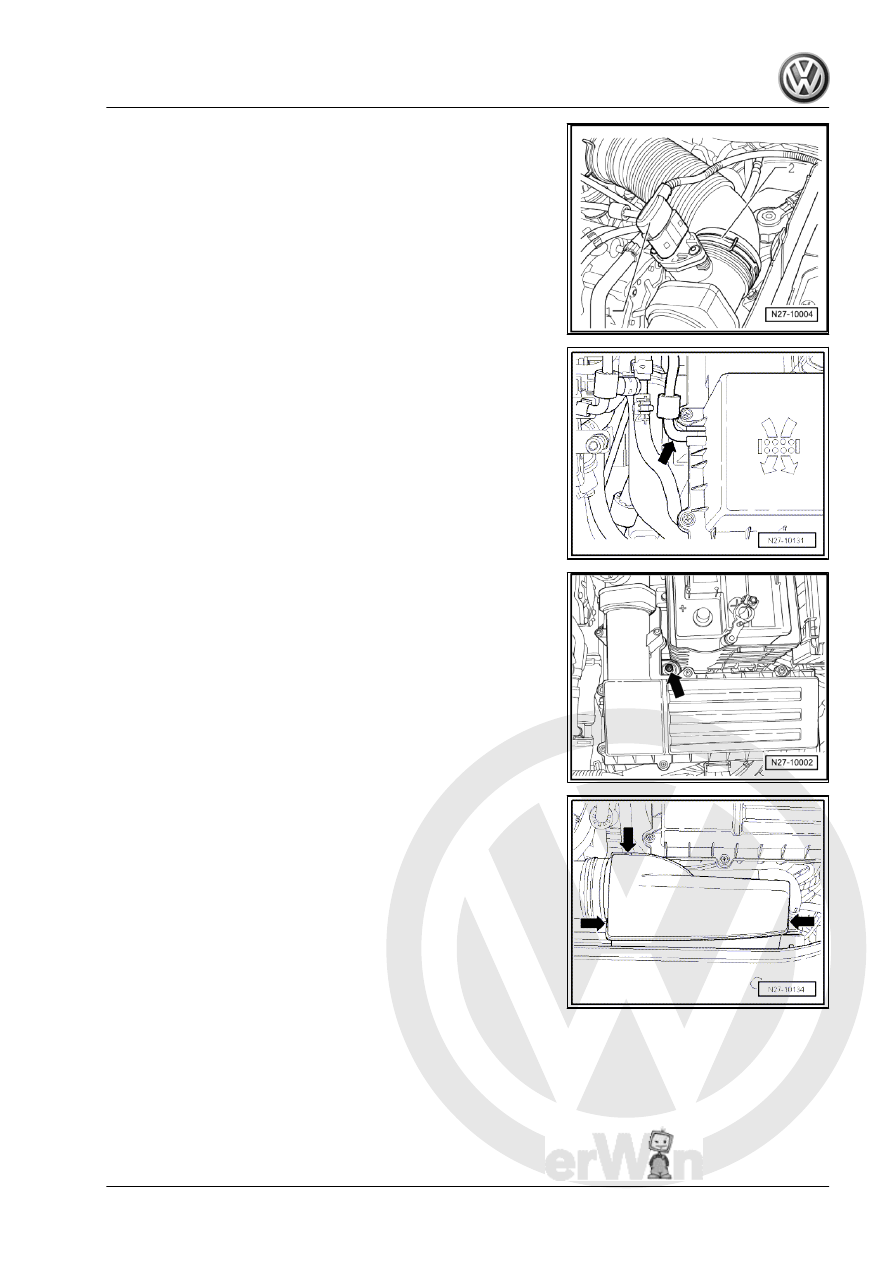

ing spring type clip pliers -VAS 5024A- .

– Pull vacuum hose -arrow- off air filter housing.

– Remove bolt of air filter housing -arrow-.

– Release locking lugs -arrows- and take off cover.

6. Starter B

79

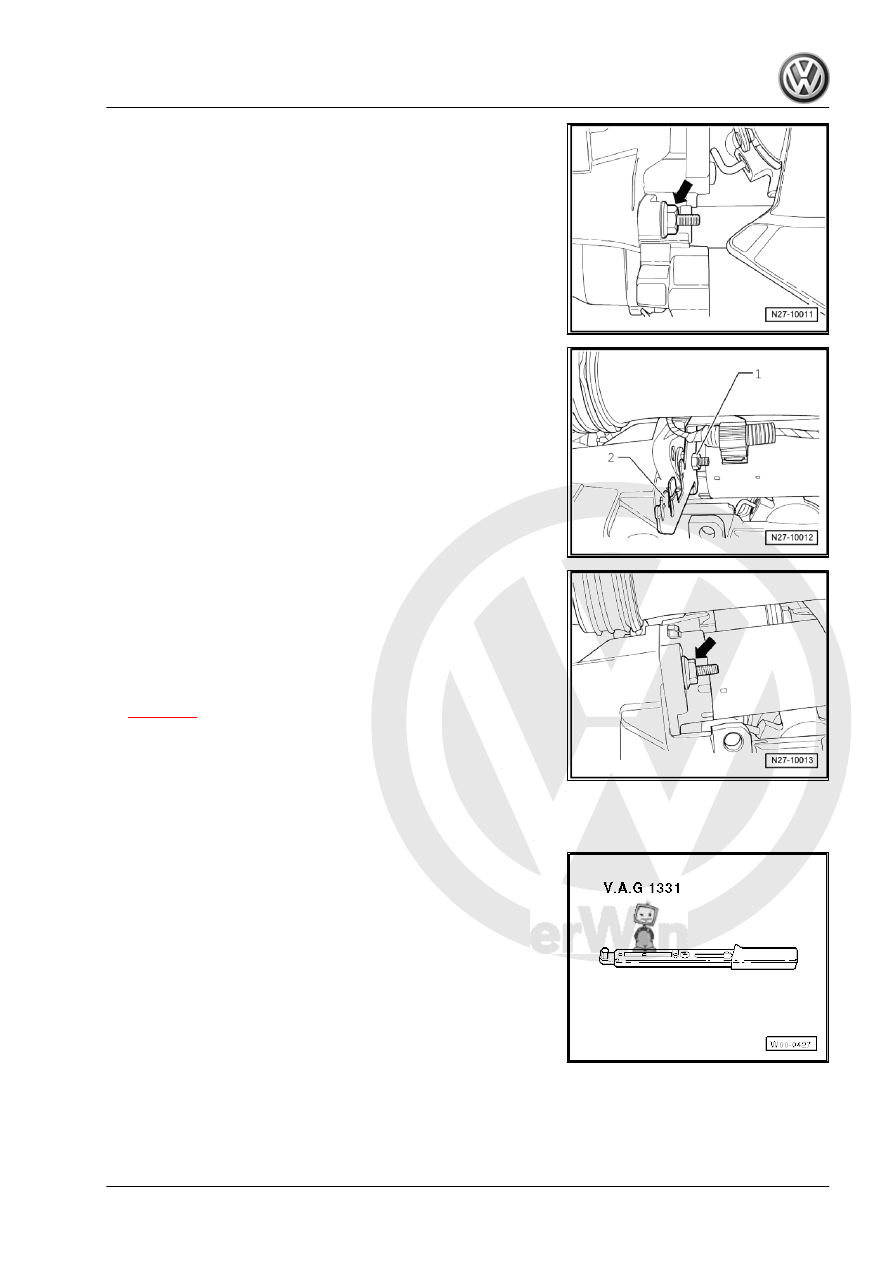

– Push down protective cap in direction of -arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter bolt -arrow-.

80

Rep. gr.  50 .

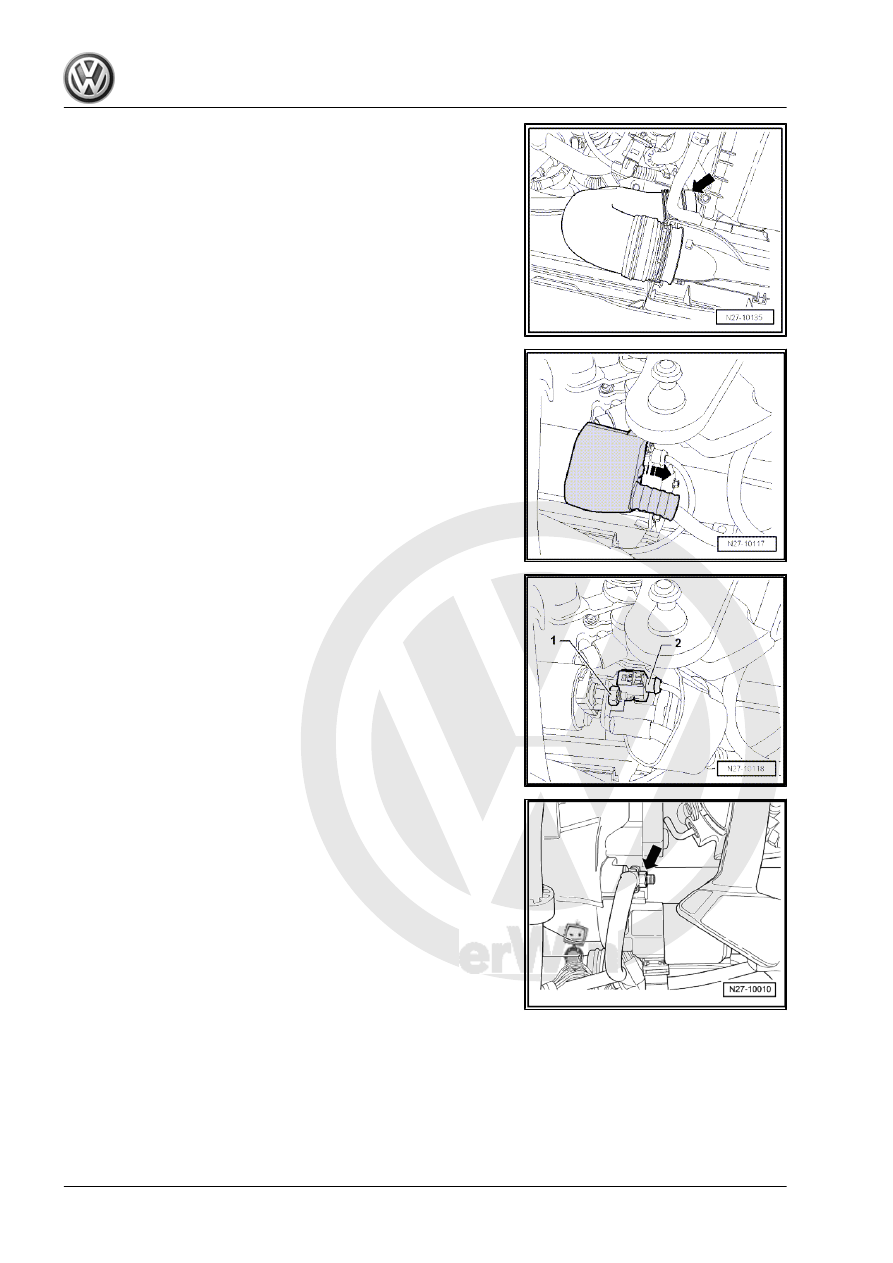

– Remove nut -1- from lower starter bolt.
– Remove wiring retainer -2-.

– Unscrew starter bolt -arrow-.
– Remove starter -B- .
Installing
Install in the reverse order of removal. When doing this, note the

following:
– Tighten threaded connections to specified torques

⇒ page 60

 .

6.4.9

Vehicles with 2.0l SDI engine

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

6. Starter B

81
