sor - G78- from the control arm.

Tightening specification. Refer to ⇒  Suspension, Wheels, Steer‐

ing; Rep. Gr.  40 ; Front Suspension and Control Arm; Overview

- Front Suspension and Control Arm .
– Turn the steering wheel all the way to the left and remove the

left drive axle from the flange shaft. Refer to ⇒  Suspension,

Wheels, Steering; Rep. Gr.  40 ; Drive Axles, Removing and

Installing .

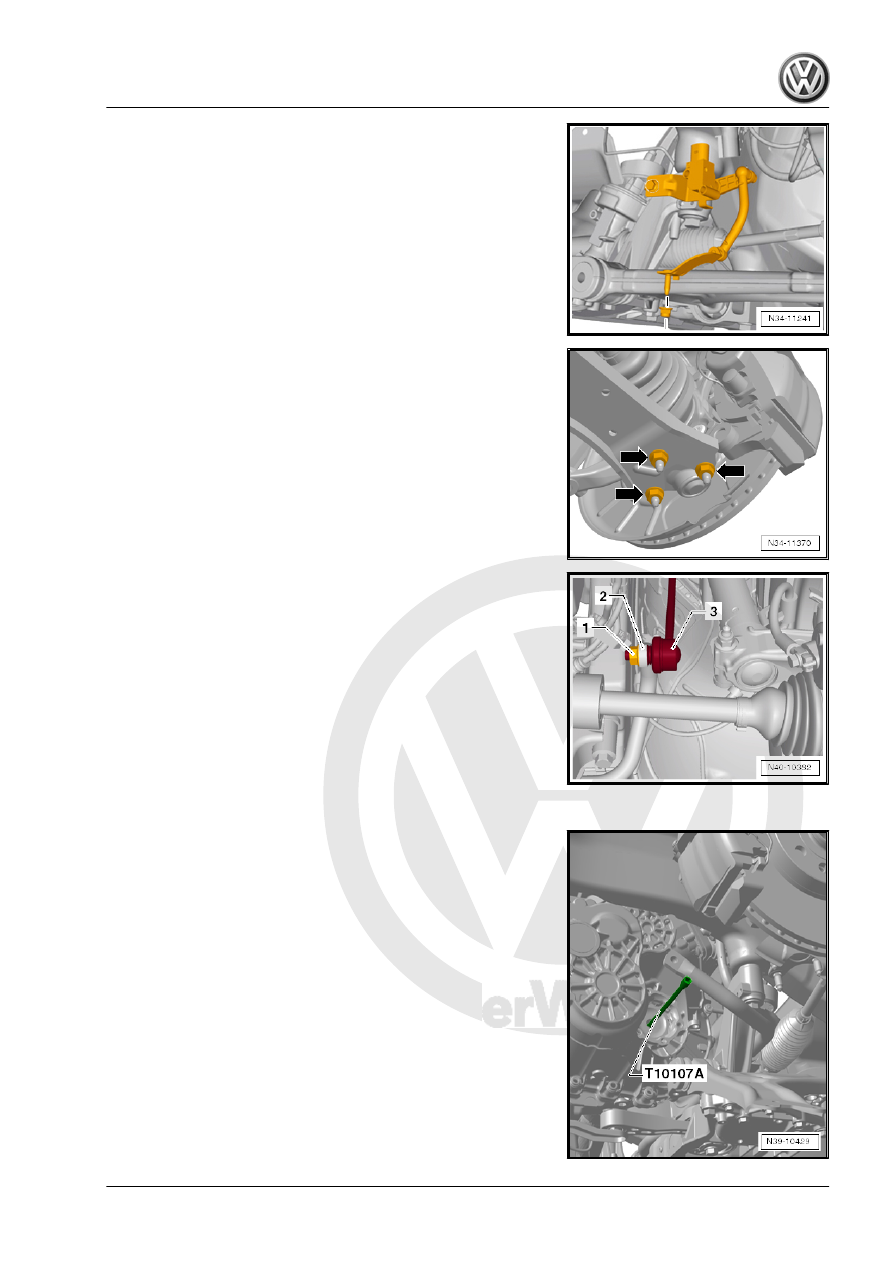

– Remove only the left control arm from the ball joint -arrows-.

– Remove the nut -1- from the coupling rod -3-. Refer to ⇒  Sus‐

pension, Wheels, Steering; Rep. Gr.  40 ; Front Suspension

and Control Arm; Overview - Front Suspension and Control

Suspension and Control Arm; Overview - Front Suspension

and Control Arm .

– Remove the coupling rod and turn the stabilizer bar -2- slightly

upward.

– Swivel the left drive axle into the wheel housing.
– Tie up the drive axle as high as possible. Do not damage the

paint on the drive axle.

– Place the Used Oil Collection and Extraction Unit -

SMN372500- or Drip Tray under the transmission.

– Remove the left flange shaft bolt at the transmission using the

Socket And Extended Bit - T10107A- . Insert two bolts in the

flange and counterhold with a tire iron.

The bolt has 6 mm inner hex. The bolt can also be removed and

installed using the Long Hex Socket - VAG1669- .
– Remove the flange shaft.

1. Seals

213

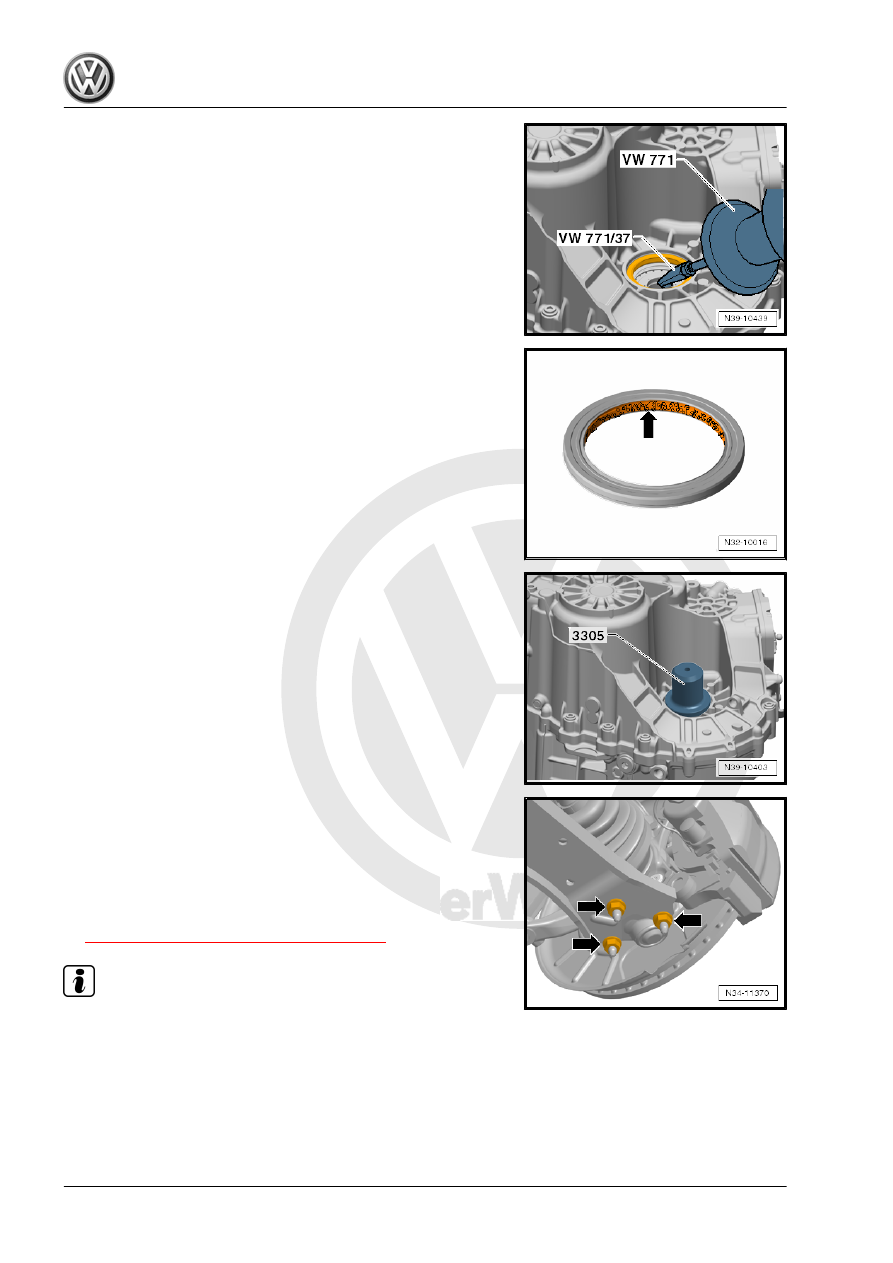

– Fill the space with the new seal between the sealing and dust

lip halfway with Sealing Grease - G 052 128- -arrow-.

– Drive in the new seal all the way using the Seal Installer -

Flange Shaft - 3305- . Do not tilt the seal.

– Install the flange shaft.
– Tighten the new bolt to 30 Nm. Push the flange shaft against

the transmission so that the bolt engages in the thread.

– Reinstall the drive axle. Refer to ⇒  Suspension, Wheels,

– Reattach the control arm and coupling rod. Refer to ⇒  Sus‐

pension, Wheels, Steering; Rep. Gr.  40 ; Front Suspension

and Control Arm; Overview - Front Suspension and Control

Suspension and Control Arm; Overview - Front Suspension

and Control Arm .

– Refill any transmission fluid that may have leaked out while

removing the seal. Refer to

⇒ “1 Transmission Fluid, Replacing”, page 70

 .

Note

The transmission fluid must be replaced to assure the transmis‐

sion fluid level is correct.

50 ; Noise Insulation .

214

Special Tools

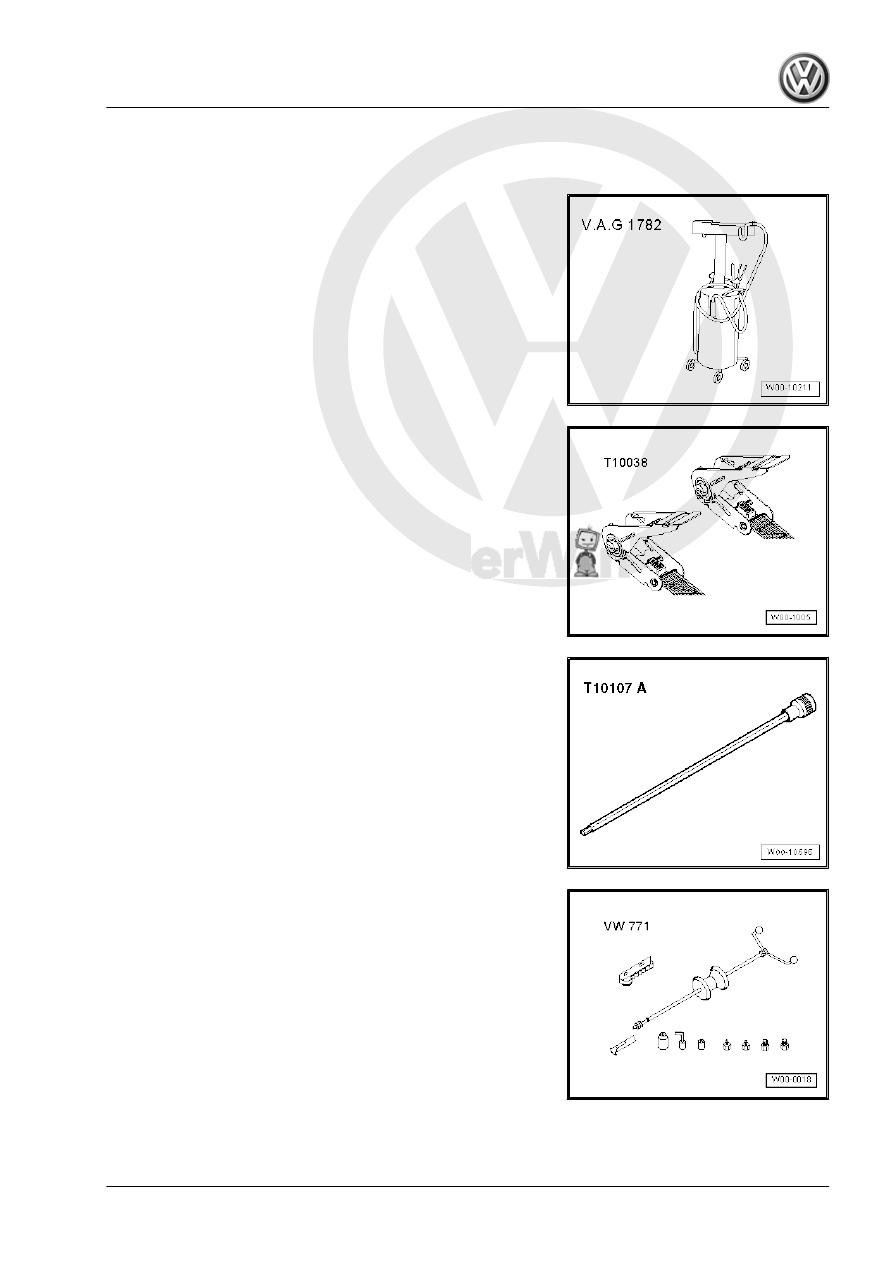

Special tools and workshop equipment required
♦ Used Oil Collection and Extraction Unit - SMN372500-

♦ Tensioning Strap - T10038-

♦ Socket And Extended Bit - T10107A- or Long Hex Socket -

VAG1669-

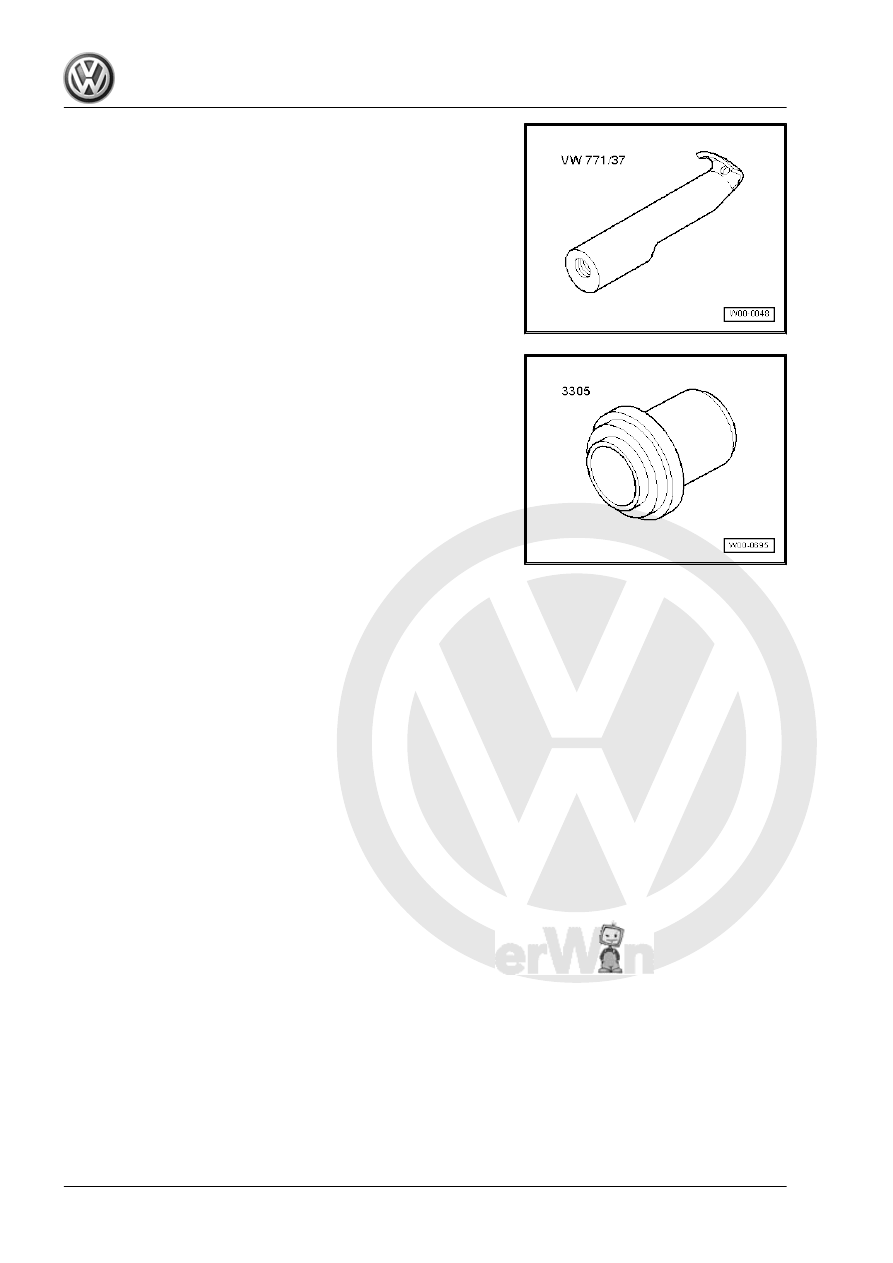

♦ Slide Hammer Set - VW771-

2. Special Tools

215

♦ Seal Installer - Flange Shaft - 3305-

216
