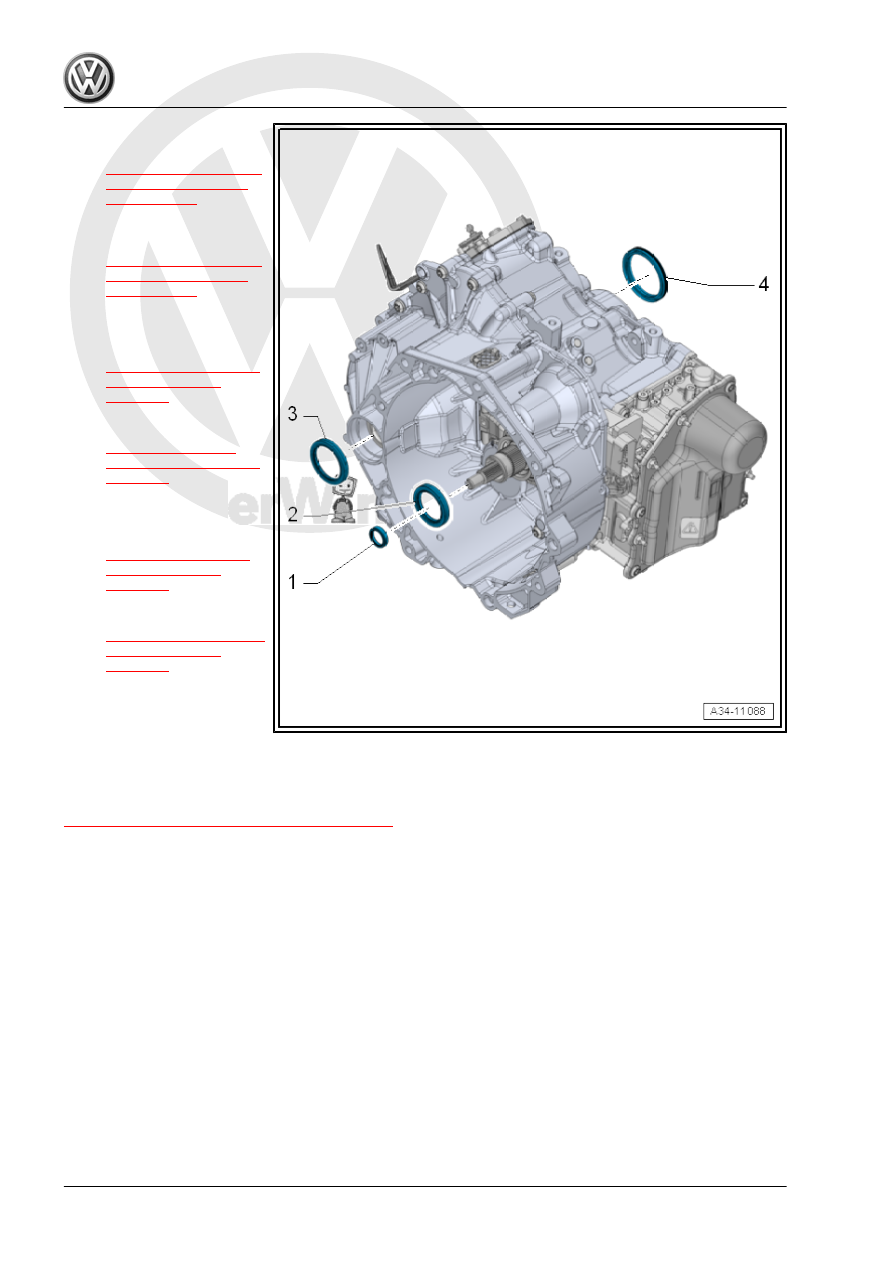

❑ Replacing. Refer to

⇒ “3 Clutch-Side Seals,

Removing and Instal‐

ling”, page 63

 .

2 - Input Shaft Seal

❑ Replacing. Refer to

⇒ “3 Clutch-Side Seals,

Removing and Instal‐

ling”, page 63

 .

3 - Right Seal

❑ For right stub shaft, re‐

placing. Refer to

⇒ “1.2 Right Stub Shaft

Seal, Replacing”,

page 206

❑ For right flange shaft, re‐

placing. Refer to

⇒ “1.4 Right Flange

Shaft Seal, Replacing”,

page 210

4 - Left Seal

❑ For Left Stub Shaft, Re‐

placing. Refer to

⇒ “1.3 Left Stub Shaft

Seal, Replacing”,

page 208

❑ For Left Flange Shaft,

Replacing. Refer to

⇒ “1.5 Left Flange Shaft

Seal, Replacing”,

page 212

1.2

Right Stub Shaft Seal, Replacing

Left side. Refer to

⇒ “1.3 Left Stub Shaft Seal, Replacing”, page 208

 .

Special tools and workshop equipment required
♦ Seal Installer - Flange Shaft - 3305-
♦ Socket And Extended Bit - T10107A- or Long Hex Socket -

VAG1669-

♦ Used Oil Collection and Extraction Unit - SMN372500-
♦ Sealing Grease - G 052 128 A1-

206

Note

Do not remove both drive axles from the transmission at the

same time. Then it would not be possible to hold the opposite

front wheel in place in order to remove or install the stub shaft

bolts.

Do not remove both stub shafts from the transmission at the

same time. If the differential bevel gear turns in the differential

then the bolts for the stub shafts are very difficult to reinstall.

– Remove the noise insulation below the engine/transmission.

Refer to ⇒  Body Exterior; Rep. Gr.  50 ; Noise Insulation .

– Remove the drive axle. Refer to ⇒  Suspension, Wheels,

– Place the Used Oil Collection and Extraction Unit -

SMN372500- or Drip Tray under the transmission.

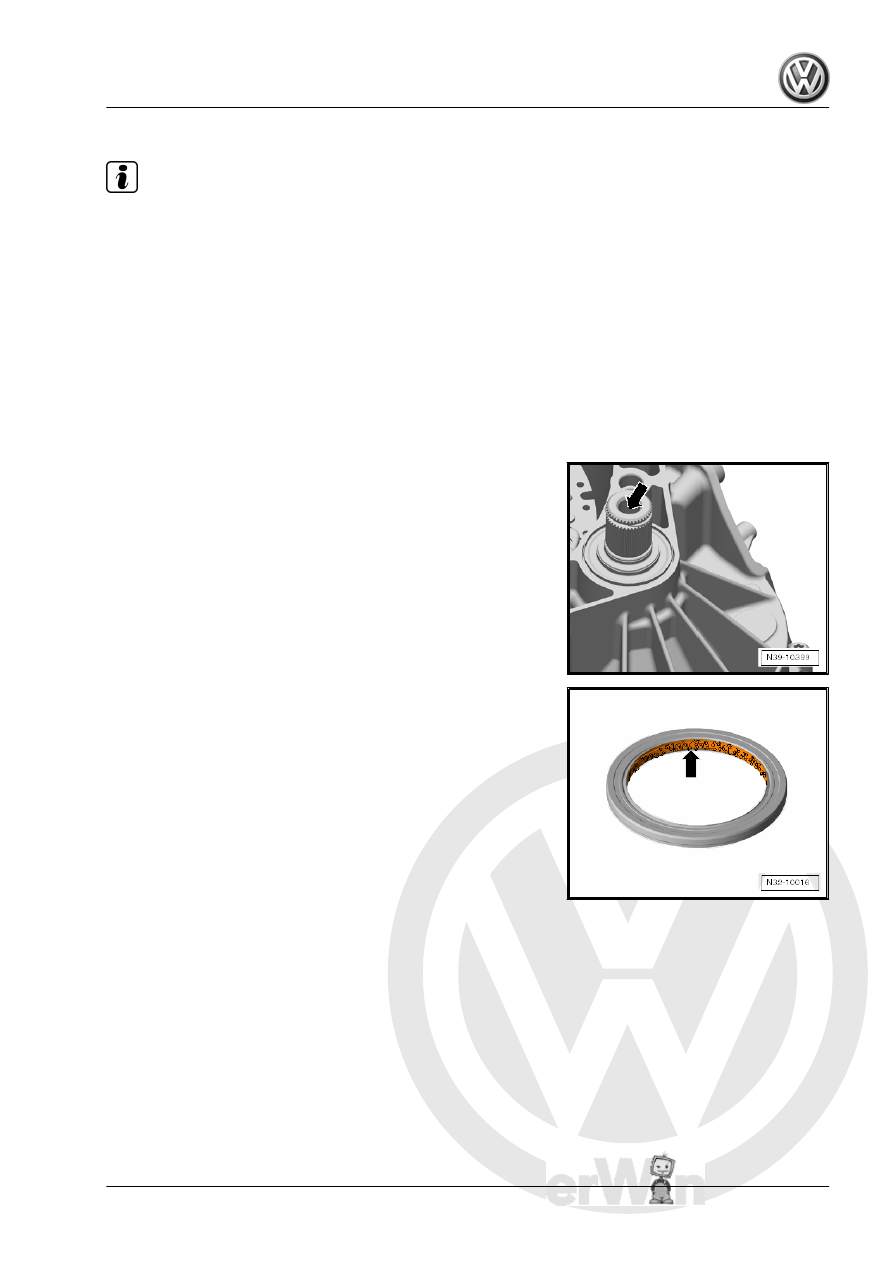

– Remove the bolt -arrow- in the stub shaft using the Socket And

Extended Bit - T10107A- or Long Hex Socket - VAG1669- .

– Remove the stub shaft.
– Pry out the sealing ring.
Installing
– Lightly oil the new gasket on the outer circumference.

– Fill the space between the sealing and dust lip halfway with

Sealing Grease - G 052 128- -arrow-.

1. Seals

207

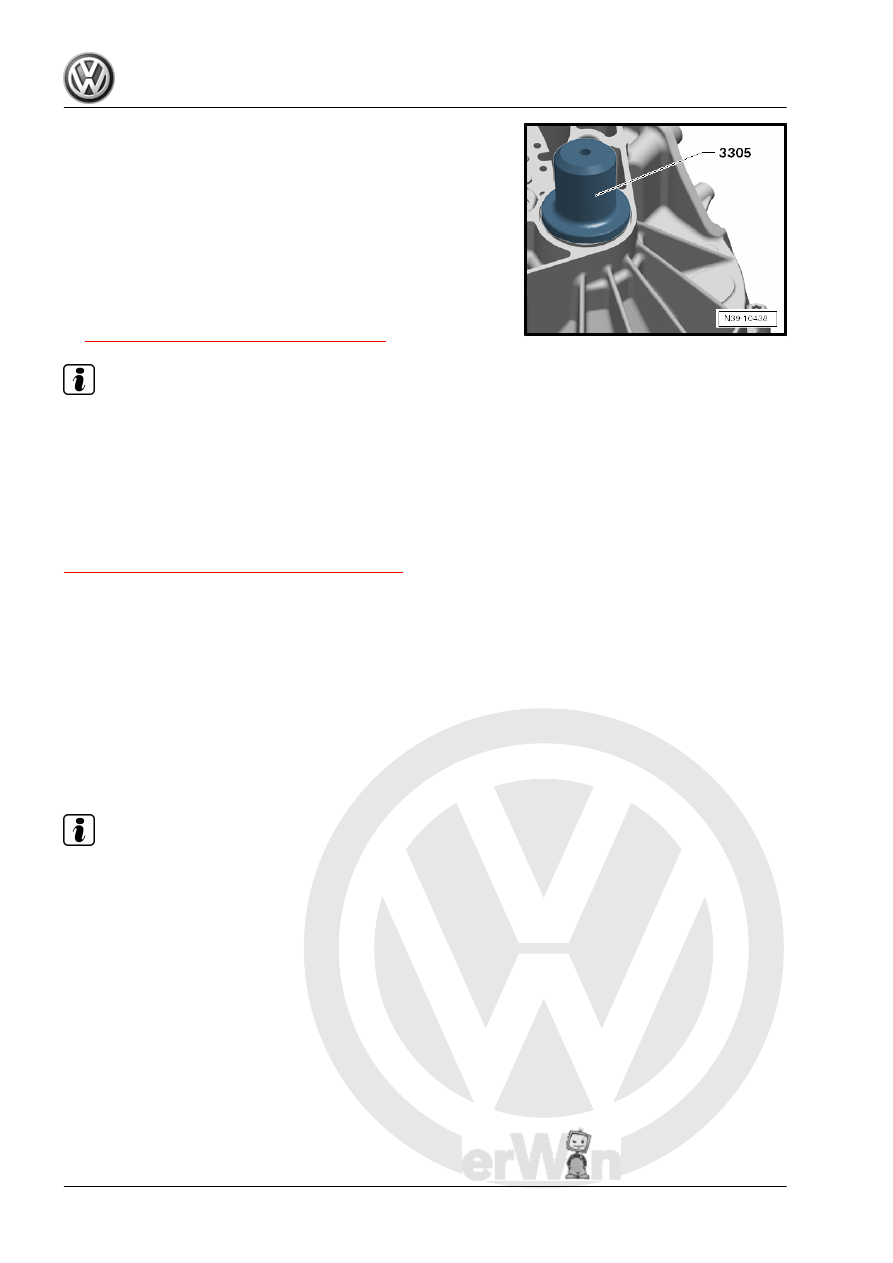

Piece - Trailing Arm - 2010- . Do not use a hammer.
– Insert the stub shaft.
– Tighten the stub shaft bolt to 30 Nm. Push the stub shaft

against the transmission so that the bolt engages in the thread.

– Reinstall the drive axle. Refer to ⇒  Suspension, Wheels,

– Refill any transmission fluid that may have leaked out while

removing the seal. Refer to

⇒ “1 Transmission Fluid, Replacing”, page 70

 .

Note

The transmission fluid must be replaced to assure the transmis‐

sion fluid level is correct.

50 ; Noise Insulation .

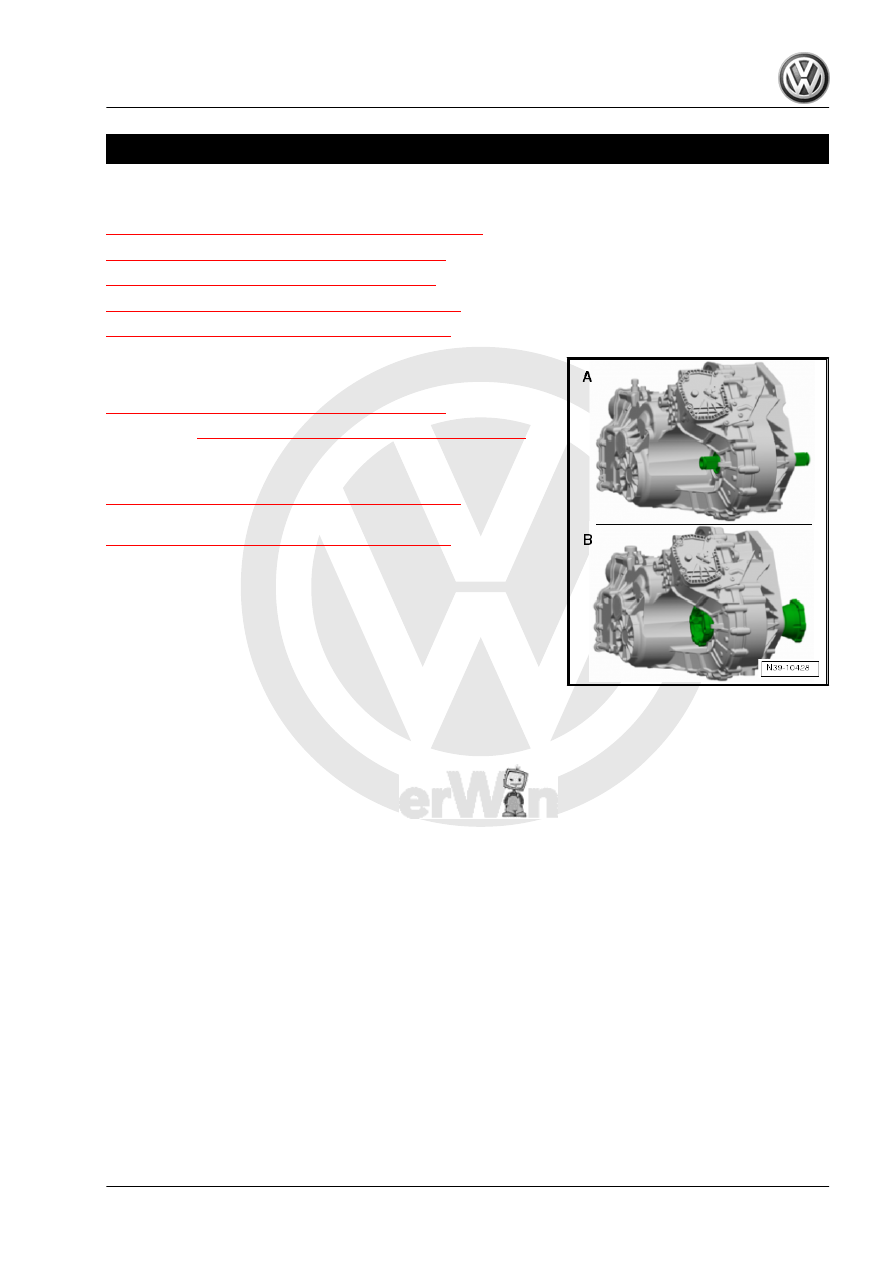

1.3

Left Stub Shaft Seal, Replacing

Right side. Refer to

⇒ “1.2 Right Stub Shaft Seal, Replacing”, page 206

Special tools and workshop equipment required
♦ Slide Hammer Set - VW771-
♦ Slide Hammer Set - Hook - VW771/37-
♦ Seal Installer - Flange Shaft - 3305-
♦ Socket And Extended Bit - T10107A- or Long Hex Socket -

VAG1669-

♦ Used Oil Collection and Extraction Unit - SMN372500-
♦ Sealing Grease - G 052 128 A1-
Removing

Note

Do not remove both drive axles from the transmission at the

same time. Then it would not be possible to hold the opposite

front wheel in place in order to remove or install the stub shaft

bolts.

Do not remove both stub shafts from the transmission at the

same time. If the differential bevel gear turns in the differential

then the bolts for the stub shafts are very difficult to reinstall.

– Remove the drive axle. Refer to ⇒  Suspension, Wheels,

– Place the Used Oil Collection and Extraction Unit -

SMN372500- or Drip Tray under the transmission.

208
