Parking Lock

⇒ “2.1 Parking Lock Cover, Removing and Installing”, page 201
⇒ “2.2 Parking Lock, Removing and Installing”, page 203

2.1

Parking Lock Cover, Removing and In‐

stalling

- Air Filter Housing .

System; Overview - Air Filter .

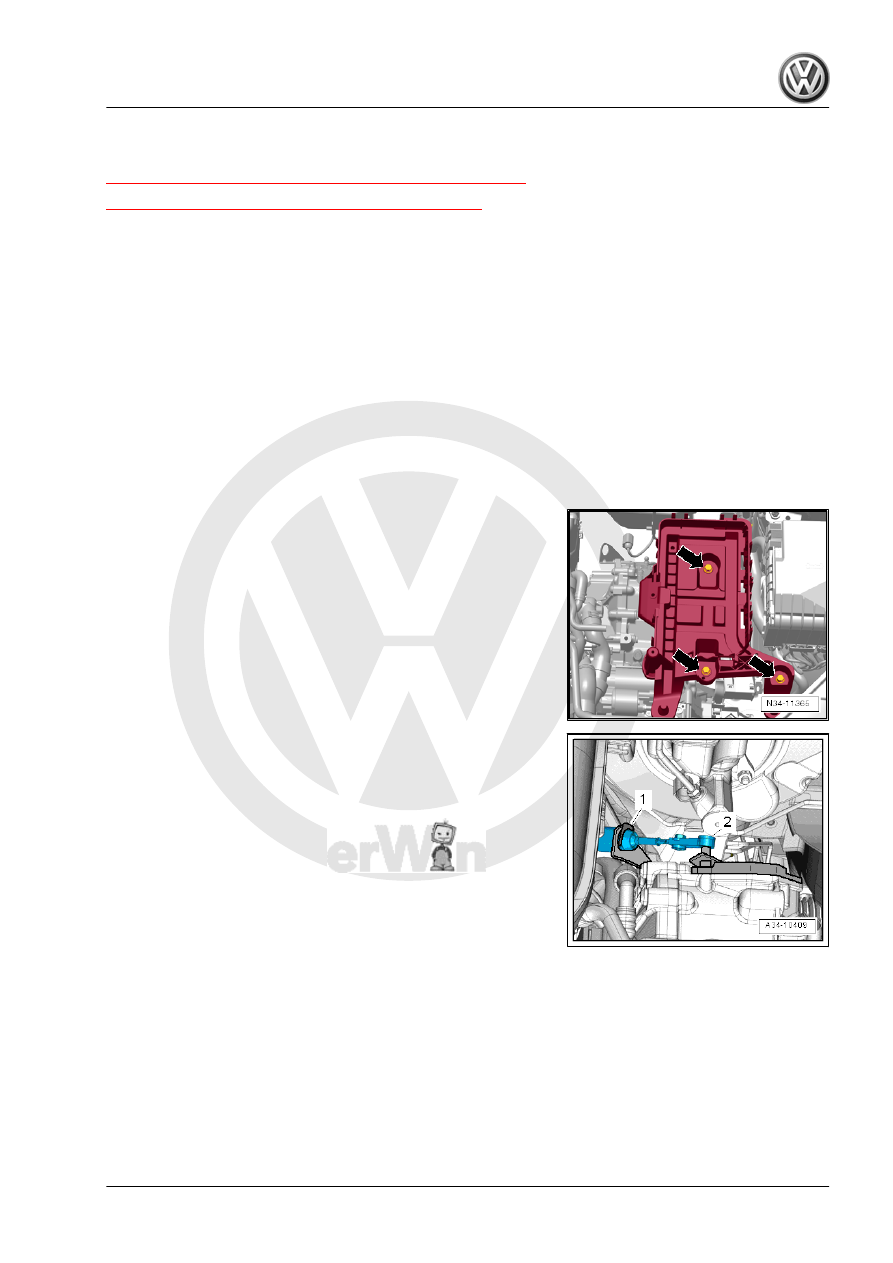

– Remove the battery and the battery tray -arrows-. Refer to ⇒

Electrical Equipment; Rep. Gr.  27 ; Battery; Battery, Remov‐

ing and Installing .

– Remove the lock washer -1- from the selector lever cable.
Always replace the circlip on the selector lever cable.
– Remove the selector lever cable -2- from the ball head on the

selector lever using, for example, a Pry Lever - 80-200- .

2. Parking Lock

201

Use pliers to remove the lock washer -1-. Do not use a sharp-

edged lever. Otherwise the selector lever cable could get

damaged.

Remove the cable bracket -A- and selector lever cable from

the transmission, if necessary. To do this, remove the bolts

-arrows-. These bolts must be replaced.

Bolt tightening specification -arrows-: 8 Nm +90° additional

turn.

Caution

Risk of damaging the selector lever cable.

♦ Do not push the selector lever cable out of the cable

bracket toward the rear. When removing the parking lock

cover, first guide the selector lever cable out of the cable

bracket.

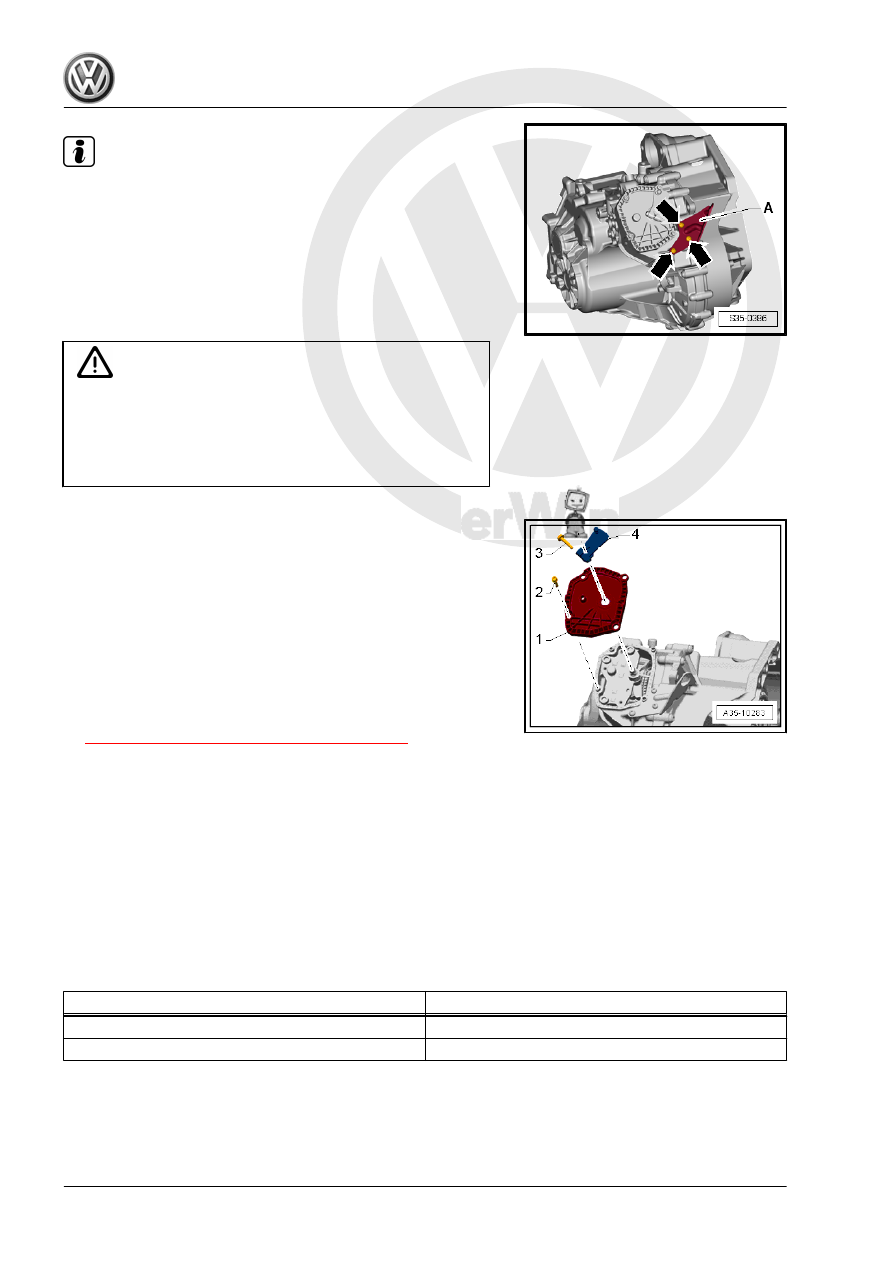

– Remove the bolt -3- and remove the selector lever -4-.
– Remove the bolts -2- and the parking lock cover -1-.
Installing
The parking lock cover must be replaced if there are leaks on the

gearshift shaft seal or on the parking lock cover.
– Clean the sealing surface and the parking lock cover -1-.
– Install the parking lock cover -1- and the bolts -2-.
– Install the selector lever -4- and the bolt -3-.
– Adjust the selector lever cable. Refer to

⇒ “2.6 Selector Lever Cable, Adjusting”, page 94

 .

Further installation is performed in the reverse order of the re‐

moval.
– Install the battery and the battery tray. Refer to ⇒  Electrical

Equipment; Rep. Gr.  27 ; Battery; Battery, Removing and In‐

stalling .

- Air Filter Housing .

System; Overview - Air Filter .

Tightening Specifications

Component

Tightening Specification

Parking lock cover to transmission housing

8 Nm

Transmission selector lever to selector shaft .

15 Nm

202

Parking Lock, Removing and Installing

Removing
• The transmission is installed.
– Remove the cover from the parking lock -1-. Refer to

⇒ “2.1 Parking Lock Cover, Removing and Installing”,

page 201

 .

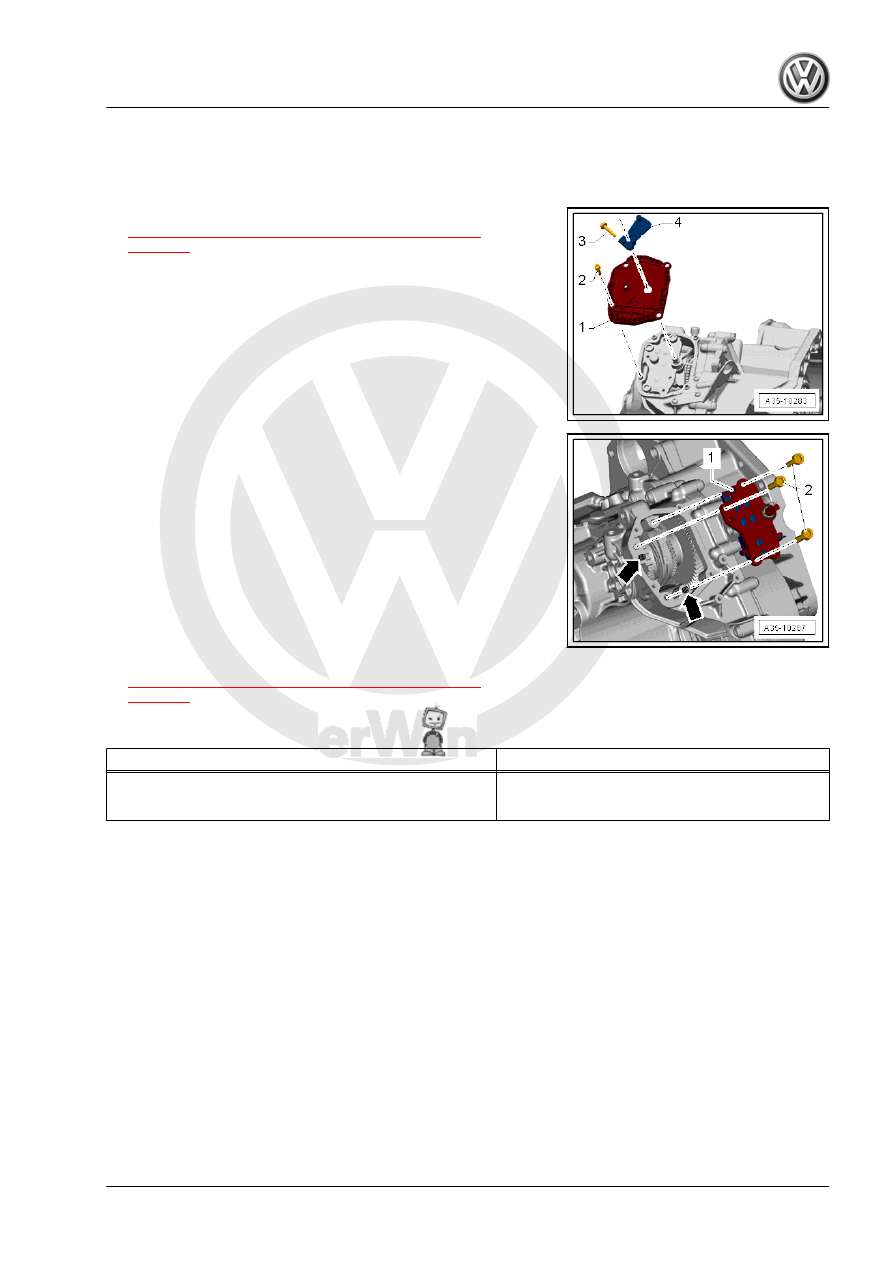

– Remove the bolts -2- and pull the parking lock -1- off the align‐

ment sleeves -arrows-.

It the parking lock cannot be removed by hand:
– Mount Slide Hammer Set - VW771- with Slide Hammer Set -

Hook - VW771/37- behind the parking lock and remove it by

pulling alternating from side to side.

– Always replace the bolts -2-.
Installing
– Place the parking lock -1- on the alignment sleeves -arrows-.
– Install new bolts -2-.
– Install the cover for the parking lock -1-. Refer to

⇒ “2.1 Parking Lock Cover, Removing and Installing”,

page 201

 .

Tightening Specifications

Component

Tightening Specification

Parking lock to the transmission housing

• Replace the bolts after removing them.

20 Nm +90°

2. Parking Lock

203

Special Tools

Special tools and workshop equipment required

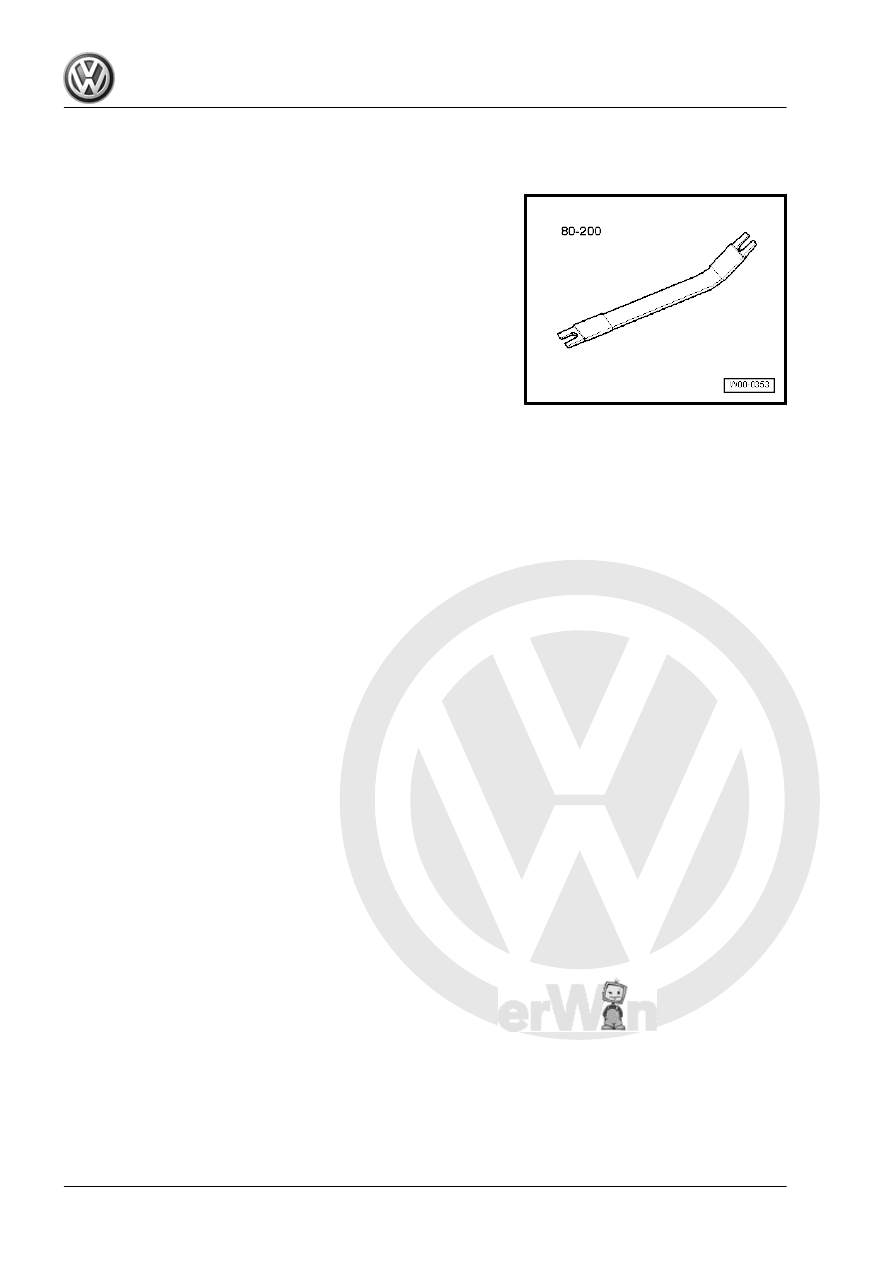

♦ Pry Lever - 80-200-
