Volkswagen Golf Variant / Jetta. Manual - part 593





to

⇒ page 192

 .

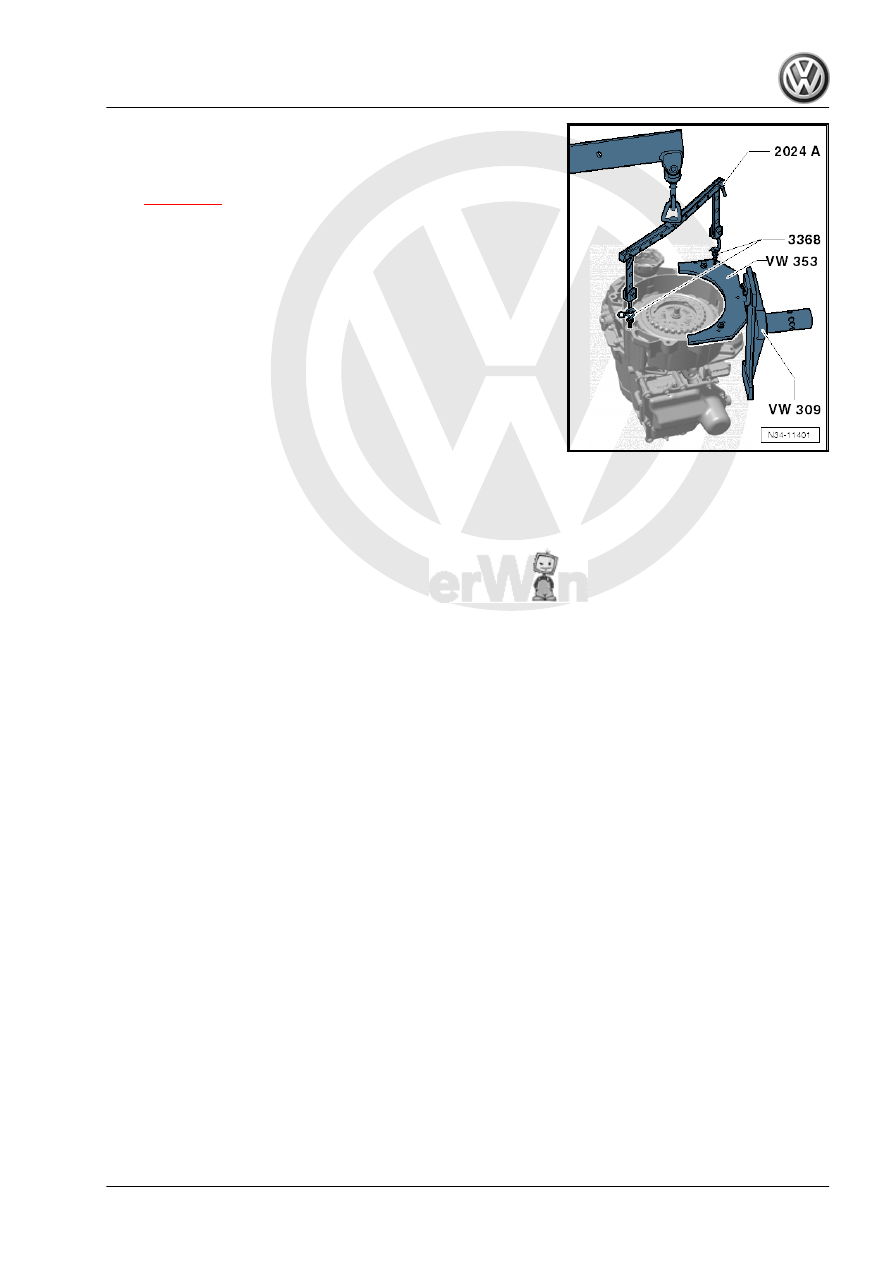

The transmission is lifted together with the Transmission Support

- VW353- »into the assembly stand«.

6. Transmission, Transporting and Securing To Assembly Stand

193

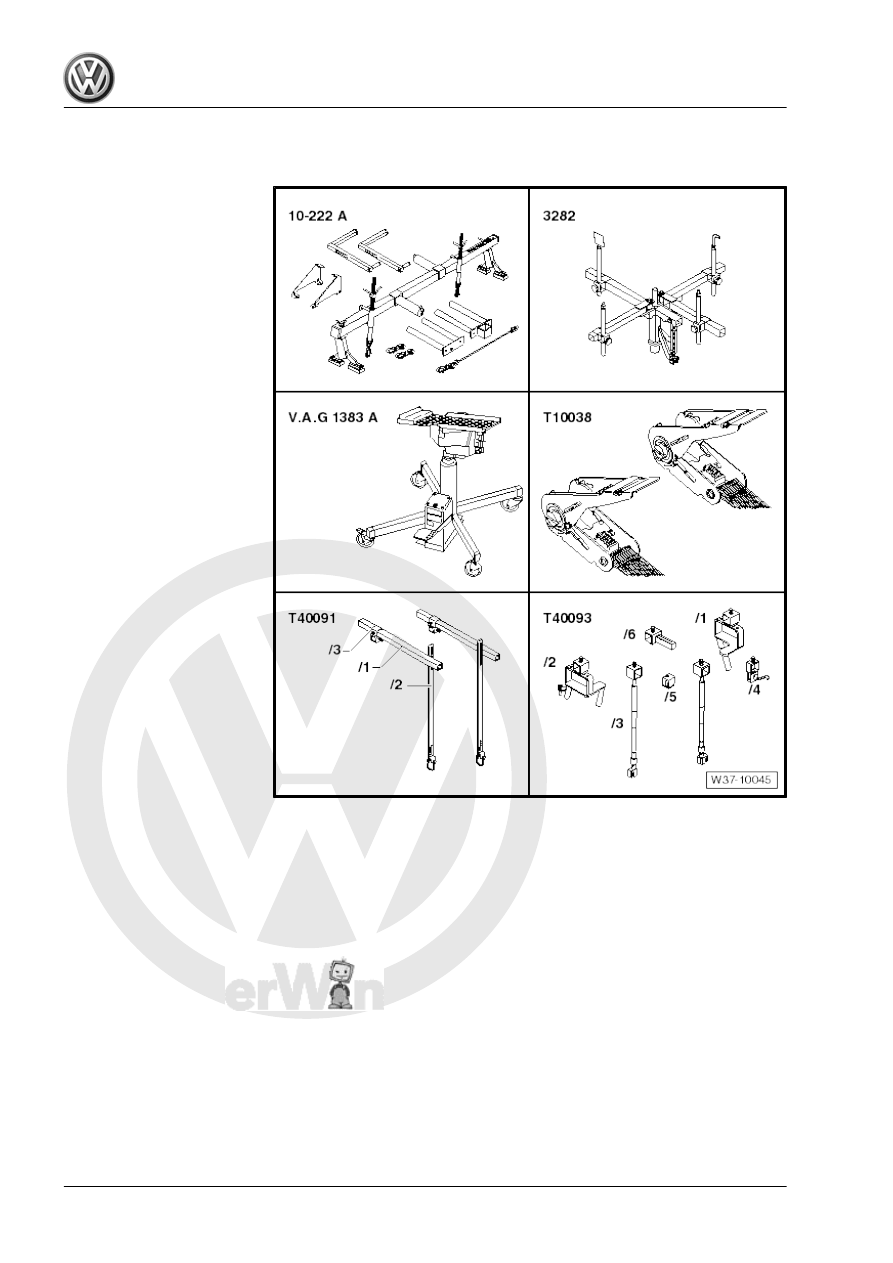

Special Tools

Special tools and workshop equipment required
♦ Transmission Support - 3282-
♦ Transmission Support - Pins 29 - 3282/29-
♦ Support Elements for transmission (determine when mounting

the Mounting Plate on the Transmission Support )

♦ Tensioning Strap - T10038-
♦ Engine Support - Basic Set - T40091-
♦ Engine Support - Supplement Kit - T40093A-

194

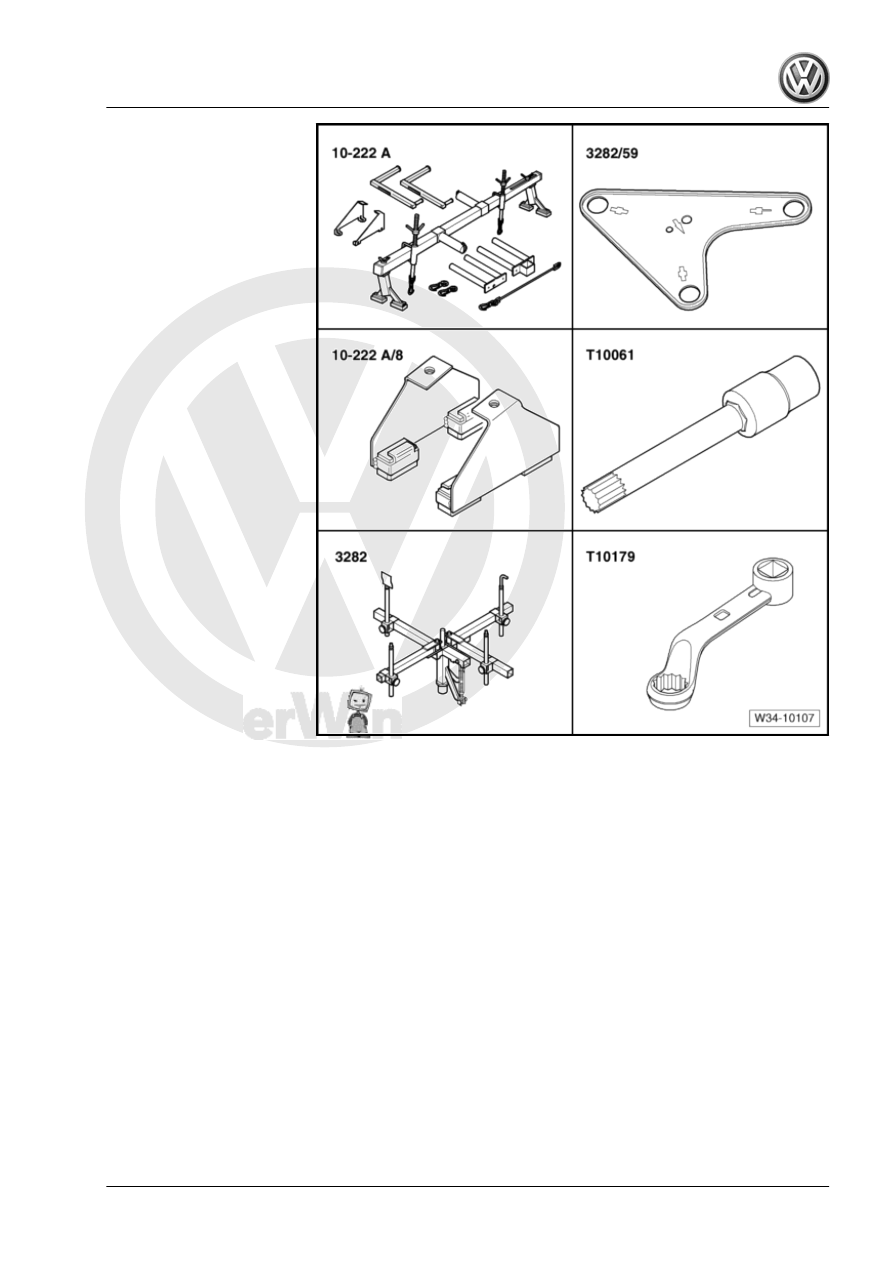

equipment required
♦ Engine Support Bridge -

10-222A-

♦ Transmission Support -

3282-

♦ Transmission Support -

Mounting Plate 59 -

3282/59- Engine Support

Bridge - Engine Support

Feet - 10-222A/8-

♦ Socket - Xzn 14 - T10061-
♦ Insert Tool - 18mm -

T10179-

7. Special Tools

195

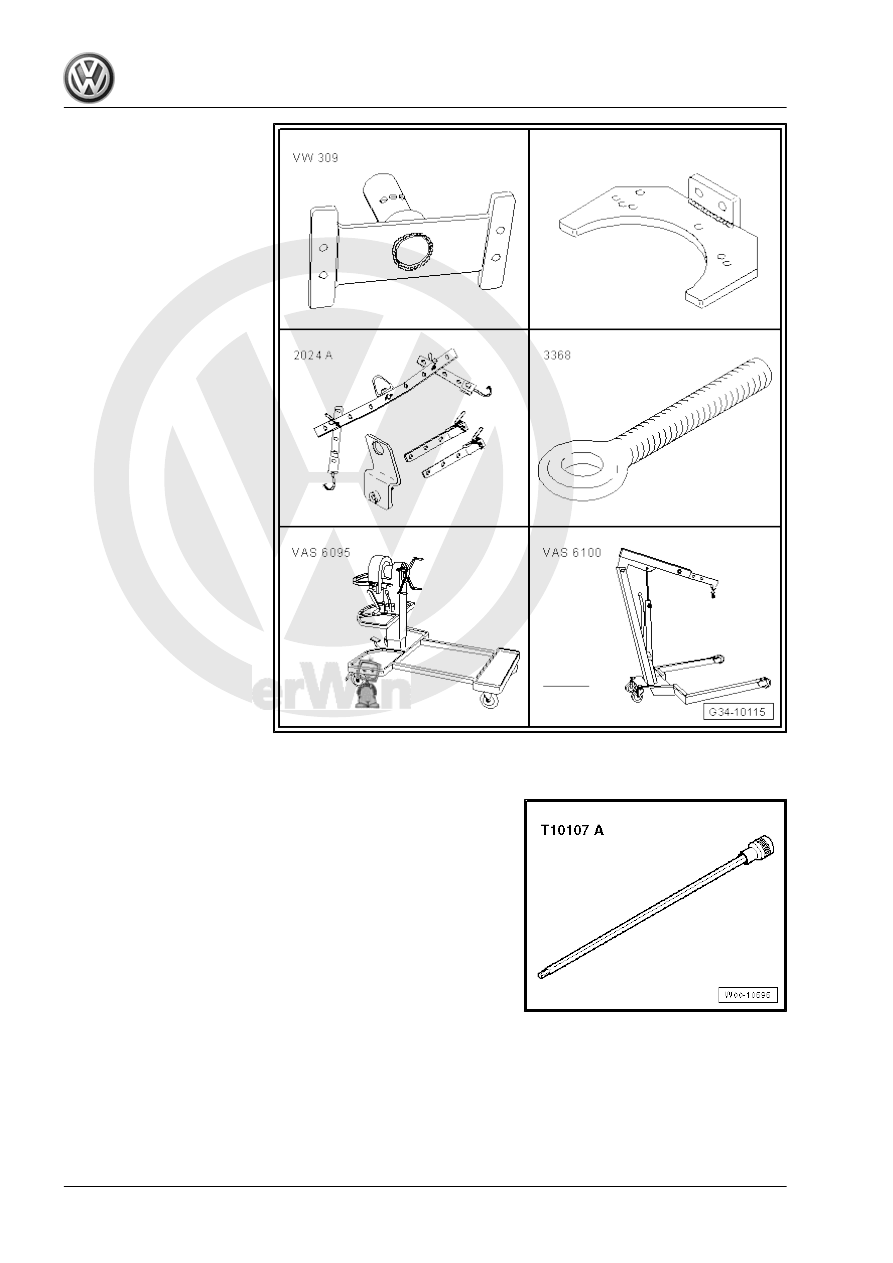

equipment required
♦ Holding Plate - VW309A-
♦ Transmission Support -

VW353-

♦ Engine and Gearbox

Bracket - VAS6095A-

♦ Shop Crane - VAS6100-
♦ Engine Sling - 2024A-
♦ Lifting Eyebolt - 3368-


♦ Socket And Extended Bit - T10107A-

196
