Volkswagen Golf Variant / Jetta. Manual - part 577





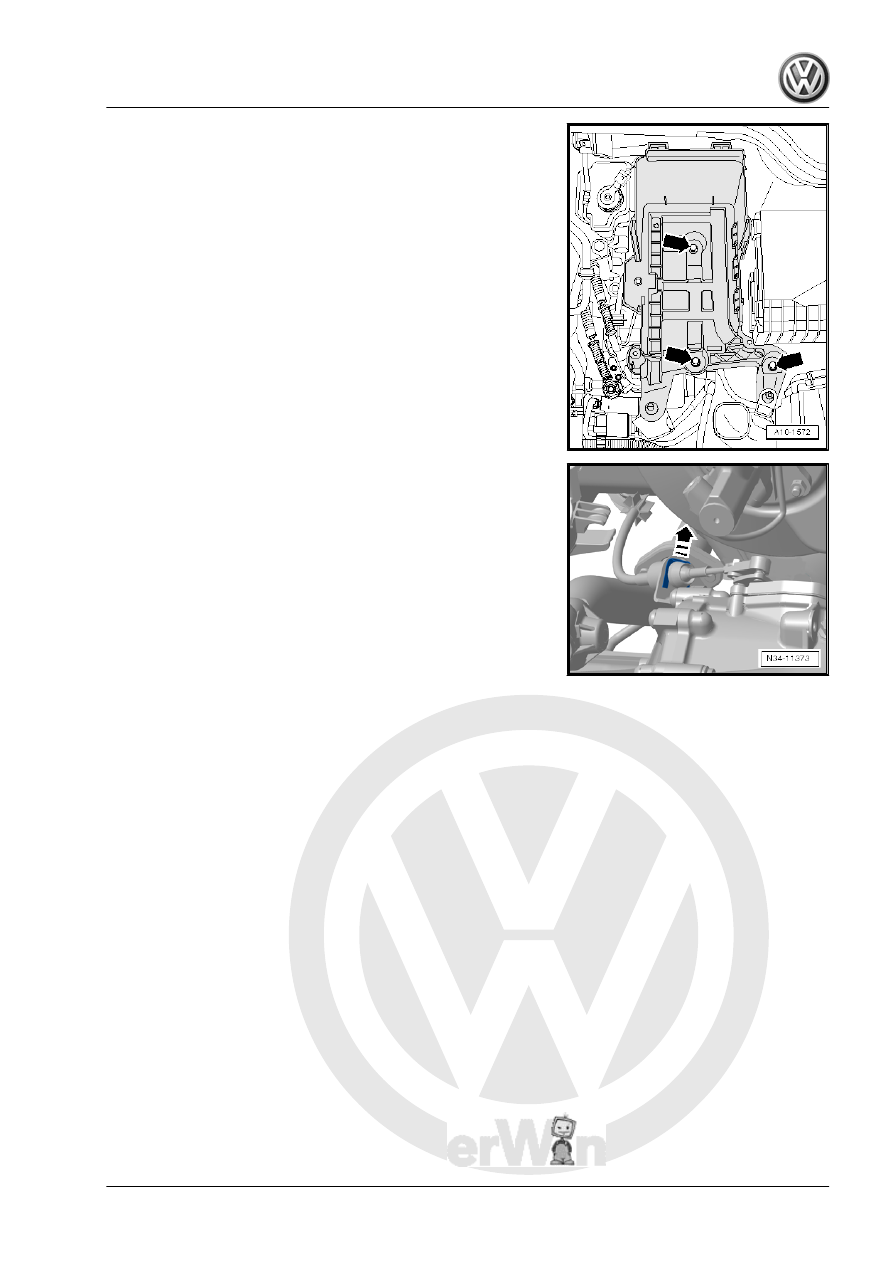

Equipment; Rep. Gr.  27 ; Battery; Battery, Removing and In‐

stalling .

27 ; Starter; Starter, Removing and Installing .

– Remove the lock washer in the direction of the -arrow-.
Always replace the circlip on the selector lever cable.

4. Transmission, Removing and Installing, Jetta from MY 2005, Golf Wagon from MY 2007 and Golf Wagon from MY 2010

129

Use pliers to remove the lock washer. Do not use a sharp-

edged lever. Otherwise the selector lever cable could get

damaged.

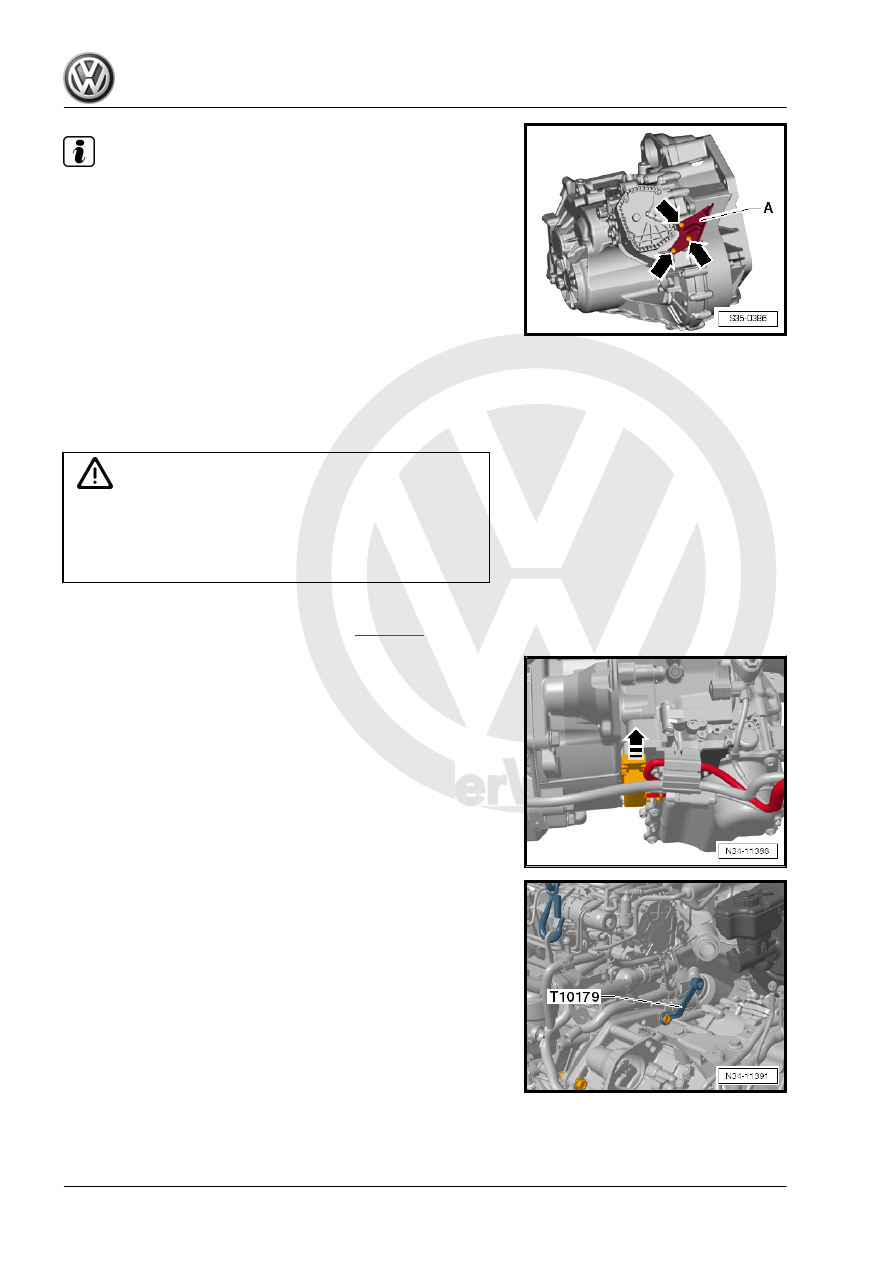

Remove the cable bracket -A- and selector lever cable from

the transmission, if necessary. To do this, remove the bolts

-arrows-. These bolts must be replaced.

Bolt tightening specification -arrows-: 8 Nm +90° additional

turn.

– Remove the selector lever cable from the ball head on the se‐

lector lever using, for example, a Pry Lever - 80-200- .

The selector lever cable can also be slid back slightly from the

cable bracket and later removed when lowering transmission. Pay

attention to the selector lever cable when lowering the transmis‐

sion.

Caution

Risk of damaging transmission components.

♦ Never touch the contacts in the transmission connector.

The control module as well as the Mechatronic can be de‐

stroyed by static discharge.

– To discharge any static electricity, touch vehicle ground with

hand (without wearing a glove). Refer to

⇒ page 12

 .

– Release the connector lock on the Mechatronic by pulling in

the direction of -arrow- and remove the connector.

– Remove the upper bolts between the engine and the trans‐

mission.

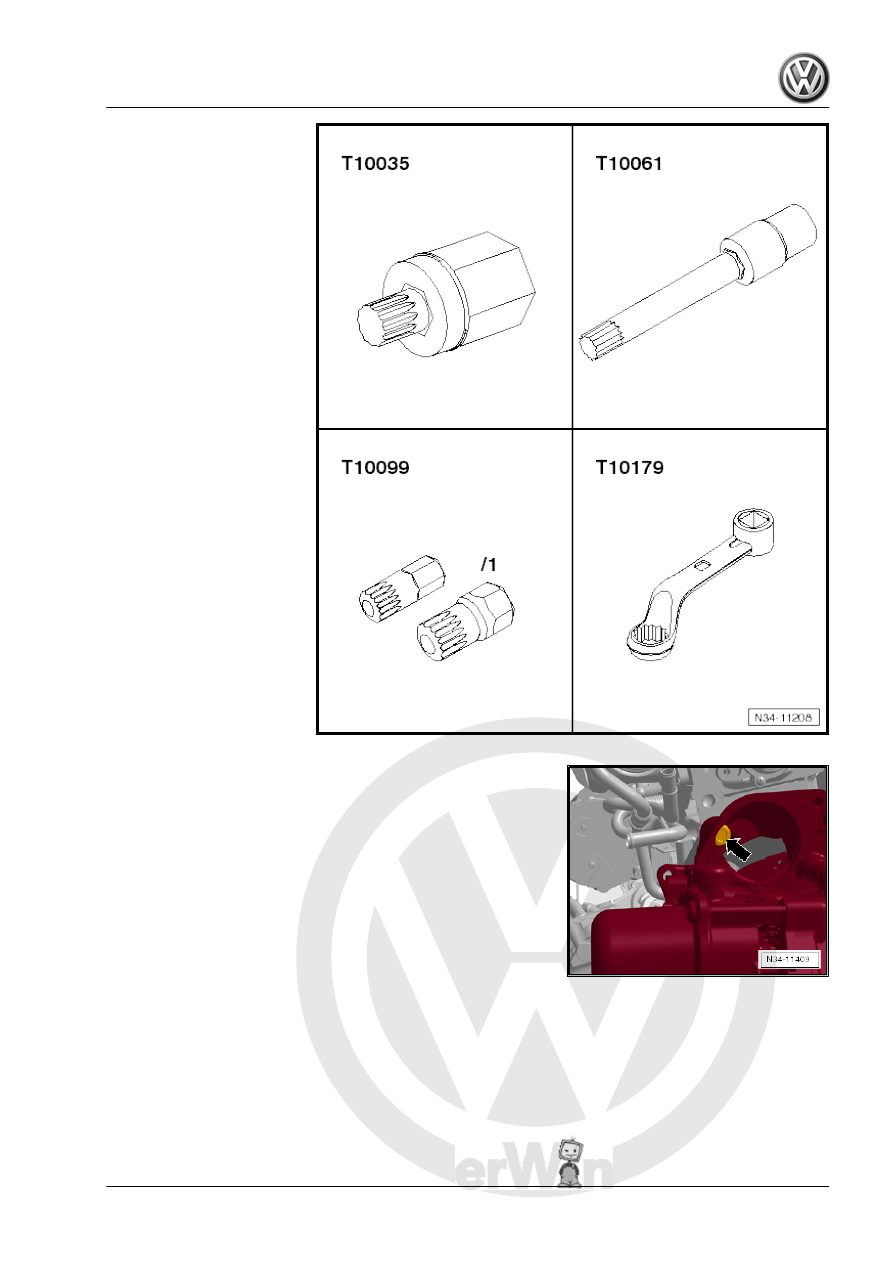

These tools are suitable for this.

130

mm nut, the Socket - Xzn 14 - T10061- can also be used.

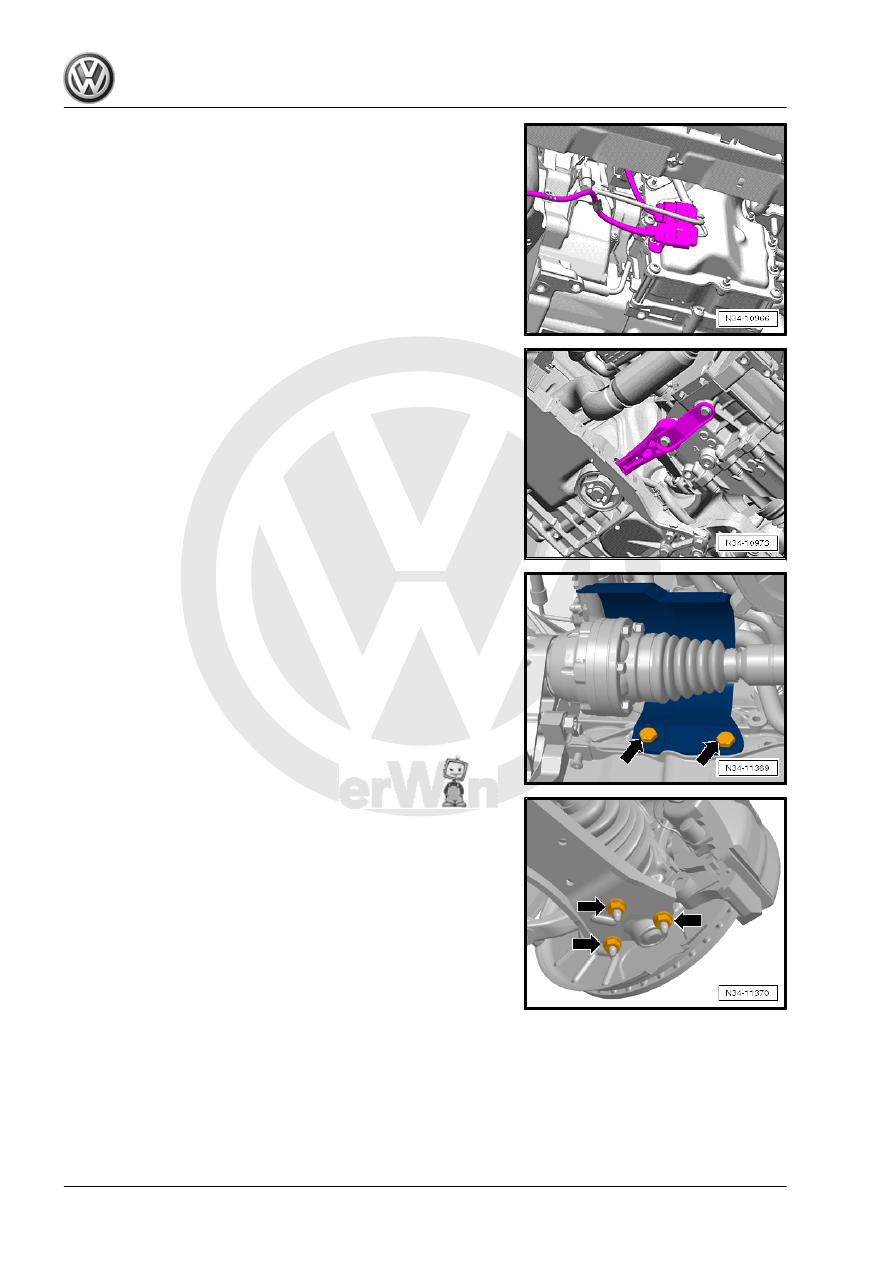

– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the wheel housing liner front section. Refer to ⇒  Body

Wheel Housing Liner .

4. Transmission, Removing and Installing, Jetta from MY 2005, Golf Wagon from MY 2007 and Golf Wagon from MY 2010

131

– Remove the pendulum support.
Only on Vehicles with Stub Shafts
– Remove both drive axles. Refer to ⇒  Suspension, Wheels,

Only on Vehicles with Flange Shafts

– If equipped, remove the heat shield above the right drive axle.

Axles, Removing and Installing for the tightening specification.

– Remove only the left control arm from the ball joint -arrows-.
– Move the left drive axle into the wheel housing and on the lon‐

gitudinal member. By doing so, the shaft will not interrupt

further work.

Do not damage the surface of the shafts. For this reason, plastic

cable ties or Tensioning Straps - T10038- are very suitable.

132
