❑ Install without tension

22 - From the EGR filter

❑ -item 9-

⇒ Item 9 (page 399)

23 - Clamp

❑ 3.5 Nm
❑ Replace
❑ Note the installation position Refer to

⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed Position”, page 368

 .

24 - Exhaust Gas Temperature Sensor 2 - G448-

❑ 45 Nm
❑ Note the installation position Refer to

⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed Position”, page 368

 .

❑ Only grease the threads with Hot Bolt Paste - G 052 112 A3- .

25 - Exhaust Gas Temperature Sensor 3 - G495-

❑ 45 Nm
❑ Note the installation position Refer to

⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed Position”, page 368

 .

❑ Only grease the threads with Hot Bolt Paste - G 052 112 A3- .

26 - Nut

❑ 23 Nm

27 - Nut

❑ 23 Nm

28 - Bracket

❑ Note the installation position
❑ For the particulate filter
❑ Fastened to cylinder block
❑ Install without tension

29 - Particulate Filter

Caution

There is a risk of damag‐

ing  the  decoupling  ele‐

ment between the partic‐

ulate  filter  and  NOx

reduction  catalytic  con‐

verter.  When  removing

and installing:

Do not bend the decou‐

pling element more than

10°.

Do not stretch the decou‐

pling element.

Do not damage the wire

mesh on the decoupling

element.

Use the Transportation

Lock - T10404- to secure

the decoupling element

from stretching.

❑ Removing and installing. Refer to

⇒ “1.4 Particulate Filter with NOx Absorption Catalytic Converter, Removing and Installing”, page 369

 .

1. Exhaust System

367

“Guided Functions”.

30 - Control Wire

❑ 45 Nm
❑ Do not change the angles of the control line
❑ Install without tension

31 - Bolt

❑ 9 Nm

32 - Bracket

❑ For the control line
❑ Install without tension

33 - Bracket

❑ Note the installation position
❑ For the particulate filter
❑ Fastened to cylinder head
❑ Install without tension

34 - Bolt

❑ 23 Nm

35 - Exhaust Pressure Sensor 2 - G451-

❑ Connected to the Auxiliary Fuel Pump - V393- bracket

1.3

Clamps and Exhaust Gas Temperature

Sensor Installed Position

Clamp Installation Position between the Particulate Filter and

Turbocharger

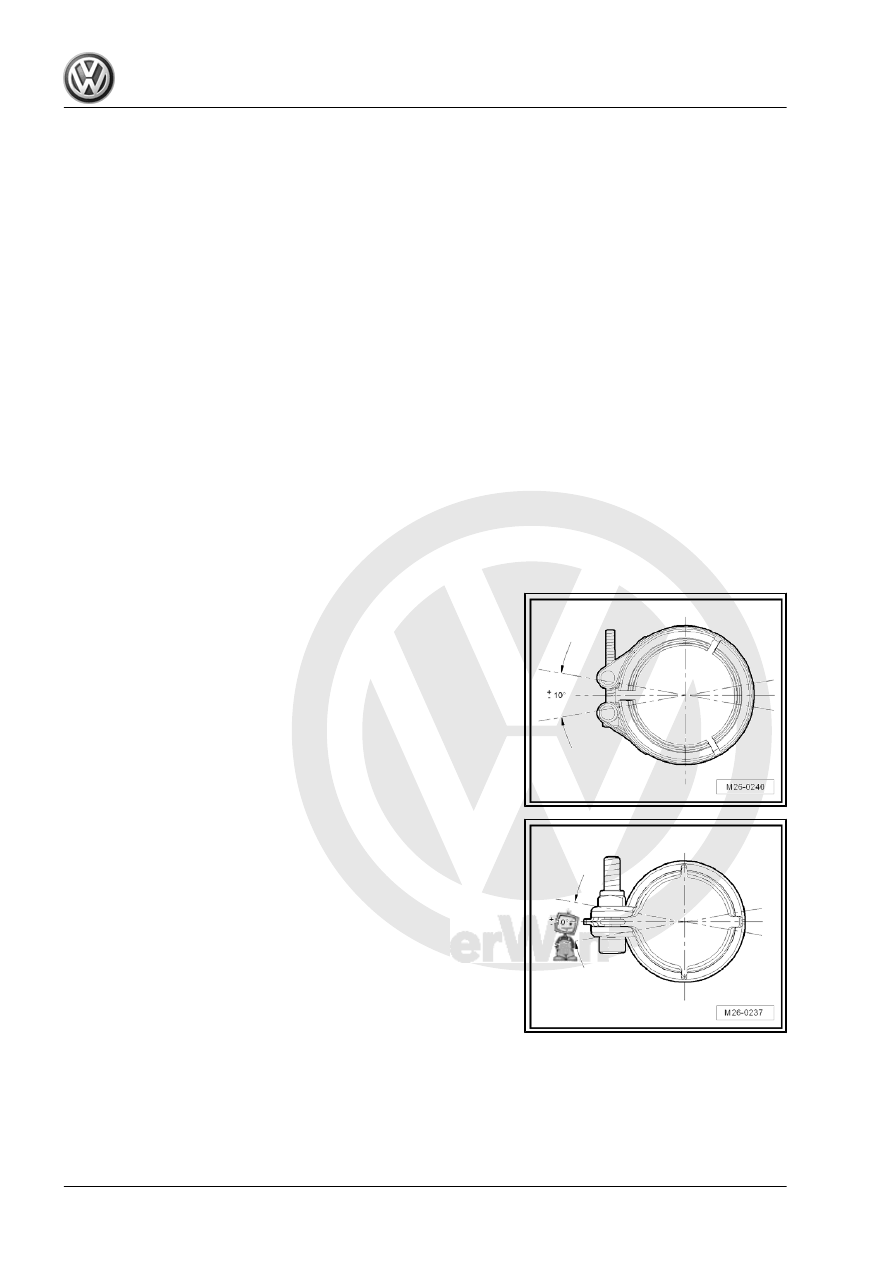

– Install the new clamp so the clamping bolt faces down and the

-± 10°- angle is maintained.

Clamp Installation Position between the Particulate Filter and Ex‐

haust Gas Recirculation Filter
– Install the new clamp so the clamping bolt faces down and the

-± 10°- angle is maintained.

368

maintained:

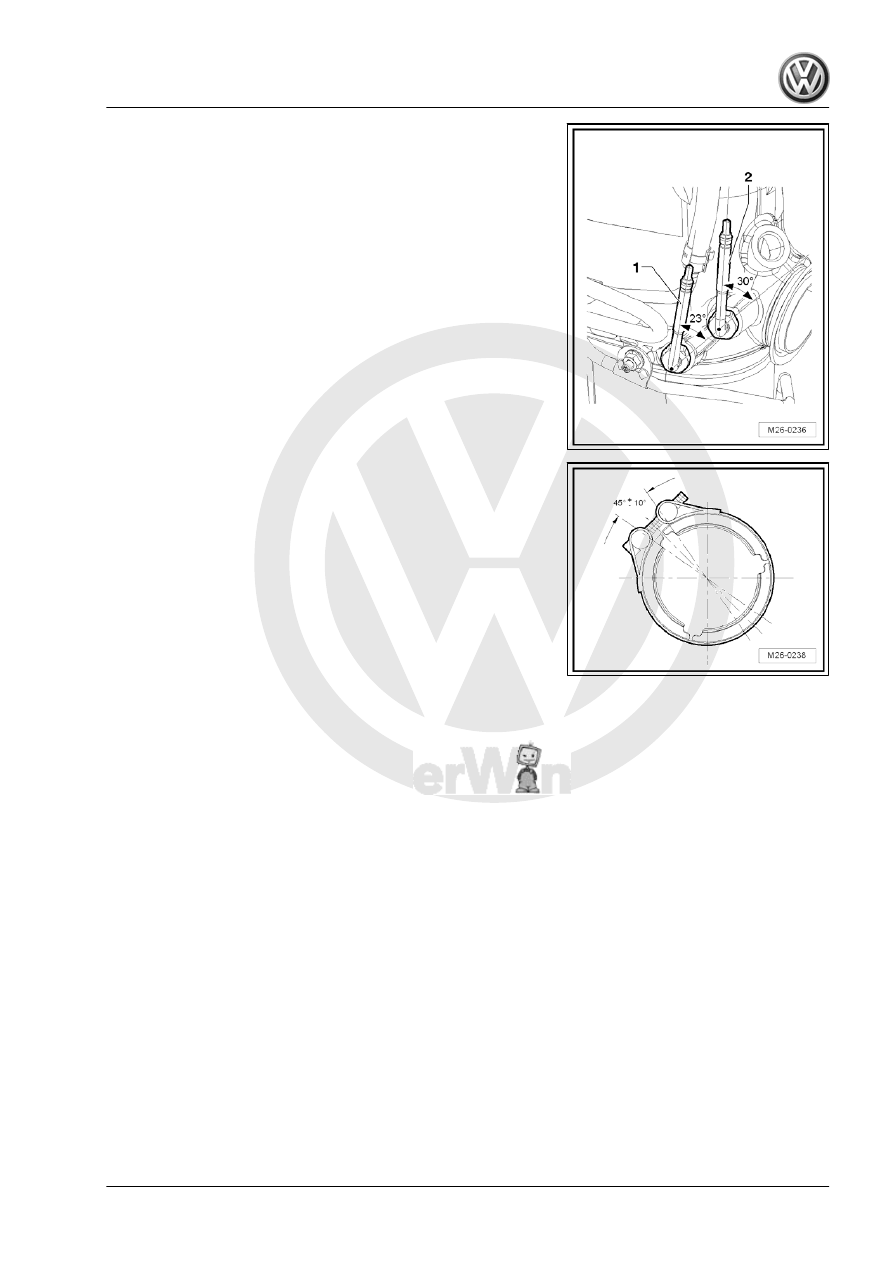

• Exhaust Gas Temperature Sensor 3 - G495- -1-: angle -23°-.
• Exhaust Gas Temperature Sensor 2 - G448- -1-: angle -30°-.
Engine Code CJAA

Installed Position: Clamp between the Particulate Filter and NOx

Reduction Catalytic Converter
– Install the new clamp maintaining the -45° ± 10°- angle.

1.4

Particulate Filter with NOx Absorption

Catalytic Converter, Removing and In‐

stalling

Special tools and workshop equipment required
♦ Locating Pins - T10096-
♦ Wrench - Sw13 - T10384-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Engine and Gearbox Jack - VAS6931-
♦ Hose Clip Pliers - VAS6362-
♦ Transportation Lock - T10404-

1. Exhaust System

369

The subframe must be lowered in order to remove and install

the particulate filter with NOx reduction catalytic converter.

The Locating Pins - T10096- are needed to secure the sub‐

frame.

Overview - Turbocharger with Exhaust Manifold and Attach‐

ments. Refer to

⇒ “3.1 Overview - Turbocharger with Exhaust Manifold and

Attachments”, page 270

 .

Overview - Particulate Filter with NOx Reduction Catalytic

Converter. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

Overview - Exhaust Flap Control Module - J883- with Slip Cat‐

alyst. Refer to

⇒ “1.5 Overview - Exhaust Flap Control Module J883 with Slip

Catalyst”, page 376

Hose connections are secured with either spring or hose

clamps.

Always replace clamp-type clips with spring-type clips.

Hose Clip Pliers - VAS6362- or the Hose Clip Pliers -

VAS6340- are recommended for installing spring clips.

Removing:

WARNING

When doing any assembly work, especially in the engine com‐

partment,  pay  attention  to  the  following  due  to  the  limited

space.

♦ Route all lines and wires in their original locations.
♦ For example, for fuel lines, hydraulic lines, EVAP system

lines, coolant and refrigerant lines, brake fluid lines and

vacuum lines.

♦ Make sure that there is sufficient clearance to all moving

or hot components.

– Remove the engine cover. Refer to

⇒ “1.4 Engine Cover, Removing and Installing”, page 90

 .

– Remove the intake hose -item 1-

⇒ Item 1 (page 336)

 between

the Mass Airflow Sensor - G70- and the intake scoop. Loosen

the spring clamps using the Hose Clip Pliers - VAS6362- .

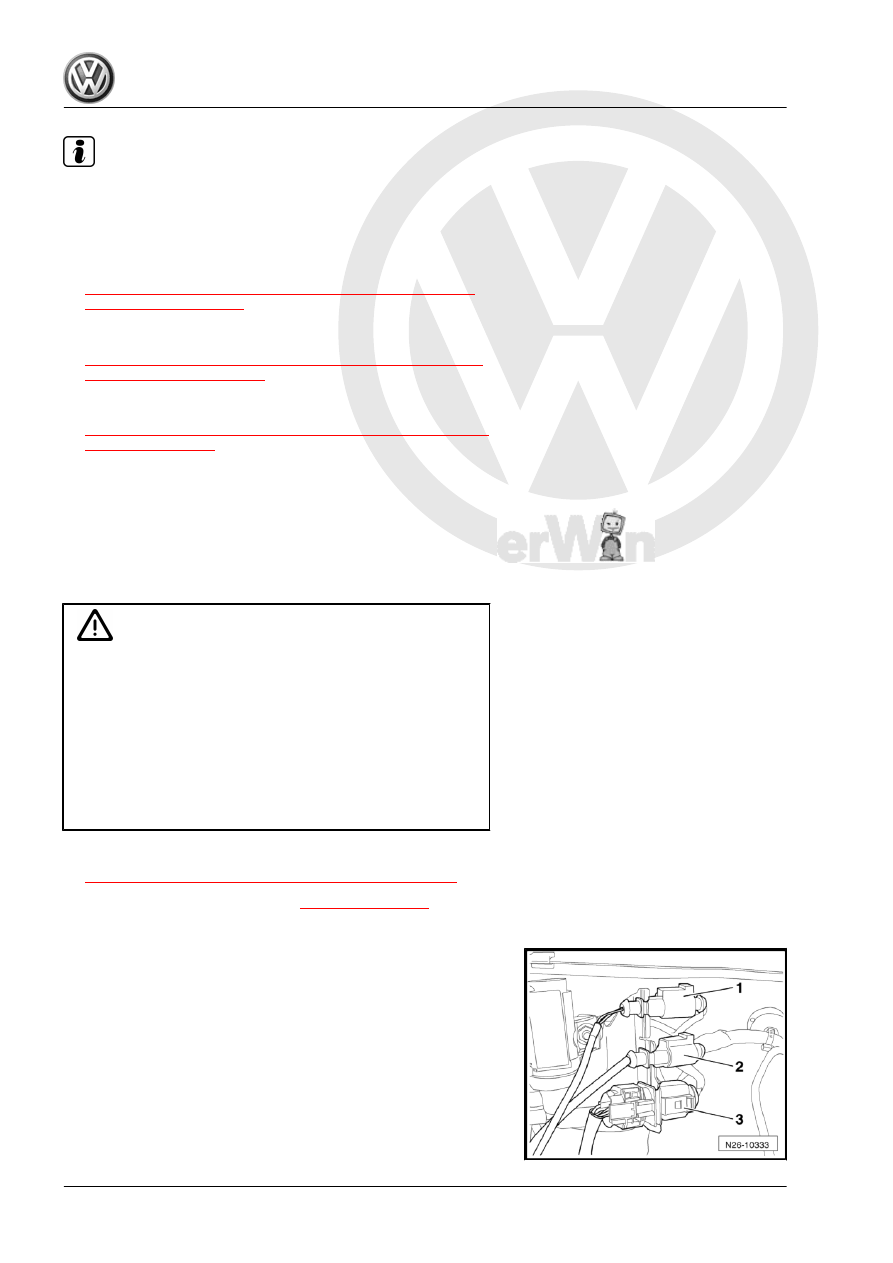

– Disconnect the »orange« connector for the Exhaust Gas Tem‐

perature Sensor 2 - G448- -1- as well as the »black« connector

for the Heated Oxygen Sensor - G39- -3- on the plenum cham‐

ber bulkhead.

370
