6. Special Tools

359

1

Exhaust System

⇒ “1.1 General Information”, page 360
⇒ “1.2 Overview - Particulate Filter with NOx Reduction Catalytic

Converter”, page 360
⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed

Position”, page 368
⇒ “1.4 Particulate Filter with NOx Absorption Catalytic Converter,

Removing and Installing”, page 369
⇒ “1.5 Overview - Exhaust Flap Control Module J883 with Slip

Catalyst”, page 376
⇒ “1.6 Exhaust System Component Line Routing”, page 378
⇒ “1.7 Overview - Muffler”, page 381
⇒ “1.8 Exhaust System, Disconnecting and Connecting”,

page 384
⇒ “1.9 Exhaust System, Installing without Tension”, page 385
⇒ “1.10 Exhaust System, Checking for Leaks”, page 387

1.1

General Information

Note

Overview - Turbocharger with Exhaust Manifold and Attach‐

ments. Refer to

⇒ “3.1 Overview - Turbocharger with Exhaust Manifold and

Attachments”, page 270

 .

Overview - Exhaust Flap Control Module - J883- with Slip Cat‐

alyst. Refer to

⇒ “1.5 Overview - Exhaust Flap Control Module J883 with Slip

Catalyst”, page 376

After installing the particulate filter with NOx reduction catalytic

converter, make sure it is free of tension.

Always replace the self-locking nuts, seals, gaskets and

clamps.

Hose connections are secured with either spring or hose

clamps.

Always replace clamp-type clips with spring-type clips.

Hose Clip Pliers - VAS6362- or the Hose Clip Pliers -

VAS6340- are recommended for installing spring clips.

1.2

Overview - Particulate Filter with NOx

Reduction Catalytic Converter

Special tools and workshop equipment required
♦ Hose Clip Pliers - VAS6362-

360

lytic Converter, Engine Code CBEA”, page 361

 .

⇒ “1.2.2 Overview - Particulate Filter with NOx Reduction Cata‐

lytic Converter, Engine Code CJAA”, page 365

 .

1.2.1

Overview - Particulate Filter with NOx Reduction Catalytic Converter, En‐

gine Code CBEA

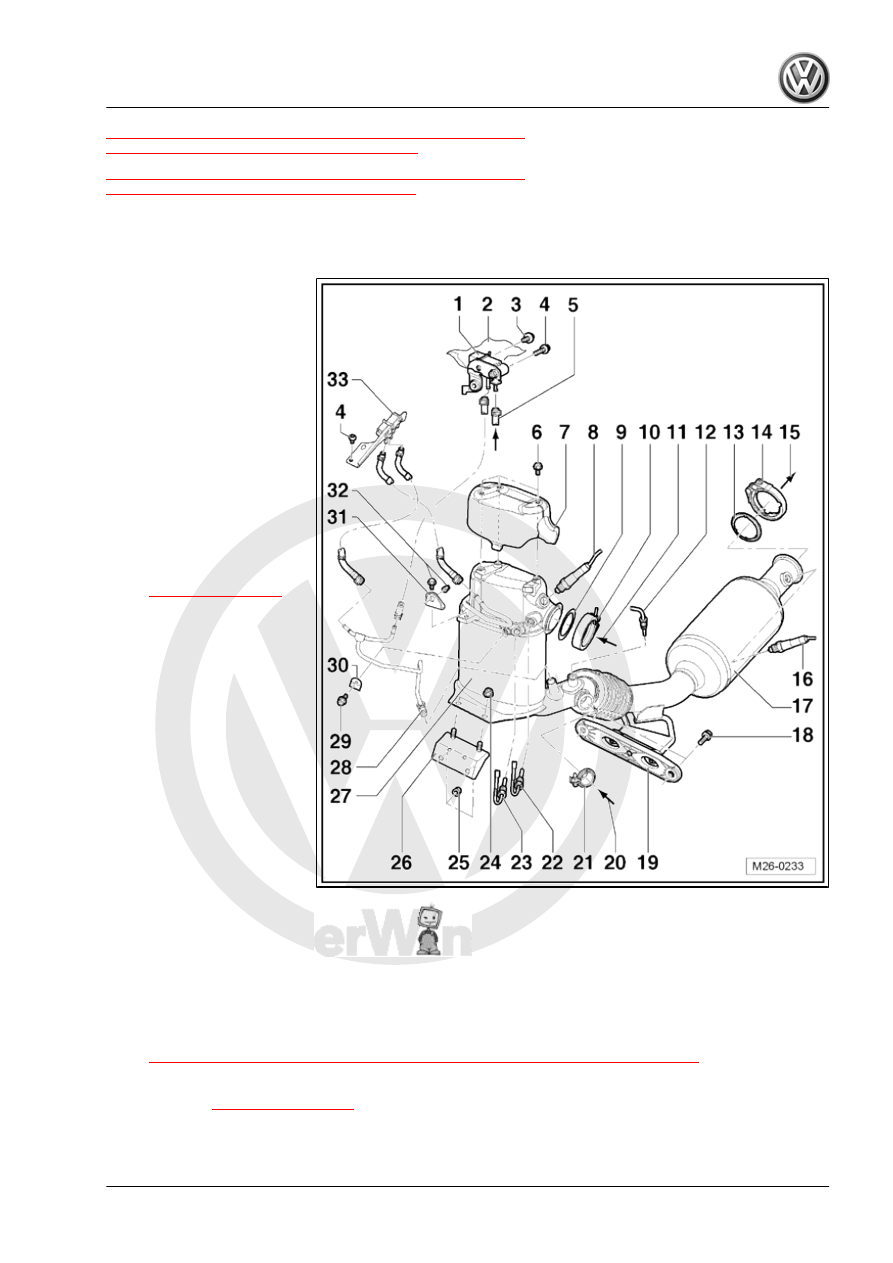

1 - Exhaust Pressure Sensor 1

- G450-

❑ Bolted near the oil filler

neck

2 - Heat Shield

❑ Replace if damaged

3 - Bolt

❑ 8 Nm

4 - Bolt

❑ 4 Nm

5 - Control Line

❑ Check for secure fit
❑ From the exhaust gas

recirculation housing

-item 8-

⇒ Item 8 (page 398)

6 - Bolt

❑ 10 Nm

7 - Shield

❑ Note the installation po‐

sition

8 - Heated Oxygen Sensor -

G39-

❑ 52 Nm
❑ Use the Ring Wrench 7-

Piece Set - 3337- to

loosen and tighten.

❑ Grease only the threads

with Hot Bolt Paste - G

052 112 A3- ; Hot Bolt

Paste - G 052 112 A3-

must not get into the

slots on the sensor body

9 - Seal

❑ Replace

10 - Clamp

❑ 7 Nm
❑ Replace
❑ Note the installation position Refer to

⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed Position”, page 368

 .

11 - From the Turbocharger

❑ -item 14-

⇒ Item 14 (page 272)

12 - Exhaust Gas Temperature Sensor 4 - G648-

❑ 45 Nm

1. Exhaust System

361

⇒ “1.6 Exhaust System Component Line Routing”, page 378

 .

13 - Seal

❑ Replace
❑ Installing. Refer to

⇒ Fig. ““Install the Gasket Between Exhaust Door Control Unit -J883- and the NOx Reservoir or Slip

Catalyst”“ , page 378

 .

14 - Clamp

❑ 7 Nm
❑ Replace
❑ Note the installation position Refer to

⇒ Fig. ““Installation Position of the Clamps Between Exhaust Door Control Unit -J883- and NOx Reservoir

or Slip Catalyst.”“ , page 378

 .

15 - To Exhaust Door Control Unit - J883-

❑ -item 4-

⇒ Item 4 (page 377)

16 - Oxygen Sensor after Three Way Catalytic Converter - G130-

❑ 52 Nm
❑ Use the Ring Wrench 7-Piece Set - 3337- to loosen and tighten.
❑ Grease only the threads with Hot Bolt Paste - G 052 112 A3- ; Hot Bolt Paste - G 052 112 A3- must not

get into the slots on the sensor body

❑ Wire routing. Refer to

⇒ “1.6 Exhaust System Component Line Routing”, page 378

 .

17 - NOx Reduction Catalytic Converter

❑ Unit with particulate filter -item 27-

⇒ Item 27 (page 363)

 (cannot be disconnected)

Caution

There is a risk of damag‐

ing  the  decoupling  ele‐

ment between the partic‐

ulate  filter  and  NOx

reduction  catalytic  con‐

verter.  When  removing

and installing:

Do not bend the decou‐

pling element more than

10°.

Do not stretch the decou‐

pling element.

Do not damage the wire

mesh on the decoupling

element.

Use the Transportation

Lock - T10404- to secure

the decoupling element

from stretching.

❑ Removing and installing. Refer to

⇒ “1.4 Particulate Filter with NOx Absorption Catalytic Converter, Removing and Installing”, page 369

 .

18 - Bolt

❑ 25 Nm

19 - Mount

❑ Install without tension

20 - From the EGR filter

❑ -Item 9-

⇒ Item 9 (page 399)
