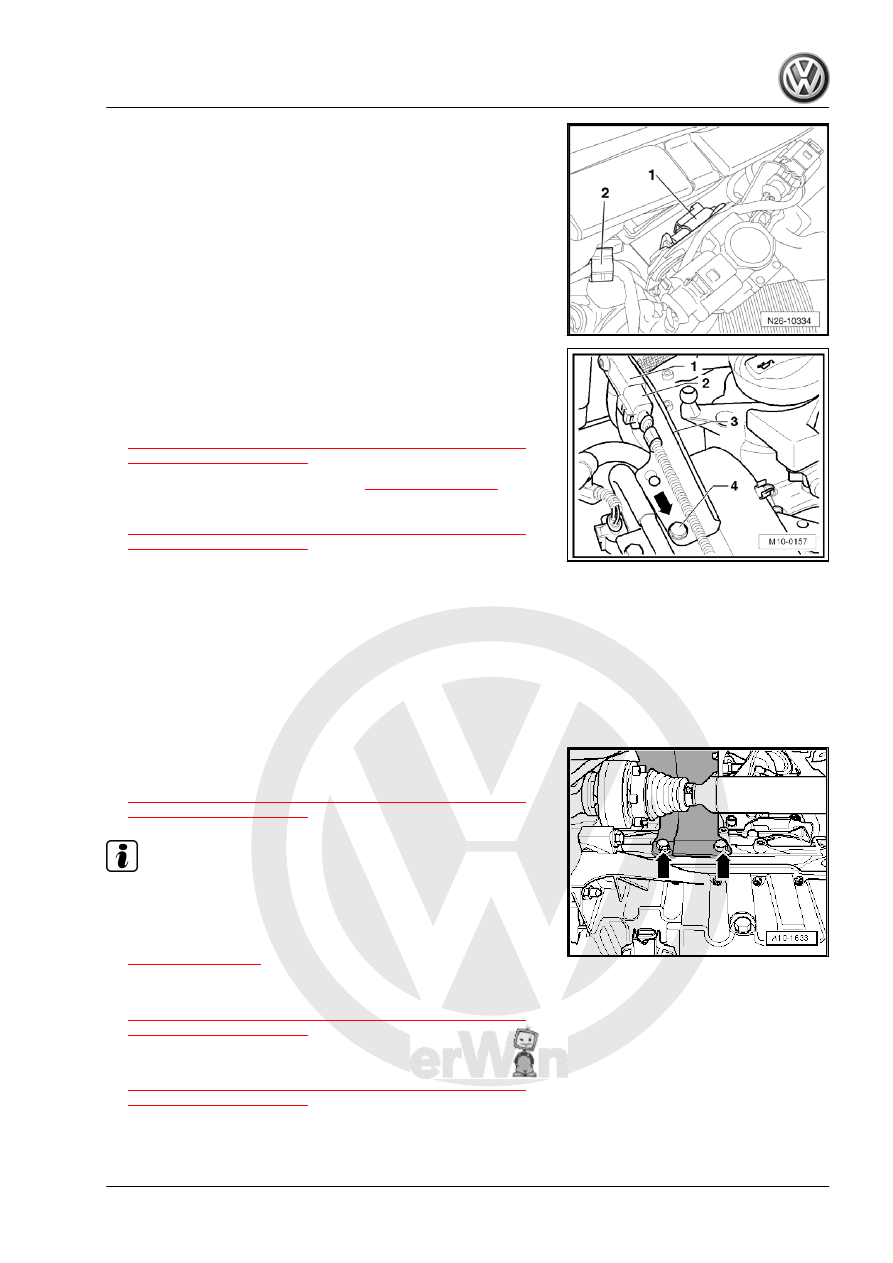

perature Sensor 3 - G495- -1- (attached behind the bracket).

– Guide the wires out of the mount -2- on the plenum chamber

bulkhead and on the turbocharger.

– Disconnect the connector -2- from the Exhaust Pressure Sen‐

sor 2 - G451- -1-.

– Remove the bolt -4- and remove the bracket -3- with Exhaust

Pressure Sensor 2 - G451- -1- in the direction of -arrow- and

set aside (control lines stay attached).

– Unbutton the heat shield and disconnect the connector from

the Exhaust Pressure Sensor 1 - G450- . Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

– Disconnect the control wire -item 5-

⇒ Item 5 (page 361)

 from

the Exhaust Pressure Sensor 1 - G450- . Loosen the spring

clamp using the Hose Clip Pliers - VAS6362- . Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

– Remove the bolts and bracket with the Exhaust Pressure Sen‐

sor 1 - G450- and lay them aside (the control wire to the

particulate filter remains connected).

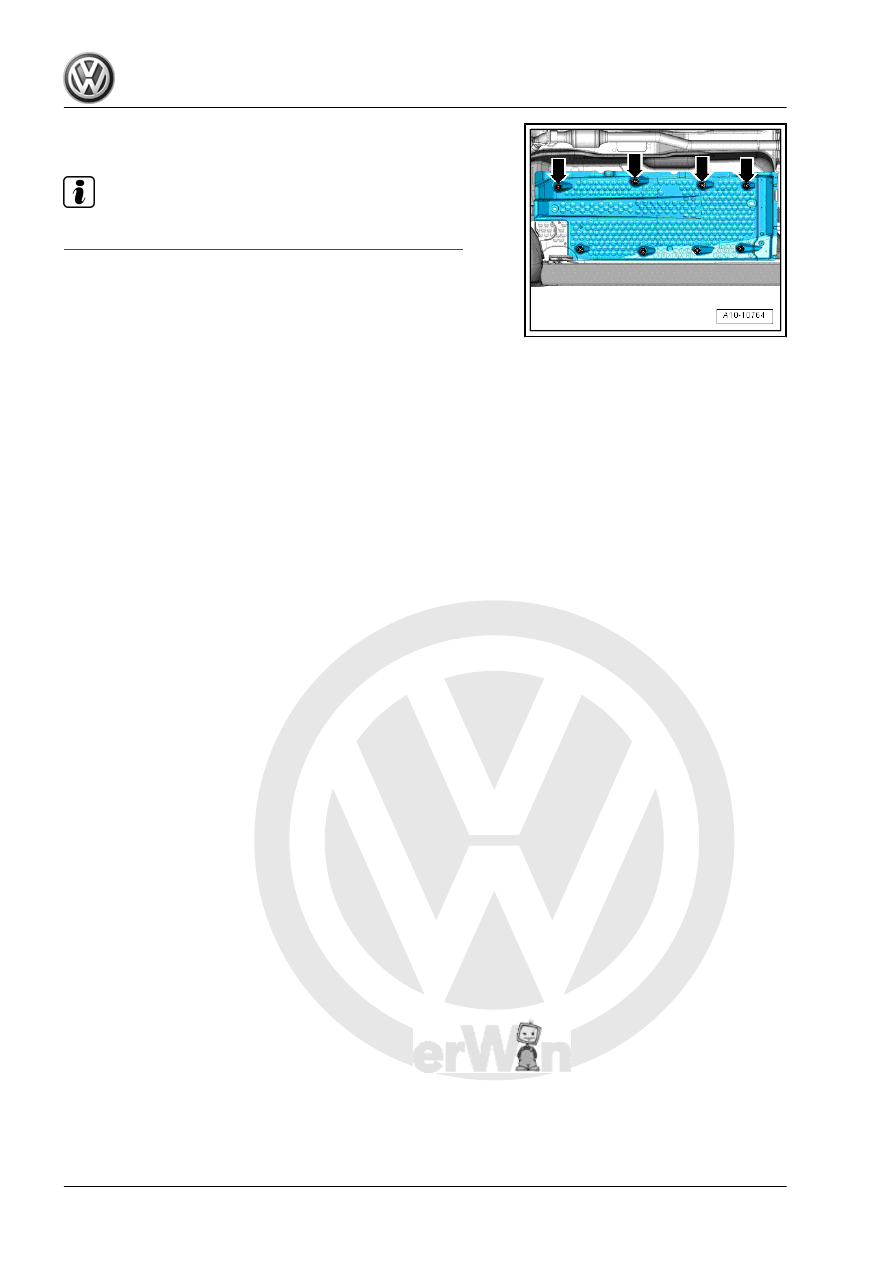

– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the right drive axle heat shield -arrows-.
– Remove the right inner driveshaft from the transmission

flange. Refer to ⇒  Suspension, Wheels, Steering; Rep. Gr.

40 .

– Carefully lay the driveshaft on the subframe.
– Remove the lower bracket for the particulate filter. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

Note

Remove the nuts above the bracket with the Wrench - Sw13 -

T10384- .

– Remove the exhaust gas recirculation filter -item 9-

⇒ Item 9 (page 399)

 .

– Remove the particulate filter from the upper bracket and re‐

move the bracket on the cylinder head. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

– Remove the clamp between the particulate filter and turbo‐

charger. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

1. Exhaust System

371

er downward.

Note

Route the cables as indicated. Refer to

⇒ “1.6 Exhaust System Component Line Routing”, page 378

 .

372

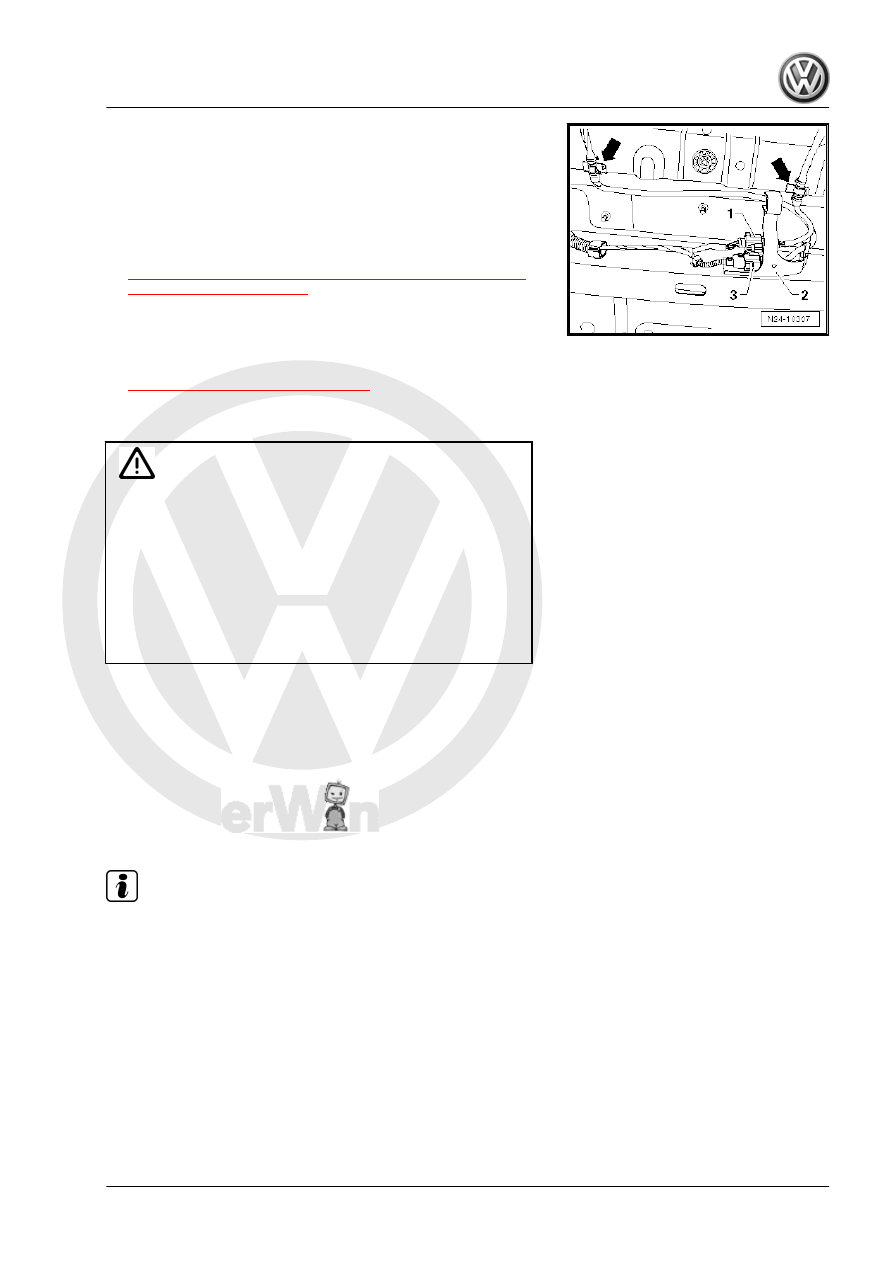

perature Sensor 4 - G648- -1- as well as the »brown« con‐

nector for the Oxygen Sensor after Three Way Catalytic

Converter - G130- -3-.

– Disconnect from the bracket -2- and guide the lines out on the

underbody -arrows-.

– Remove the NOx reduction catalytic converter mounting on

the subframe. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Cat‐

alytic Converter”, page 360

 .

– Lower the subframe approximately 6 cm. Refer to ⇒  Suspen‐

sion, Wheels, Steering; Rep. Gr.  40 ; Subframe; Subframe,

Lowering .

– Remove the tunnel brace. Refer to

⇒ “1.7 Overview - Muffler”, page 381

 .

– Remove the clamp between the NOx reduction catalytic con‐

verter and the Exhaust Door Control Unit - J883- .

Caution

There is a risk of damaging the decoupling element between

the  particulate  filter  and  NOx  reduction  catalytic  converter.

When removing and installing:

♦ Do not bend the decoupling element more than 10°.
♦ Do not stretch the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.
♦ Use the Transportation Lock - T10404- to secure the de‐

coupling element from stretching.

Vehicles with Engine Code CJAA
– Disconnect the clamp between the NOx reduction catalytic

converter and the particulate filter and remove the NOx re‐

duction catalytic converter.

Continuation for All Engine Codes
– Remove the particulate filter. Be careful of the electrical wires

and components.

Installing:

Note

After installing the particulate filter with NOx reduction catalytic

converter, make sure it is not under stress.

Always replace the self-locking nuts, seals, gaskets and

clamps.

1. Exhaust System

373

There is a risk of damaging the decoupling element between

the  particulate  filter  and  NOx  reduction  catalytic  converter.

When removing and installing:

♦ Do not bend the decoupling element more than 10°.
♦ Do not stretch the decoupling element.
♦ Do not damage the wire mesh on the decoupling element.
♦ Use the Transportation Lock - T10404- to secure the de‐

coupling element from stretching.

Vehicles with Engine Code CBEA
– Set the particulate filter with NOx reduction catalytic converter

in its installation position. Be careful of the electrical wires and

components.

Vehicles with engine code CJAA
– Install the particulate filter. Be careful of the electrical wires

and components.

Continuation for All Engine Codes
– Install the subframe. Refer to ⇒  Suspension, Wheels and

Steering; Rep. Gr.  40 ; Subframe; Overview - Subframe .

– Install a new gasket between the NOx reduction catalytic con‐

verter and the Exhaust Door Control Unit - J883- . Refer to

⇒ Fig. ““Install the Gasket Between Exhaust Door Control Unit

-J883- and the NOx Reservoir or Slip Catalyst”“ , page 378

 .

– Install the new clamp between the NOx reduction catalytic

converter and the Exhaust Flap Control Module - J883- .

Make sure the clamp is in the correct installation position. Refer

to

⇒ Fig. ““Installation Position of the Clamps Between Exhaust Door

Control Unit -J883- and NOx Reservoir or Slip Catalyst.”“ ,

page 378

 .

Tightening specification. Refer to

⇒ “1.2 Overview - Particulate Filter with NOx Reduction Catalytic

Converter”, page 360

 .

Vehicles with Engine Code CJAA
– Install the new seal between the NOx reduction catalytic con‐

verter and the particulate filter.

– Install the new clamp between the NOx reduction catalytic

converter and the particulate filter.

Make sure the clamp is in the correct installation position. Refer

to

⇒ “1.3 Clamps and Exhaust Gas Temperature Sensor Installed

Position”, page 368

 .

Tightening specification -item 18-

⇒ Item 18 (page 366)

 .

Continuation for All Engine Codes
– Install the tunnel brace:
• Tightening specification. Refer to

⇒ “1.7 Overview - Muffler”, page 381

 .
