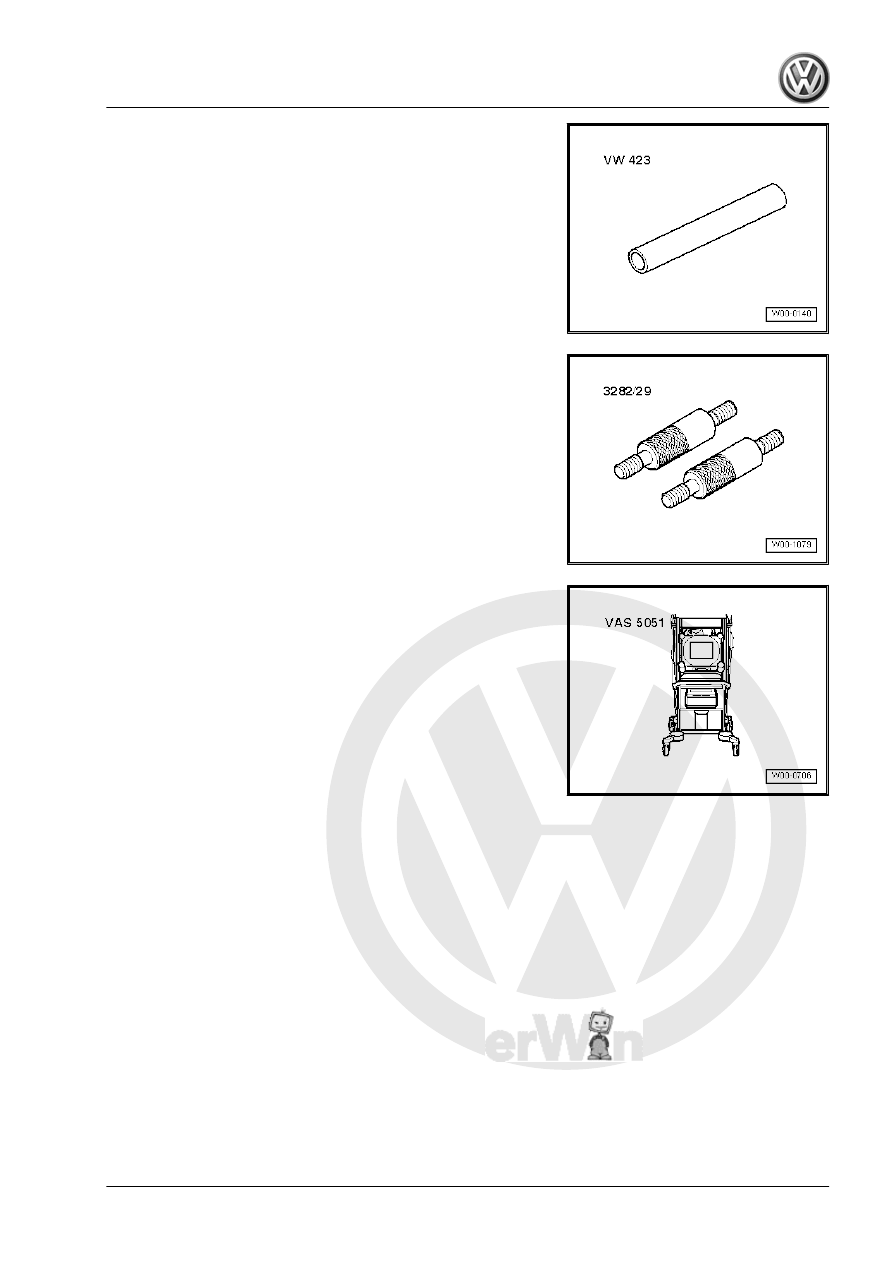

♦ Transmission Support - Pins 29 - 3282/29-

♦ Vehicle Diagnostic Tester

10. Special Tools

143

1

No Repairs to Gears and Shafts

144

1

Flange Shaft or Stub Shaft Seals, Re‐

placing

⇒ “1.1 Component Location Overview - Seals”, page 145
⇒ “1.2 Left Flange Shaft Seal, Replacing”, page 146
⇒ “1.3 Right Flange Shaft or Stub Shaft Seal, Replacing”,

page 148

Do not remove both bolts in the right and left flange shafts or the

right stub shaft at the same time. If the differential bevel gears

rotate, it will be difficult to install the bolts.

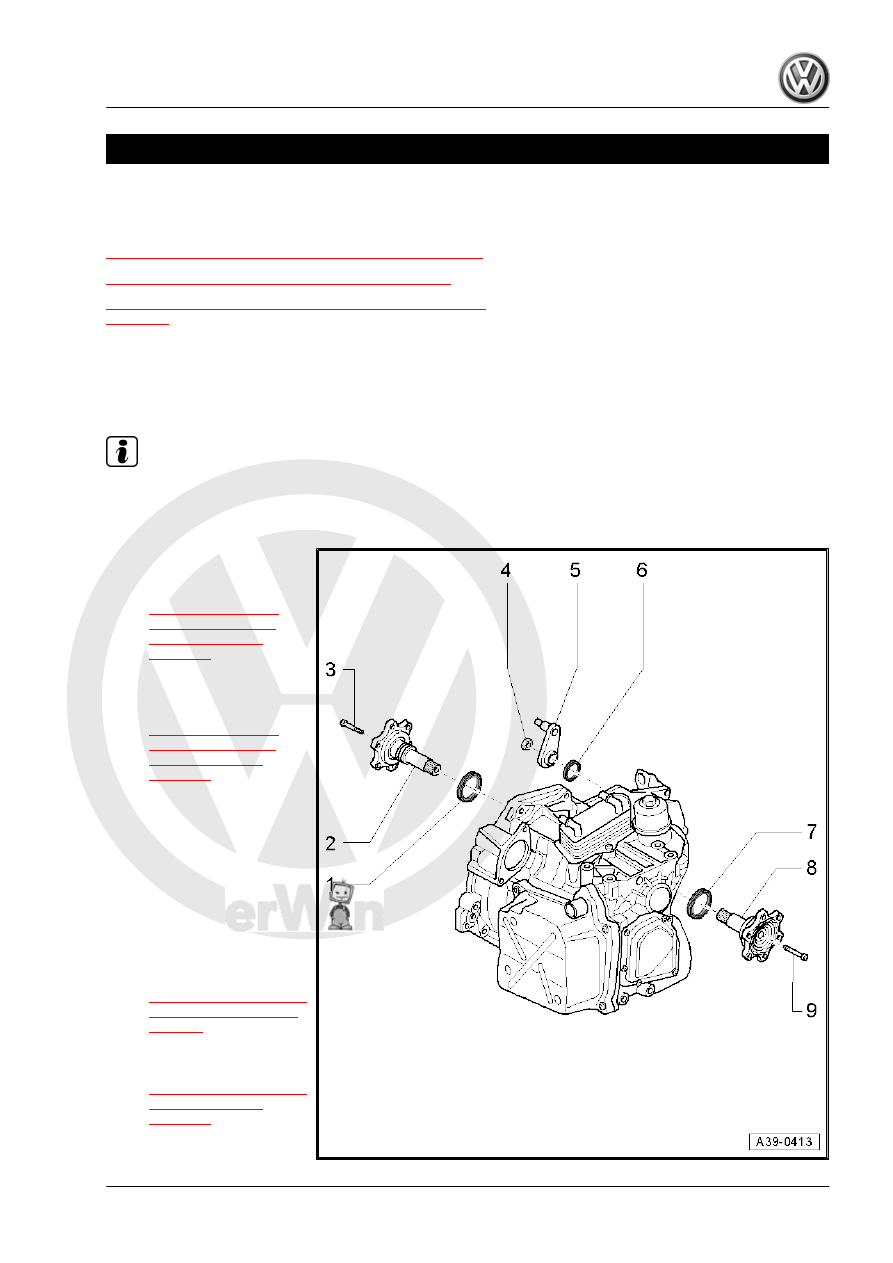

1.1

Component Location Overview - Seals

Note

Do not remove all the bolts in the left and right flange shafts at the same time. If the differential bevel gears

inside the differential rotate, it will be difficult to install the bolts.

1 - Right Flange Shaft or Stub

Shaft Seal

❑ Replacing. Refer to

⇒ “1.3 Right Flange

Shaft or Stub Shaft

Seal, Replacing”,

page 148

 .

2 - Right Flange Shaft

❑ Removing and instal‐

ling. Refer to

⇒ “1.3 Right Flange

Shaft or Stub Shaft

Seal, Replacing”,

page 148

 .

3 - Bolt

❑ 30 Nm
❑ Replace after removing

4 - Nut

❑ 20 Nm
❑ Replace after removing

5 - Selector Lever
6 - Selector Shaft Seal

❑ Replacing. Refer to

⇒ “4 Selector Shaft Lev‐

er Gasket, Replacing”,

page 60

 .

7 - Left Flange Shaft Seal

❑ Replacing. Refer to

⇒ “1.2 Left Flange Shaft

Seal, Replacing”,

page 146

 .

1. Flange Shaft or Stub Shaft Seals, Replacing

145

❑ Removing and instal‐

ling. Refer to

⇒ “1.2 Left Flange Shaft Seal, Replacing”, page 146

 .

9 - Bolt

❑ 30 Nm
❑ Replace after removing

1.2

Left Flange Shaft Seal, Replacing

Special tools and workshop equipment required
♦ Slide Hammer Set - VW771-
♦ Slide Hammer Set - Hook - VW771/37-
♦ Seal Installer - Flange Shaft - 3305-
♦ Torque Wrench 1331 5-50Nm - VAG1331-
♦ Torque Wrench 1332 40-200Nm - VAG1332-
♦ Sealing Grease - G 052 128 A1-
♦ Shop Crane - Drip Tray - VAS6208-
♦ Sealing Grease - G 052 128 A1-
Removing

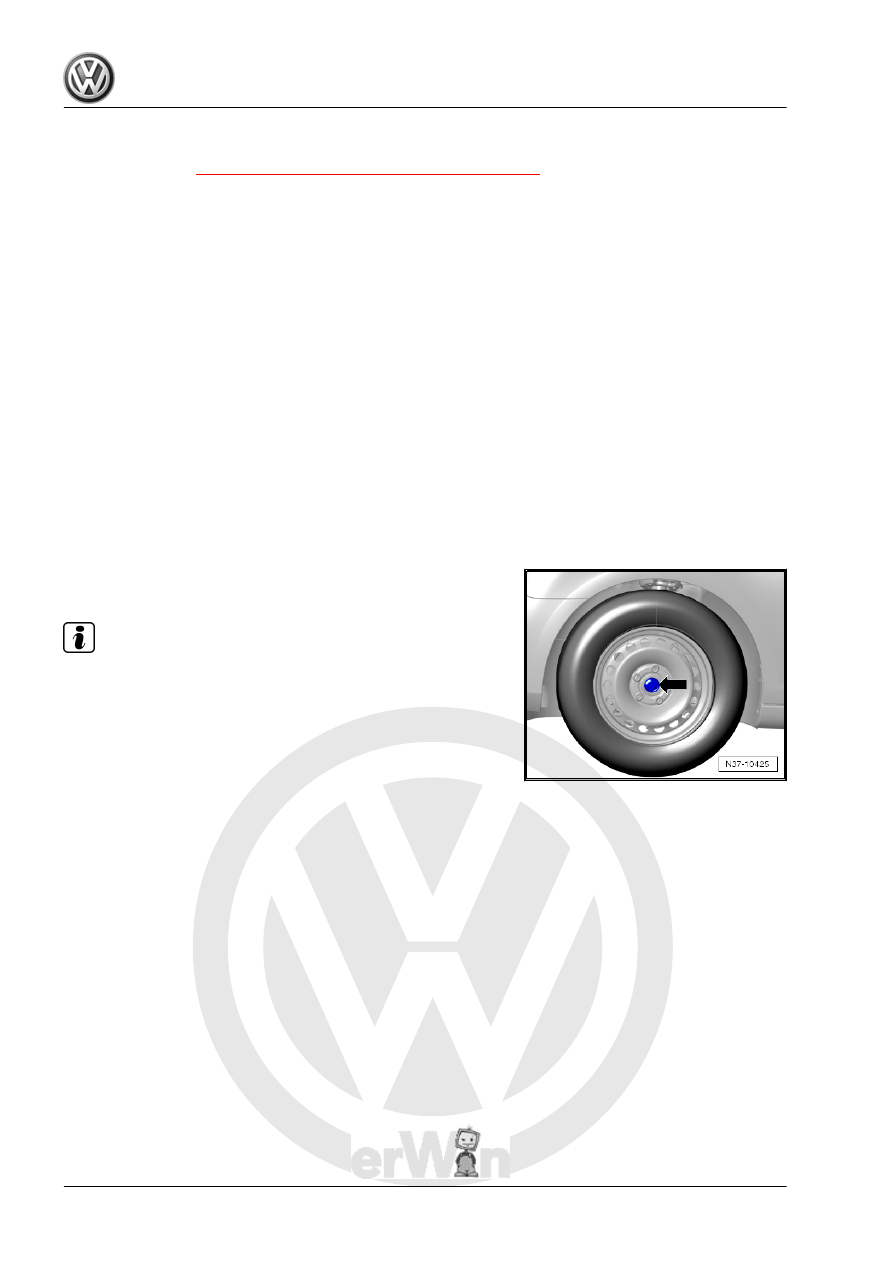

– Press the brake and remove the bolt from the left drive axle

-arrow- (second technician).

Note

After this, the vehicle must not stand on the ground. Refer to ⇒

Suspension, Wheels, Steering; Rep. Gr.  40 ; Drive Axles, Re‐

moving and Installing .

– Remove the left front wheel.
– Remove the noise insulation. Refer to ⇒  Body Exterior; Rep.

Gr.  50 ; Noise Insulation .

– Remove the lower section of the left front wheel housing liner.

Overview - Front Wheel Housing Liner .

– Remove the left drive axle. Refer to ⇒  Suspension, Wheels,

– Place the Shop Crane - Drip Tray - VAS6208- or Used Oil

Collection and Extraction Unit - SMN372500- under the trans‐

mission.

146
