Volkswagen Golf Variant / Jetta. Manual - part 348





Special Tools

Special tools and workshop

equipment required

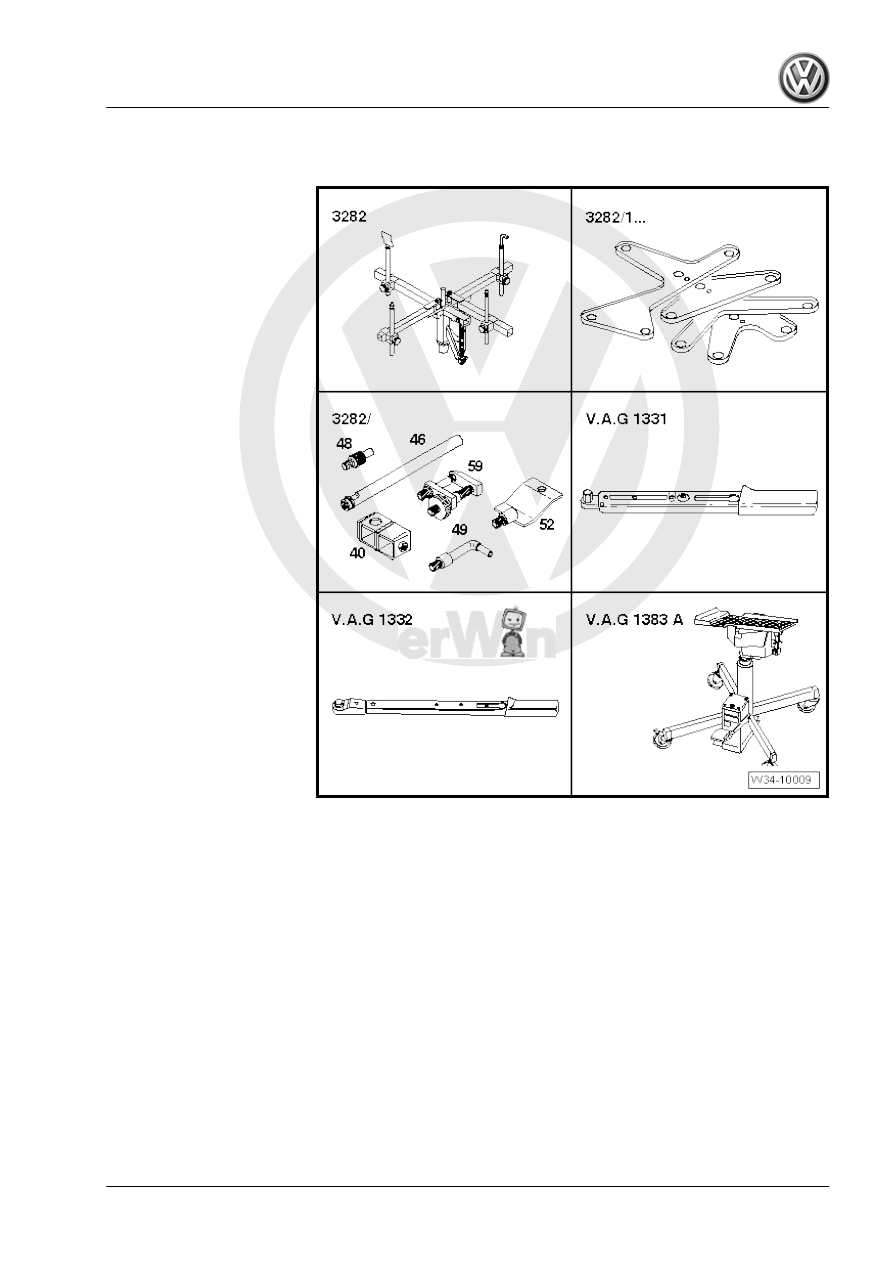

♦ Transmission Support -

3282-

♦ Transmission Support -

Mounting Plate 42A -

3282/42A-

♦ Transmission Support -

Pins 29 - 3282/29-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Torque Wrench 1332

40-200Nm - VAG1332-

♦ Engine and Gearbox Jack -

VAS6931-

10. Special Tools

139

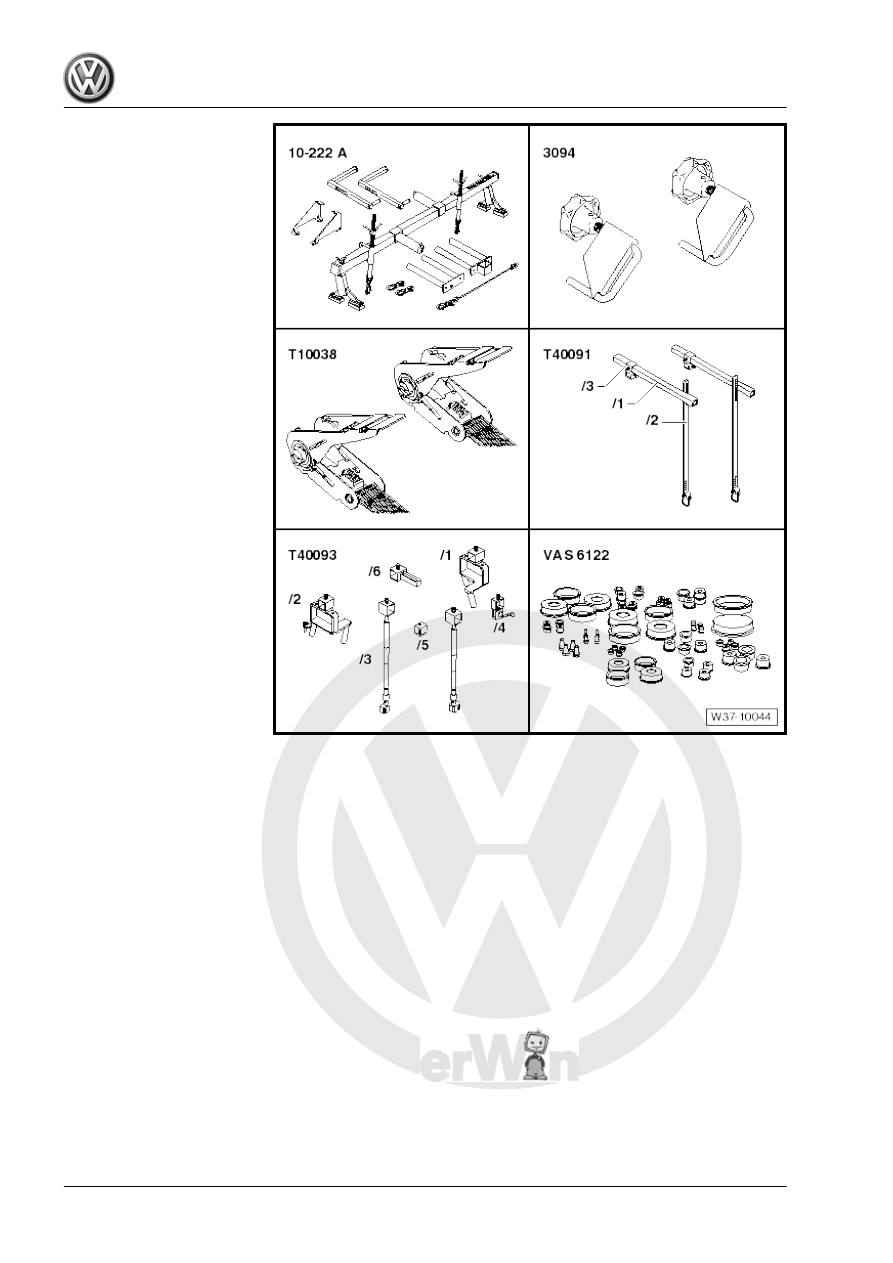

10-222A-

♦ Hose Clamps - Up To

25mm - 3094- or Hose

Clamps - Up To 40mm -

3093-

♦ Tensioning Strap - T10038-
♦ Engine Support - Basic Set

- T40091-

♦ Engine Support - Supple‐

ment Kit - T40093A-

♦ Engine Bung Set -

VAS6122-

140

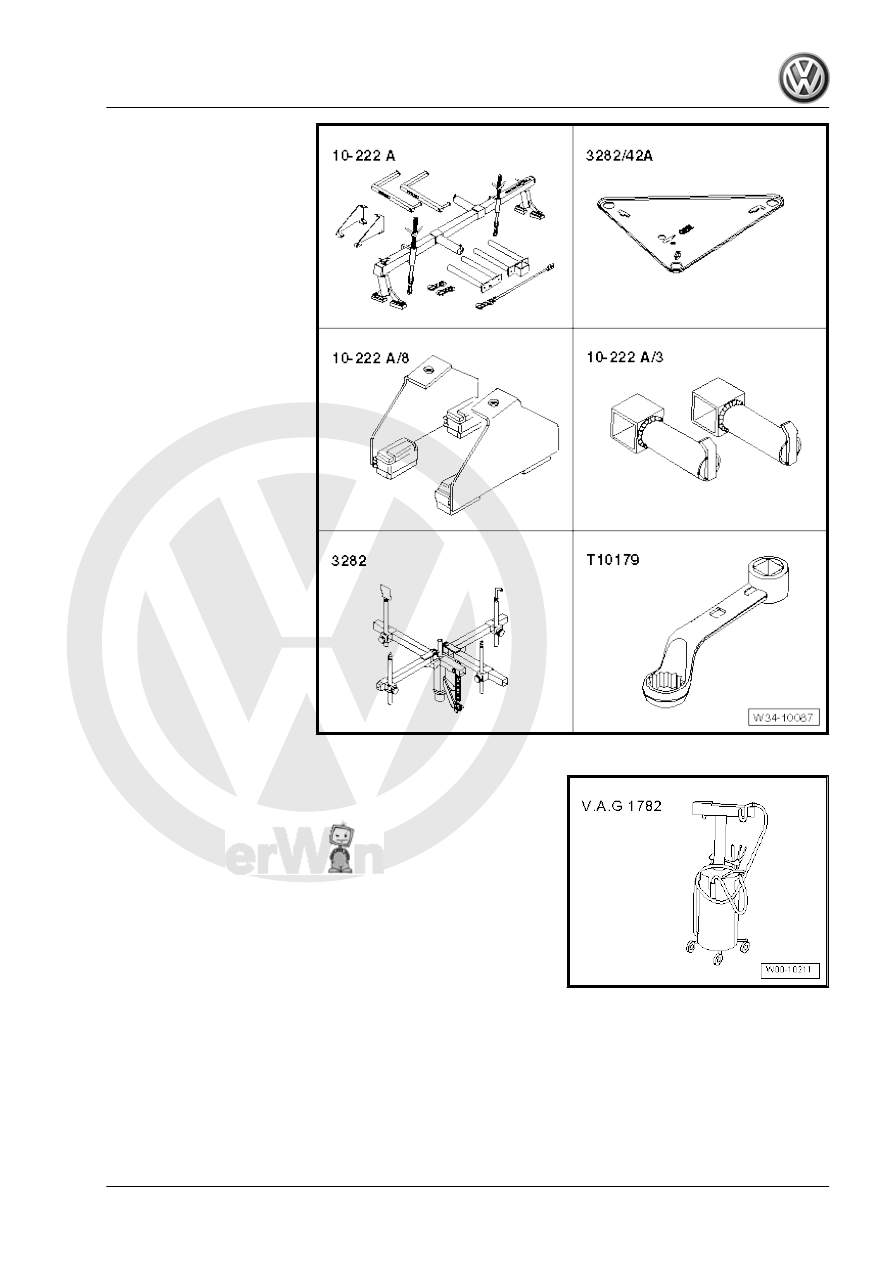

10-222A-

♦ Transmission Support -

Mounting Plate 42A -

3282/42A-

♦ Engine Support Bridge -

Engine Support Feet -

10-222A/8-

♦ Engine Support Bridge -

Engine Support 3 -

10-222A/3-

♦ Transmission Support -

3282-

♦ Insert Tool - 18mm -

T10179-

♦ Used Oil Collection and Extraction Unit - SMN372500-

10. Special Tools

141

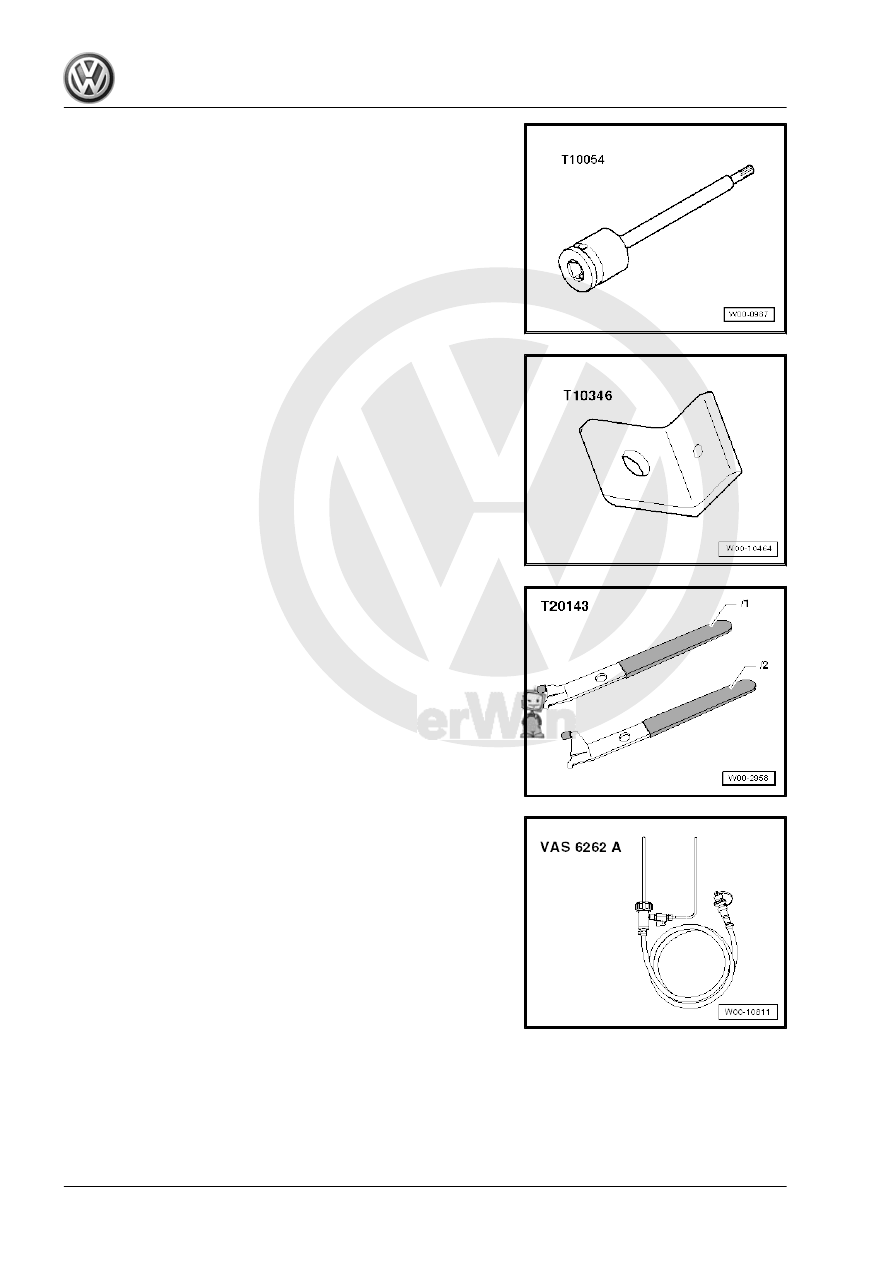

♦ Engine Support Bridge - Gearbox Bracket - T10346-

♦ Puller - Crankshaft/Power Steering Seal - T20143-

♦ Oil Filler - VAS6262A-

142
