Volkswagen Golf Variant / Jetta. Manual - part 330





cable.

5. Selector Mechanism

67

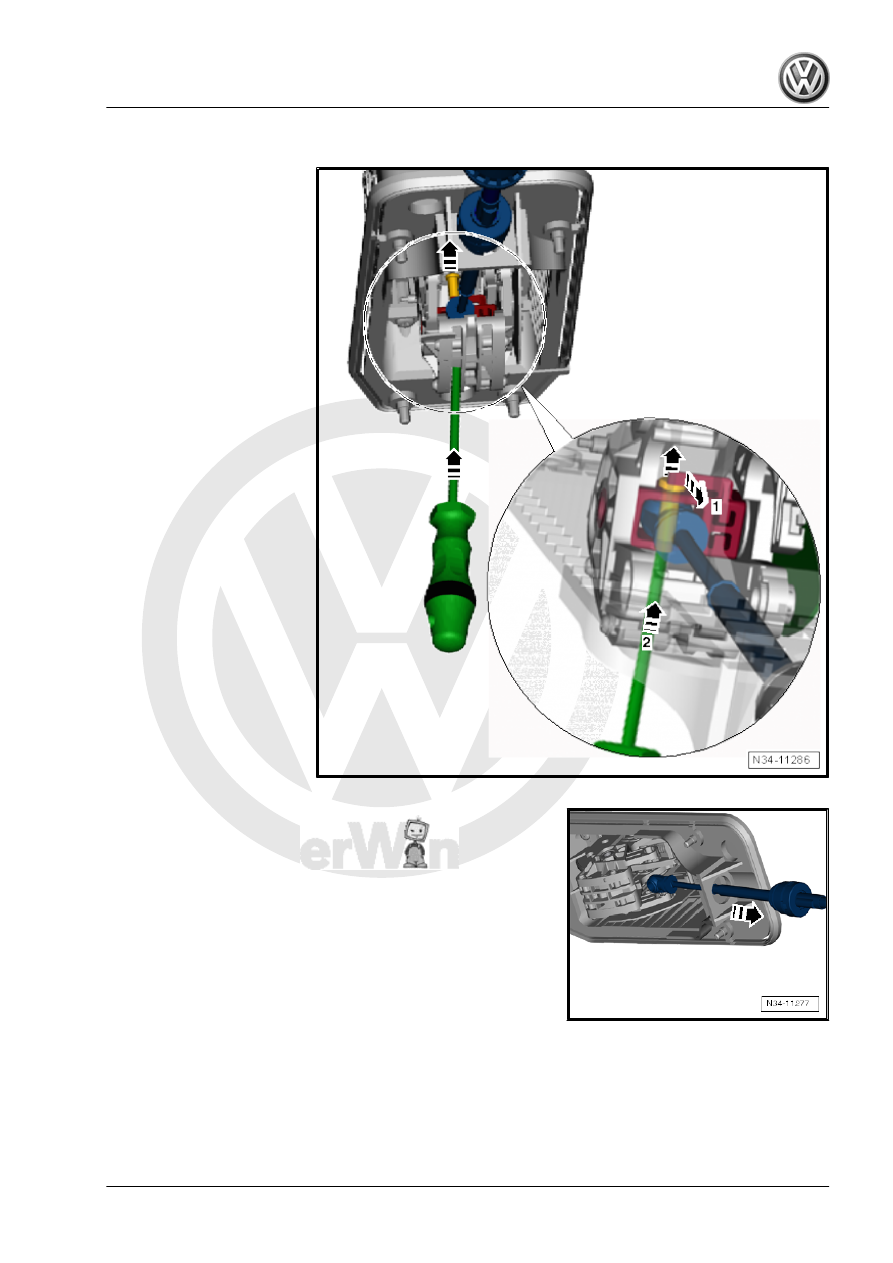

selector lever cable in direction of -arrow 1-.
– Push the -pin- upward with a screwdriver at the same time in

direction of -arrow 2-.

– Insert the -screwdriver- from underneath while pushing the

securing tab forward.

68

– Remove the selector lever cable.
Remove the selector lever cable from the selector housing.
Installing
Do not lubricate the selector lever cable.
– Route the selector lever cable making sure it is without ten‐

sion. Install also into the cable bracket on the transmission. Do

not secure yet with the lock washers. Do not clip in the ball

head.

5. Selector Mechanism

69

correctly.

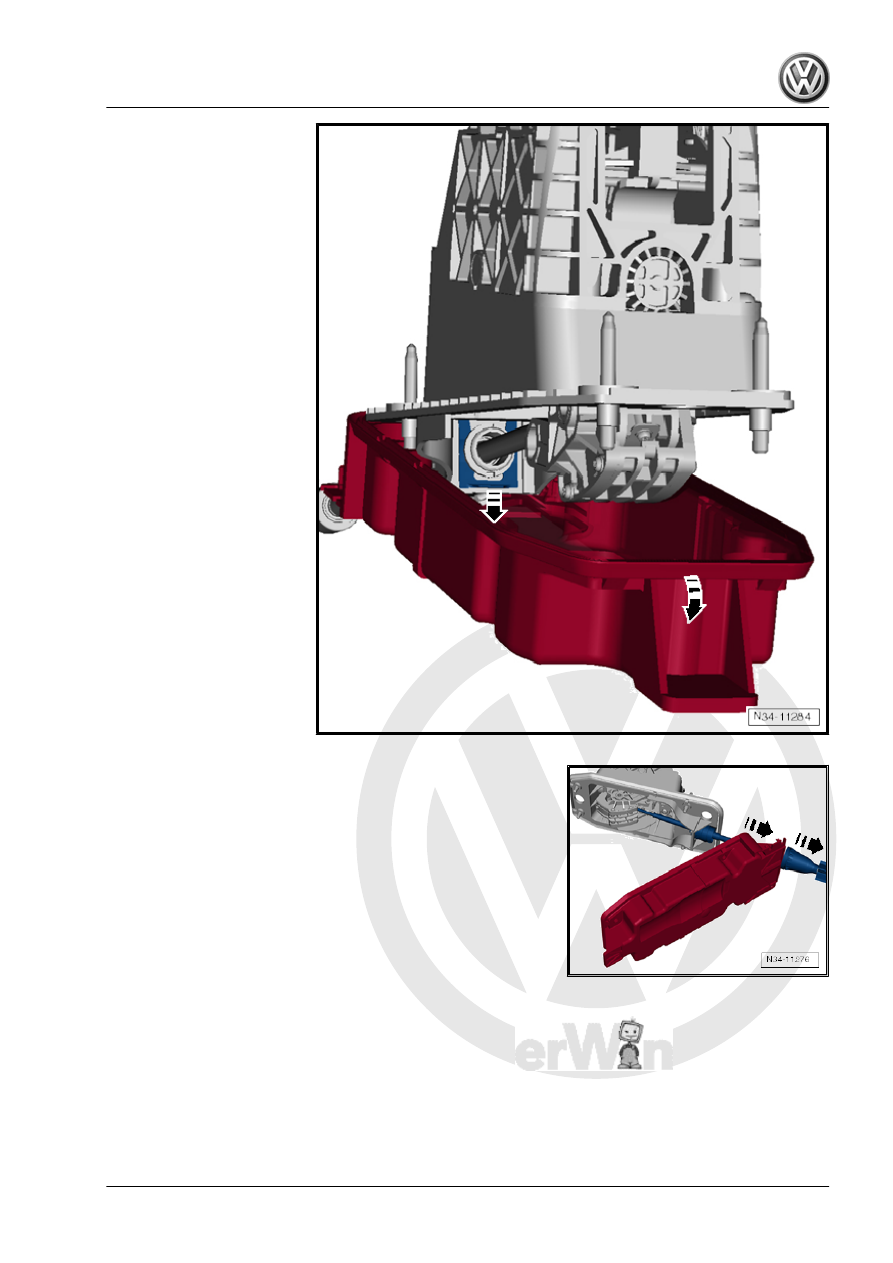

If the heat shield underneath is bent, there will be noises. The

selector lever cable will then »flap« on the heat shield.
– Pay attention to the heat shield. Push it upward into the tunnel

in the direction of -arrow-.

– Position the selector housing on the selector lever cable.

– Install the selector lever cable into the selector mechanism.

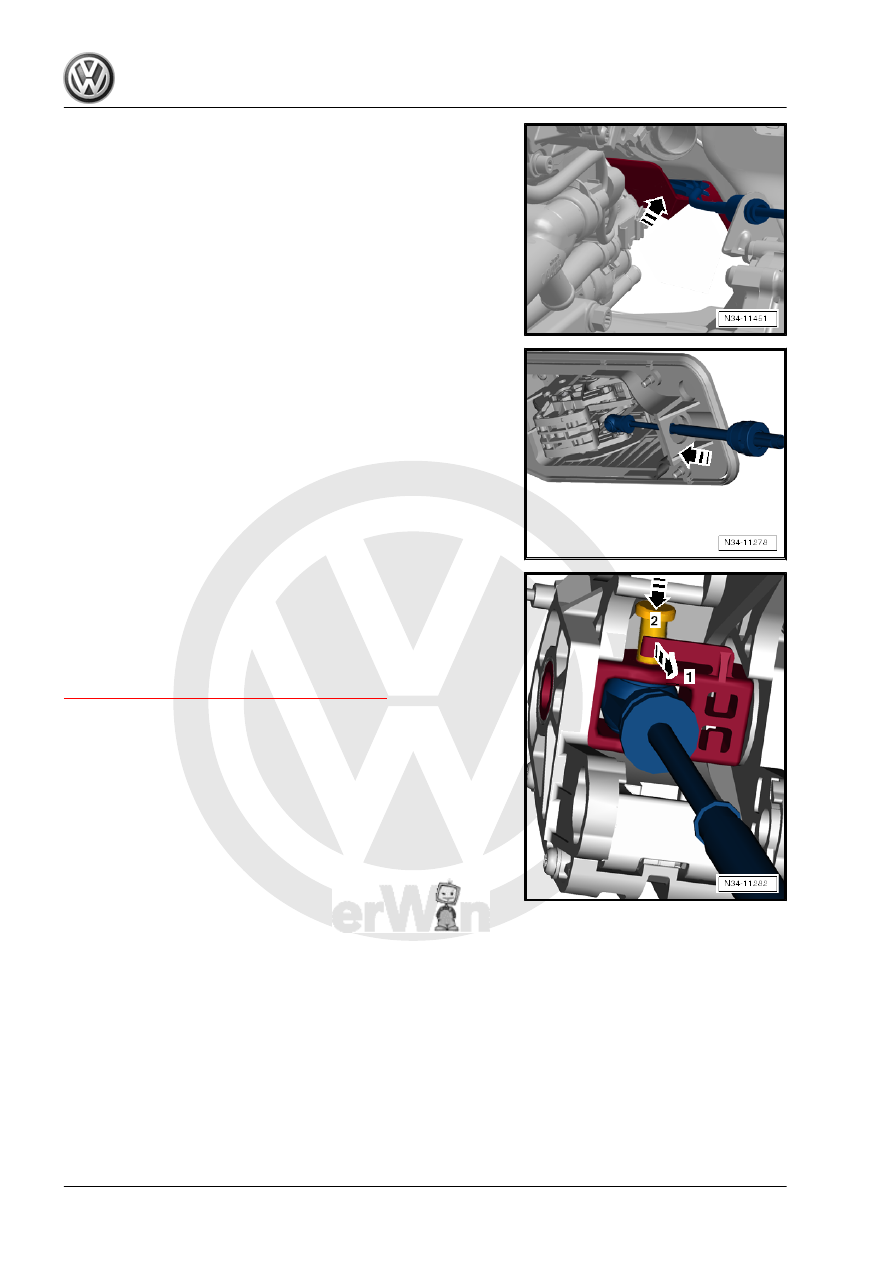

– Insert the selector lever cable into the bracket and then insert

the bolt through the eye from the top in the direction of

-arrow 2-.

Install the locking plate only after having checked the selector

lever cable for ease of movement. Refer to

⇒ “5.5 Selector Lever Cable, Checking”, page 80

 .

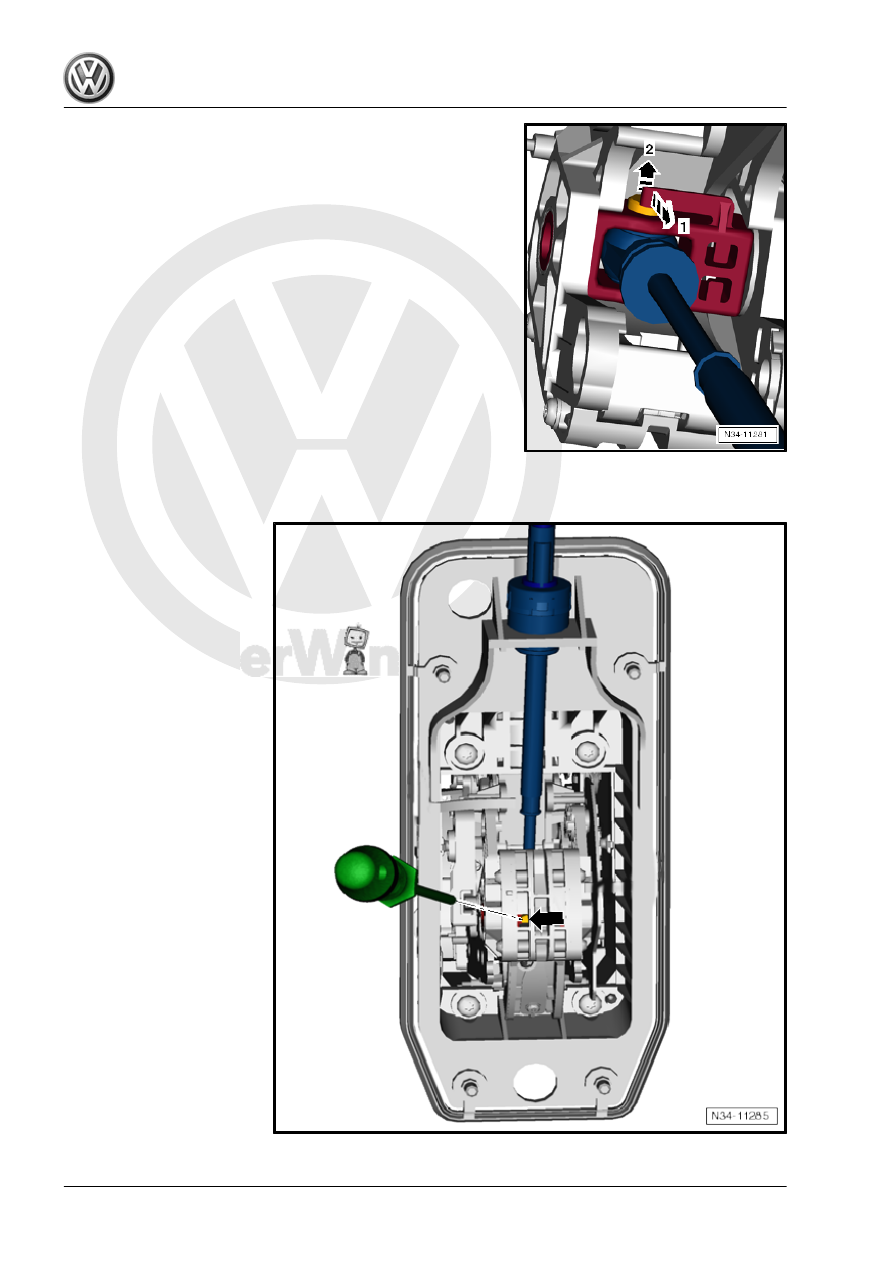

– Secure the selector lever cable with a new securing plate to

the cable bracket on the selector mechanism.

70
