⇒ “1.11 Selector Mechanism, Adjusting”, page 97

 .

1.3

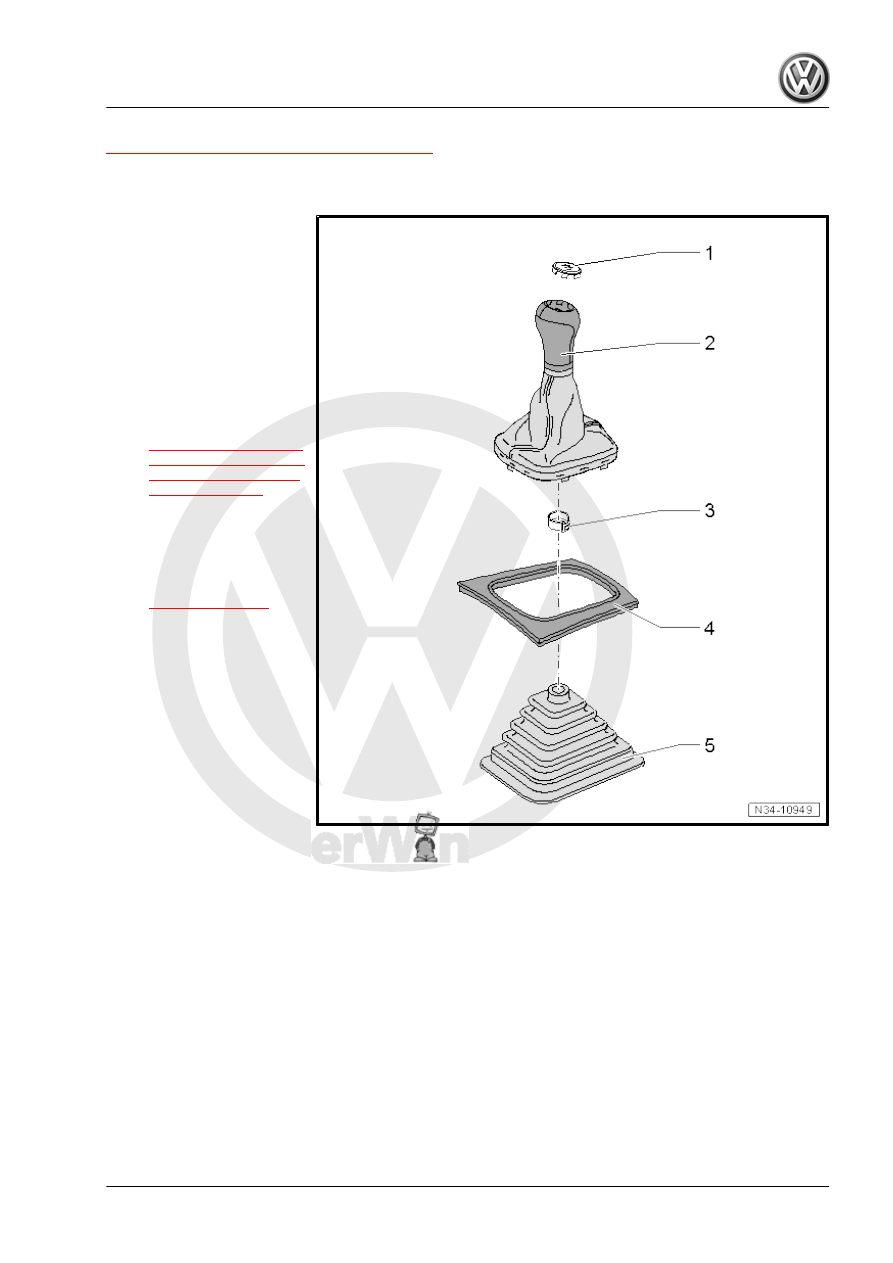

Overview - Gearshift Knob and Cover

1 - Badge

❑ Can be carefully pried

off a plastic or leather

shift knob

2 - Gearshift Knob

❑ With boot
❑ The shift knob and boot

cannot be separated

from each other.

❑ Always replace together
❑ Removing and instal‐

ling. Refer to

⇒ “1.4 Boot with Shifter

Knob and Noise Insula‐

tion, Removing and In‐

stalling”, page 79

 .

3 - Clamp

❑ For securing the shift

knob to the shift lever

❑ Secure on the gearshift

knob -item 2-

⇒ Item 2 (page 79)

 using

Hose Clamp Pliers -

VAG1275- .

❑ Replace after removing

4 - Center Console Frame

❑ Combined in one piece

with the upper center

console section on

some versions

5 - Noise Insulation

❑ Not on all vehicles
❑ Arrow on noise insula‐

tion points in direction of

travel

❑ Retaining tab spacing varies
❑ Therefore can only be arranged in one position

1.4

Boot with Shifter Knob and Noise Insu‐

lation, Removing and Installing

Special tools and workshop equipment required
♦ Hose Clip Pliers - VAG1275A-

1. Shift Mechanism, Servicing

79

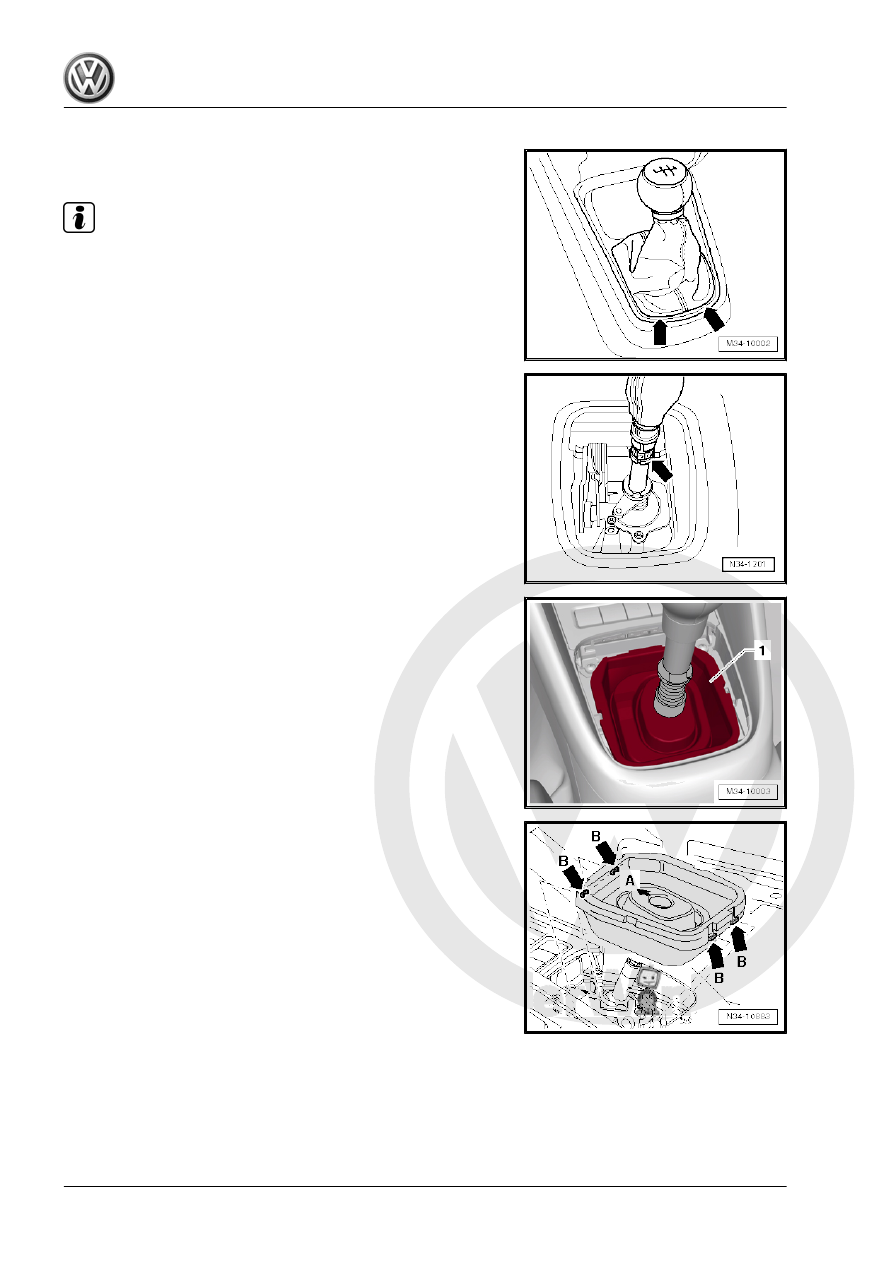

ter console or pry it out carefully -arrows-.

Note

On some equipment versions, the boot must be pried out at the

front area.

– Fold the boot with the center console frame up over the shifter

knob.

– Open the clamp -arrow- and remove the shift knob and boot.
In some equipment versions, the center console frame remains

in the center console.
– It may be necessary to pull or pry the center console frame out

carefully.

– Remove the noise insulation -1-.
Installing
– Install the noise insulation.

Installation Location, Noise Insulation
• -Arrow A- points in direction of travel.
• The tabs -arrows B- must latch into the center console.
– Press the center console frame into the center console, if nec‐

essary.

– Then turn inner side of boot toward outside.
Install the shift knob all the way on.

80

clamp -arrow- together.

– Press the boot with the frame into the center console or the

boot into the frame.

1.5

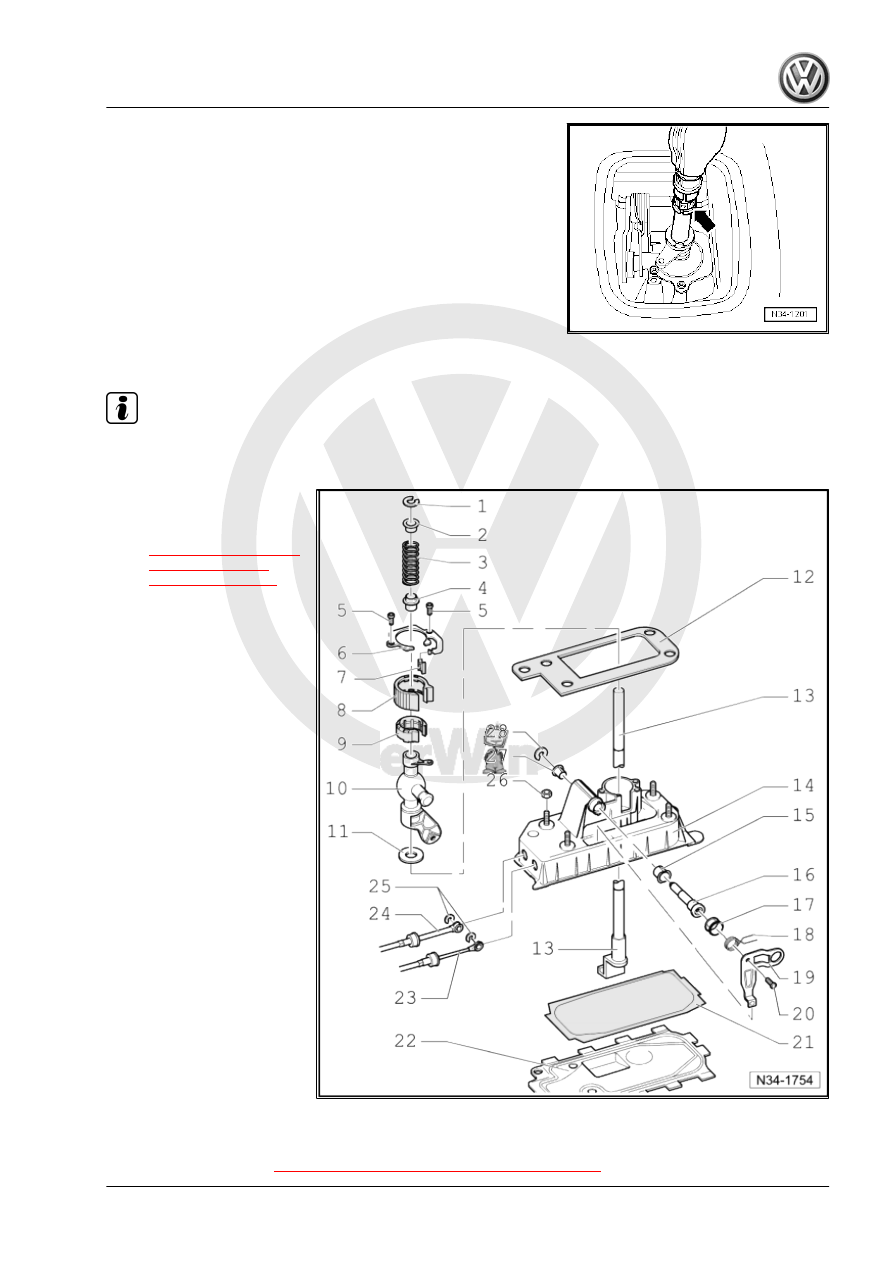

Overview - Gearshift Lever and Gearshift Housing, through 10/2006

Note

Lubricate bearing areas and slide surfaces with Grease - G 000 450 02- .

1 - Lock Washer

❑ Removing and instal‐

ling. Refer to

⇒ Fig. ““Removing and

Installing the Lock

Washer”“ , page 83

 .

2 - Bushing
3 - Pressure Spring
4 - Bushing
5 - TORX

®

 Bolt

❑ 5 Nm

6 - Cover
7 - Insulation
8 - Insulation
9 - Bearing Shell
10 - Gearshift Lever Guide
11 - Washer
12 - Seal

❑ Between the gearshift

housing and the under‐

body

❑ Self-adhesive
❑ Affix to the gearshift

housing

13 - Gearshift Lever
14 - Gearshift Housing
15 - Bearing Bushing
16 - Mounting Pin
17 - Guide Bushing
18 - Pressure Spring

❑ Installing. Refer to

⇒ Fig. ““Installing the Pressure Spring”“ , page 83

 .

1. Shift Mechanism, Servicing

81

®

 Bolt

❑ 5 Nm

21 - Seal

❑ Replace after removing

22 - Base Plate

❑ Bend the tabs in order to remove
❑ Replace after removing

23 - Selector Cable

❑ To the selector bracket
❑ Removing and installing. Refer to

⇒ Fig. ““Detaching from the Selector Cable and the Shift Cable and Attaching”“ , page 82

 .

24 - Gearshift Cable

❑ Removing from the shift lever guide and attaching to the shift lever guide. Refer to

⇒ Fig. ““Detaching from the Selector Cable and the Shift Cable and Attaching”“ , page 82

25 - Lock Washer

❑ Replace after removing

26 - Nut

❑ M6: 8 Nm
❑ M8: 25 Nm
❑ Quantity: 4

27 - Bearing Bushing

❑ Fits in one position only

28 - Lock Washer

❑ Replace after removing

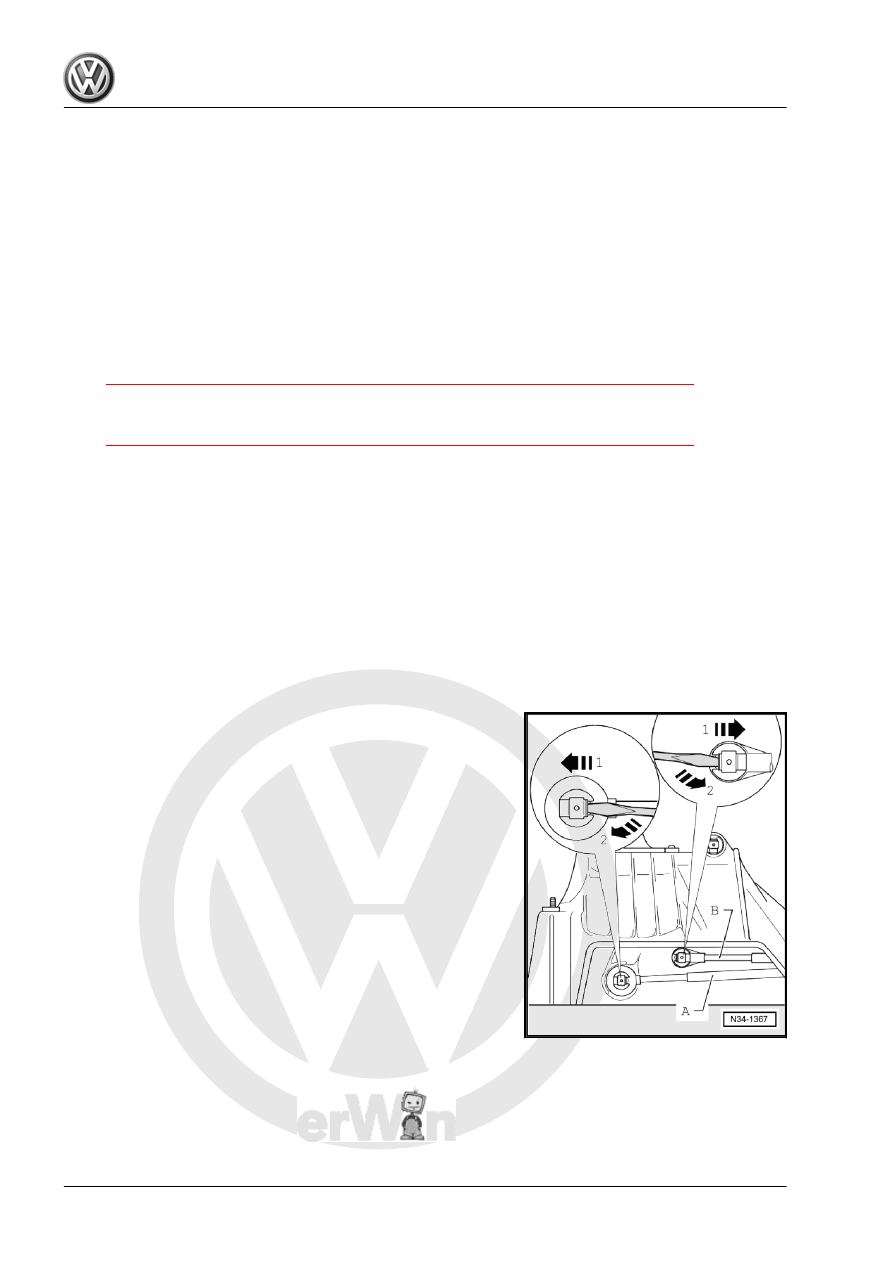

Detaching from the Selector Cable and the Shift Cable and At‐

taching
– Remove the lock washer from the shift cable -A- and the se‐

lector cable -B-.

Lift the tab with a screwdriver in direction of -arrow 1- and remove

the lock washer in direction of -arrow 2-.
– Remove the shift cable -A- from the gearshift lever mount.
– Remove the selector cable -B- from the selector bracket

mount.
