Engines having A Needle Bearing -arrow- in the Crankshaft

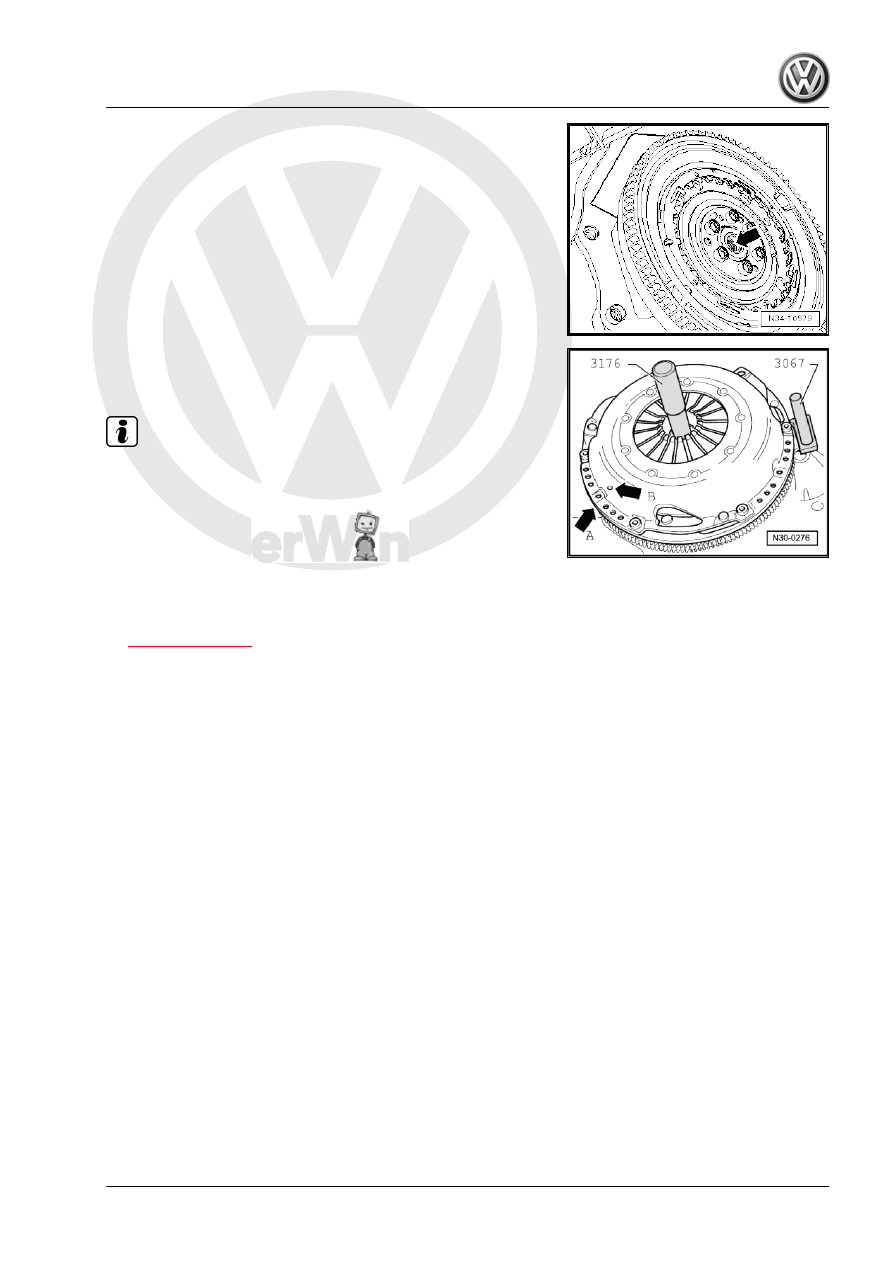

Centering the Clutch Disc, Removing and Installing the Pressure

Plate on Engines with A Crankshaft with A Smaller Diameter, or

Engines with A Needle Bearing in the Crankshaft.

Note

Ignore arrows -A and B-.

Continuation for All
– Position the pressure plate on the centering pins.
– Install all the bolts evenly, by hand, until the bolt heads contact

the pressure plate.

– Tighten the bolts in small steps and in diagonal sequence to

prevent damaging the centering holes of the pressure plate

and the centering pins of the dual mass flywheel -item 4-

⇒ Item 4 (page 68)

 .

– Install the transmission.

4. Clutch, Servicing, Gasoline

71

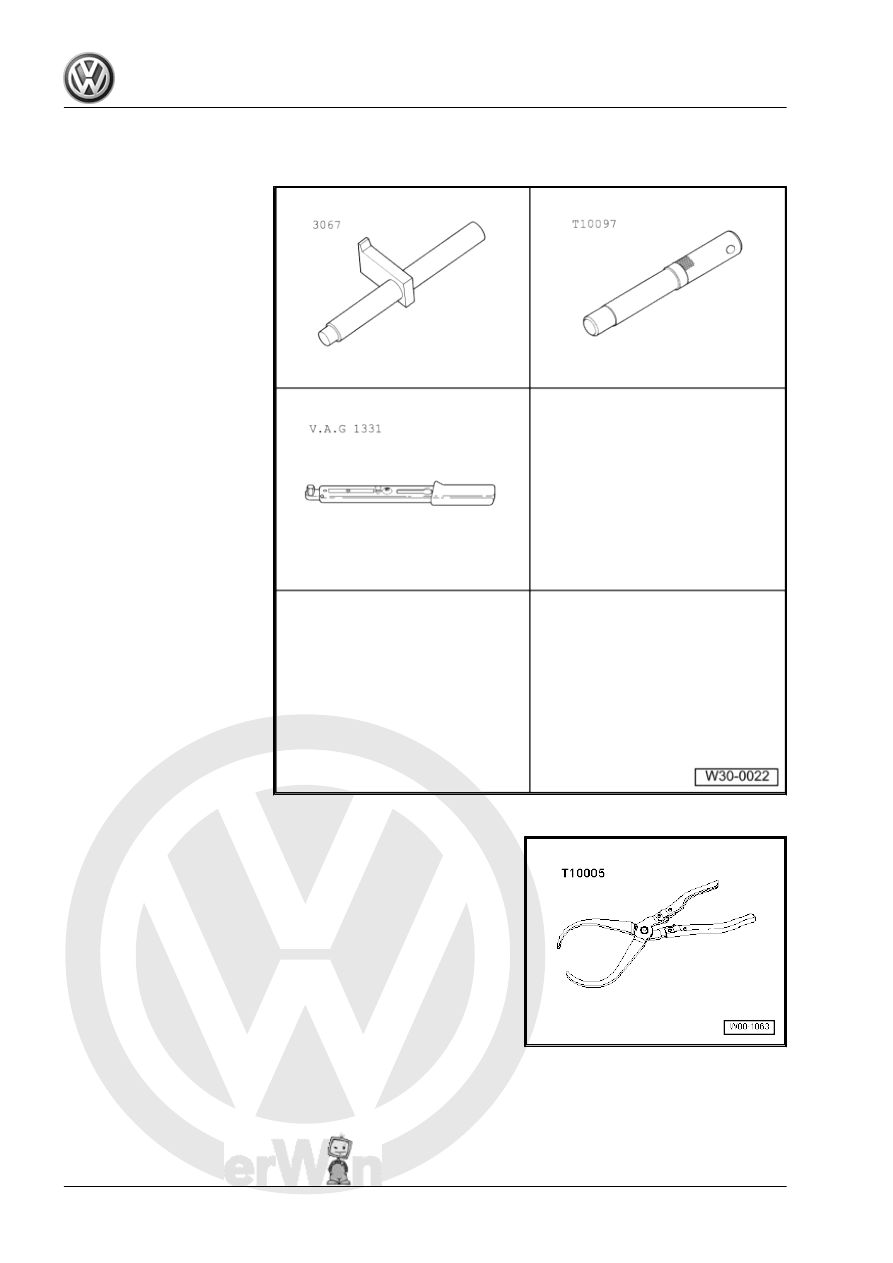

Special Tools

Special tools and workshop

equipment required
♦ Flywheel Retainer - 3067-
♦ Alignment Tool - Clutch

Plate - T10097-

♦ Torque Wrench 1331

5-50Nm - VAG1331-

♦ Grease for Clutch Disc

Shaft Splines - G 000 100-

♦ Clutch Pedal Pliers - T10005-

72

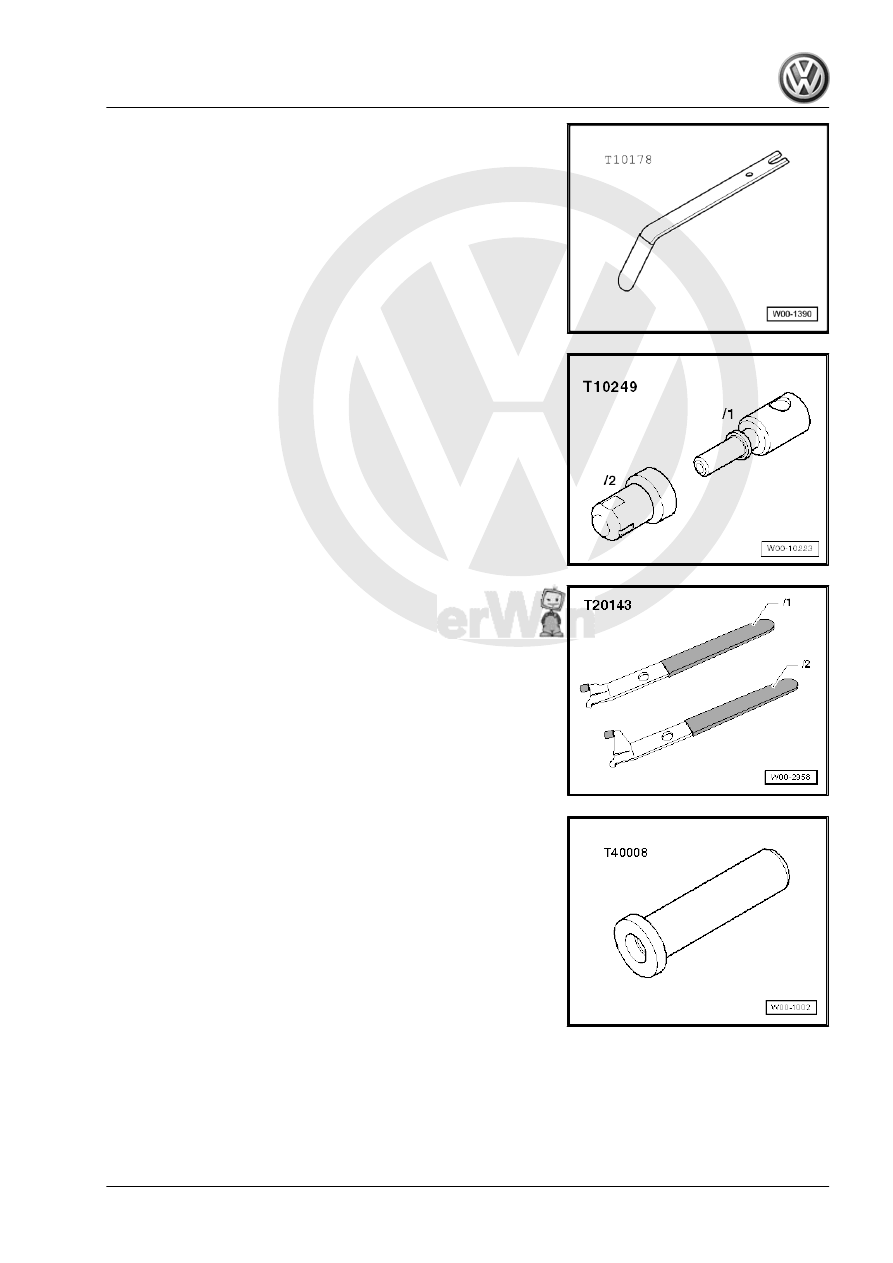

♦ Sealing Tool - T10249-

♦ Puller - Crankshaft/Power Steering Seal - 1 - T20143/1-

♦ Seal Installer - Driveshaft - T40008-

5. Special Tools

73

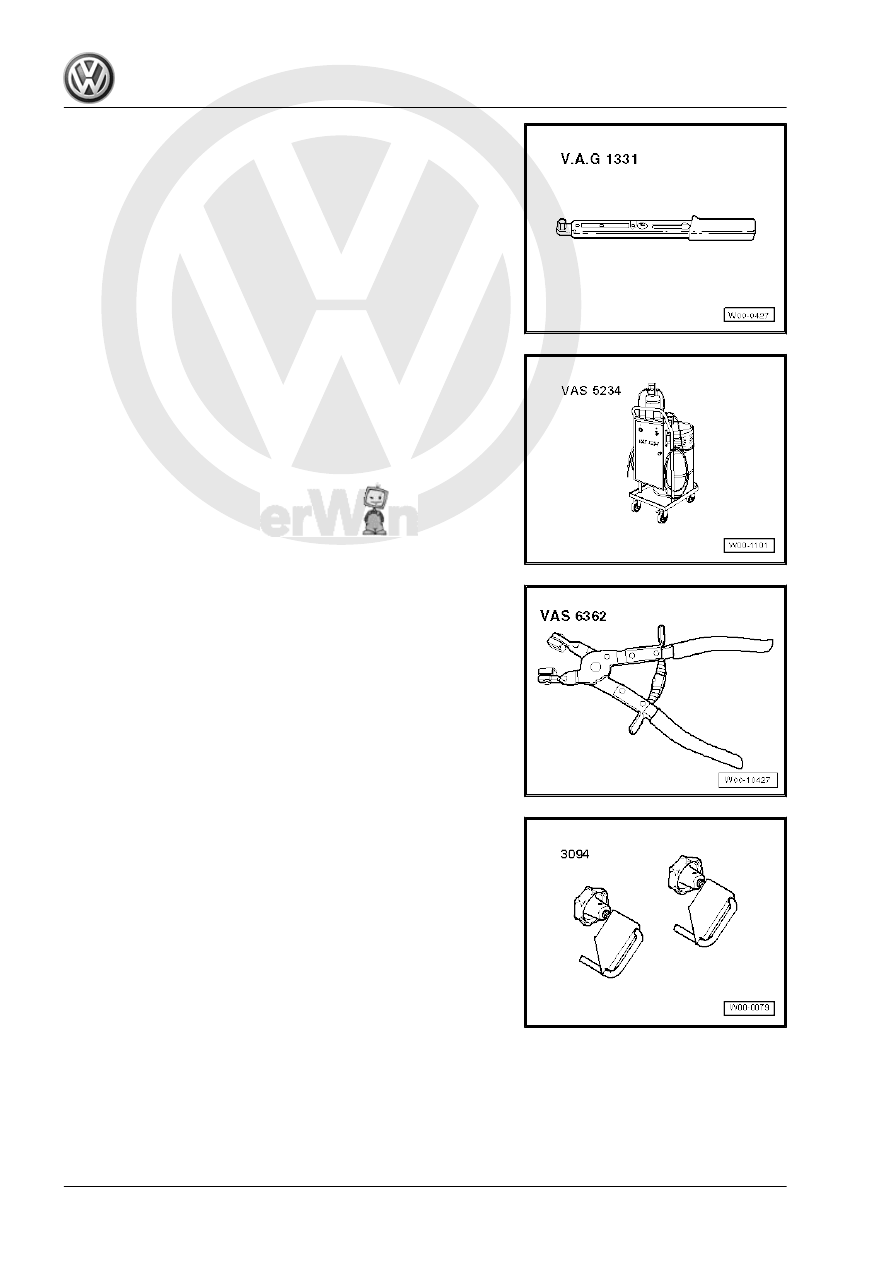

♦ Brake Charger/Bleeder Unit - VAS5234- or

♦ Hose Clip Pliers - VAS6362-

♦ Hose Clamps - Up To 25mm - 3094-

74
