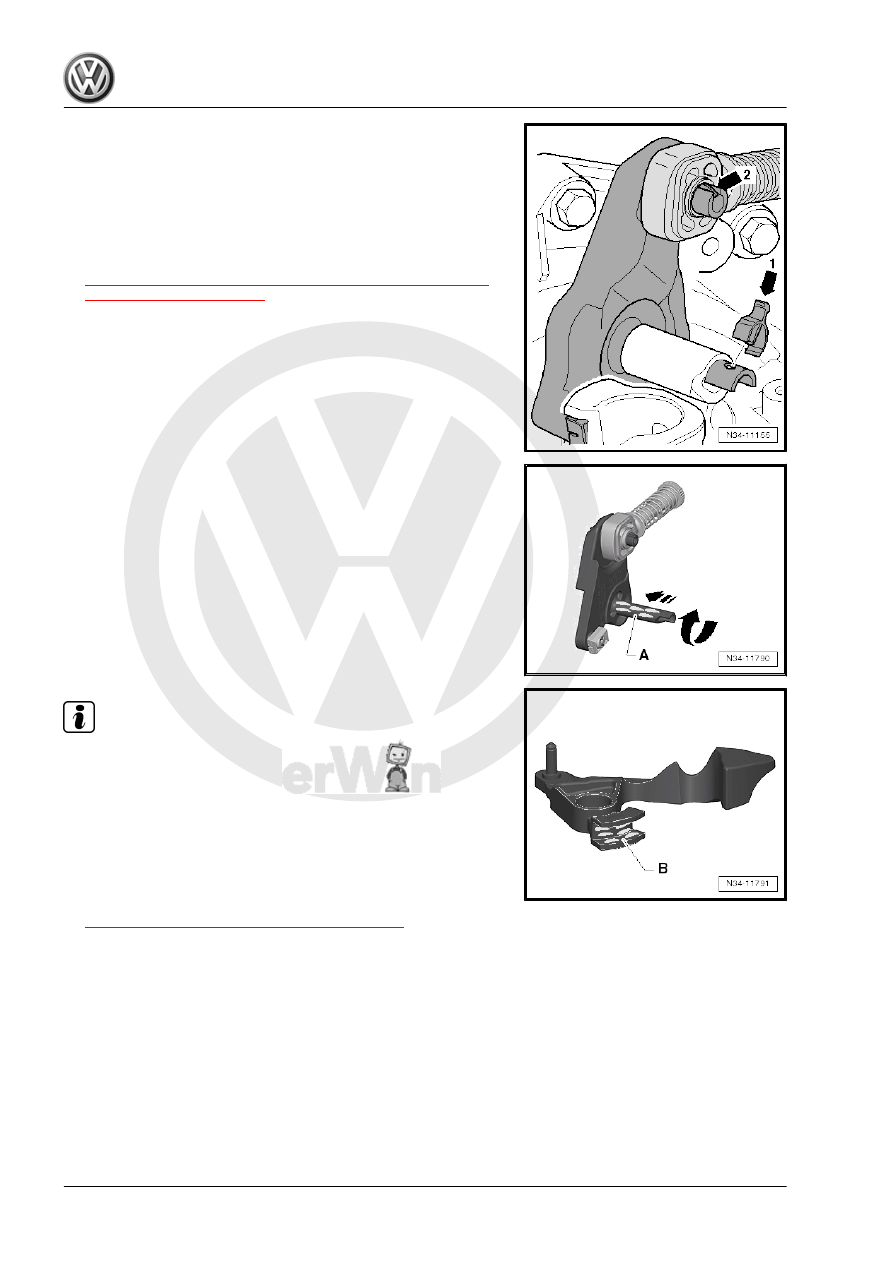

the cable retainer.

Continuation for All
• The cable retainer must be behind the catch -arrow 2-.
• The cable retainer may only be removed with the relay lever

removed. Refer to

⇒ Fig. ““Removing the Selector Cable Retainer from the Plas‐

tic Relay Lever.”“ , page 79

 .

Note

For installing, lubricate the following areas very carefully.

Relay lever shaft -A- -arrows-.

Gearshift lever glide track -B-, fits into the relay lever.

The relay lever and gearshift lever in the illustration may differ

from the Original Part.

Refer to the Parts Catalog for the grease allocation.

– Press the cable retainer on the relay lever. Refer to

⇒ Fig. ““Installing the Cable Retainer”“ , page 80

 .

– Insert the relay lever together with the cable retainer as far as

the stop.

78

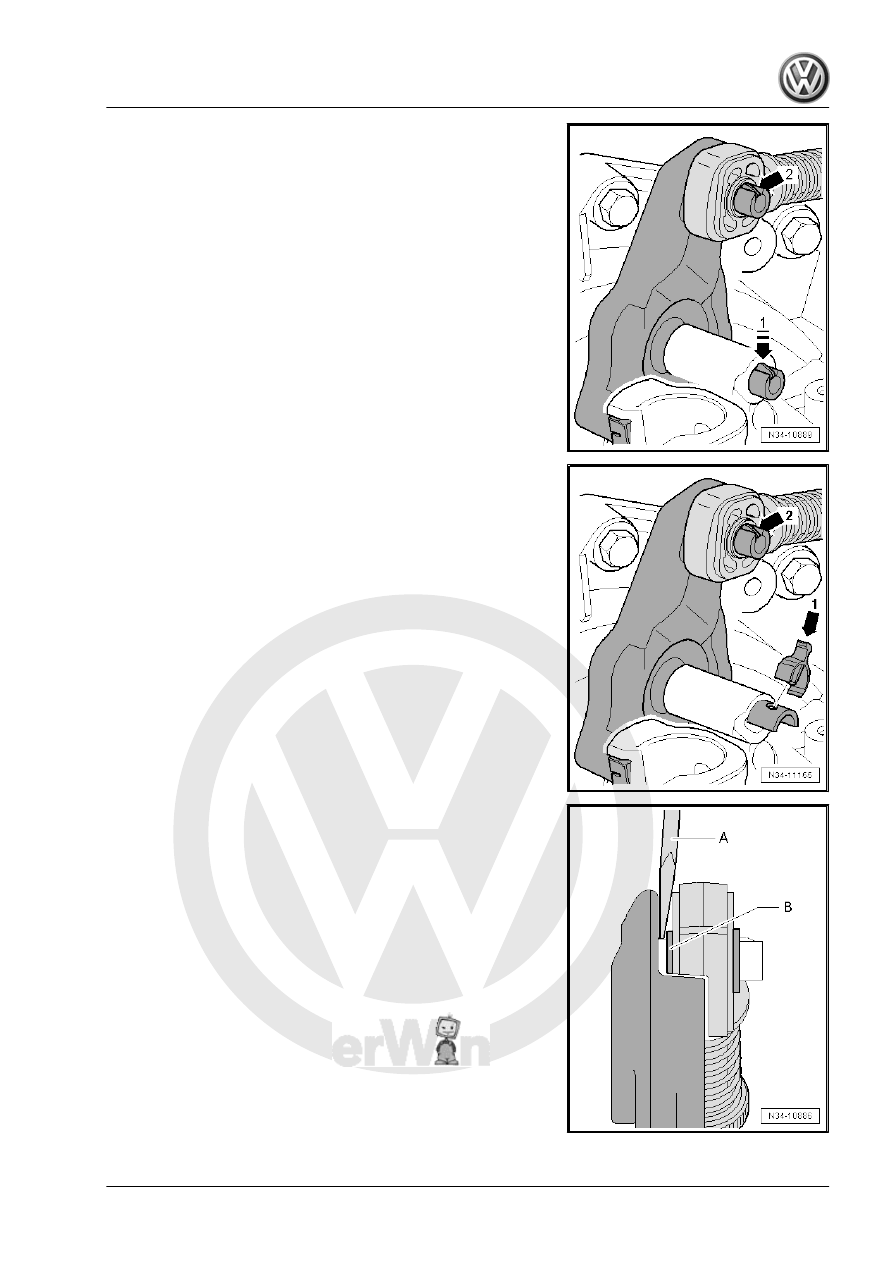

Relay Lever with Clip -arrow 1-.
• The clip -arrow 1- secures the relay lever.
• Make sure the clips locks securely.
• The cable retainer must be behind the catch -arrow 2-.

Removing the Selector Cable Retainer from the Plastic Relay

Lever.
• The relay lever is removed.
– Insert a screwdriver -A- between the bushing -B- and the relay

lever.

1. Shift Mechanism, Servicing

79

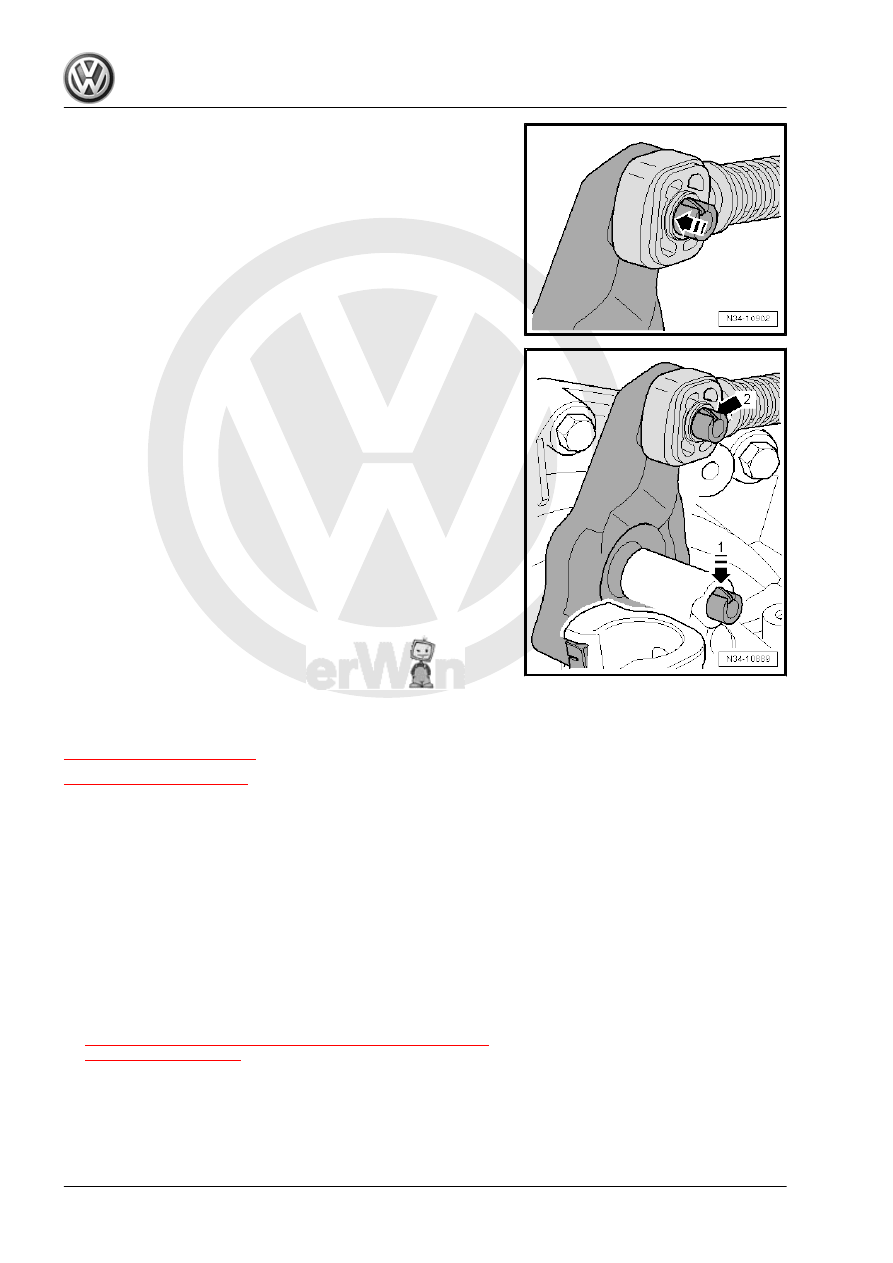

• The relay lever is removed.
• The cable retainer may only be installed at the bushing

-arrow-.

• The cable retainer must move freely on the relay lever.
• It must be behind the tab -arrow 2-.

1.9

Selector Mechanism, Removing and In‐

stalling

⇒ “1.9.1 Removing”, page 80
⇒ “1.9.2 Installing”, page 82

1.9.1

Removing

Special tools and workshop equipment required
♦ Torque Wrench 1331 5-50Nm - VAG1331-
Perform the following procedure:
– Determine whether a coded radio is installed. If so, obtain the

anti-theft code.

– Turn off the ignition and disconnect the battery ground strap.

Refer to ⇒  Electrical Equipment; Rep. Gr.  27 ; Battery; Bat‐

tery, Removing and Installing .

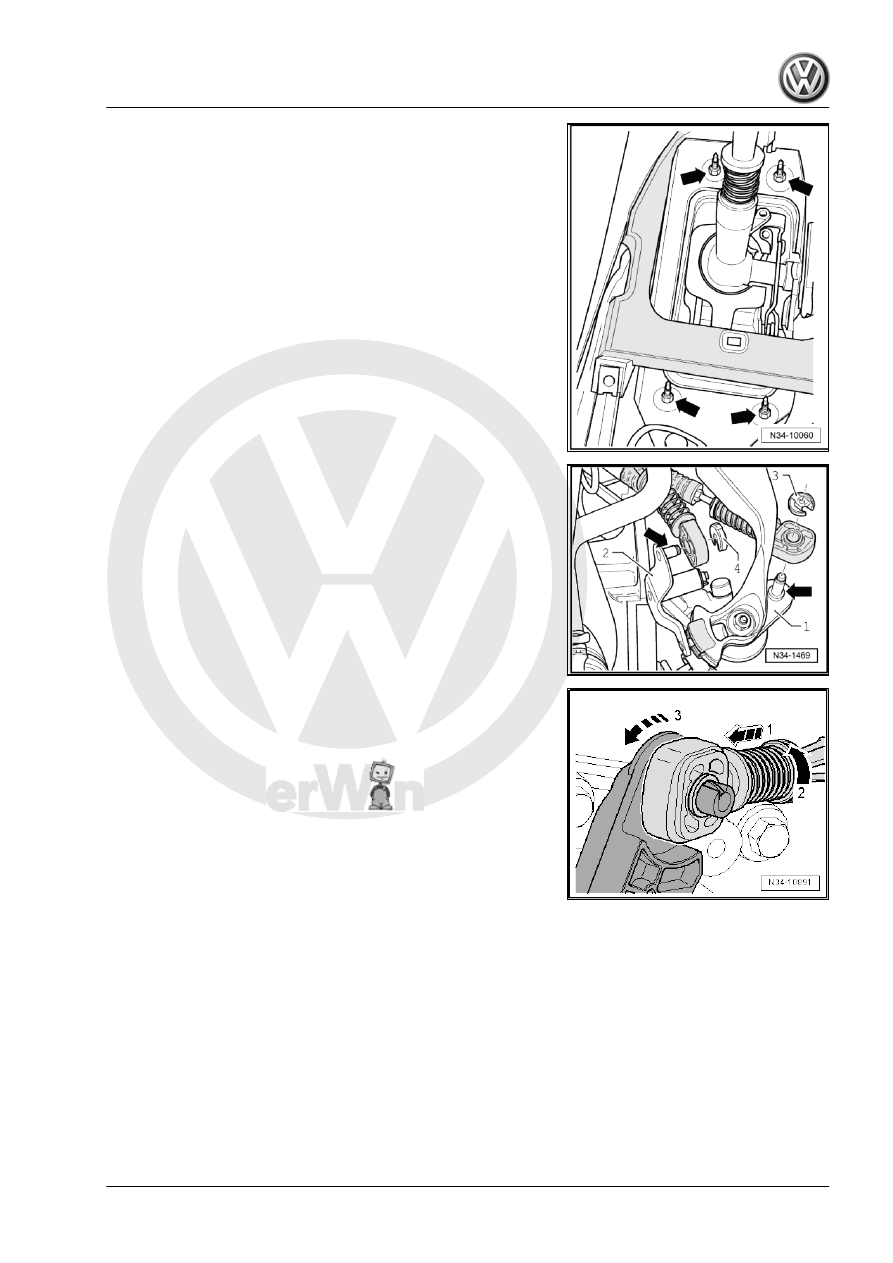

– Remove the boot with the shifter knob and noise insulation.

Refer to

⇒ “1.4 Boot with Shifter Knob and Noise Insulation, Removing

and Installing”, page 64

 .

– Remove the center console and the center console securing

bracket. Refer to ⇒  Body Interior; Rep. Gr.  68 ; Center Con‐

sole .

80

Injection System; Air Filter Housing, Removing and Installing

Installing .

– Remove the gearshift cable lock washer -3- from the gearshift

lever -1-.

– Remove the shift cable from the pins.
Metal Relay Lever
– Remove the selector cable circlip -4- from the relay lever -2-.
– Remove the selector cable from the pins.
Plastic Relay Lever

Disconnecting the Cable Retainer from the Selector Cable
– Pull the securing mechanism all the way forward in direction

of -arrow 1- and then unlock to the left in direction of

-arrow 2-.

– Push the relay lever forward (direction of -arrow 3-).
Continuation for all Shift Mechanisms

1. Shift Mechanism, Servicing

81
