26 - Gearshift Lever

❑ For the selector shaft
❑ inside, on the valve body
❑ Removing and installing. Refer to

⇒ “4.2 Valve Body, Removing and Installing”, page 135

 .

27 - Washer
28 - Nut

❑ Installed position: the centering bushing faces the washer -item 27-

⇒ Item 27 (page 131)

❑ Tightening specification. Refer to

⇒ “4.1.1 Tightening Specifications”, page 132

 .

29 - Spring

❑ If equipped
❑ Allocation. Refer to the Parts Catalog.

30 - Damper Piston

❑ If equipped
❑ Allocation. Refer to the Parts Catalog.

31 - Solenoid Valve Wiring Harness

❑ With 14-pin connector
❑ With an O-ring on the connector; always replace the O-ring
❑ Component locations of the solenoid valves and wiring harness routing. Refer to

⇒ “4.1.2 Wire Routing, Connector, Connectors and Bracket on Valve Body”, page 132

 .

❑ Removing and installing. Refer to

⇒ “4.3 Solenoid Valve Wiring Harness (14-Pin Connector), Removing and Installing”, page 148

 .

32 - Bolt

❑ Tightening specification. Refer to

⇒ “4.1.1 Tightening Specifications”, page 132

 .

4. Valve Body

131

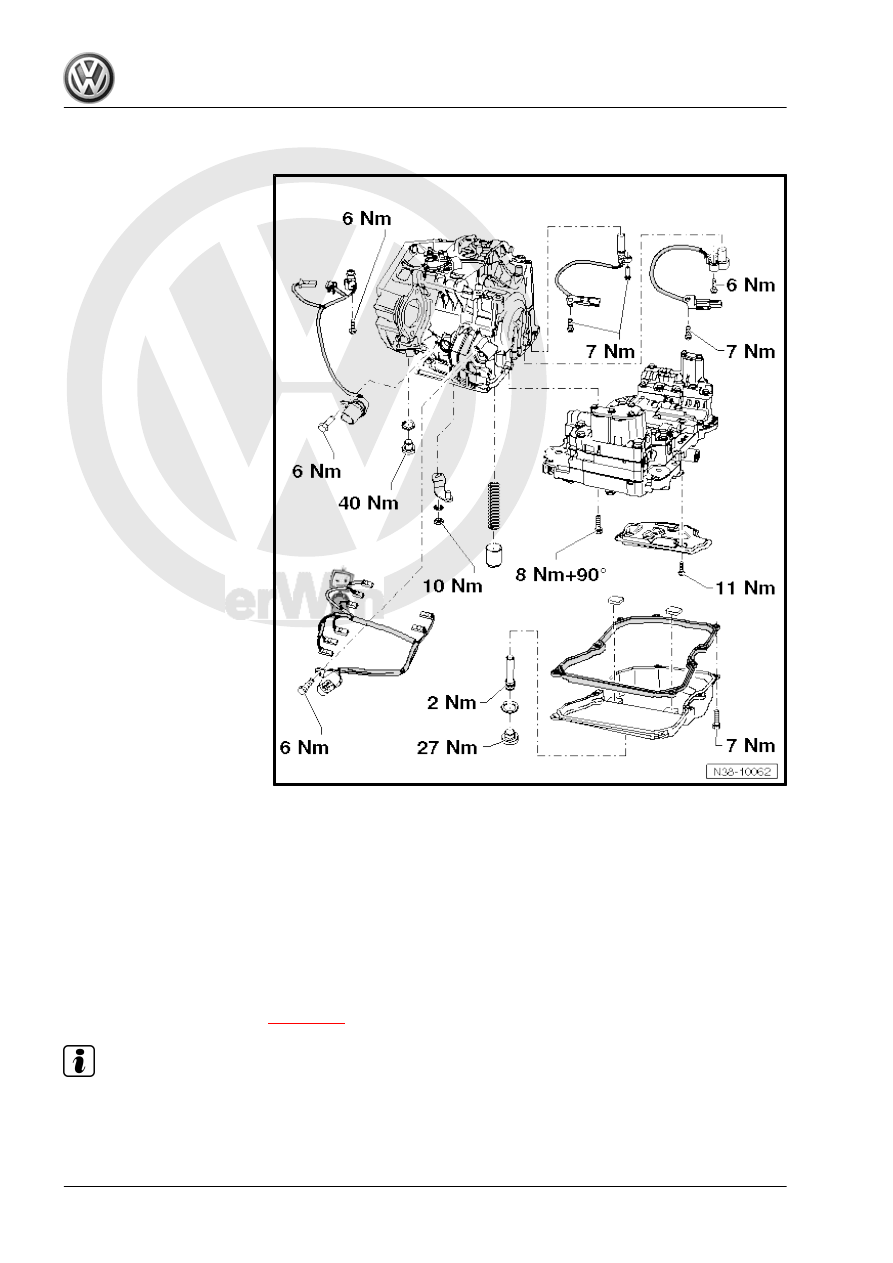

Tightening Specifications

4.1.2

Wire Routing, Connector, Connectors

and Bracket on Valve Body

In this chapter, the information regarding assembly work on the

valve body is shown in illustrations.
Vehicles with a generation 2 transmission (such as transmission

codes “MAN” or “PDW”)
Vehicles with generation 3 transmission (such as transmission

code “NTJ”)

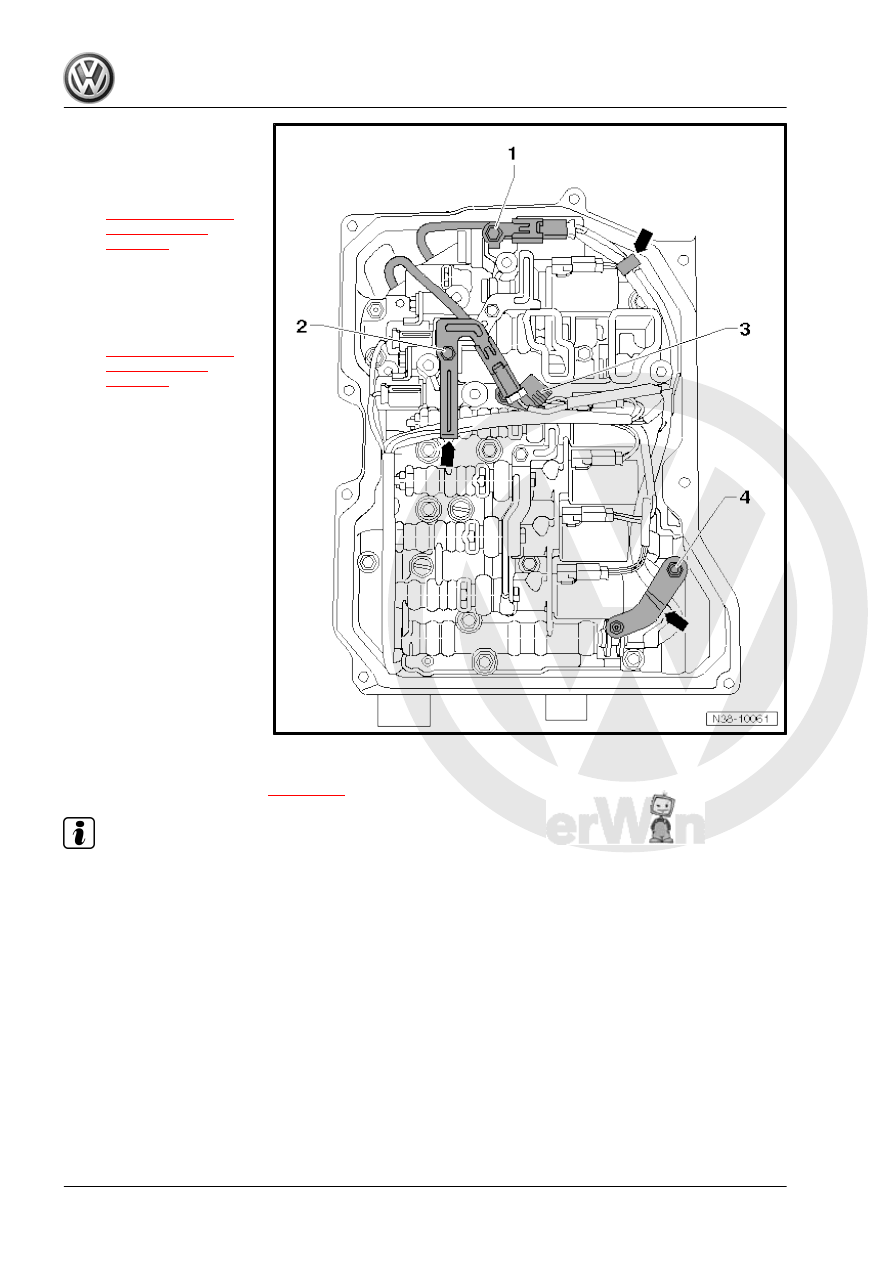

Wire Routing, Connector and Connectors - Vehicles with Gener‐

ation 2 Transmission. Refer to

⇒ page 132

 .

Note

In this chapter, the information regarding assembly work on the valve body is shown in illustrations.

Mark the solenoid valve and/or sensor and its connector before disconnecting them.

132

Speed Sensor - G195- Con‐

nector
B - Transmission Input Speed

Sensor - G182- Connector

Bracket for Connectors, Securing the Wires

Note

The -arrows- in the illustration point to the wire brackets or the secured wires.

4. Valve Body

133

sion Output Speed Sensor -

G195- Connector

❑ Tightening specifica‐

tion. Refer to

⇒ “4.1.1 Tightening

Specifications”,

page 132

 .

2 - Bracket for the Transmis‐

sion Input Speed Sensor -

G182- Connector

❑ Tightening specifica‐

tion. Refer to

⇒ “4.1.1 Tightening

Specifications”,

page 132

 .

3 - Transmission Fluid Tem‐

perature Sensor - G93-
4 - Gearshift Lever

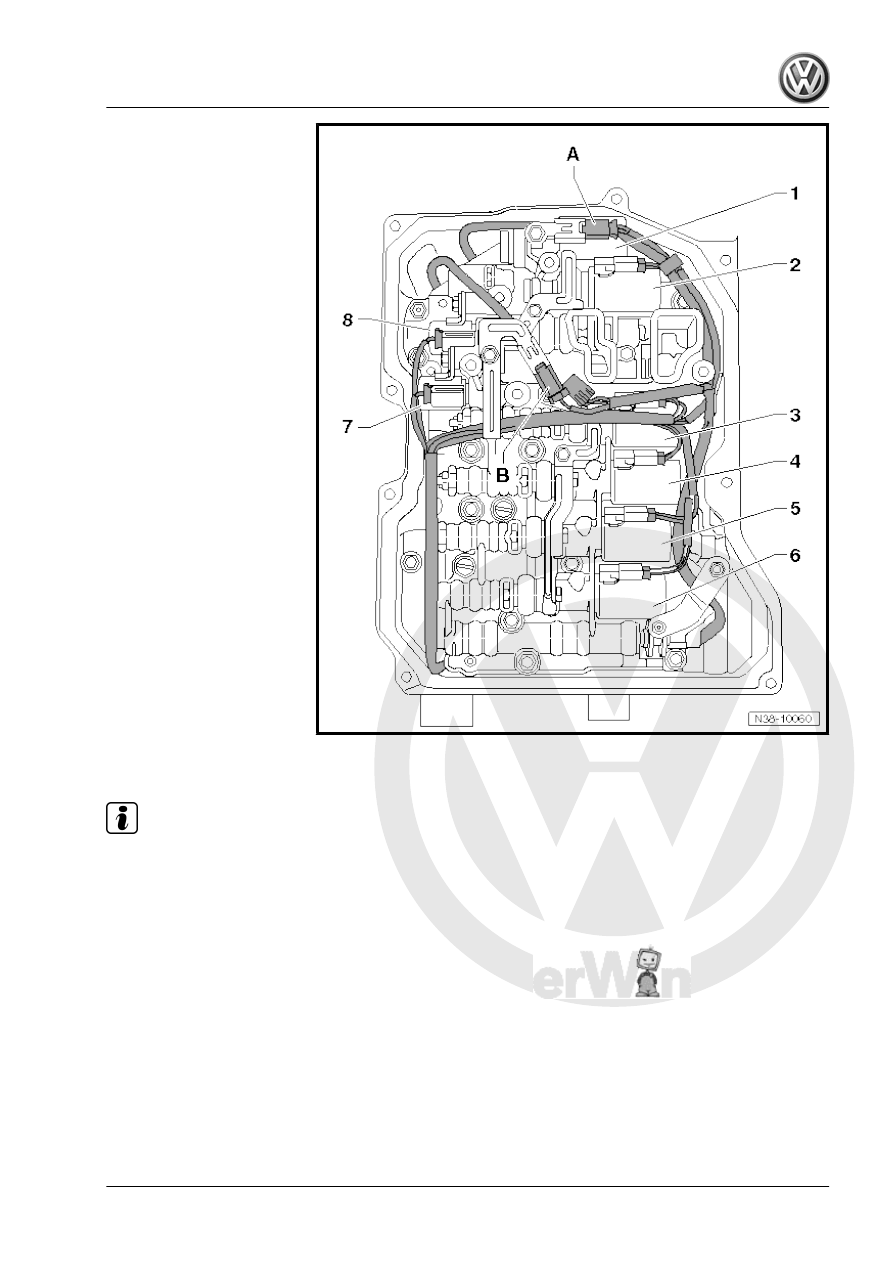

Wire Routing, Connector and Connectors - Vehicles with Gener‐

ation 3 Transmission. Refer to

⇒ page 132

 .

Note

In this chapter, the information regarding assembly work on the valve body is shown in illustrations.

Mark the solenoid valve and/or sensor and its connector before disconnecting them.

134
