Engine Codes - Engine Allocation

If original parts are needed for a repair, always pay attention to

the transmission codes.

“Automatic Transmission 09G”

Codes

»GKC«, »HFX«,

»KGQ«, »MAM«, »«

»HFT«, »HTP«,

»JUH«, »KGK«

»HDN«, »HFU«,

»HRM«, »JUJ«

»KBV«, »KGL«,

»MAN«, »PDW«

Engine

2.0L - 85 kW

2.0L - 110 kW (FSI)

2.5L - 110 kW

2.5L - 125 kW

4. Engine Codes - Engine Allocation

7

Special Tools

Special tools and workshop equipment required

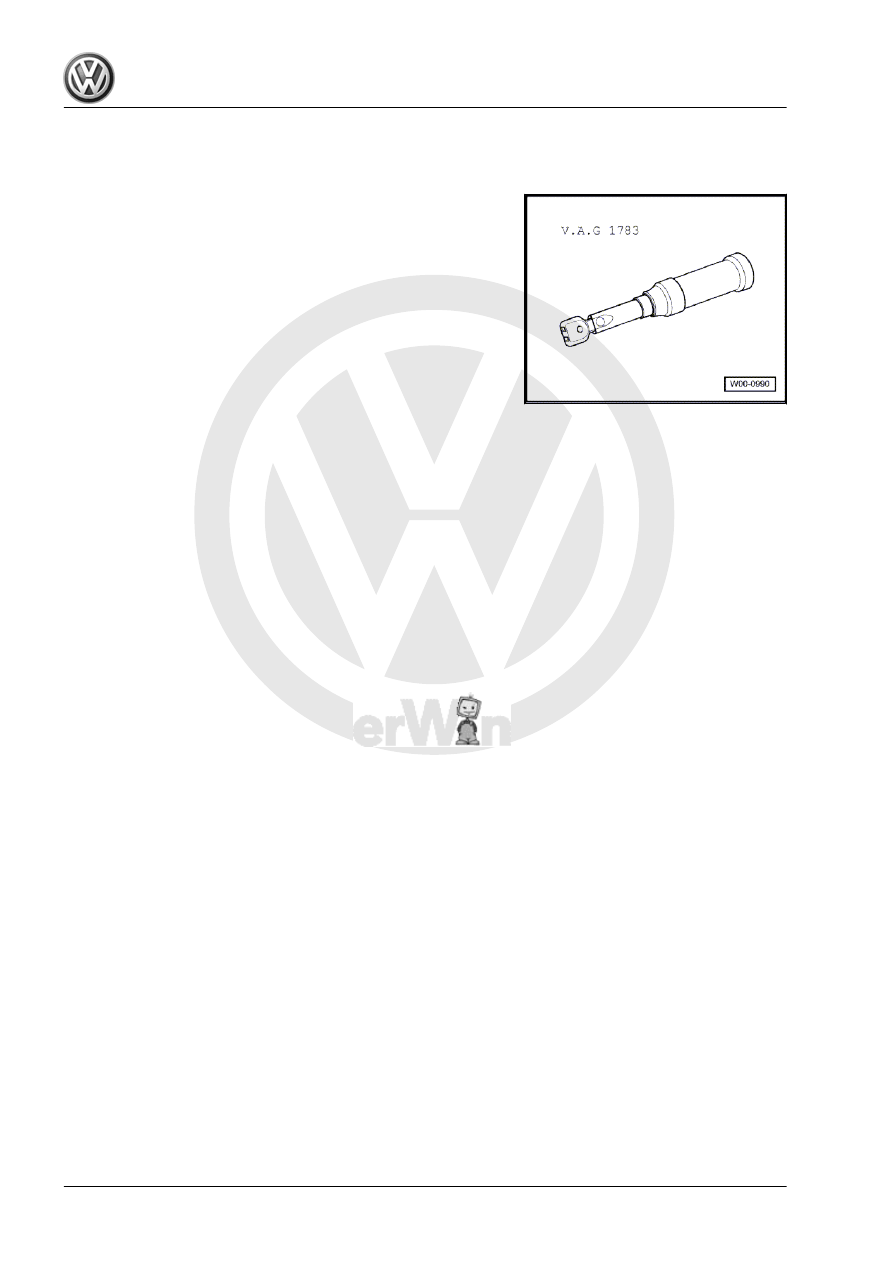

♦ Torque Wrench 1783 - 2-10Nm - VAG1783-

8

1

Overview - Torque Converter

⇒ “1.1 Torque Converter, Removing and Installing”, page 10
⇒ “1.2 Torque Converter, Checking”, page 10
⇒ “1.3 Torque Converter, Discharging”, page 11
⇒ “1.4 Torque Converter Seal, Removing and Installing”,

page 11

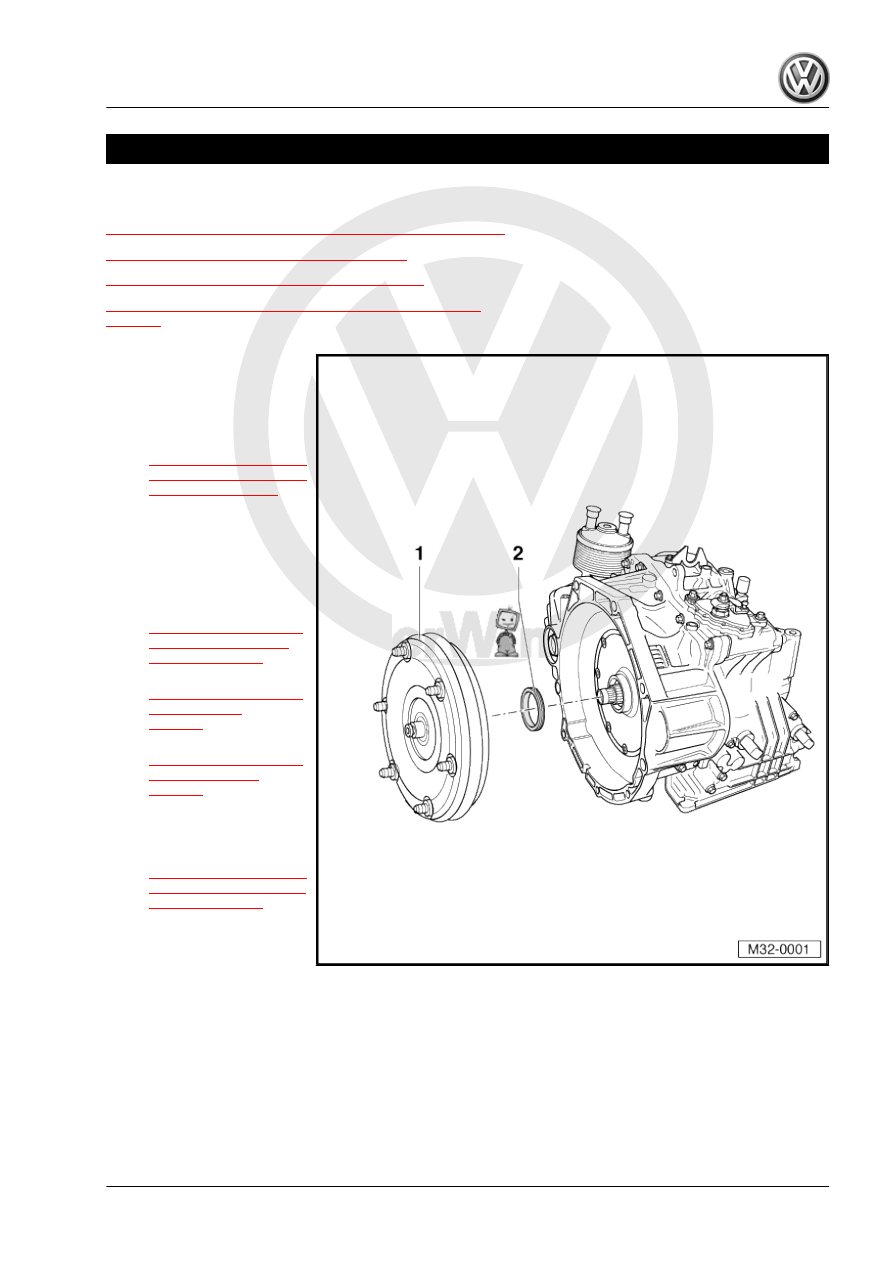

1 - Torque Converter

❑ Secure the torque con‐

verter from falling when

the transmission is re‐

moved or during trans‐

port. Refer to

⇒ Fig. ““Secure the Tor‐

que Converter from Fall‐

ing Out.”“ , page 10

❑ There are different tor‐

que converters.

❑ Use the code letters to

identify them. Refer to

the Parts Catalog.

❑ Removing and instal‐

ling. Refer to

⇒ “1.1 Torque Convert‐

er, Removing and In‐

stalling”, page 10

 .

❑ Checking. Refer to

⇒ “1.2 Torque Convert‐

er, Checking”,

page 10

 .

❑ Draining. Refer to

⇒ “1.3 Torque Convert‐

er, Discharging”,

page 11

 .

2 - Seal

❑ For the torque converter
❑ Replacing. Refer to

⇒ “1.4 Torque Converter

Seal, Removing and In‐

stalling”, page 11

 .

1. Overview - Torque Converter

9

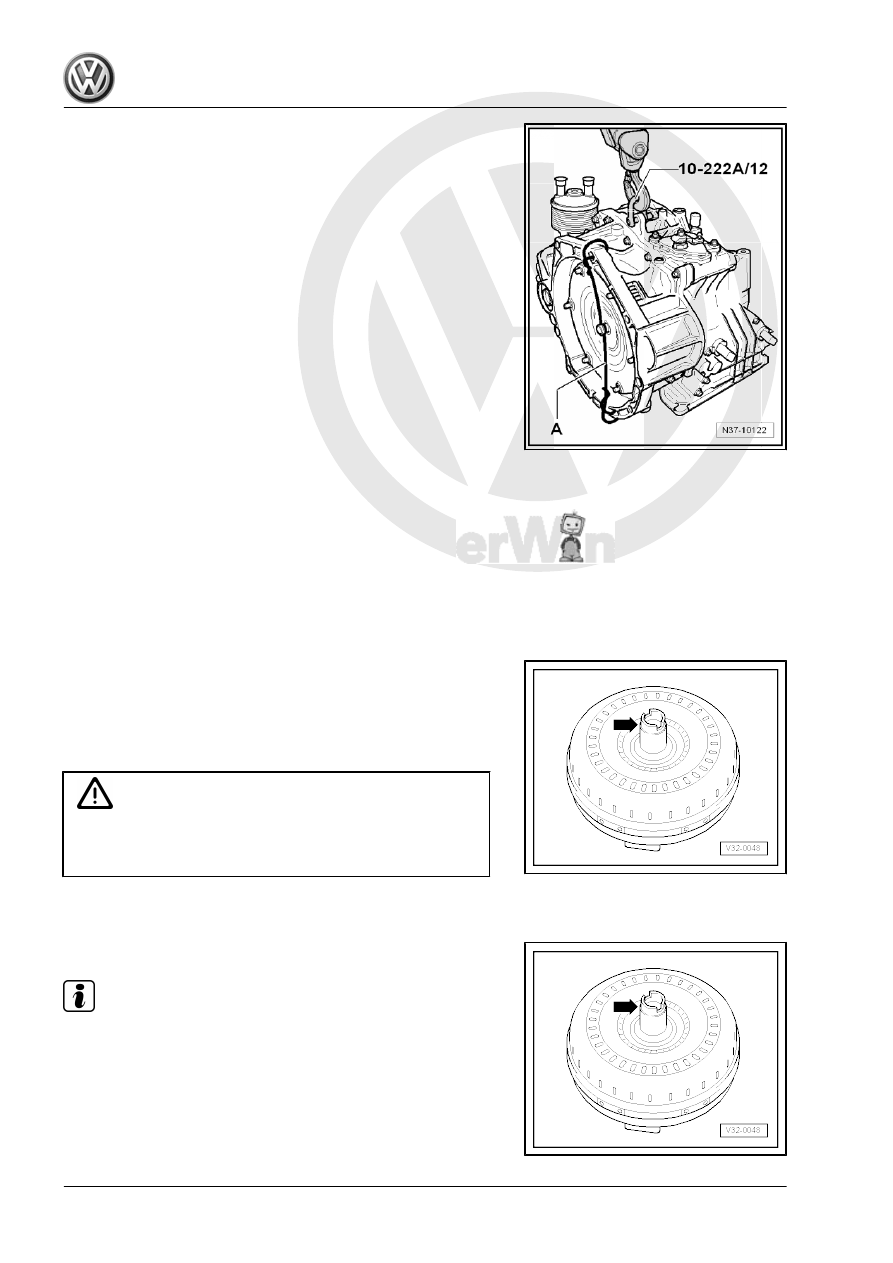

falling when being transported.

Unsecured torque converters can slide out if the transmission is

tipped.

1.1

Torque Converter, Removing and Instal‐

ling

Removing
• Transmission is removed.
– Carefully remove the torque converter from the transmission.
Installing
– Press torque converter hub carefully through the seal until the

first stop.

– Lightly press the torque converter toward the transmission and

turn it until the opening on torque converter hub -arrow- en‐

gage in the driver on ATF pump gear and torque converter

slides inward noticeably.

The converter is installed correctly if it is easy to turn is by hand

and if it fits evenly deep in the transmission.

Caution

If the engine and transmission are connected with force when

the  torque  converter  is  installed  incorrectly,  damage  to  the

transmission and torque converter results.

1.2

Torque Converter, Checking

– Check the torque converter hub -arrow- for wear grooves.

Note

The torque converter is welded together and must be replaced as

a complete unit if it is damaged or faulty.

10
