00 - General, Technical Data   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1

General Repair Information   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1.1

Torque Converter   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1.2

ATF   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1.3

Transmission Control Module J217 with Fuzzy Logic   . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

1.4

Vehicle Control Modules   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

1.5

Information on the “Transmission 09G”    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

1.6

Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

1.7

Transmission   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

1.8

Seals, Gaskets and Oil   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3

1.9

Bolts and Nuts   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

1.10 Electrical Components   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

1.11 Guided Fault Finding, OBD and Test Instruments   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

1.12 Safety Precautions   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4

2

Transmission Identification   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

2.1

Identification on Transmission   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5

3

Capacities   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

3.1

Planetary Gear and Final Drive   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6

4

Engine Codes - Engine Allocation   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

5

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

32 - Torque Converter   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

1

Overview - Torque Converter   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9

1.1

Torque Converter, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.2

Torque Converter, Checking   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.3

Torque Converter, Discharging   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.4

Torque Converter Seal, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

2

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

37 - Controls, Housing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1

»Tester«, Connecting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2

Electrical and Electronic Components and Component Locations   . . . . . . . . . . . . . . . . . . . . 14

3

Multifunction Transmission Range Switch F125    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

3.1

Multifunction Transmission Range Switch F125 , Removing   . . . . . . . . . . . . . . . . . . . . . . . . 20

3.2

Multifunction Transmission Range Switch F125 , Installing   . . . . . . . . . . . . . . . . . . . . . . . . 21

3.3

Multifunction Transmission Range Switch F125 , Adjusting   . . . . . . . . . . . . . . . . . . . . . . . . 22

4

Selector Mechanism through 02/2009   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.1

Overview - Selector Mechanism through 02/2009   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4.2

Shift Mechanism with Selector Lever, Removing and Installing, through 02/2009   . . . . . . . . 26

4.3

Selector Lever Cable, Removing and Installing, through 02/2009   . . . . . . . . . . . . . . . . . . . . 28

4.4

Selector Lever Cable, Checking   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4.5

Selector Lever Cable, Adjusting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

4.6

Selector Lever, Emergency Release   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

4.7

Selector Lever Handle, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

4.8

Button in Handle, Moving into Installation Position   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

4.9

Selector Mechanism, Checking   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5

Selector Mechanism from 03/2009   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.1

Overview - Selector Mechanism from 03/2009   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

5.2

Selector Mechanism, Removing and Installing, Vehicles from 03/2009   . . . . . . . . . . . . . . . . 47

6

Transmission, Removing and Installing, Jetta from 2005, Golf Wagon from 2007, Jetta

Wagon from 2008   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Contents

i

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

6.1

Transmission, Removing, Vehicles with 2.0L - 85kW and 2.0L - 110kW Engines   . . . . . . . . 55

6.2

Transmission, Installing, Vehicles with 2.0L - 85kW and 2.0L - 110kW Engines   . . . . . . . . 60

6.3

Transmission, Removing, Vehicles with 2.5L - 110 kW and 2.5L -125 kW Engines   . . . . . . 63

6.4

Transmission, Installing, Vehicles with 2.5L - 110 kW and 2.5L - 125 kW Engines   . . . . . . 69

6.5

Tightening Specifications, Transmission to Engine   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

7

Transmission, Removing and Installing, Jetta from MY 2011   . . . . . . . . . . . . . . . . . . . . . . 74

7.1

Transmission, Removing, Jetta MY 2011 1.6L 77 kW   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

7.2

Transmission, Removing, Jetta MY 2011, 2.0L 85 kW   . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

7.3

Transmission, Removing, Jetta MY 2011, 2.5L 125 kW   . . . . . . . . . . . . . . . . . . . . . . . . . . 91

7.4

Transmission, Installing, Jetta MY 2011   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

7.5

Tightening Specifications, Transmission to Engine   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

8

Transmission, Transporting   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

9

Transmission, Securing in Engine/Transmission Holder   . . . . . . . . . . . . . . . . . . . . . . . . . . 107

10

ATF Cooler   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

10.1 Overview - ATF Cooler Round Version   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

10.2 Overview - ATF Cooler Rectangular Version   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
11

ATF Level, Checking and Filling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

11.1 ATF Level, Checking   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

11.2 ATF, Filling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

11.3 ATF, Draining and Filling   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
12

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

38 - Gears, Hydraulic Controls   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

1

Selector Shaft Seal, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

2

Transmission Fluid Pan   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

2.1

Transmission Fluid Pan, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

3

ATF Screen   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

3.1

ATF Screen, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

4

Valve Body   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

4.1

Overview - Valve Body   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

4.2

Valve Body, Removing and Installing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

4.3

Solenoid Valve Wiring Harness (14-Pin Connector), Removing and Installing   . . . . . . . . . . 148

4.4

Sensor Wiring Harness (8-Pin Connector), Removing and Installing   . . . . . . . . . . . . . . . . . . 149

4.5

Transmission Input Speed Sensor G182 , Removing and Installing   . . . . . . . . . . . . . . . . . . 150

4.6

Transmission Output Speed Sensor G195 , Removing and Installing   . . . . . . . . . . . . . . . . 151

5

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

39 - Final Drive, Differential   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

1

Flange Shaft Seals, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

1.1

Component Location Overview - Seals   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

1.2

Left Flange Shaft Seal, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

1.3

Right Flange Shaft Seal, Replacing   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

2

Special Tools   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

3

Revision History   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

ii

    Contents

1

General Repair Information

⇒ “1.1 Torque Converter”, page 1
⇒ “1.2 ATF”, page 1
⇒ “1.3  Transmission Control Module J217 with Fuzzy Logic”,

page 1
⇒ “1.4 Vehicle Control Modules”, page 2
⇒ “1.5 Information on the Transmission 09G ”, page 2
⇒ “1.6 Tools”, page 2
⇒ “1.7 Transmission”, page 2
⇒ “1.8 Seals, Gaskets and Oil”, page 3
⇒ “1.9 Bolts and Nuts”, page 4
⇒ “1.10 Electrical Components”, page 4
⇒ “1.11 Guided Fault Finding, OBD and Test Instruments”,

page 4
⇒ “1.12 Safety Precautions”, page 4

The highest level of care and cleanliness along with tools that

function properly are required to ensure a proper and successful

transmission repair. The usual basic safety precautions also ap‐

ply when carrying out vehicle repairs.
General information that applies to various different repair proce‐

dures is listed here instead of repeating it multiple times through‐

out the manual. They apply to this repair manual.

1.1

Torque Converter

The torque converter is equipped with a lock-up clutch. The lock-

up clutch closes depending on load and speed. The 2nd, 3rd, 4th,

5th and 6th gears can be mechanically driven (without slip).

1.2

ATF

ATF is a permanent filling. The ATF does not need to be replaced

during maintenance.
Use only the ATF listed as a replacement part in the Parts Cata‐

log. Other oils can cause malfunctions or transmission failure.
The ATF levels inside the planetary gear and inside the final drive

are checked and filled at the same time.

1.3

Transmission Control Module - J217-

with Fuzzy Logic

Determining the driving situation and driving resistance depend‐

ent shift point occurs automatically.
Advantages:
• It is shifted depending on fuel consumption
• Maximum engine output is always available
• Individual adaptation of shift points in all driving situations
• Gear shift points are infinitely variable

1. General Repair Information

1

Vehicle Control Modules

The component locations of all vehicle control modules and other

useful information can also be found in ⇒ Wiring diagrams, Trou‐

bleshooting & Component locations.

1.5

Information on the “Transmission 09G”

Transmission Design and Function
♦ Refer to Multimedia Training; Automatic Transmission 09G.
♦ Refer to Self Study Program Automatic Transmission 09G.

1.6

Tools

A complete list of special tools and workshop equipment required

for repair procedures in a manual can be found at the beginning

of each Repair Group section and in the Workshop Equipment

and Special Tools catalog.

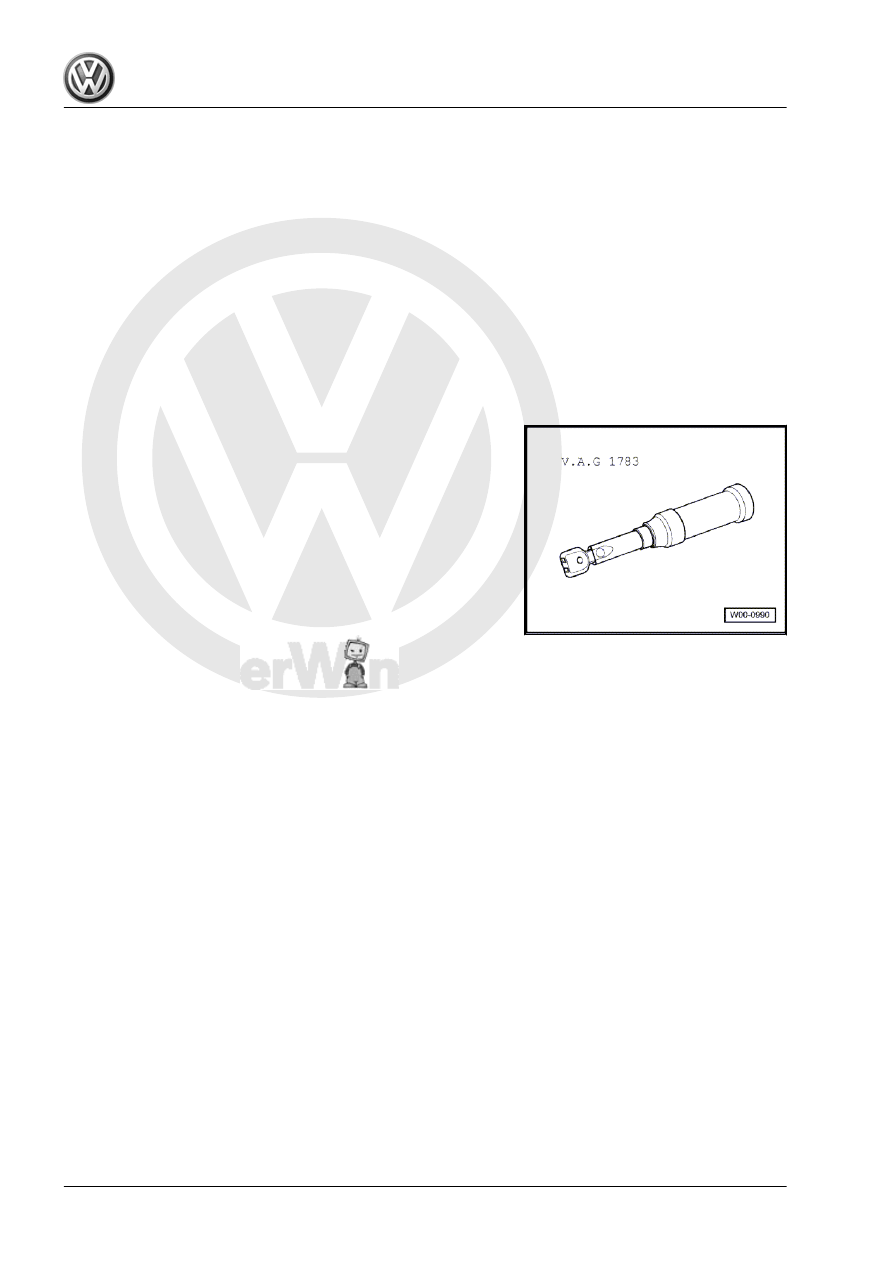

Uncertainties often exist on smaller bolts with lower tightening

specifications. For these bolts the Torque Wrench 1783 - 2-10Nm

- VAG1783- can be used.

1.7

Transmission

The “6-speed automatic transmission 09G” has six hydraulically

controlled forward gears. By passing the torque converter slip,

2nd, 3rd, 4th, 5th and 6th gears become mechanically driven

gears if lock-up clutch is closed.
♦ Do not run the engine and do not tow the vehicle if the trans‐

mission cover is removed or if there is no transmission fluid

inside the transmission.

♦ Thoroughly clean the connection points and the area around

them first, and then loosen them.

♦ When installing the transmission, make sure the alignment

sleeves are seated correctly between the engine and the

transmission.

♦ Place the removed parts on a clean surface and cover them

so that they do not become contaminated. Use foil and paper.

Only use lint-free cloths.

♦ Only install clean parts: Remove the replacement parts from

their packaging just before installing them.

♦ Carefully cover or seal opened components if repairs are not

performed immediately.

♦ With the transmission removed, secure the torque converter

so that it cannot fall out.

2















Content   ..  90  91  92  93   ..
