Volkswagen Golf Variant / Jetta. Manual - part 90





8.1

Tools

Special tools and workshop equipment required

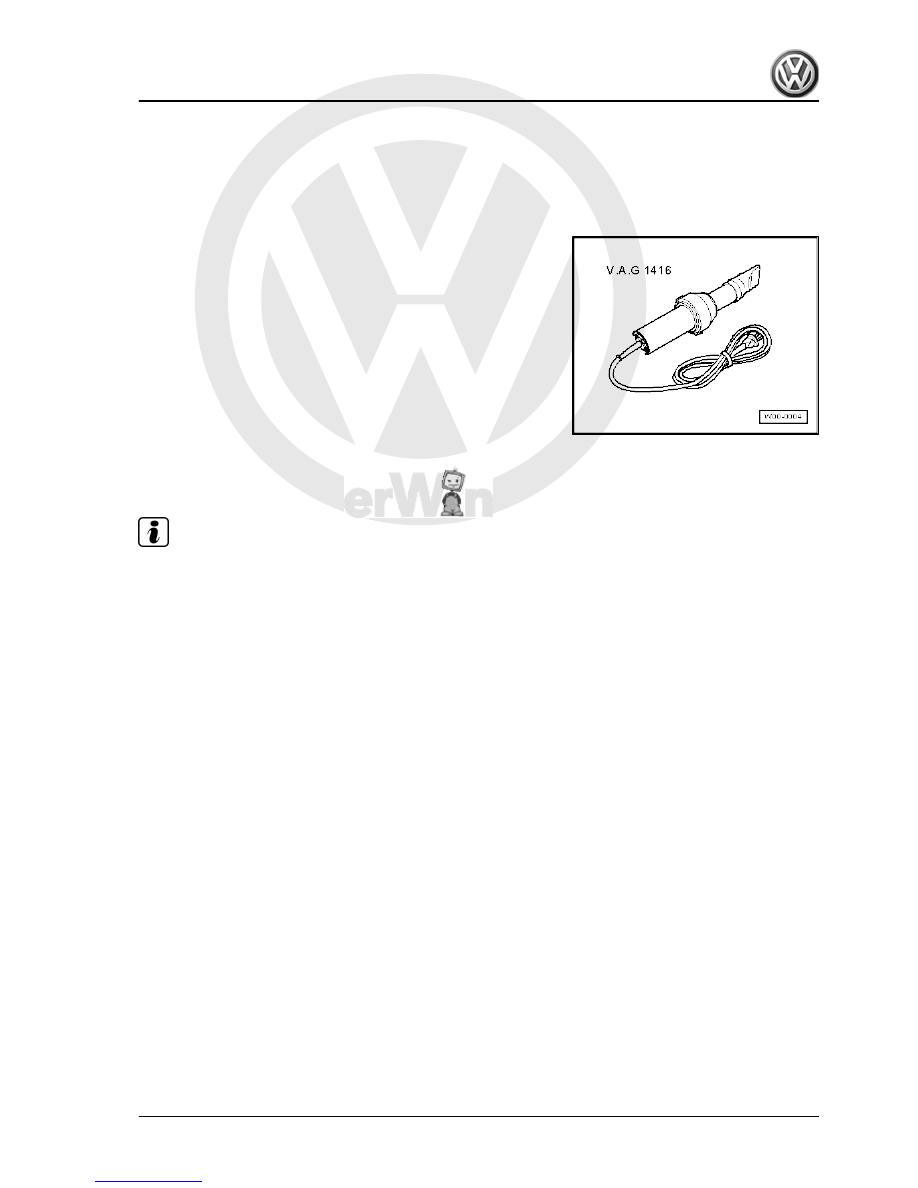

♦ Hot air blower -V.A.G 1416-

8.2

Installation instructions for lettering and

emblems

Note

Before removal, heat lettering or emblem with a hot air blower

-V.A.G 1416- .

If the lettering or emblem is installed for the first time on a new

vehicle and newly painted surfaces, the procedure in ⇒  Work‐

shop manual "Paint"; ⇒Paintwork repairs; ⇒Paint finish;

⇒Mouldings & Film should be observed.

If the lettering or emblem is removed and reinstalled, only use

adhesive remover -D 002 000 10- to remove the adhesive re‐

mains.

Ensure that bonding surfaces are free of dust and grease.

Bond lettering or emblem immediately after cleaning.

Pull protective backing off only directly prior to installation.

The working temperature is approx. 21 °C.

8. Lettering

357

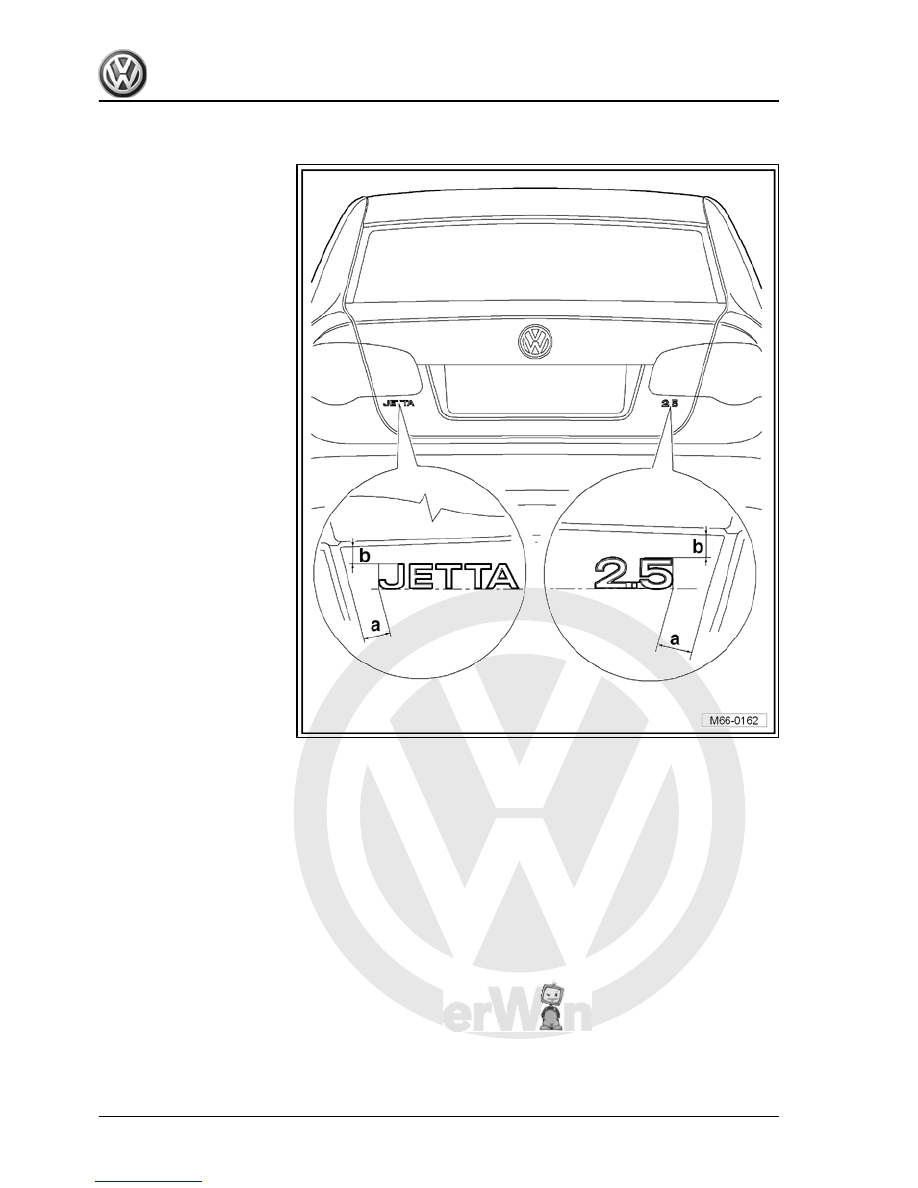

1 - Dimension -a- = 25 mm

❑ From outer edge of rear

lid to lettering

2 - Dimension -b- = 15 mm

❑ From lower edge of tail

light aperture in rear lid

to upper edge of letter‐

ing

358



8.4.1

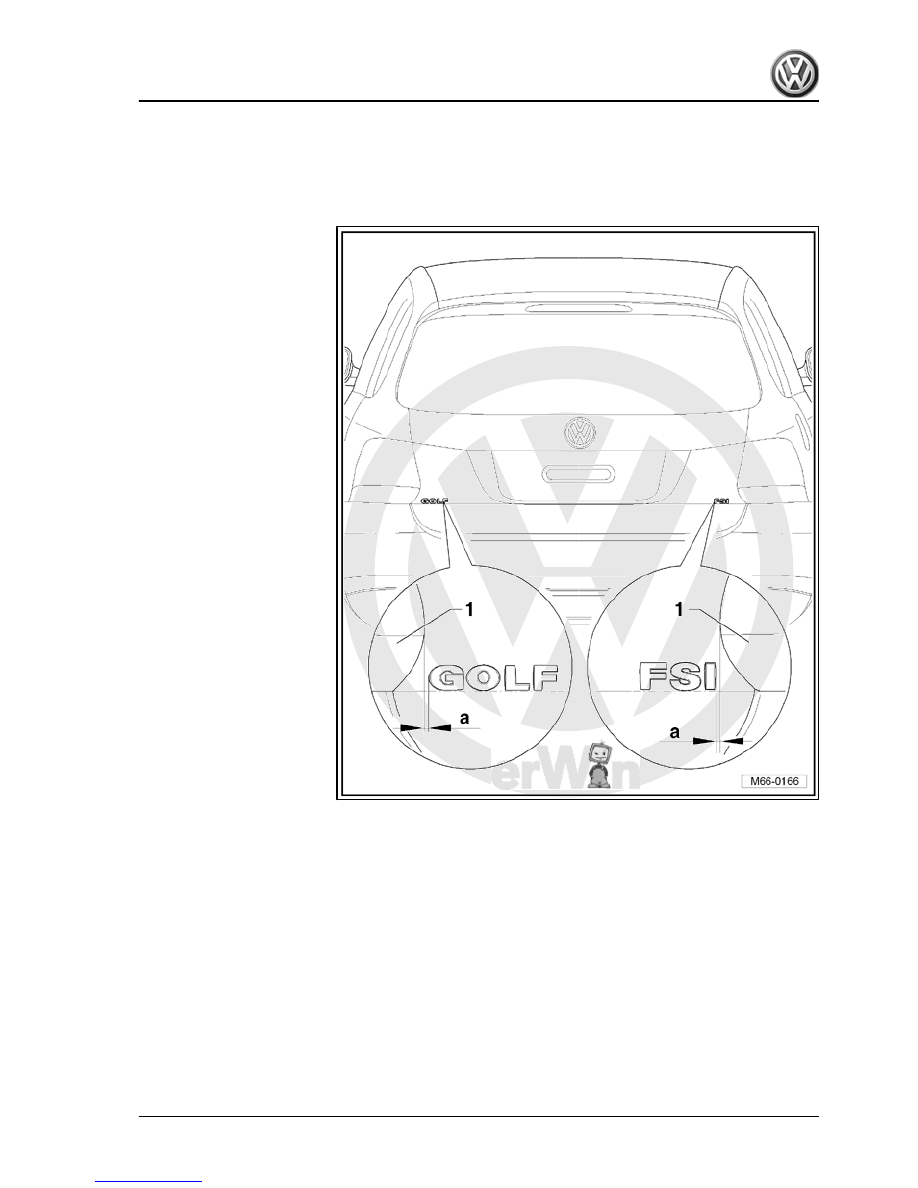

Lettering (Golf Variant)

1 - Dimension -a- = 5 mm

❑ Lower edge of lettering

to height of lower edge

of rear light -1-

❑ Transfer -dimension a-

from outer edge of rear

lid to lettering.

8. Lettering

359

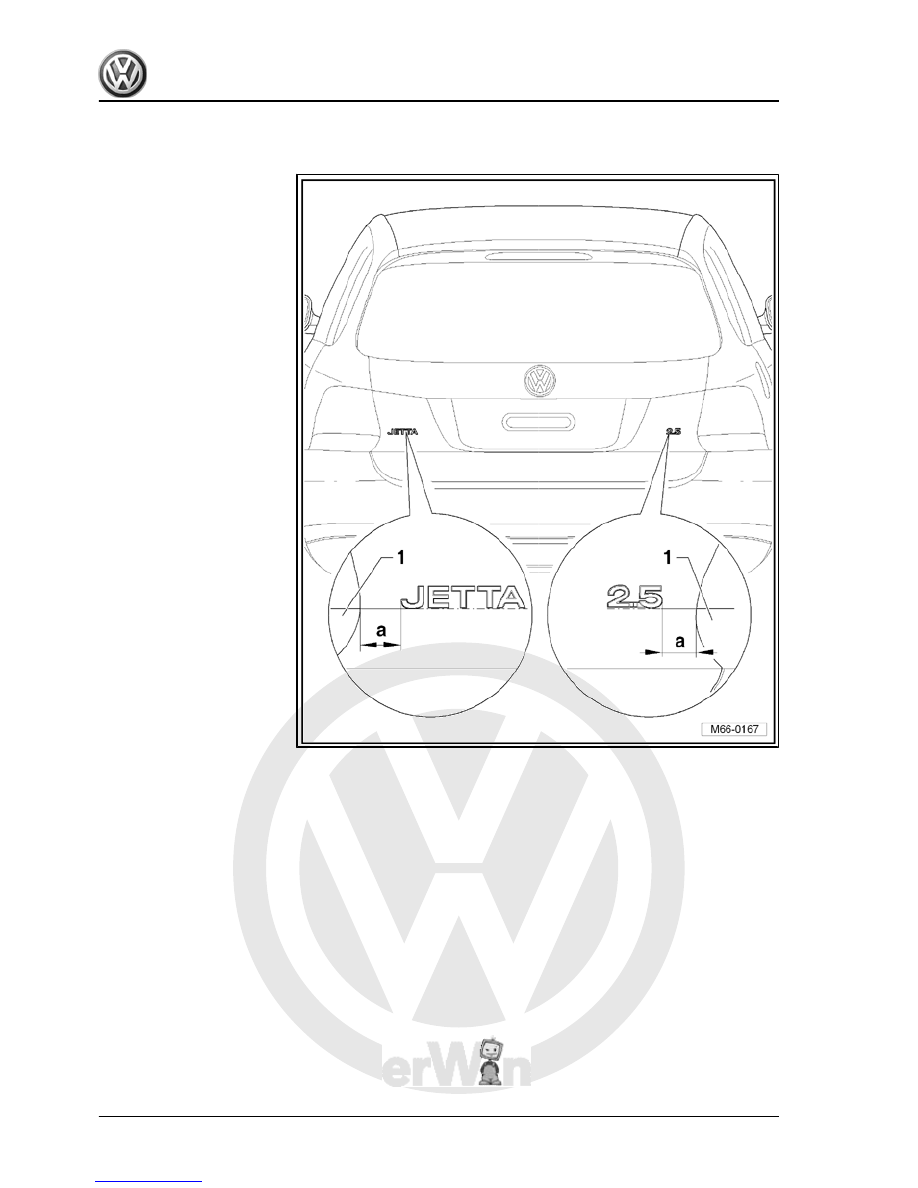

1 - Dimension -a- = 25 mm

❑ Transfer -dimension a-

from outer edge of rear

lid to lettering.

❑ Lower edge of lettering

to height of upper edge

of rear light -1-

360
