Volkswagen Golf Variant / Jetta. Manual - part 45





Note

In the event of power failure, the sliding/tilting sunroof with glass

panel can be moved using a hexagon key directly on the drive.

Hexagon key is located in vehicle tool kit.

– Removing lights and front operating unit ⇒  Electrical system;

Rep. Gr.  96 ; Lights and switches in roof trim .

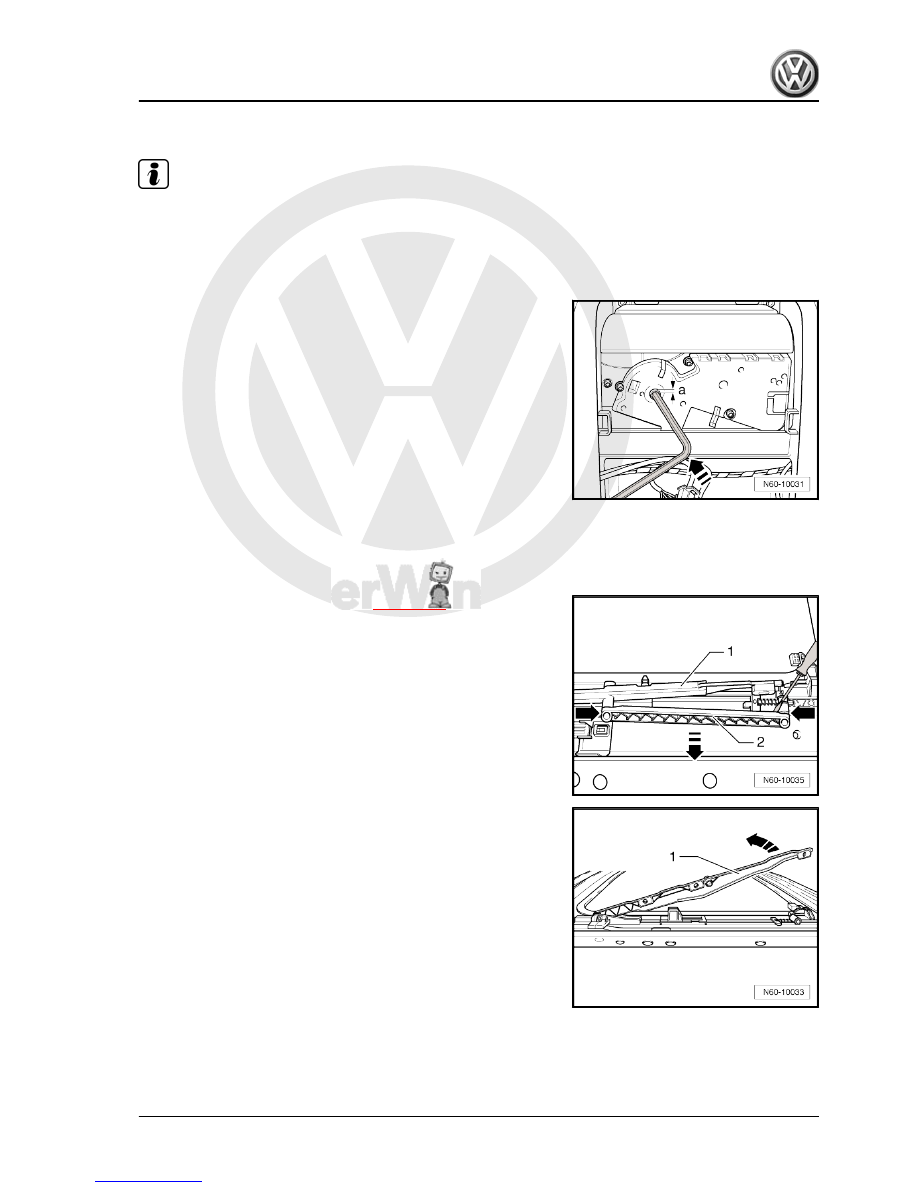

– Guide hexagon key into bolt on drive.
– Press key upwards -arrow- to release the drive.
The bolt will be pressed a few millimetres inwards -a-. Sliding/

tilting sunroof glass panel can only be moved in this position.

1.19

Removing and installing guide plate

1.19.1

Removing

– Removing glass panel for sunroof

⇒ page 166

 .

– Using a screwdriver, unclip spacer -2- from guide plate -1- at

front and rear -arrows-.

– Pull spacer -2- in -direction of arrow- out of guide plate -1-.

– Lift guide plate up -1- in -direction of arrow-.

1. Sliding/tilting sunroof with glass panel (Meritor)

177



1.19.2

Installing

Install in reverse order of removal.

1.20

Removing and installing guide plate

1.20.1

Removing

Note

Always renew guides with cables as a pair.

– Removing glass panel for sunroof

⇒ page 166

 .

– Remove sliding/tilting sunroof glass panel drive

⇒ page 171

 .

– Remove carrier unit

⇒ page 174

 .

– Remove guide plate

⇒ page 177

 .

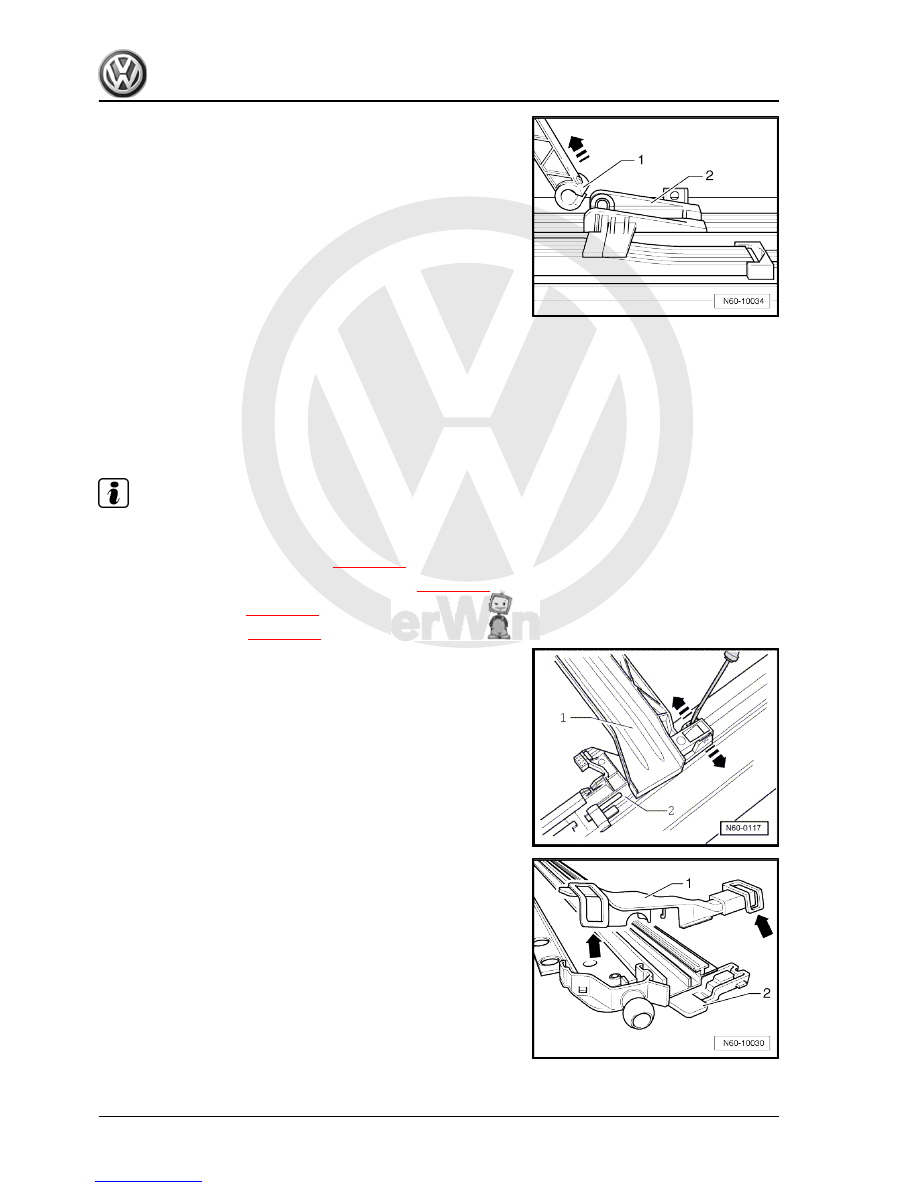

– Detach water channels -1- carefully using a screwdriver at

both sides on guide locating hook -2- in -direction of arrow-

and remove water channels.

– Release end piece upper part -1- fastening -arrows- from end

piece lower part -2- and pull off upwards.

178



released.

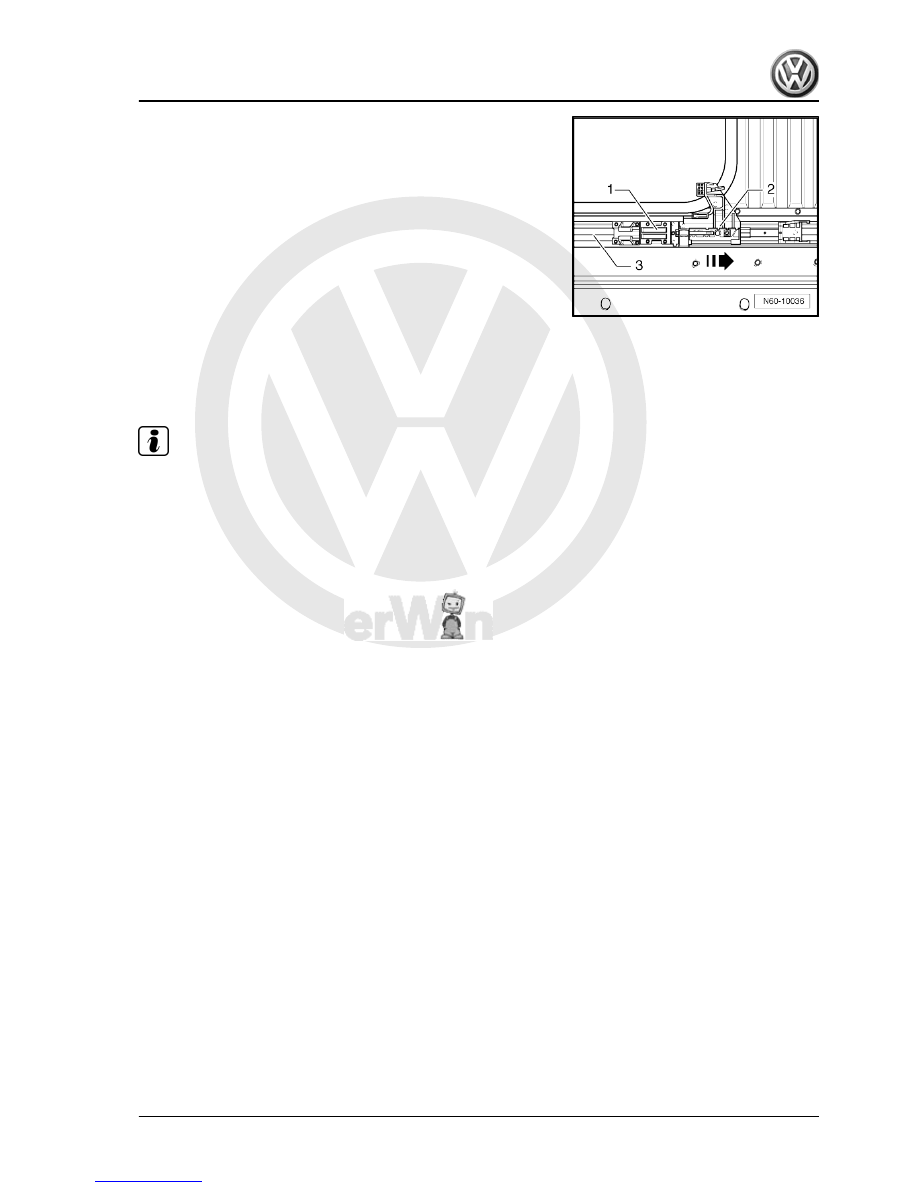

– Pull out rear guide lower part -1- and locking hook guide -2-

together in -direction of arrow- from guide rail -3- and remove.

1.20.2

Installing

Install in reverse order of removal.

1.21

Cleaning water drain hoses

Note

For cleaning, a locally manufactured tool made from a speedom‐

eter inner cable, approx. 2300 mm long is recommended.

1. Sliding/tilting sunroof with glass panel (Meritor)

179



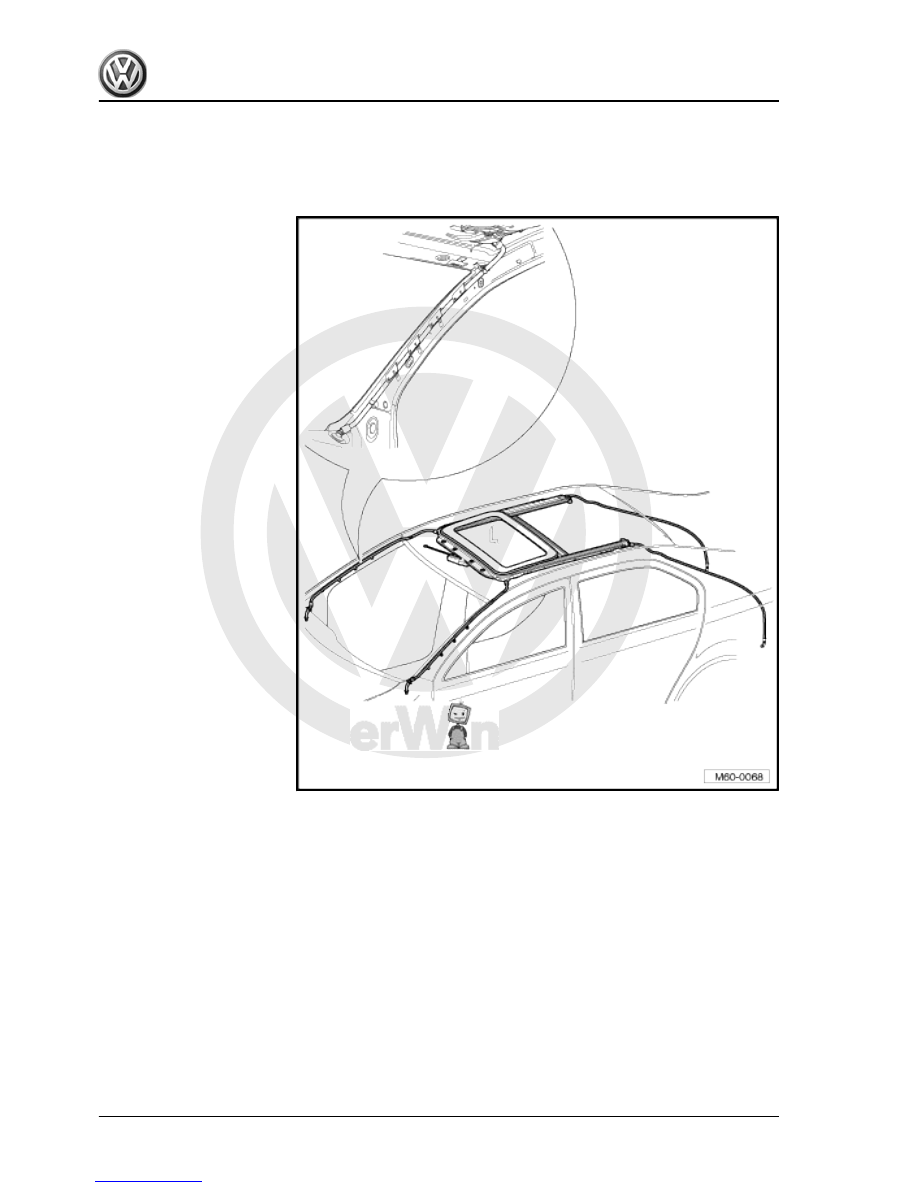

The front water drain hoses run through the A-pillars and end at

the bulkhead cross member. Cleaning is done from the sunroof

panel aperture.

180
