Volkswagen Golf Variant / Jetta. Manual - part 43





1.8

Renewing panel seal

– Removing glass panel for sunroof

⇒ page 166

 .

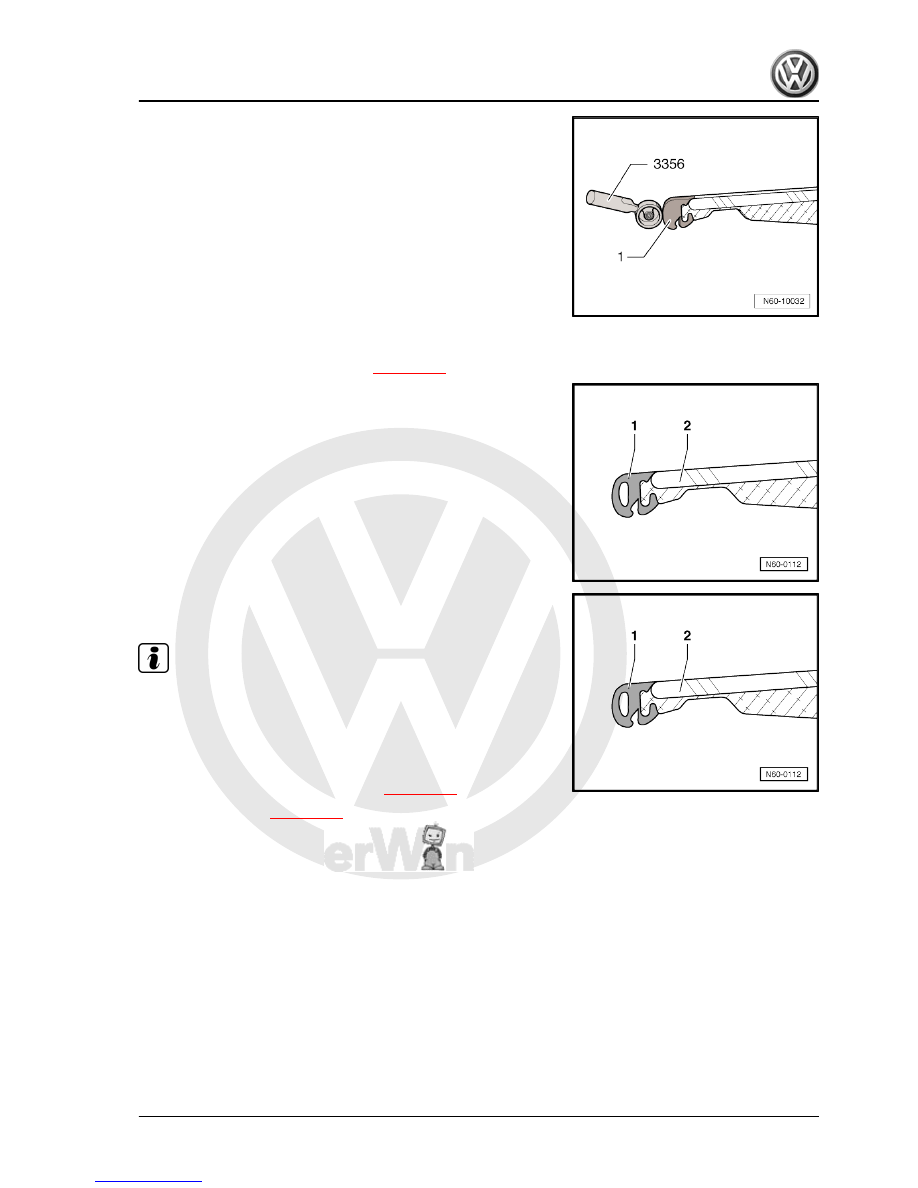

– Pull seal -1- off sliding/tilting sunroof glass panel -2-.

– Fit new seal -1- to rear edge of panel, start in middle and push

onto sliding/tilting sunroof glass panel -2- from bottom to top.

Note

To ease fitting of seal, coat panel edge with a soapy solution.

If the seal is not correctly installed, the surface will ripple.

The panel seal must be shortened to suit the panel circumfer‐

ence.

– Install sliding/tilting roof glass panel

⇒ page 166

 .

– Adjust panel seal

⇒ page 168

 .

1.9

Removing and installing wind deflector

1.9.1

Removing

– Fully open sliding/tilting sunroof glass panel.
– Push wind deflector and height limit stop out of front of roof

aperture and set wind deflector vertical.

1. Sliding/tilting sunroof with glass panel (Meritor)

169



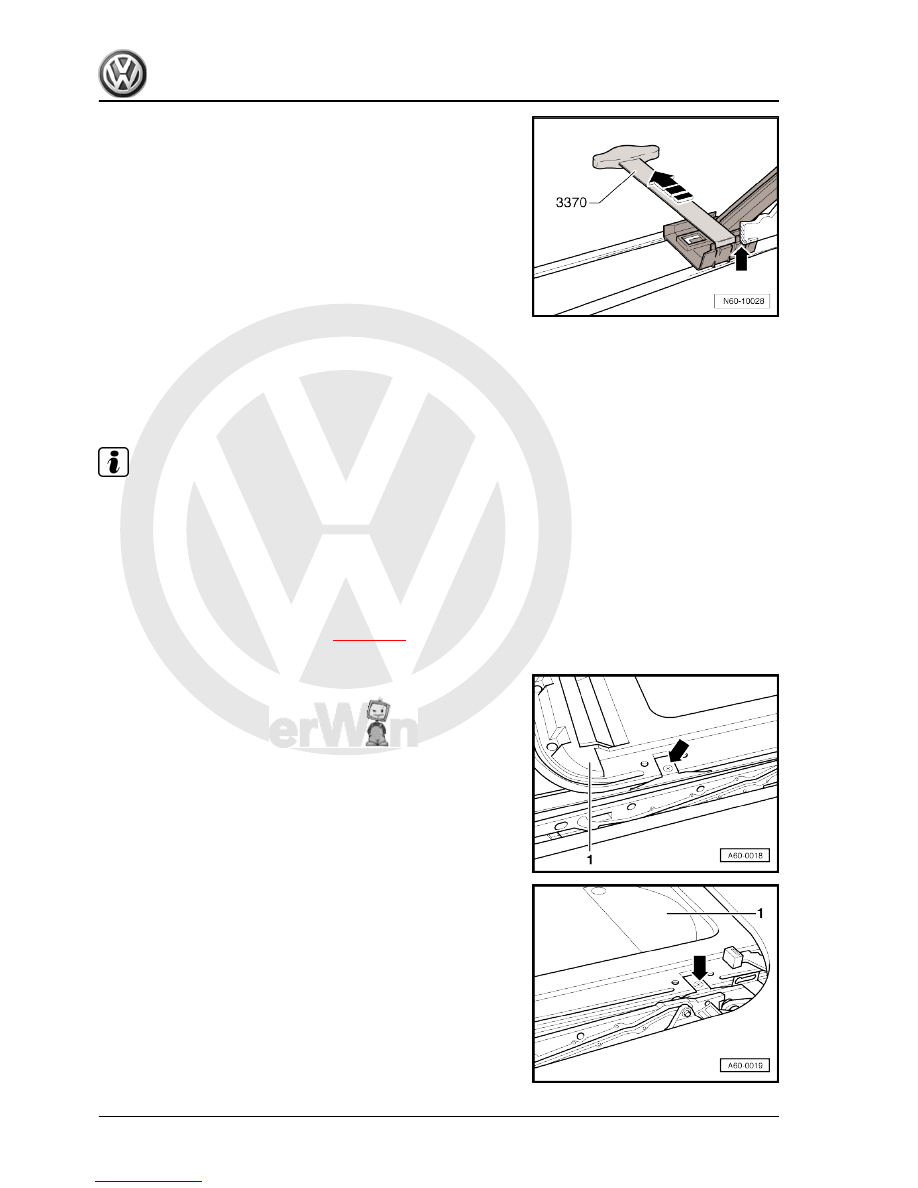

– Pull wind deflector bearings out of detents on left and right, in

direction of -arrow-, using front-end hook -3370- .

– Remove wind deflector upwards out of guide rails.

1.9.2

Installing

– Place wind deflector in guide rails and slide wind deflector with

height limit stop under front of roof aperture on both sides.

– Using light pressure press wind deflector bearings into guide

rails.

Note

Wind deflector bearings must audibly engage in the guide rails.

1.10

Removing and installing sliding headlin‐

er

1.10.1

Removing

– Removing glass panel for sunroof

⇒ page 166

 .

– Move sliding headliner backwards slightly.
– Remove front bolts -arrow- on left and right.
– Push spring slide forwards past the stop -1-.
– Move sliding headliner forwards and lift sliding headliner

slightly above roof aperture.

– Remove rear bolt -arrow- on left and right.
– Push spring slide to rear and remove sliding headliner -1- out

upwards.

170



Install in reverse order of removal.
Finally carry out a functional check.

1.11

Removing and installing sliding/tilting

sunroof glass panel drive

1.11.1

Removing

– Removing lights and front operating unit ⇒  Electrical system;

Rep. Gr.  96 ; Lights and switches in roof trim .

Motor change - preselction switch recognition:

Note

To interrupt the authorization signal and therefore to activate

the switch recognition, the requirements described below must

be fulfilled.

If this is not the case, it can lead to, that the drive does not

correctly recognise the preselection switch and does not run

to the selected positions. This can be seen if the sunroof stops

approx. 10 cm before the fully closed position when the switch

is in the closed position.

Caution

Remove or install drive for tilting/sliding sunroof glass panel

only when sunroof is closed (0 position ).
The requirements for removing and installing drive are: engine

not running and ignition off, key not in ignition and door open.

– Switch off engine and ignition, withdraw key and open door.
This condition must remain until drive has been installed.

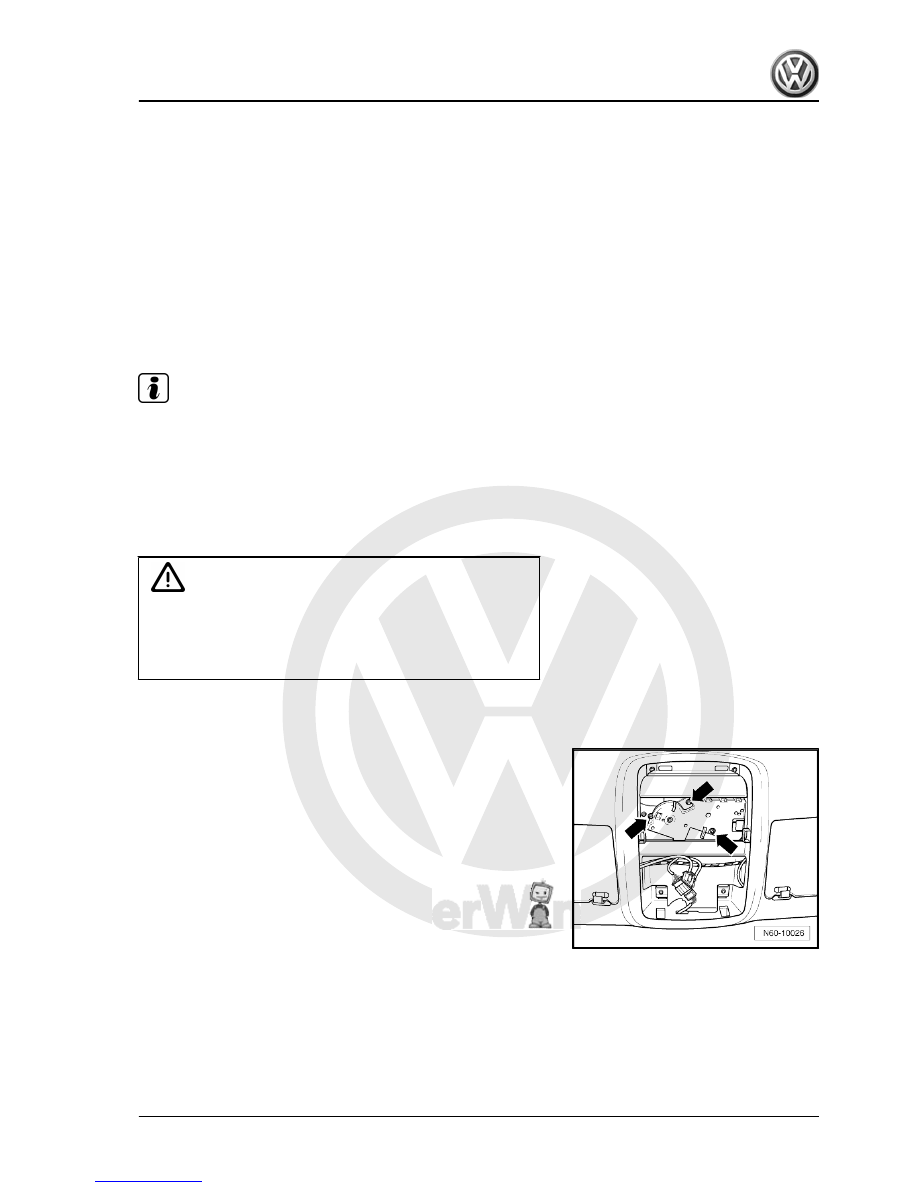

– Remove screws -arrows- and pull off sliding/tilting sunroof

drive.

– Separate connector for sliding/tilting sunroof drive.

1.11.2

Installing

The screws for the sliding/tilting sunroof drive are microencapsu‐

lated and must always be renewed (3.5 Nm).
Install in reverse order of removal.
After installation is complete, key can be inserted into lock cylin‐

der of ignition/starter switch again.

1. Sliding/tilting sunroof with glass panel (Meritor)

171



Adjusting drive for sliding/tilting sunroof

glass panel (0 position)

There may be a requirement to adjust the zero (0) position if the

drive was removed when not in the zero position or the sliding/

tilting sunroof glass panel was opened or closed using the emer‐

gency key.
• Drive removed but still connected electrically.
– Select “open sunroof” using preselection control rotary switch.
– Select “close sunroof” using preselection control rotary switch.
– Select “tilt sunroof” using preselection control rotary switch.
– Select “close sunroof” using preselection control rotary switch.
– Install drive in this position (zero position) with sunroof closed.

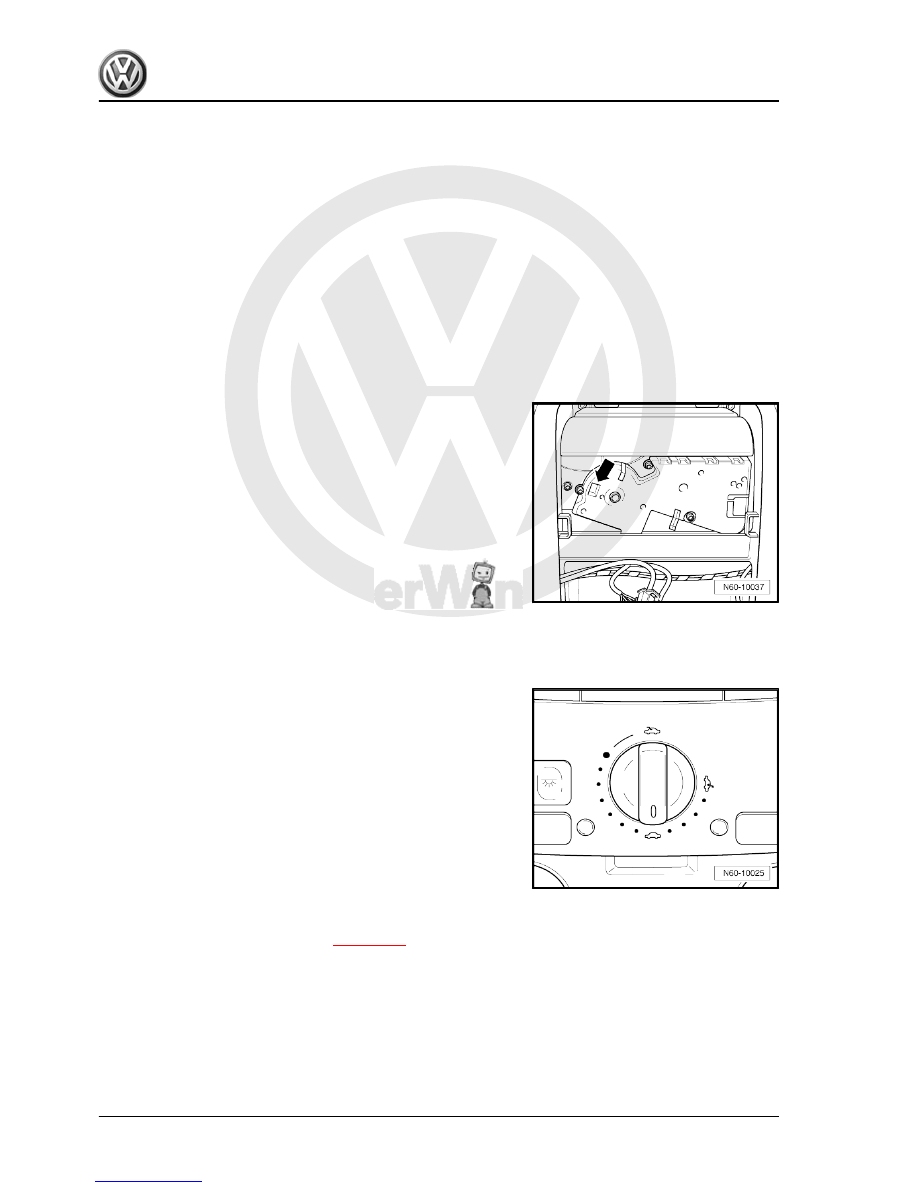

The sliding/tilting sunroof glass panel drive is in zero (0) position,

if a white dot can be seen in the drive aperture -arrow-.

1.13

Removing and installing sliding/tilting

sunroof glass panel automatic preselec‐

tion switch

– Removing preselector for sliding/tilting sunroof roof glass pan‐

el ⇒  Electrical system; Rep. Gr.  96 ; Lights and switches in

roof trim .

1.14

Checking parallel running

– Removing glass panel for sunroof

⇒ page 166

 .

172
