plate -2-.
• The guide plate -2- must be located in the guide rails (cannot

be moved by hand).

1.15

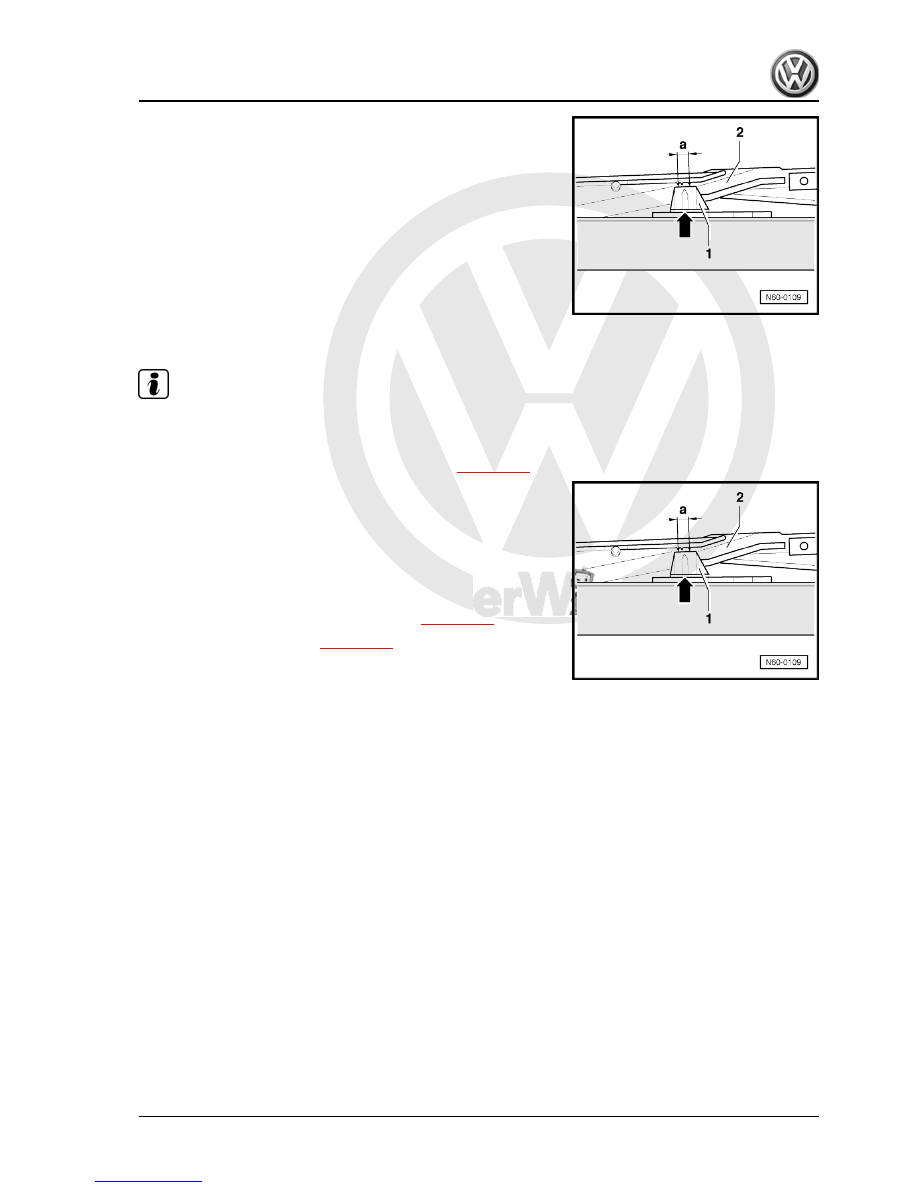

Adjusting parallel running

Note

The parallel running adjustment can only be made when the drive

and glass panel are removed ("0" position).

– Remove sliding/tilting sunroof glass panel drive

⇒ page 171

 .

The mark -arrow- on the rear of the guide upper section -1- must,

on both sides, lie within the marks dimension -a- on the guide

plate -2-.
• The guide plate -2- must be located in the guide rails (cannot

be moved by hand).

– Push guide upper part -1- both sides centrally between the

marks.

– Install drive in this position (zero position)

⇒ page 171

 .

– Then check zero position

⇒ page 172

 .

1. Sliding/tilting sunroof with glass panel (Meritor)

173



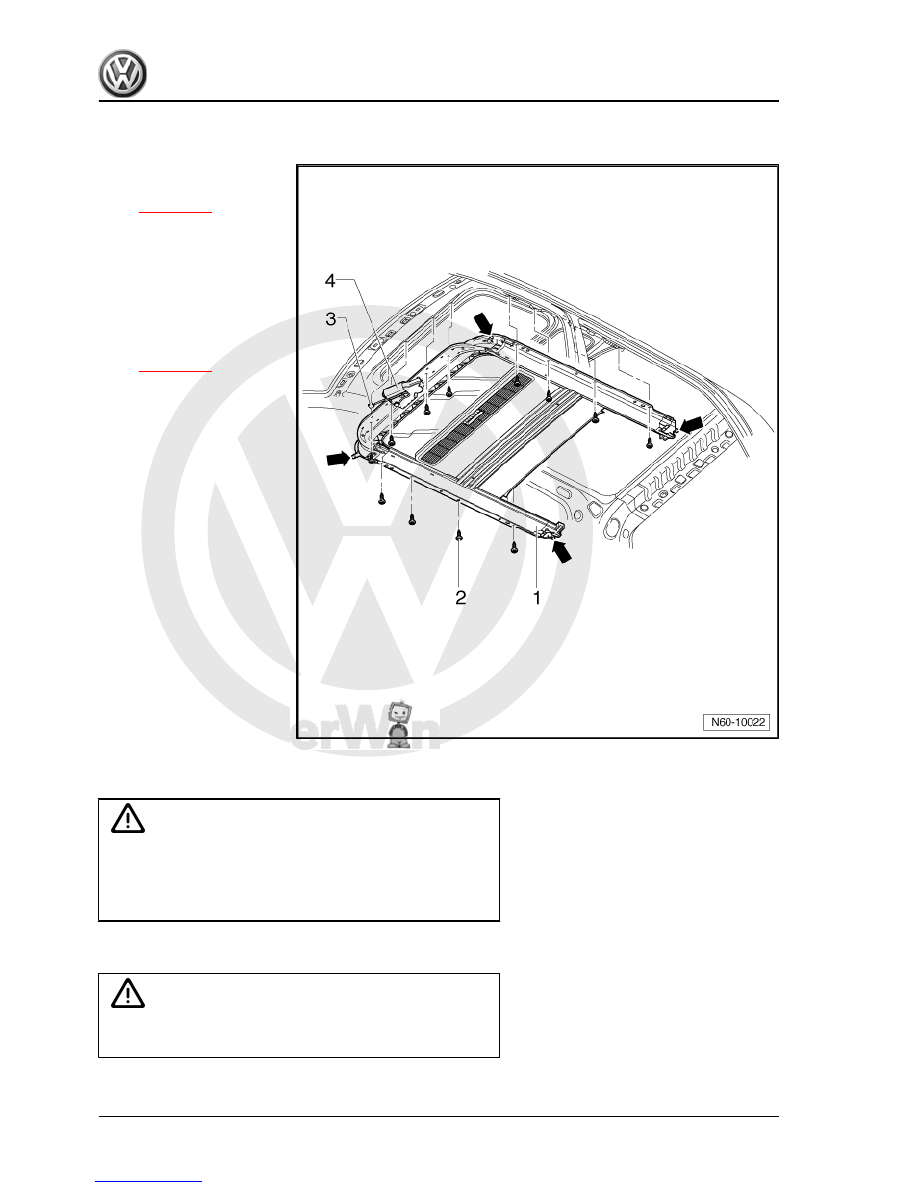

1 - Carrier unit

❑ Removing and installing

⇒ page 174

2 - Bolt

❑ Qty. 12
❑ 8 Nm

3 - Connector
4 - Sliding/tilting sunroof glass

panel drive

❑ Removing and installing

⇒ page 171

1.17

Removing and installing carrier unit

Caution

Remove or install drive for tilting/sliding sunroof glass panel

only when sunroof is closed (0 position ).
The requirements for removing and installing drive are: engine

not running and ignition off, key not in ignition and door open.

1.17.1

Removing

Caution

Carry out following sequences using extreme care so as not to

damage the moulded headliner.

– Lower moulded headliner (moulded headliner is not removed

from the vehicle, the front seats and front passenger door are

174

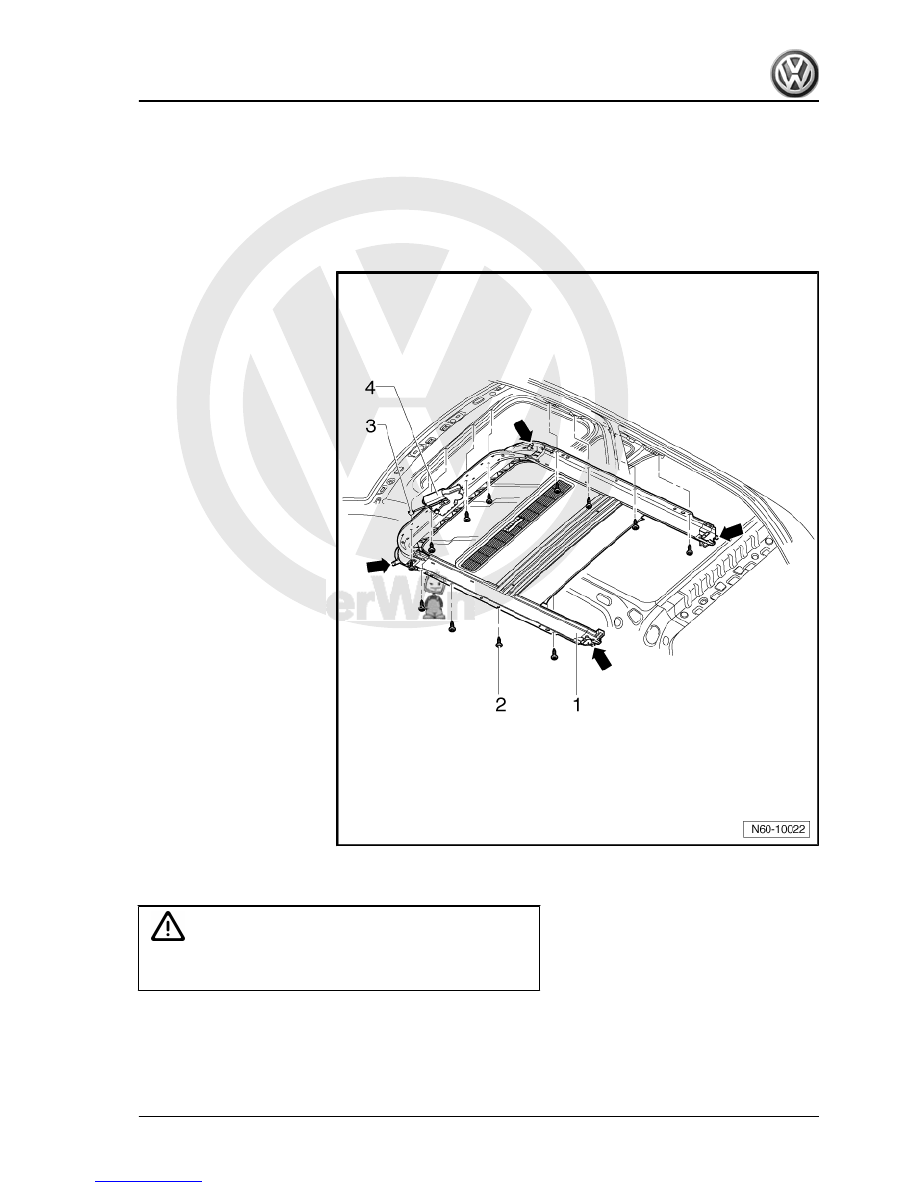

– Pull water drain hoses -arrows- off carrier unit -1-.
– Separate connector -3- on sliding/tilting sunroof glass panel

drive -4-.

– Remove bolts -2- and remove carrier unit -1- from vehicle with

the help of a second mechanic.

1.17.2

Installing

Caution

Carry out following sequences using extreme care so as not to

damage the moulded headliner.

– Fit carrier unit -1- into roof aperture with the help of a second

mechanic.

– During installation align carrier unit -1- in roof using two cylin‐

drical pins (shank end of drill) 12 mm front right and 10 mm

rear left.

1. Sliding/tilting sunroof with glass panel (Meritor)

175

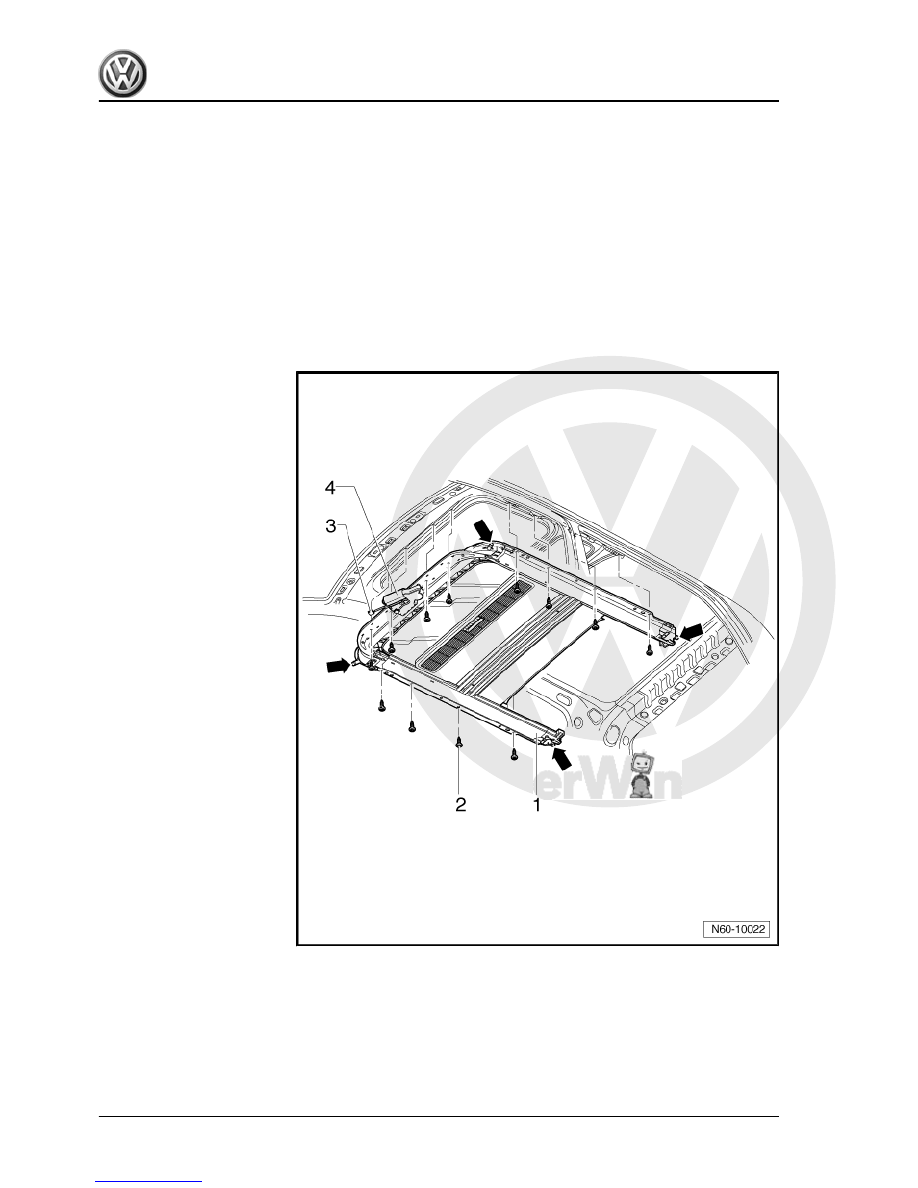

– Tighten screws (8 Nm) for carrier unit -1-, starting at sunroof

drive -4- and moving rearward, alternating between left and

right sides.

– Install water drain hoses -arrows-.
– Attach connector -3- on sliding/tilting sunroof glass panel drive

-4-.

– Install moulded headliner ⇒  General body repairs, interior;

Rep. Gr.  70 ; Roof trims .
