Volkswagen Golf Variant / Jetta. Manual - part 38





2. Rear door (Variant)

149

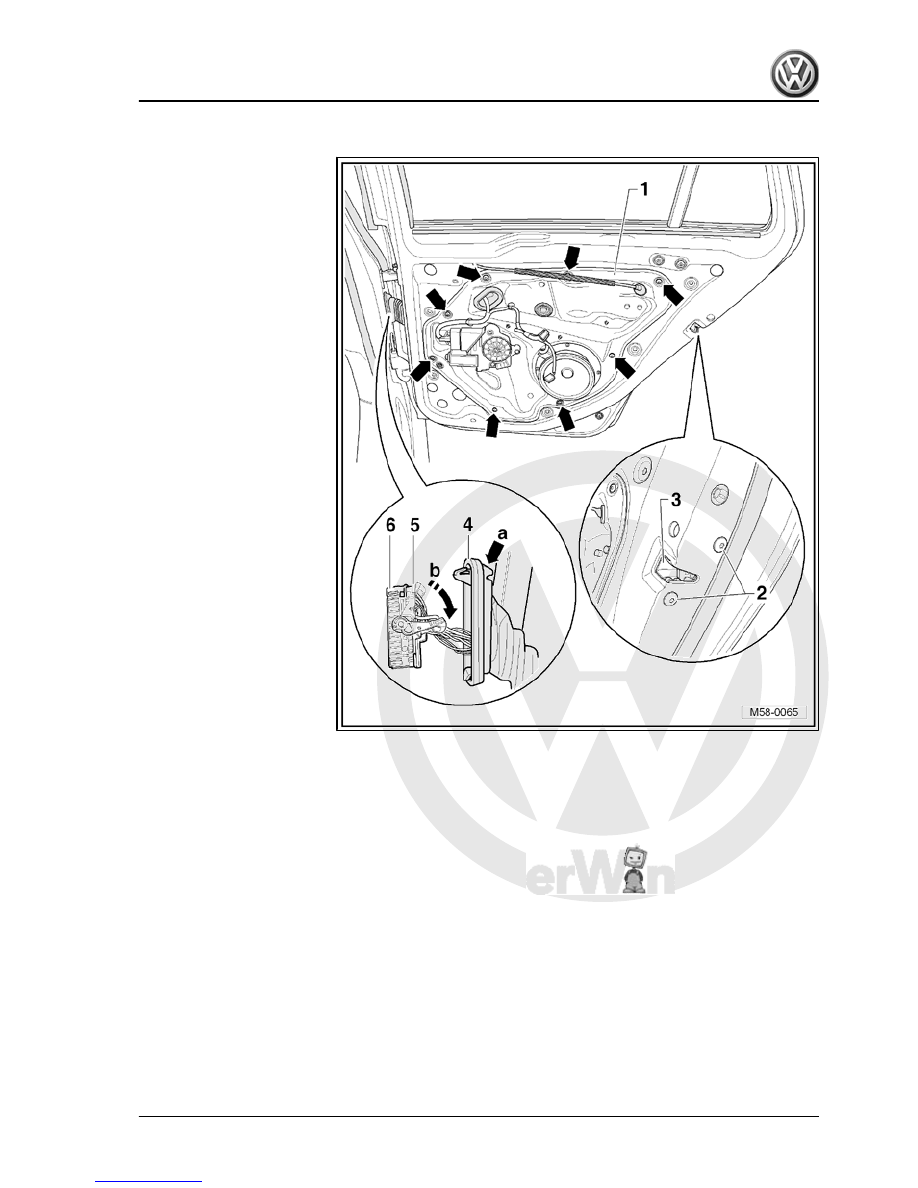

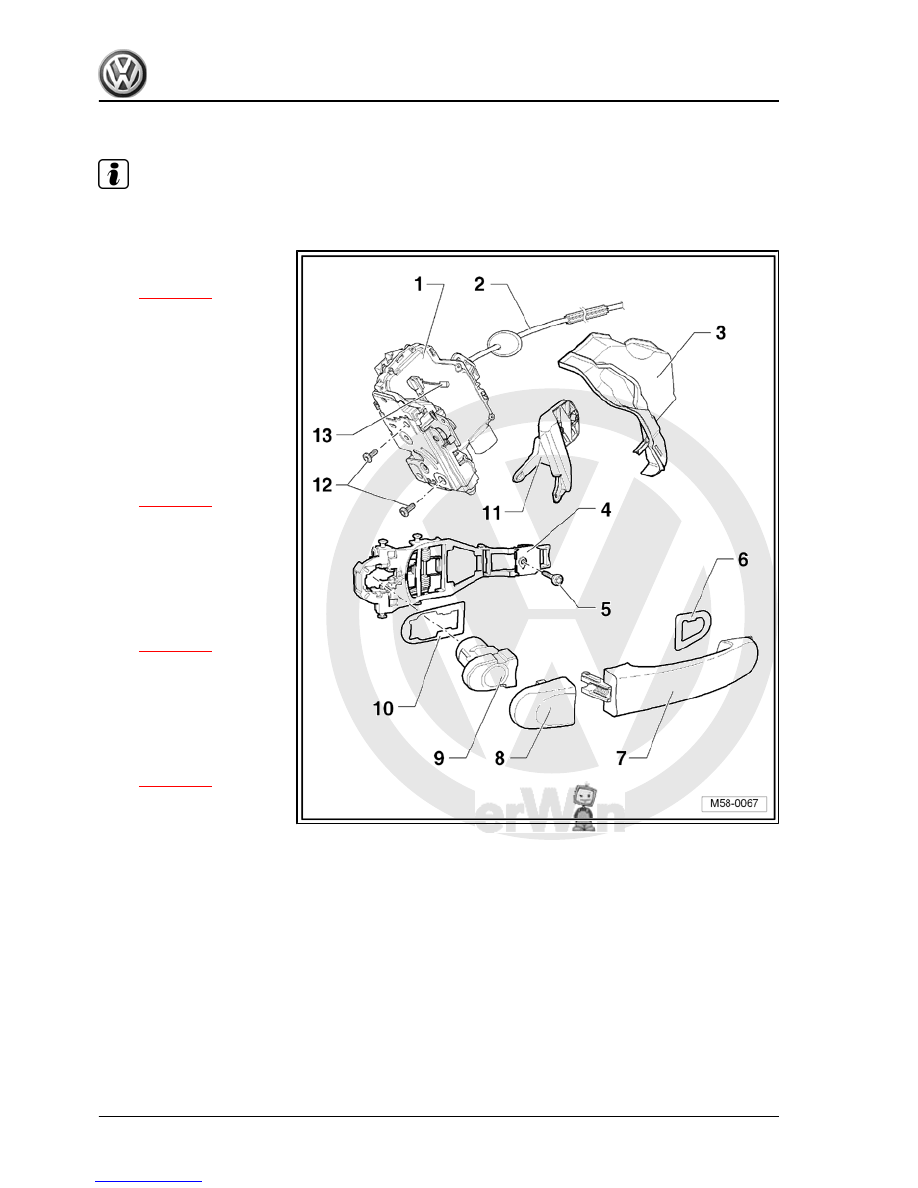

Note

The right side is shown. The left side is similar.

1 - Door lock

❑ Removing and installing

⇒ page 155

2 - Cable

❑ To lock release from in‐

terior door handle.

3 - Cover

❑ Not supplied with door

lock.

❑ Secured on door lock

with locking lugs

4 - Bearing bracket

❑ Removing and installing

⇒ page 154

5 - Torx bolt

❑ 4.5 Nm

6 - Base

❑ Part of door handle.

7 - Door handle with base

❑ Removing and installing

⇒ page 151

8 - Cover

❑ For housing
❑ Secured on housing

with locking lugs

9 - Housing

❑ Removing and installing

⇒ page 151

10 - Base
11 - Door lock bracket

❑ Not supplied with door lock.
❑ Pushed onto door lock and riveted.

12 - Bolt

❑ 18 Nm

13 - Cable

❑ To release lock from door exterior handle.

150



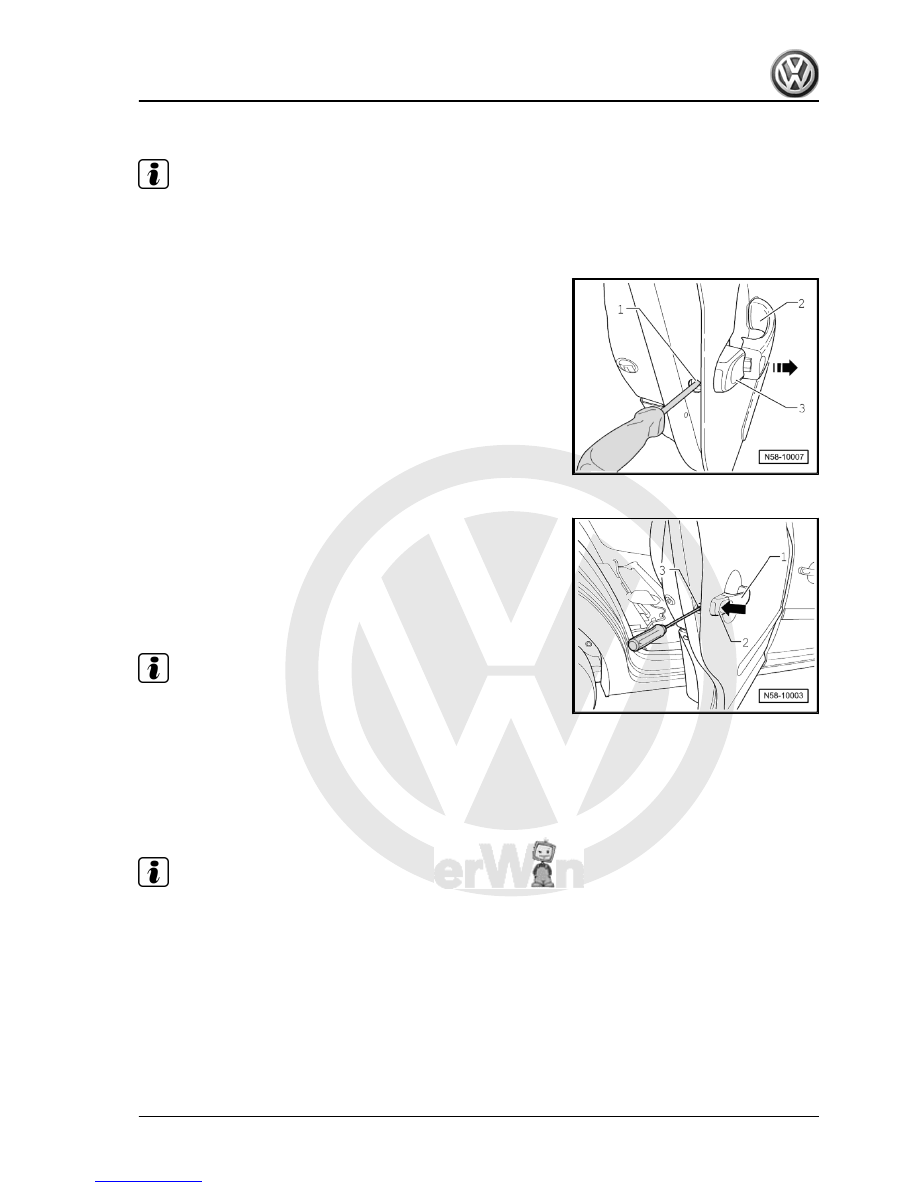

Note

Removal and installation sequence is only for right housing. Re‐

moval and installation of left housing is similar.

2.9.1

Removing

– Lever out caps in front of bolts -1-.
– Pull door handle -2- in direction of -arrow- and unbolt bolt -1-

onto stop using socket wrench -T10072- .

– Pull housing -3- out of door handle bearing bracket at right

angles to door.

2.9.2

Installing

– Fit housing -2- in door handle -1- bearing bracket at right an‐

gles -arrow-.

Door handle -1- must rest only lightly against door panel.
– Now tighten bolt -3- in bearing bracket using socket wrench -

T10072- .

The door handle engages in housing again with an audible click.

Note

During installation, housing must be pressed against door panel.

The door handle just rests lightly against the door panel.

Further installation is performed in reverse order of removal.
Then always check function while door is still open, as an incor‐

rectly fitted and adjusted Bowden cable cannot open the door.

2.10

Removing and installing door handle

Note

The removal and installation sequence is only for the right door

handle. The removal and installation of the left door handle is

similar.

2. Rear door (Variant)

151



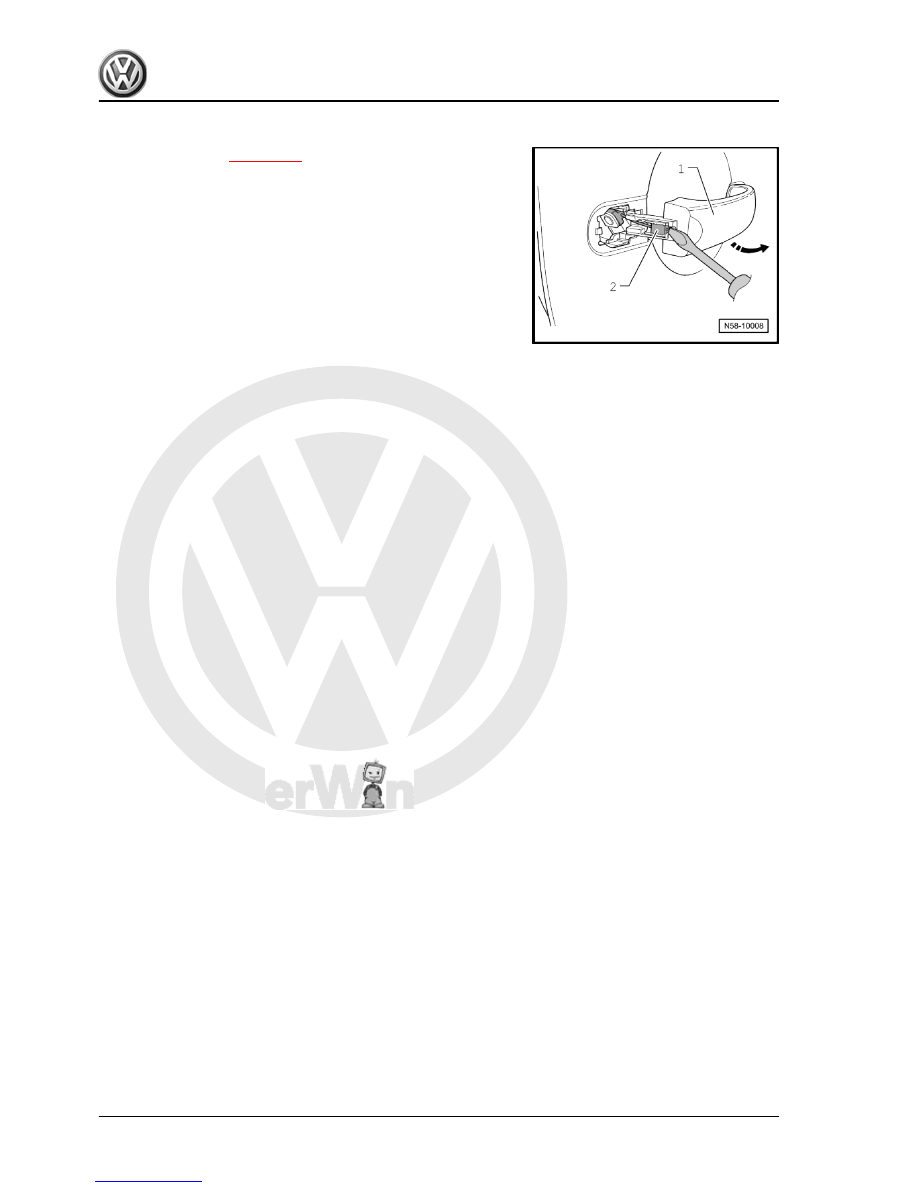

– Remove housing

⇒ page 151

 .

– Lever clip -2- out of door handle -1-.
– Swivel door handle -1- out of door -arrow-.

2.10.2

Installing

– Guide assembly tool -T10118- into door through opening in

door outer panel.

– Use a hand torch to illuminate inside of door for improved vis‐

ibility.

– Hook assembly tool -T10118- in spring -arrow A-.
– Hook spring onto door lock by pulling assembly tool -T10118-

-arrow B-.

The release lever is now secured.

152
