Removing and installing assembly car‐

rier

Note

The removal and installation sequence is only for the right as‐

sembly carrier. The removal and installation of the left assembly

carrier is similar.

Window regulator, door lock and loudspeaker are secured to the

assembly carrier.
The door lock can be removed only together with the assembly

carrier.
If door window cannot be lowered on electric window version, first

determine the cause of the fault.
To do this, read the fault memory of the convenience system us‐

ing vehicle diagnostic, testing and information system -VAS 5051

A- or -VAS 5052- ⇒ Vehicle diagnosis, testing and information

system VAS 5051.
If an electrical fault exists, rectify it first.
If an electric fault occurs on window regulator motor, it can be

unscrewed from assembly carrier and door window can be slid by

hand in the necessary repair position.

2.7.1

Removing

Remove door handle

⇒ page 152

 .

70 ; Roof trims .

2. Rear door (Variant)

145



Note

If the procedure cannot be carried out because there is a fault with

the electric window regulator, remove electric window motor to

slide window down.

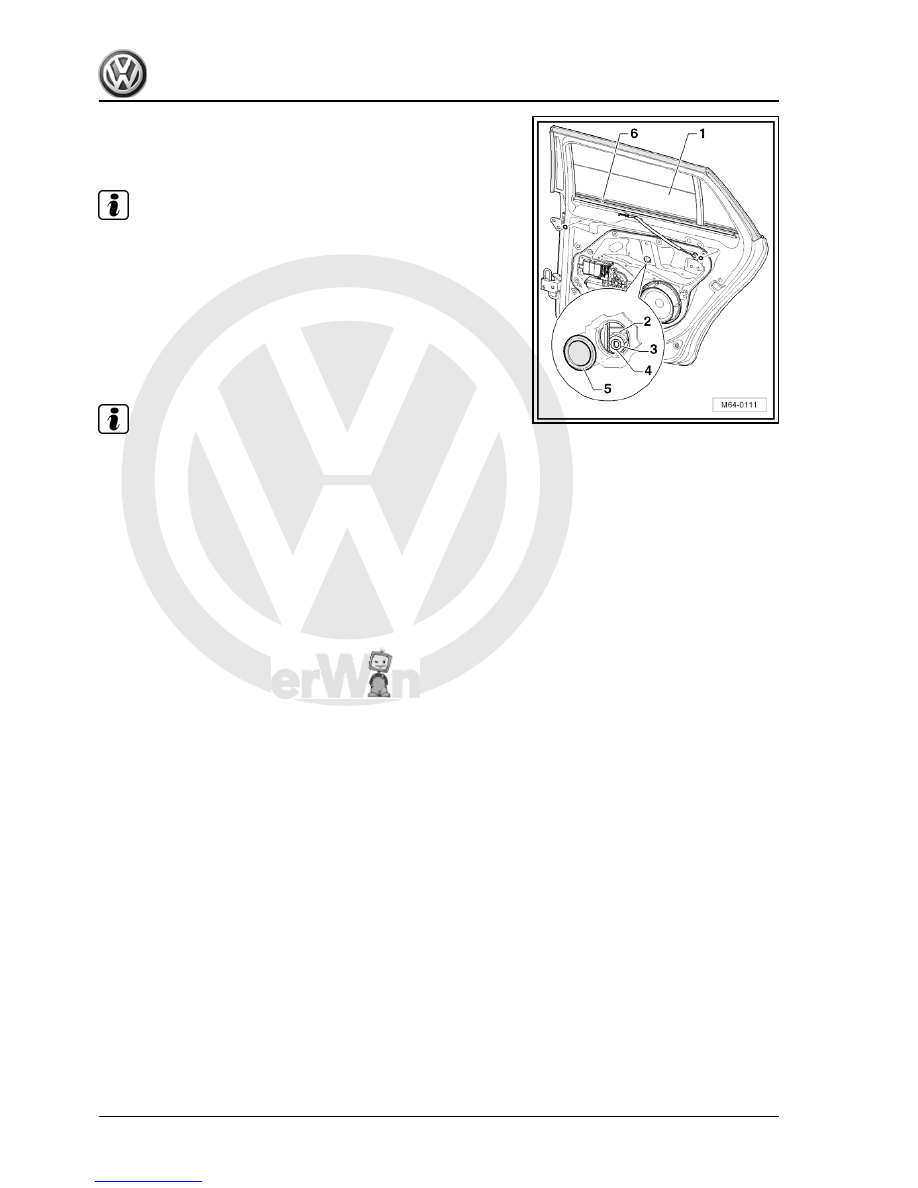

– Screw a 5 mm bolt (approx. 70 mm long) into spreader pin

-3-.

– Pull bolt and spreader pin out of spreader plug -4-.
– Screw an 8 mm bolt (approx. 80 mm long) into spreader plug

-4-.

Note

Do not exert too great a pressure on the plug because otherwise

the plug will fall into the door.

– Pull spreader plug -4- out of clamping jaws -2- and therefore

out of door window.

– Push window -1- upwards and secure in position (e.g. with

adhesive tape).

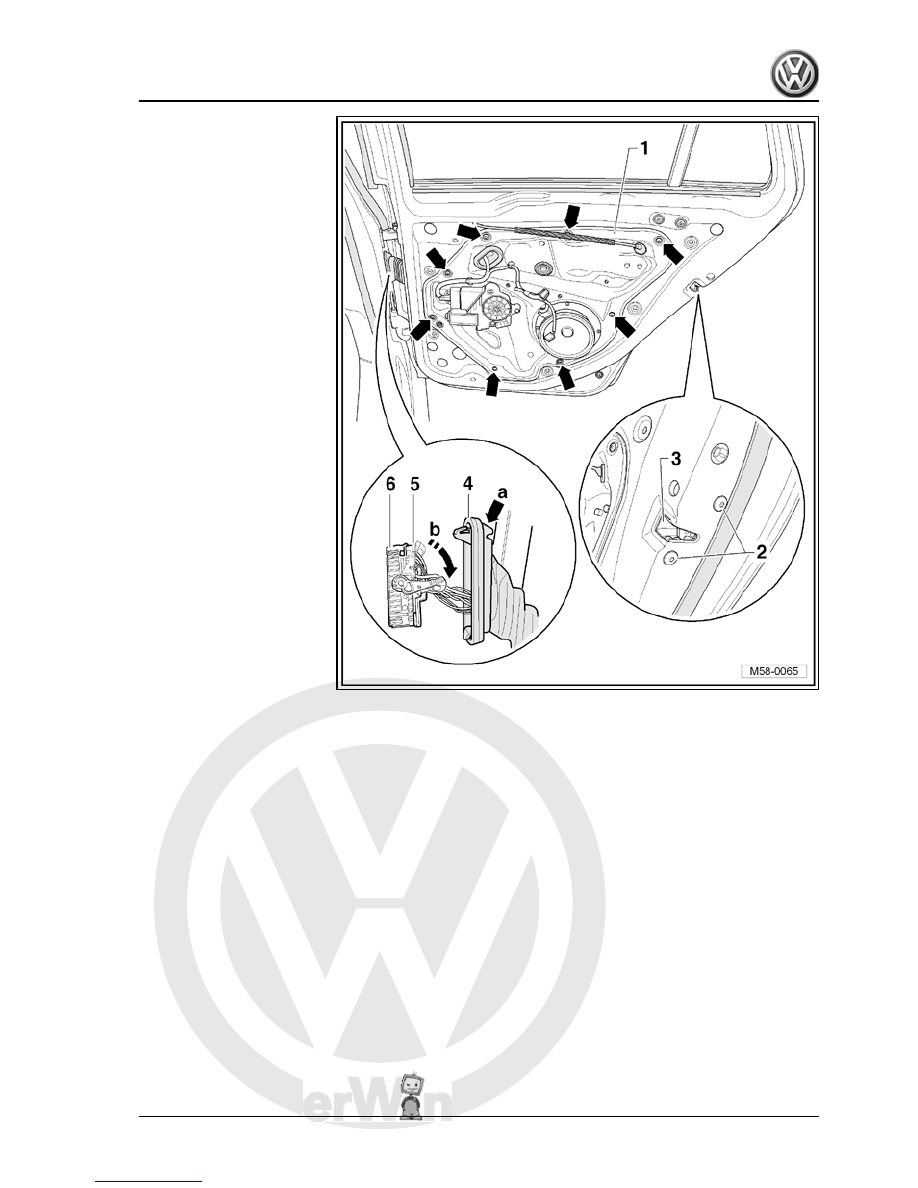

– Release boots -4- by pressing fastener -arrow a- and pull

boots off B-pillar.

– Swing release lever -5- downwards -arrow b- and disconnect

electrical connector -6- from coupling station.

– Unscrew bolts -2- from door lock -3-.
– Unscrew bolts -arrow- from assembly carrier -1-.

146



2. Rear door (Variant)

147

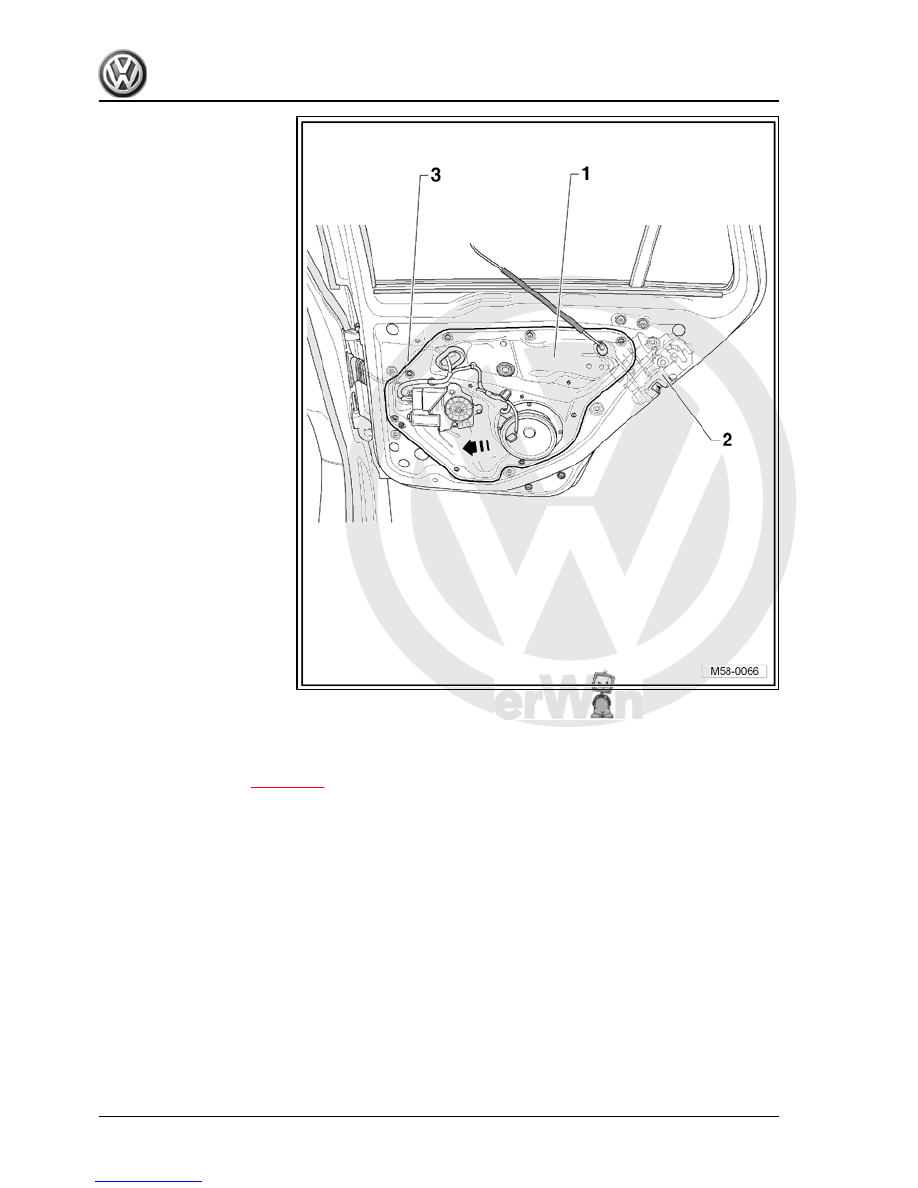

Install in reverse order of removal.
– Secure door window

⇒ page 310

 .

– Specified torque for assembly carrier bolt -arrow-: 8 Nm
