Volkswagen Golf / Golf Plus. Manual - part 316





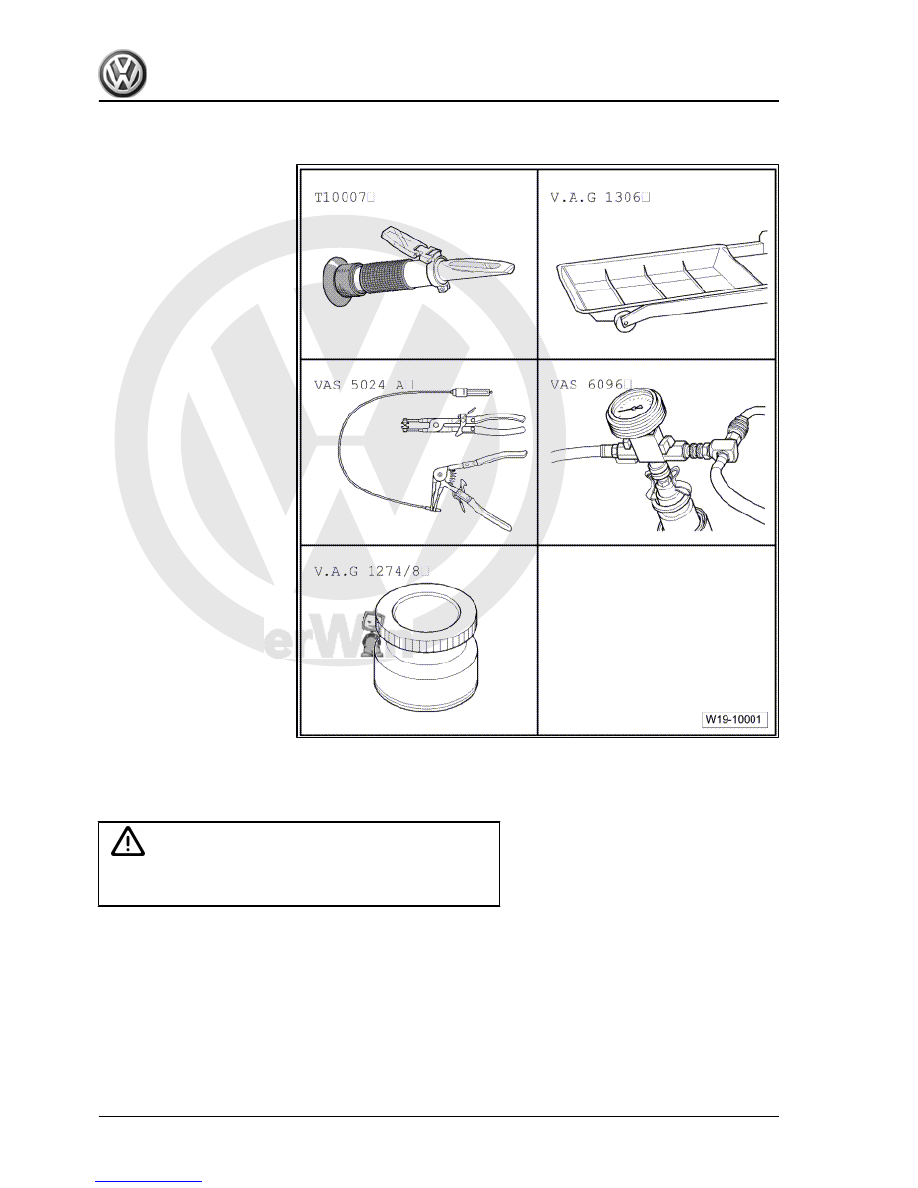

Special tools and workshop

equipment required
♦ Refractometer -T10007-
♦ Drip tray -V.A.G 1306-
♦ Spring-type clip pliers -

VAS 5024 A-

♦ Cooling system charge unit

-VAS 6096-

♦ Adapter -V.A.G 1274/8-

1.4.1

Draining

– Open cap on coolant expansion tank.

WARNING

Steam may be released when cap is removed from expansion

tank. Cover cap with a cloth and open carefully.

– Remove insulation tray. ⇒  General body repairs, exterior;

Rep. Gr.  50 ; Body - front; Assembly overview .

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

102

     Rep. Gr.19 - Cooling



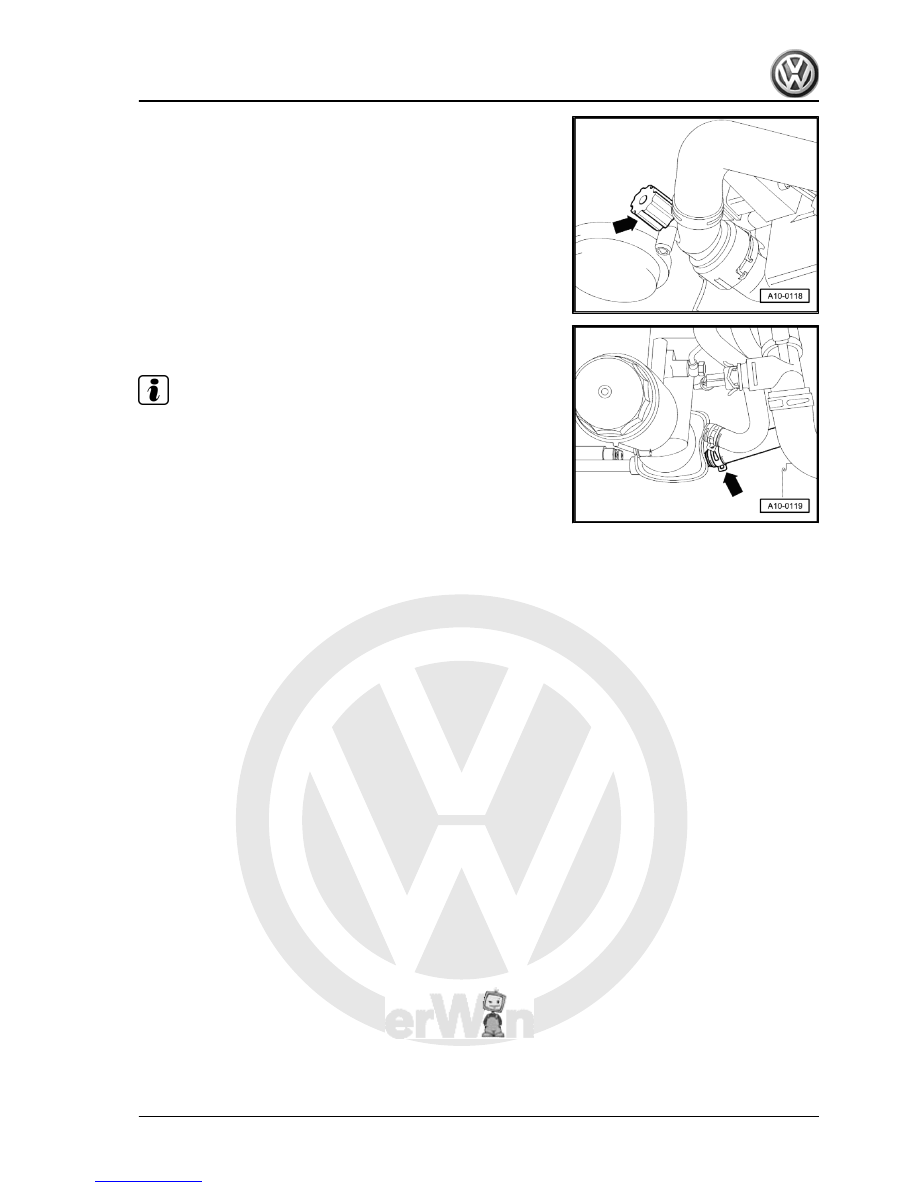

engine oil cooler -arrow-.

Note

Observe environmental regulations for disposal.

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

1. Parts of cooling system

103



Note

In vehicles as of model year 2008, only G 12 plus-plus ac‐

cording to TL VW 774 G may be used as coolant additive.

For vehicles up to and including model year 2007 coolant ad‐

ditive G 12 plus according to TL VW 774 F and G 12 plus-plus

according to TL VW 774 G can be used.

The coolant additive G 12 plus-plus can be mixed with the

previous coolant additive G 12 plus. Identification: Both are

coloured purple.

Coolant additives marked “according to TL VW 774 G” or “ac‐

cording to TL VW 774 F” prevent frost and corrosion damage,

scaling and also raise boiling point of coolant. Therefore, the

cooling system must be filled all year round with coolant ad‐

ditive and corrosion protection additive.

Because of its higher boiling point, the coolant improves en‐

gine reliability under heavy loads, particularly in countries with

tropical climates.

Frost protection is required down to about -25 °C (in countries

with arctic climates: down to about -35 °C).

The coolant concentration must not be reduced by adding wa‐

ter even in warmer seasons and in warmer countries. The

coolant additive concentration must be at least 40 %.

If for climatic reasons greater frost protection is required, the

amount of coolant additive can be increased, but only up to 60

% (frost protection to about -40 °C). Otherwise frost protection

and cooling effectiveness are reduced again.

The refractometer -T10007- is recommended for determining

the current anti-freeze concentration.

If radiator, heat exchanger, cylinder head or cylinder head

gasket is renewed, do not reuse old coolant.

Recommended mixture ratios:

Frost

protection to

Anti-freeze

proportion

G 12 plus

1)

G 12 plus-

plus

1)

Water

1)

-25 °C

-35 °C

40 %

50 %

3.2 l

4.0 l

4.8 l

4.0 l

1)

 The quantity of coolant can vary depending upon the vehicle

equipment.
– Close radiator drain plug.
– Connect coolant hoses to oil cooler.
– Install noise insulation tray. ⇒  General body repairs, exterior;

Rep. Gr.  50 ; Body - front; Assembly overview .

– Screw adapter -V.A.G 1274/8- onto expansion tank.
– Fill coolant circuit using cooling system charge unit -

VAS 6096- ⇒  Operating instructions for cooling system charge

unit VAS 6096

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

104

     Rep. Gr.19 - Cooling

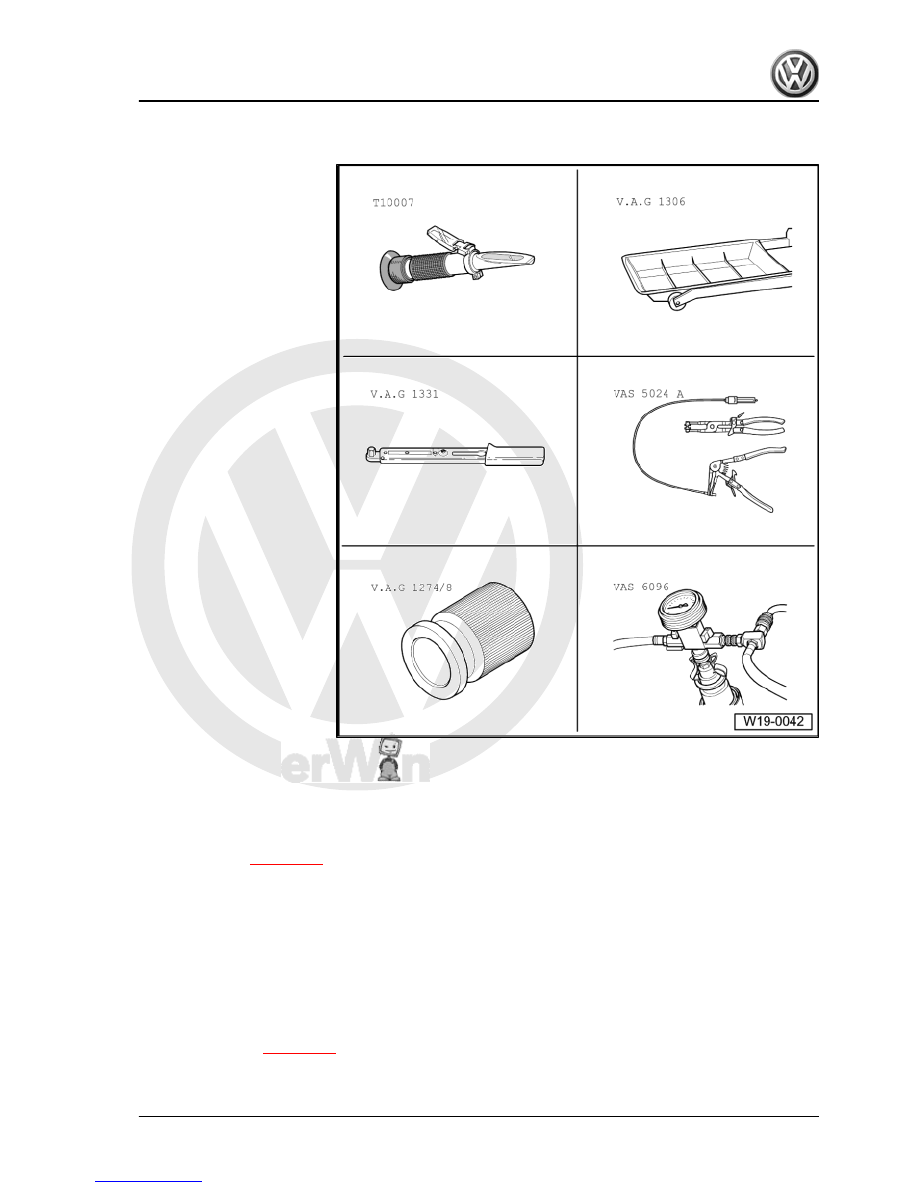

Special tools and workshop

equipment required
♦ Refractometer -T10007-
♦ Drip tray -V.A.G 1306-
♦ Torque wrench -

V.A.G 1331-

♦ Spring-type clip pliers -

VAS 5024 A-

♦ Adapter -V.A.G 1274/8-
♦ Cooling system charge unit

-VAS 6096-

1.5.1

Removing

– Bring lock carrier into service position. ⇒  General body re‐

pairs, exterior; Rep. Gr.  50 ; Body - front; Lock carrier service

position .

– Drain coolant.

⇒ page 102

– Pull coolant hoses off radiator.
– Separate connector for radiator fan.
– Remove radiator securing bolts.
– Remove radiator downwards.

1.5.2

Installing

Installation is carried out in the reverse order. When installing,

note the following:
– Fill with coolant.

⇒ page 102

4-cylinder diesel engine (1.9 l engine) - Edition 01.2009

1. Parts of cooling system

105
