– Position side member extension -1- from above -arrows- even‐

ly into retaining strip -3- and press side member extension into

retaining strip until the two parts engage.

– Now pull protective films -2- on side member extension -1- off

upwards and backwards.

– Only now remove film -4- and press side member extension

-1- on forcefully in bonding area.

– Tighten bolts -5-, beginning with front bolt on wing.

4.9

Retaining strip for side member exten‐

sion

4.9.1

Removing

• Side member extension removed

⇒ page 251

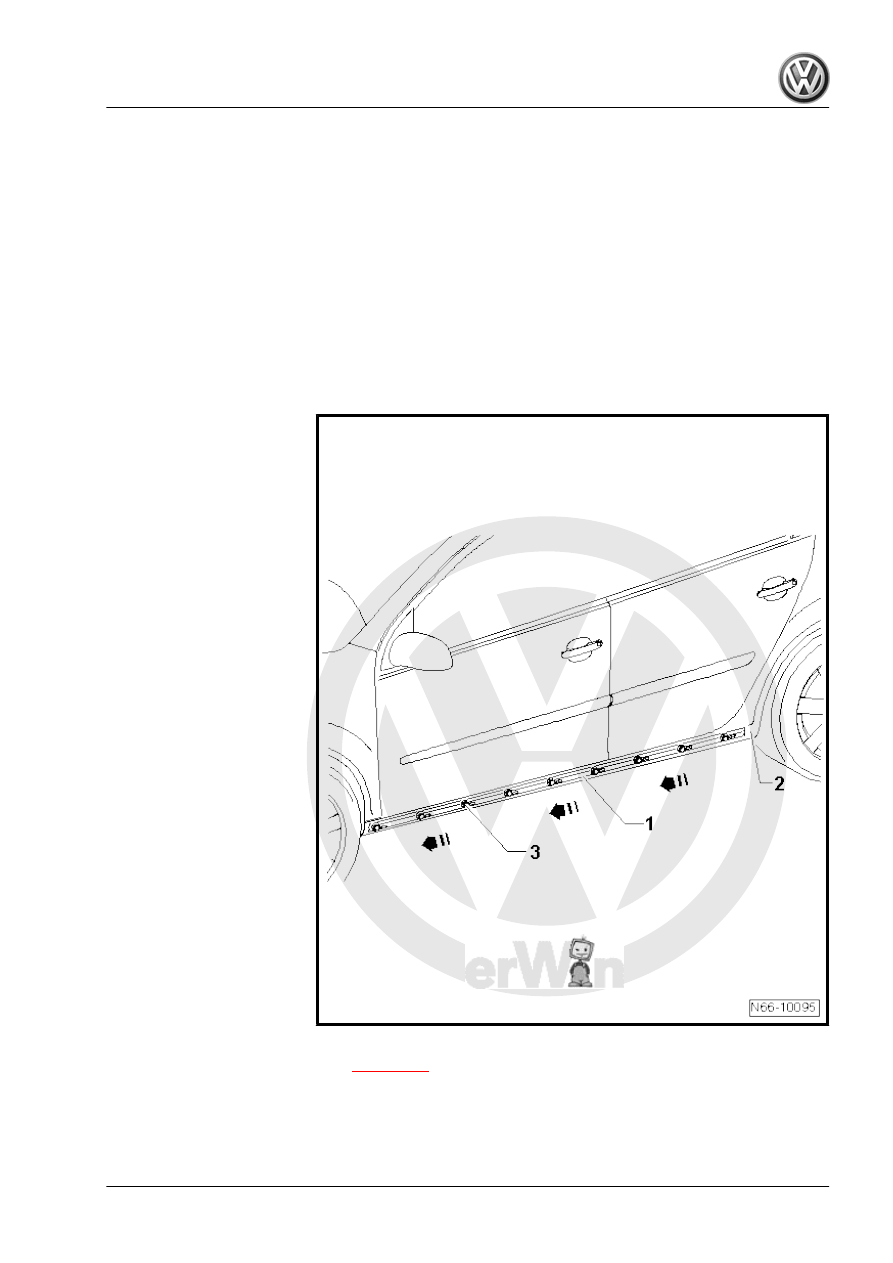

– Push retaining strip -1- in direction of travel -arrows- from fas‐

tening bolts -3- and remove from side skirts -2-.

General body repairs, exterior - Edition 04.2008

4. Mouldings and trims

253

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.9.2

Installing

Note

The securing screws for the retaining strip are corrosion-re‐

sistant. No further secondary treatment is required.

If a screw is overtightened, it is essential to replace it with a

“black” oversize screw.

• There are no pre-drilled holes for the securing screws.
– Measure holes according to the table below.
– Mark holes for securing screws with centre punch.
– Drill out holes with a 1.5 mm drill bit.

General body repairs, exterior - Edition 04.2008

254

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Note

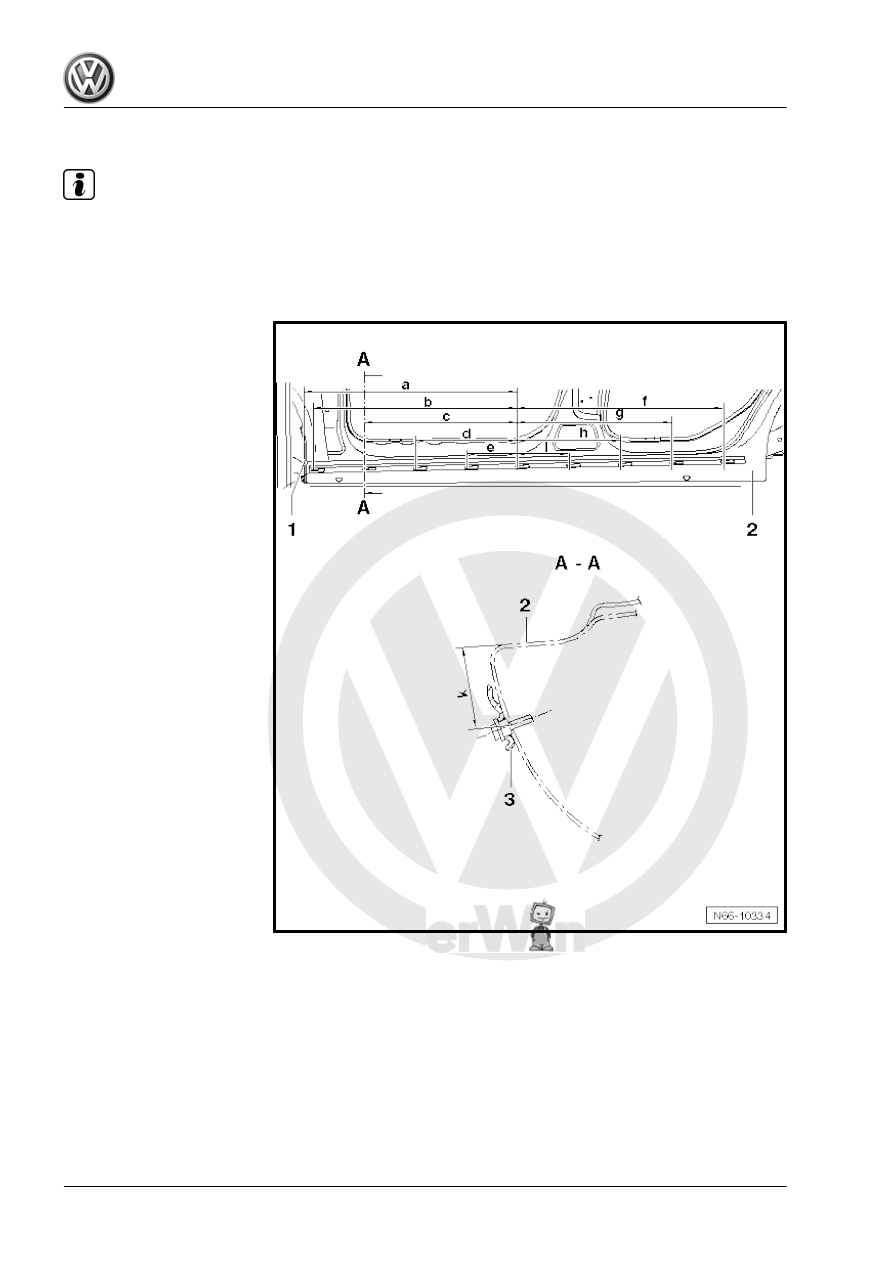

Dimension -a- is measured including wheel housing liner -2-. The other dimensions -b through i- are always

measured from the centres of the holes.

Dimension -k- can only be measured in rear area on 4-door vehicles.

For two-door vehicles, determine dimension -k- in height to the front holes.

The table follows.

Dimension -a-

= 855 mm

Dimension -b-

= 822 mm

Dimension -c-

= 617 mm

Dimension -d-

= 411 mm

Dimension -e-

= 205 mm

Dimension -f-

= 205 mm

Dimension -g-

= 411 mm

Dimension -h-

= 617 mm

Dimension -i-

= 822 mm

Dimension -k-

= 37 mm

That was the table.

General body repairs, exterior - Edition 04.2008

4. Mouldings and trims

255

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

• If all securing bolt holes are pre-drilled

⇒ page 254

 .

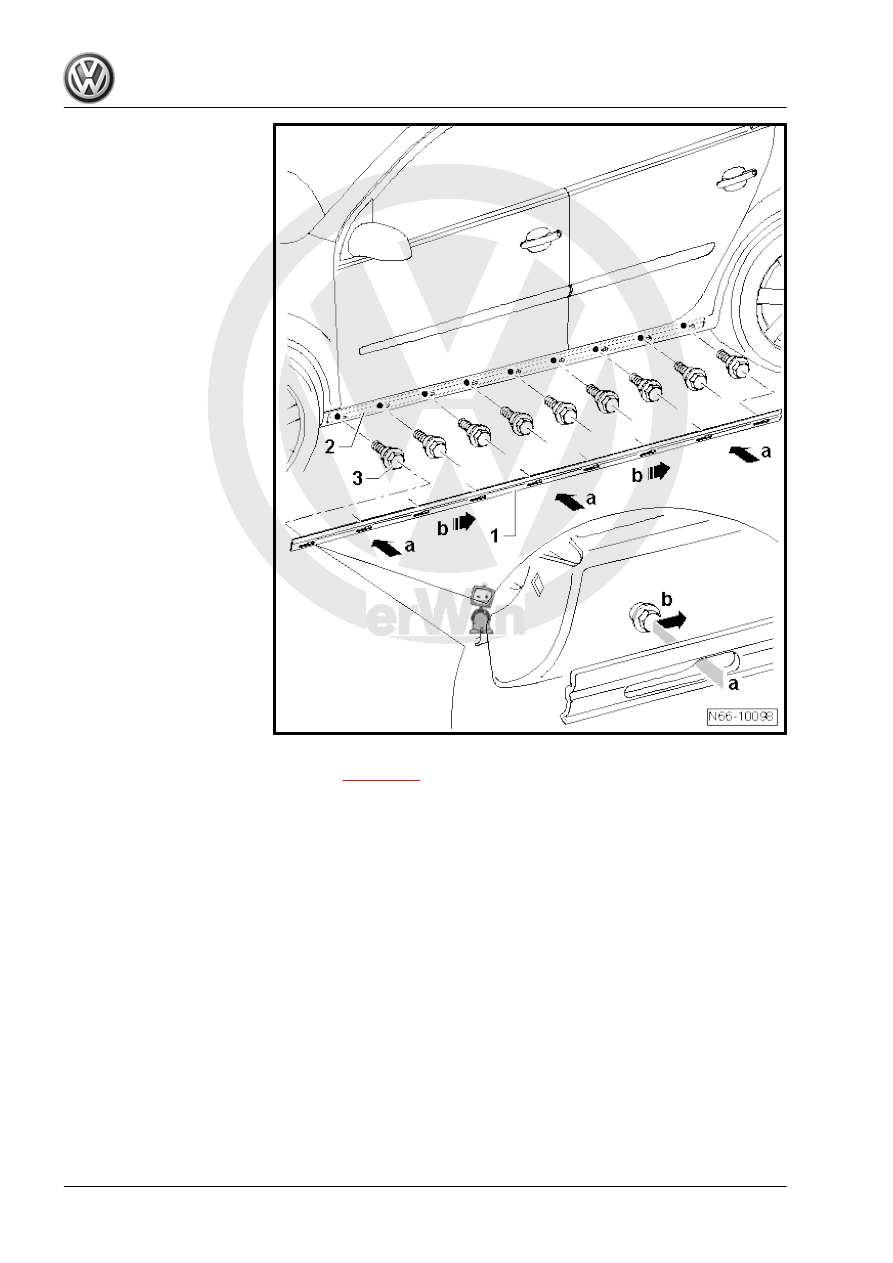

– Screw in self-tapping screws -3- with cordless drill/driver -VAS

5036- , using the highest speed, until the screw takes hold.

Remove cordless drill/driver from head of screw immediately.

– Tighten screws using lowest torque setting (so that screws are

not overtightened).

– Position openings on back of retaining strip -1- evenly

-arrows a- over all securing bolts -2- until retaining strip con‐

tacts side skirts -2-.

So that all securing bolts remain in the apertures when sliding on,

position retaining strip with a second mechanic.
– Slide retaining strip to rear -arrow b- on to stop.

General body repairs, exterior - Edition 04.2008

256

     Rep. Gr.66 - Exterior equipment
