4.5

Renewing side protective mouldings

Note

Installation is only described for the left side. The procedure for the right side is similar.

Remove protective backing immediately before installation. Working temperature approx. 21 °C

Curing time after attaching side protective strips is about 4 hours at a room temperature of about 21° C.

Adhesive remover D 002 000 10 must be used exclusively.

The side protective strips must be bonded in place immediately after cleaning.

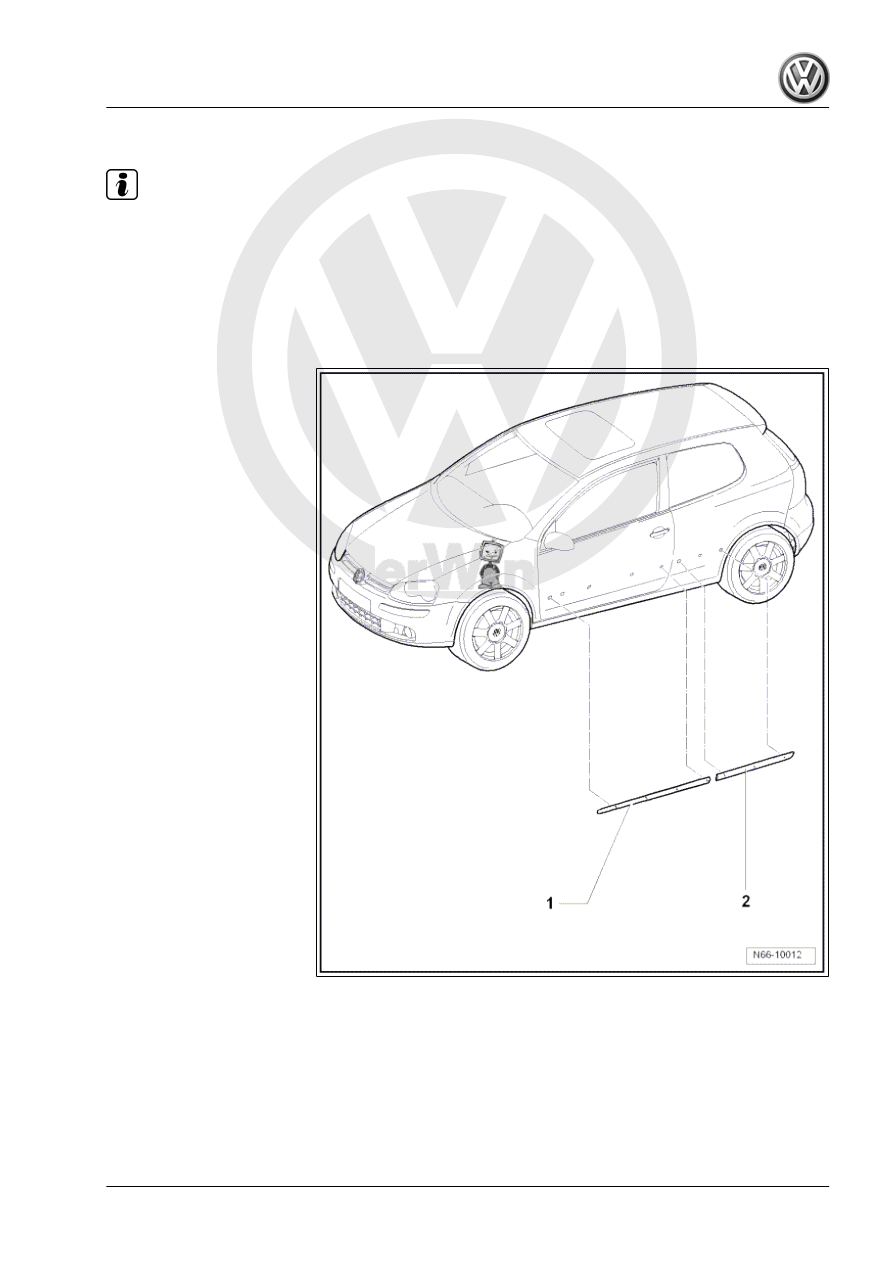

– Before removing, heat protective side strips -1- and -2- with a

hot air blower -V.A.G 1416- and pull protective side strips off.

– Remove existing adhesive residues with adhesive remains re‐

mover -VAS 6349- .

– Immediately before bonding the side protective strips, clean

bonding surface thoroughly with adhesive remover D 002 000

10.

General body repairs, exterior - Edition 04.2008

4. Mouldings and trims

245

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Only remove protective backing from side protective strips

-1- and -2- immediately before fitting.

• Bonding surfaces must be free of dust and grease.
– Position protective side strips -1- and -2- on vehicle and press

on using force.

4.6

Removing and installing stone-chip pro‐

tection trim

4.6.1

Removing

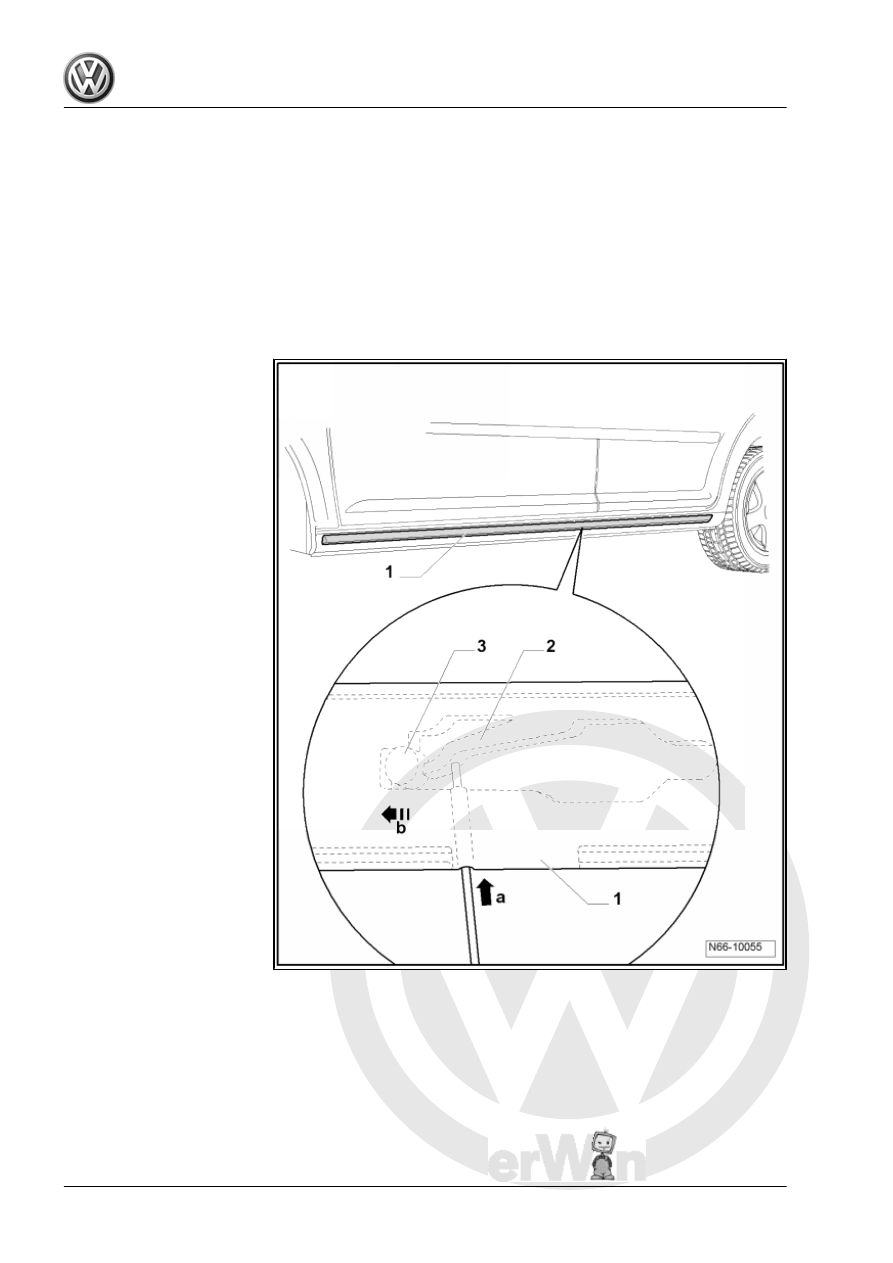

– Guide a small screwdriver through the opening on the bottom

edge of the side trim and release the locking device -2-, by

pressing the screwdriver upwards -arrow a-.

– Slide stone chip protection trim -1- forwards -arrow b- until the

screwdriver contacts the securing screw -3-. Now pull screw‐

driver out. Slide stone-chip protection trim further until the

stone-chip protection trim can be removed from all securing

screws.

General body repairs, exterior - Edition 04.2008

246

     Rep. Gr.66 - Exterior equipment

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.6.2

Installing

Note

The stone-chip protection trim securing screws are corrosion-

resistant. No further secondary treatment is required.

If a screw is overtightened, it is essential to replace it with a

“black” oversize screw.

• There are no pre-drilled holes for the securing screws.
– Measure holes according to the table below.
– Mark holes for securing screws with centre punch.
– Drill out holes with a 1.5 mm drill bit.

General body repairs, exterior - Edition 04.2008

4. Mouldings and trims

247

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Note

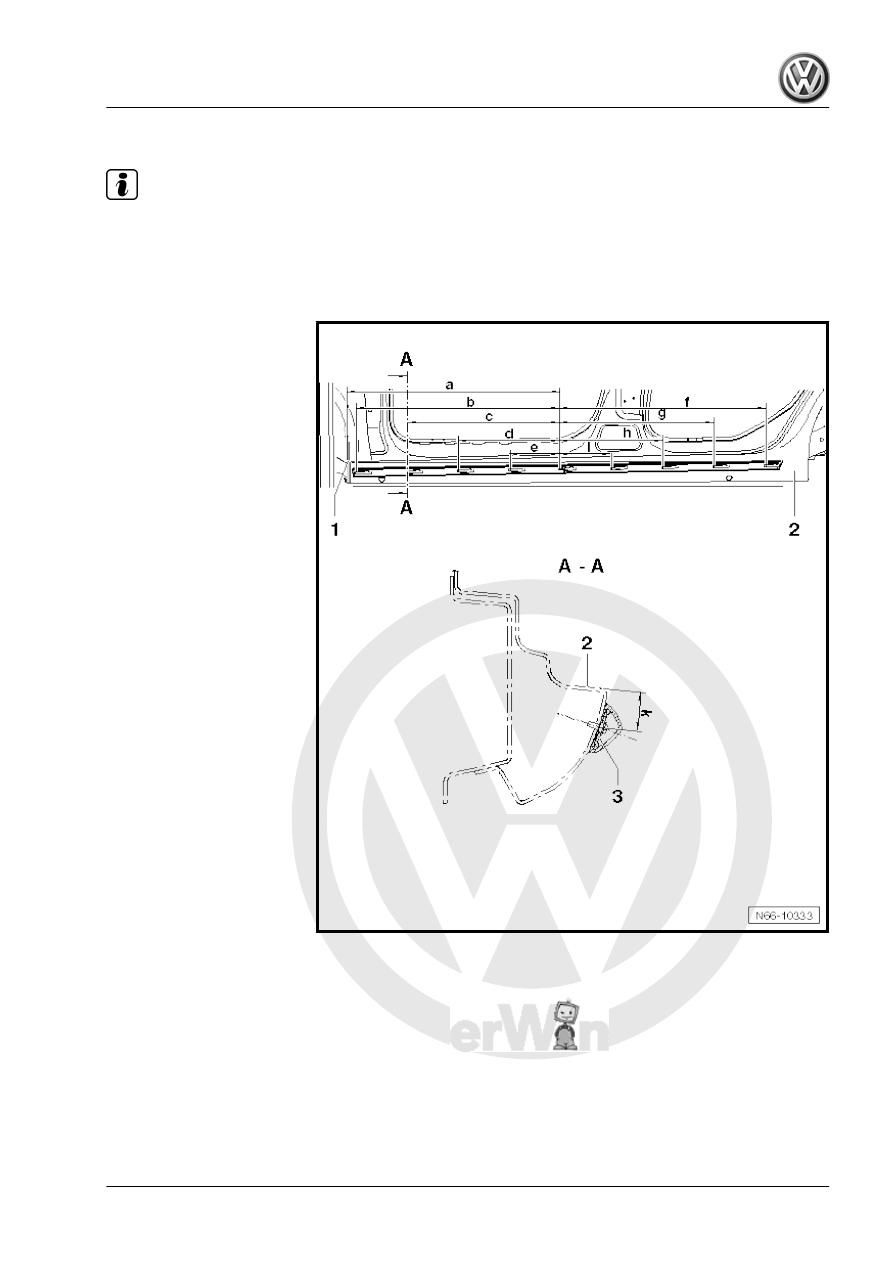

Dimension -a- is measured including wheel housing liner -2-. The other dimensions -b through i- are always

measured from the centres of the holes.

Dimension -k- can only be measured on 4-door vehicles.

For two-door vehicles, determine dimension -k- in height to the front holes.

The table follows.

Dimension -a-

= 855 mm

Dimension -b-

= 822 mm

Dimension -c-

= 617 mm

Dimension -d-

= 411 mm

Dimension -e-

= 205 mm

Dimension -f-

= 205 mm

Dimension -g-

= 411 mm

Dimension -h-

= 617 mm

Dimension -i-

= 822 mm

Dimension -k-

= 35 mm

That was the table.

General body repairs, exterior - Edition 04.2008

248
